Fitment

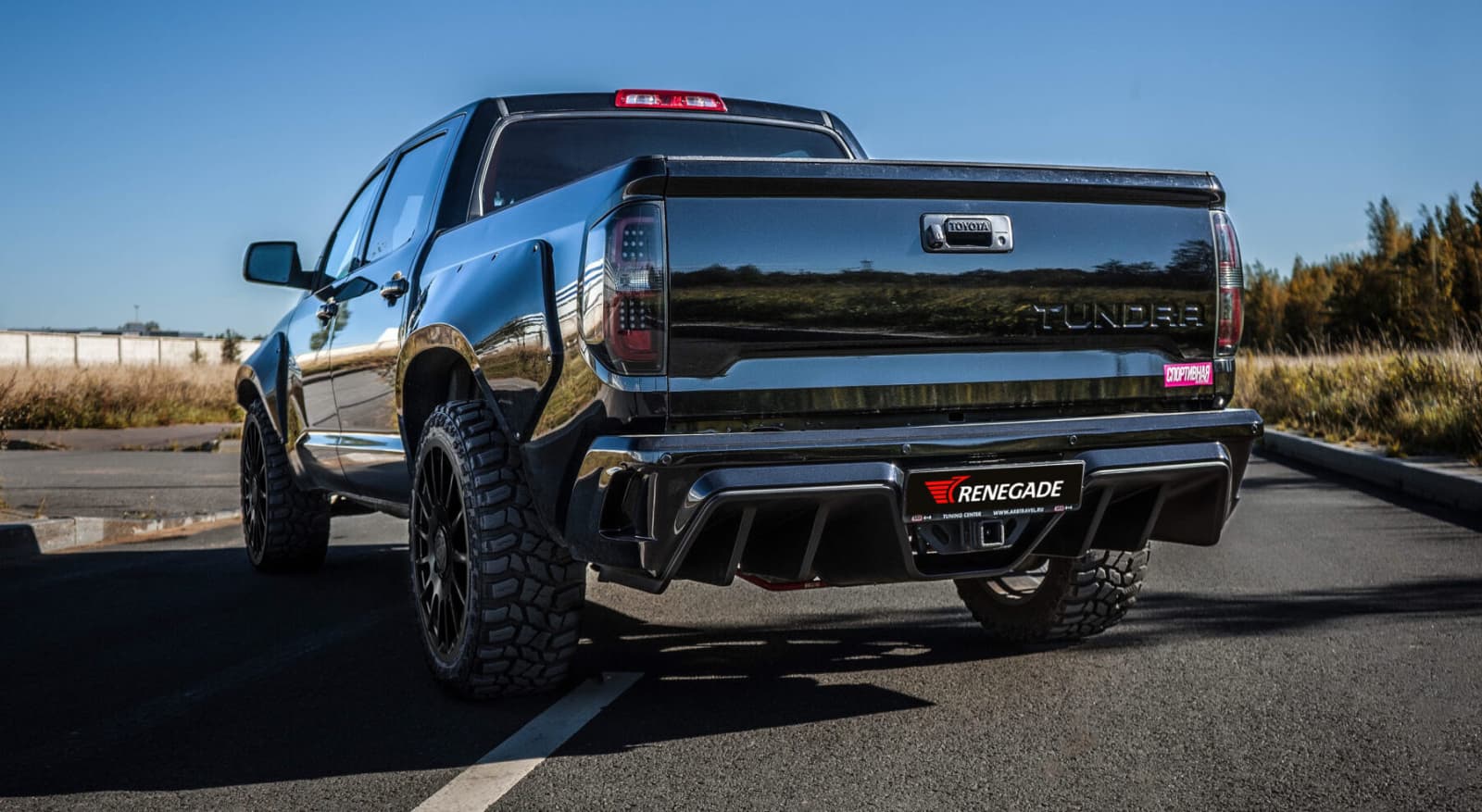

The 2022-onwards Tundra uses 6×139.7 wheels with a high ET60 offset on most trims: 18″ on the SR and SR5, 20″ on the Limited, Platinum and 1794 Edition, 22″ on the Capstone, and an 18″ 8.5J wheel with 285/65 R18 tyres on the TRD Pro. RNG sets keep this high offset, so the wheels sit where Toyota put them.
The Toyota Sequoia from 2023 is built on the same platform and uses the same factory wheel sizes. The Land Cruiser 300 and Lexus LX share the bolt pattern, but we check the hub and brakes before treating them as the same fitment.
| Bolt pattern | 6×139.7 |
|---|---|
| Wheel nuts | M14×1.5, 131 Nm |
| Factory, front and rear | 7.5J×18 ET60, 265/70 R18 · 8J×20 ET60, 265/60 R20 |
| Capstone | 8J×22 ET60, 265/50 R22 |
| TRD Pro | 8.5J×18, 285/65 R18 |
| Same fitment | Toyota Sequoia (2023 onwards) |
| RNG sets for the Tundra | 21–24″, monoblock or multi-piece |
Factory data for the Toyota Tundra XK70, 2022 onwards, petrol and i-FORCE MAX hybrid. Widths, offsets and tyres for your set come in the fitment sheet with the quote.
What is the bolt pattern of the Toyota Tundra?
The 2022-onwards Tundra uses 6×139.7 with M14×1.5 wheel nuts tightened to 131 Nm. RNG wheels are machined to the hub of your truck and checked against it before production.
What size wheels does the Tundra have from the factory?
7.5J×18 ET60 with 265/70 R18 and 8J×20 ET60 with 265/60 R20 on most trims, 8J×22 ET60 with 265/50 R22 on the Capstone, and 8.5J×18 with 285/65 R18 on the TRD Pro. Every Tundra is square: the same wheel at the front and the rear.
Will Tundra wheels fit the Toyota Sequoia?
Yes. The Sequoia from 2023 shares the Tundra platform, the 6×139.7 pattern and the ET60 factory wheels in 18″, 20″ and 22″, so one RNG set can be drawn for either. The older 2007–2021 Tundra uses a 5×150 bolt pattern and is not the same fitment.
Can the Tundra run 22″ or 24″ wheels?
Yes. 22″ is a factory size on the Capstone, and 24″ works with lower-profile light-truck tyres at a similar overall diameter. Because the factory offset is high, we draw the barrel so the tyres clear the suspension and the wheel-well liners at full steering lock.
Can I tow with forged wheels on the Tundra?
Yes. The Tundra is rated to tow up to about 5,400 kg (12,000 lb) depending on configuration, so we draw every set for the weight of the truck plus the trailer and the payload. The load rating of each wheel is stated in the fitment sheet.
How long does a set for the Tundra take, and what does it cost?
Production takes 10–20 days after you approve the design and the fitment sheet, then we ship to your country. Sets start from $4,940 for four wheels; 23″ and 24″ sets and multi-piece construction cost more.

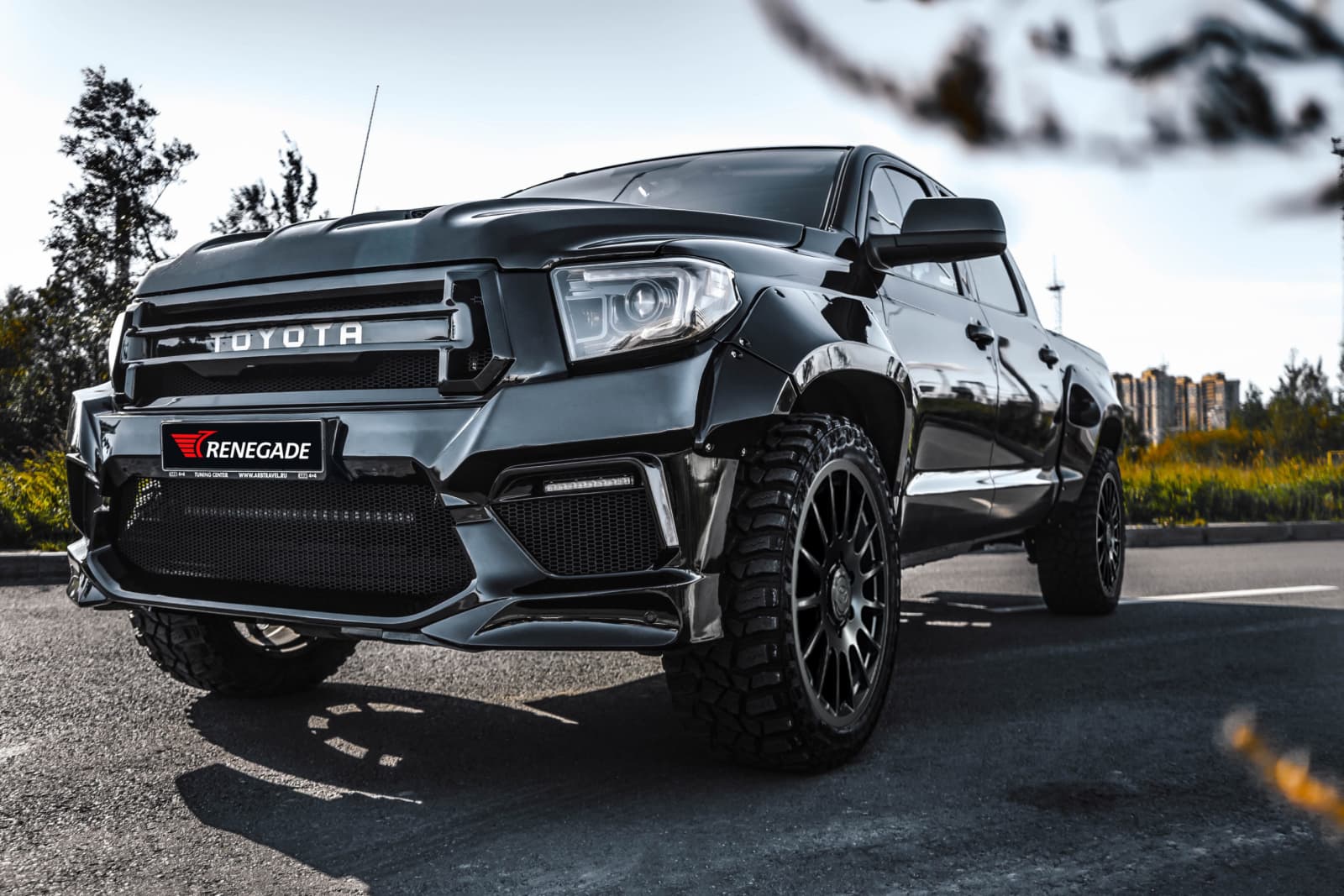

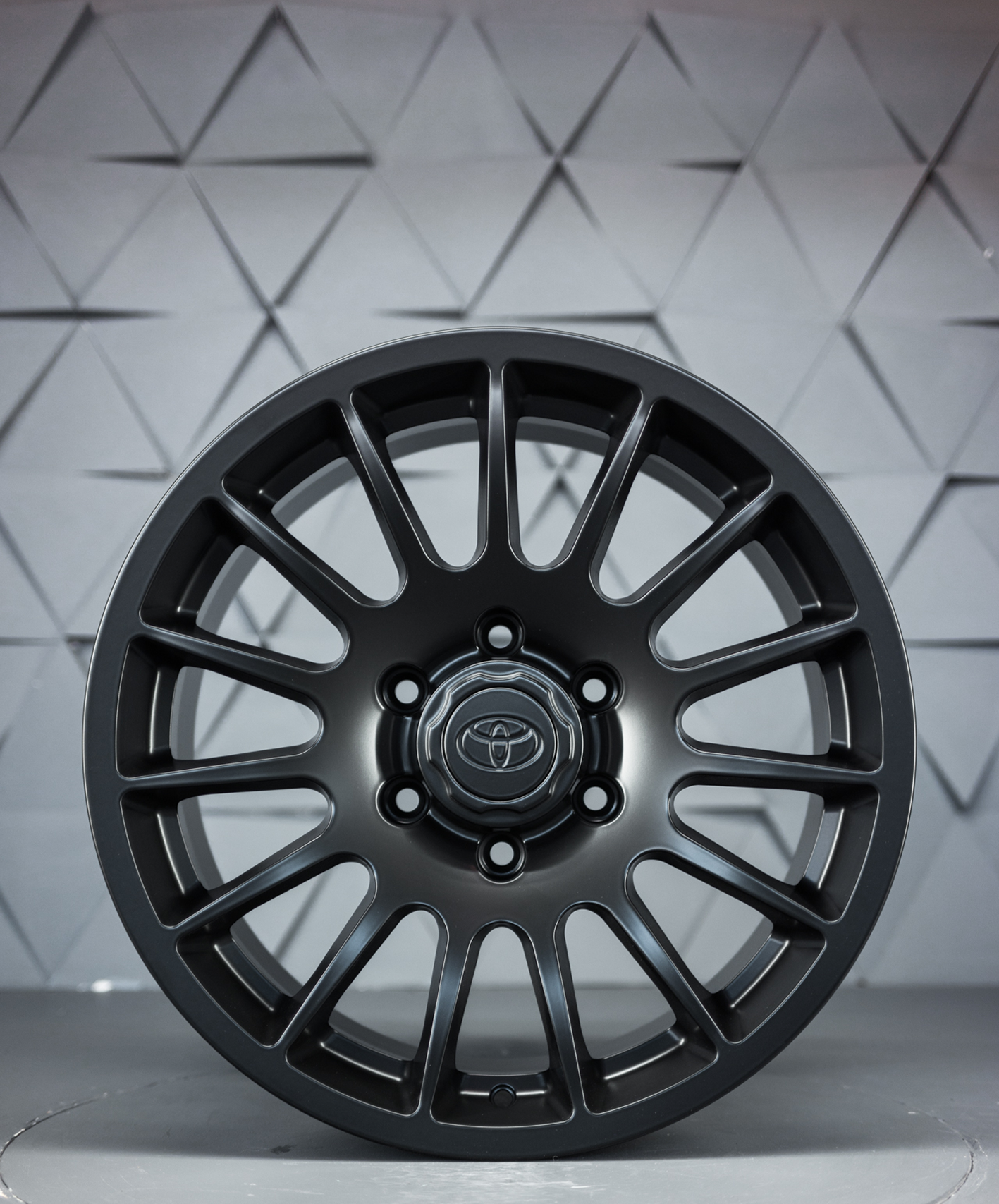

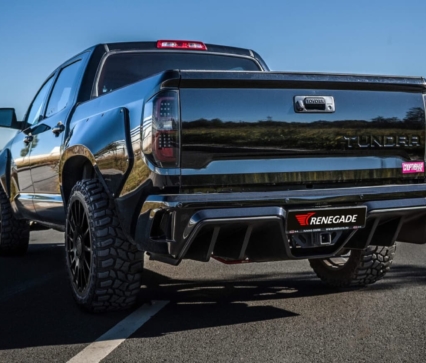

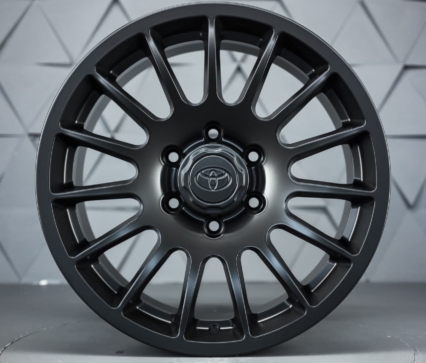

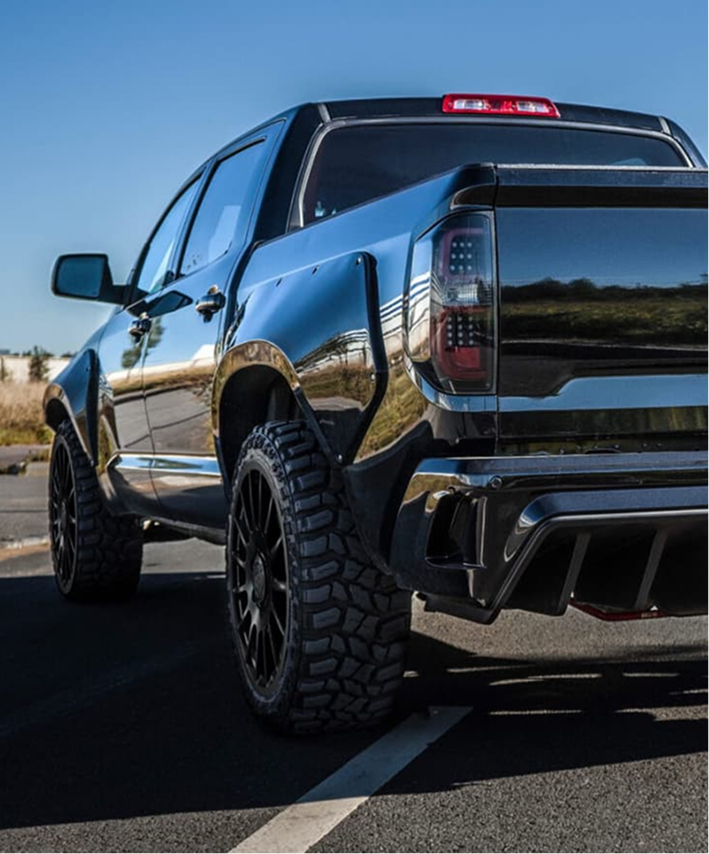

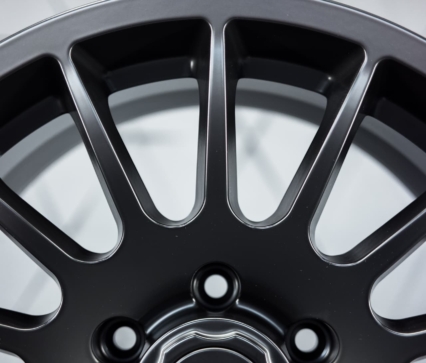

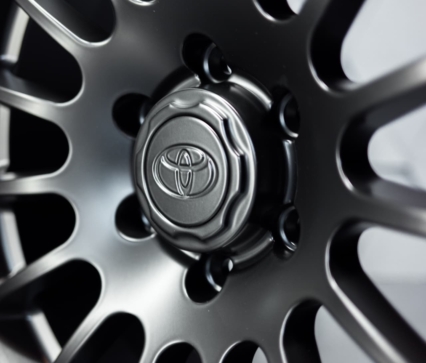

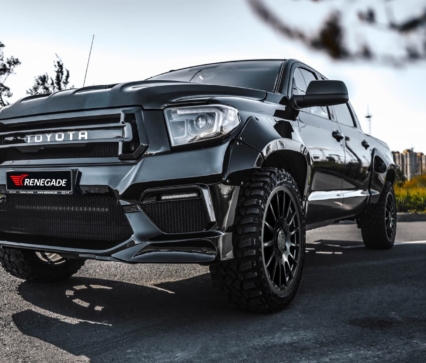

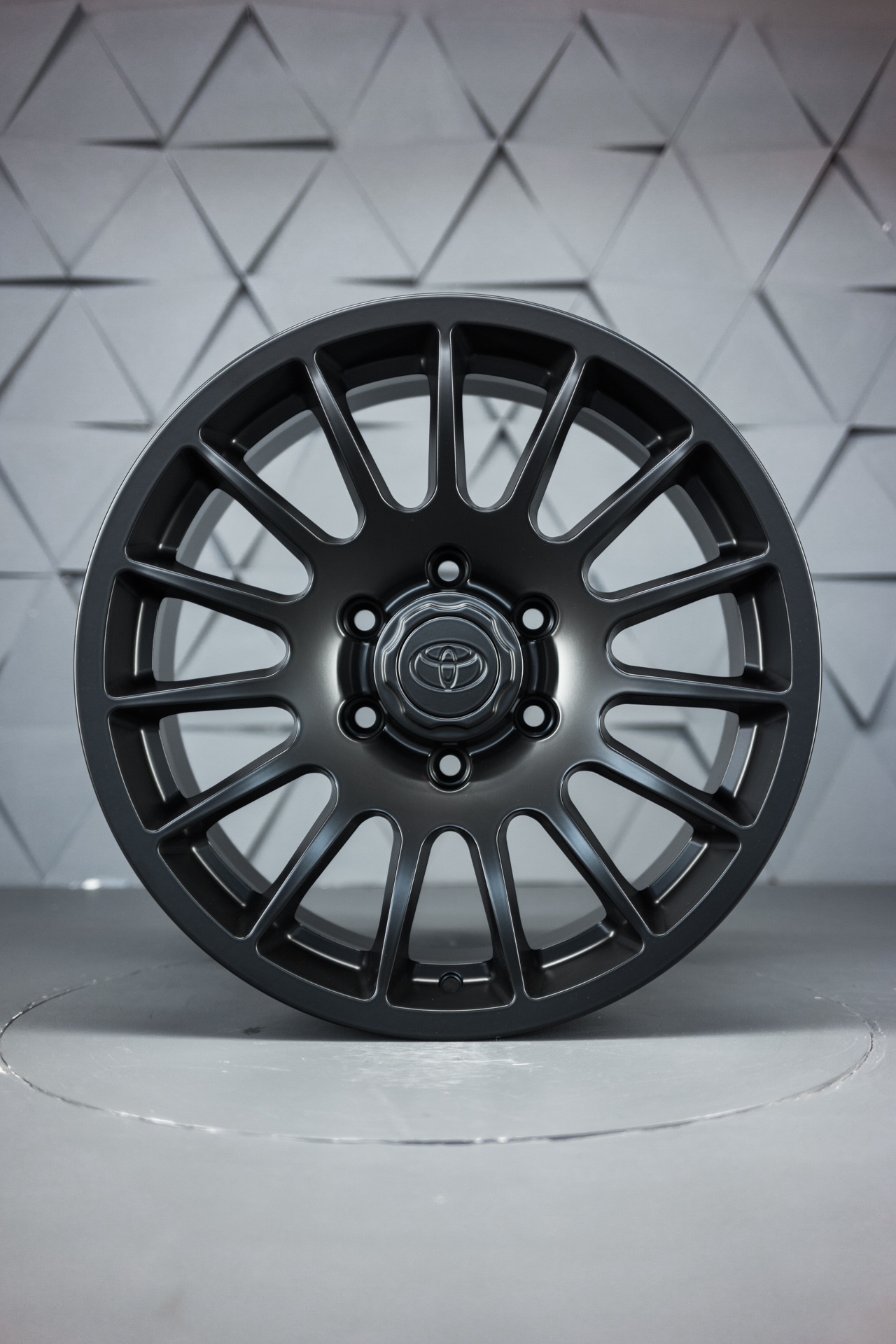

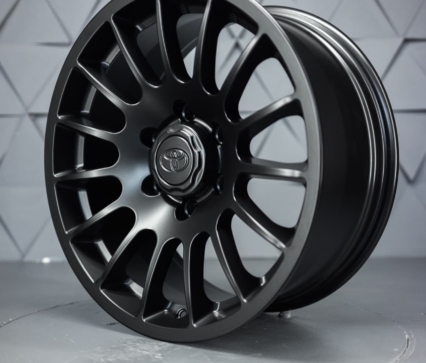

Forged wheels for Toyota Tundra are forged in-house by RNG Design from aviation-grade aluminium for the Toyota Tundra, 2022–present, in sizes 21″, 22″, 23″, 24″. Weight per wheel: 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg. Every set uses the car's original bolt pattern and offset, and comes in 18 finishes, from brushed and matte to gloss, bronze, gunmetal and crystal tones. Price from $4,940 per set of four (USD, delivery not included); single wheels can be ordered. A set is made in 10–20 days; RNG Design ships worldwide and partner dealers handle fitting. The wheels match the body kit for Toyota Tundra.
| Specification | Value |
|---|---|
| Wheels | Forged wheels for Toyota Tundra |
| Fits | Toyota Tundra, 2022–present |
| Sizes | 21″, 22″, 23″, 24″ |
| Weight per wheel | 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg |
| Material | forged aviation-grade aluminium, made in-house |
| Finishes | 18: brushed, matte, gloss, bronze, gunmetal, crystal and gold tones |
| Price | from $4,940 per set of four (USD, delivery not included) |
| Lead time | 10–20 days per set |
| Fitment | original bolt pattern and offset, no spacers |
Elevate your Toyota Tundra experience with Renegade Design’s custom forged wheels. These wheels are more than just an upgrade; they are a testament to the Tundra’s blend of durability, performance, and style. Advanced Forging for Enhanced Performance Using state-of-the-art forging technology, Renegade Design crafts wheels that are both lighter and stronger than traditional alloys. This advantage is crucial for the Toyota Tundra, a truck known for its toughness and reliability. The reduced weight enhances handling and efficiency, crucial for both on-road and off-road performance, while the increased strength ensures the wheels withstand the rigors of heavy-duty use. Lifetime Warranty: A Promise of Lasting Quality Our commitment to exceptional craftsmanship is underscored by a lifetime warranty on our forged wheels. This warranty is a testament to our confidence in their durability and quality, offering you assurance in the long-term performance of our product. Customization: Tailored to the Tundra’s Boldness The Toyota Tundra is a symbol of strength and capability, and our wheels are designed to complement this character. With a wide range of custom designs and colors, you can personalize your wheels to match the Tundra’s bold and rugged aesthetic. Whether aiming for a sleek, understated look or a more aggressive style, our options cater to every preference, enhancing the unique personality of your truck. Enhancing the Tundra’s Capability The Tundra is known for its reliable performance and versatility, and our forged wheels are engineered to augment these traits. They improve the vehicle’s handling and stability, while adding a visually captivating dimension to its appearance. The design of our wheels is carefully crafted to align with the Tundra’s powerful lines, reinforcing its commanding presence. Global Shipping: Delivering Strength Worldwide Understanding the international popularity of the Toyota Tundra, Renegade Design offers worldwide shipping. Our efficient and secure shipping process ensures that your custom wheels are delivered safely and promptly, ready to transform your Tundra’s performance and style. Precision and Strength Combined Each wheel from Renegade Design is a product of our dedication to precision and rugged elegance. By employing the finest materials and the latest wheel technology, we ensure that each wheel not only fits the Toyota Tundra perfectly but also enhances its overall presence. Our wheels are a perfect blend of functionality and style, designed to elevate the driving experience of this dependable truck. Renegade Design’s custom forged wheels for the Toyota Tundra offer the perfect upgrade in performance, resilience, and personal style. These wheels are essential for Tundra owners who value the perfect harmony of robust capability and distinctive elegance. Order now and transform your Toyota Tundra into an even more impressive and capable vehicle.
