Fitment
The RS4 B9 runs a square set of 9J×19 ET24 with 265/35 R19, or 9J×20 ET26 with 275/30 R20 as the option. The wide RS track needs lower offsets than an A4 or S4, so RNG sets for the RS4 are drawn at around ET24–26, not taken from the A4 range.
The RS5 Coupé and the RS5 Sportback F5 use the same 9J wheels and offsets, so one fitment sheet covers all three RS bodies.
| Bolt pattern | 5×112 |
|---|---|
| Centre bore | 66.5 mm, hub-centric |
| Wheel bolts | M14×1.5 |
| Factory front | 9J×19 ET24, 265/35 R19 |
| Factory rear | Same as front, square set |
| Factory options | 9J×20 ET26, 275/30 R20 · winter 8J×19 ET26, 235/40 R19 |
| Same fitment | RS5 Coupé F5, RS5 Sportback F5 |
| RNG sets for the RS4 | 20–21″, monoblock or multi-piece |
Factory data for the RS4 Avant B9 with the 2.9 TFSI. Width, offset and tyres for your car come in the fitment sheet with the quote.
What is the bolt pattern of the Audi RS4 B9?
The RS4 B9 uses 5×112 with a 66.5 mm centre bore and M14×1.5 wheel bolts. RNG wheels are machined to this bore, so the set is hub-centric and runs without spacers or rings.
What wheel size does the RS4 B9 have from the factory?
The standard size is 9J×19 ET24 with 265/35 R19 on all four corners. The option is 9J×20 ET26 with 275/30 R20, and for winter Audi lists 8J×19 ET26 with 235/40 R19.
Will RS4 wheels fit the RS5?
Yes. The RS5 Coupé and RS5 Sportback of the F5 generation share the hub, the 9J width and the ET24–26 offsets with the RS4 B9. Wheels from an A4, A5 or S4 sit at ET29–34 and look tucked in on the RS4; we draw RS sets at the RS offset.
Can the RS4 run 21″ wheels?
Yes. 20″ is the factory maximum, and 21″ works with 30-series or 25-series tyres of about 275 width. We keep the rolling diameter close to stock so the quattro sport differential and the speedometer stay correct.
Do the wheels clear the RS4 ceramic brakes?
The RS4 has steel brakes with 375 mm front discs as standard and optional ceramic brakes with 400 mm front discs. We check the set against your brake package, and the spoke profile is drawn with clearance to the calipers; the check is in the fitment sheet.
How long does a set for the RS4 take, and what does it cost?
Production takes 10–20 days after you approve the design and the fitment sheet, then we ship to your country. Sets start from $4,940 for four wheels; the price depends on diameter, construction and finish.

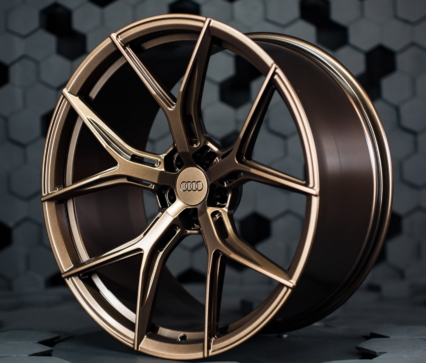

Forged wheels for Audi RS4 B9 are forged in-house by RNG Design from aviation-grade aluminium for the Audi RS4 B9, in sizes 21″, 22″, 23″, 24″. Weight per wheel: 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg. Every set uses the car's original bolt pattern and offset, and comes in 18 finishes, from brushed and matte to gloss, bronze, gunmetal and crystal tones. Price from $4,940 per set of four (USD, delivery not included); single wheels can be ordered. A set is made in 10–20 days; RNG Design ships worldwide and partner dealers handle fitting.
| Specification | Value |
|---|---|
| Wheels | Forged wheels for Audi RS4 B9 |
| Fits | Audi RS4 B9 |
| Sizes | 21″, 22″, 23″, 24″ |
| Weight per wheel | 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg |
| Material | forged aviation-grade aluminium, made in-house |
| Finishes | 18: brushed, matte, gloss, bronze, gunmetal, crystal and gold tones |
| Price | from $4,940 per set of four (USD, delivery not included) |
| Lead time | 10–20 days per set |
| Fitment | original bolt pattern and offset, no spacers |
Experience a new level of driving dynamics with Renegade Design’s custom forged wheels for the Audi RS4 B9. Designed for enthusiasts who seek performance and style, our wheels are the perfect upgrade for this iconic sports car. The Superiority of Forged Wheels Renegade Design’s forged wheels surpass standard alloy wheels in both durability and performance. The forging process involves high-pressure shaping, resulting in a wheel that is denser and stronger. This means lighter, more resilient wheels that enhance the Audi RS4 B9’s handling, agility, and overall driving experience. Lifetime Warranty: Assurance of Excellence We stand by the quality of our products with a lifetime warranty on our forged wheels. This coverage for manufacturing defects is our promise of reliability and customer satisfaction. Customization for Individuality The Audi RS4 B9 is a statement of performance and elegance, and it deserves wheels that complement its character. Choose from our wide selection of custom designs and colors to find the perfect match for your vehicle and personal taste. Global Reach: Worldwide Shipping Understanding the worldwide appeal of the Audi RS4 B9, Renegade Design is proud to offer worldwide shipping. Our efficient delivery process ensures that your bespoke wheels reach you safely and quickly, wherever you may be. The Audi RS4 B9 is more than just a car; it’s a symbol of automotive prowess. With Renegade Design’s forged wheels, enhance its sporty aesthetic and performance, making your RS4 B9 a true reflection of your driving passion. Order now and start the journey towards a more thrilling and personalized driving experience.
