Fitment
Every M8 leaves the factory on 20″ wheels with the same ET28 on both axles: 9.5J×20 with 275/35 R20 at the front and 10.5J×20 with 285/35 R20 at the rear. Coupé, Convertible and Gran Coupé share this fitment, so an RNG set is drawn once and checked against the brake package and body of your car.
The M5 F90, M5 Competition and M5 CS use the same hub and the same 20″ factory wheels, so M8 and M5 F90 sets are interchangeable.
| Bolt pattern | 5×112 |
|---|---|
| Centre bore | 66.6 mm, hub-centric |
| Wheel bolts | M14×1.25, 140 Nm |
| Factory front | 9.5J×20 ET28, 275/35 R20 |
| Factory rear | 10.5J×20 ET28, 285/35 R20 |
| Smaller option | 19″: 9.5J×19 ET28, 265/40 R19 + 10.5J×19 ET28, 285/40 R19 |
| Same fitment | M8 Coupé F92, M8 Convertible F91, M8 Gran Coupé F93, M5 F90 incl. Competition and CS |
| RNG sets for the M8 | 20–22″, staggered, monoblock or multi-piece |
Factory data for the M8 and M8 Competition F91/F92/F93, 2019 onwards including the 2022 LCI. Your exact widths, offsets and tyres come in the fitment sheet with the quote.
What is the bolt pattern of the BMW M8?
Every M8 (F91, F92, F93) uses 5×112 with a 66.6 mm centre bore and M14×1.25 wheel bolts tightened to 140 Nm. RNG wheels are machined to this bore, so the set is hub-centric and needs no spacers or centring rings.
What wheel size does the M8 have from the factory?
20″ staggered on every body: 9.5J×20 ET28 with 275/35 R20 at the front and 10.5J×20 ET28 with 285/35 R20 at the rear. A 19″ set with 265/40 R19 and 285/40 R19 on the same offsets is listed for winter use.
Do M8 wheels fit the M5 F90, and do they fit all three M8 bodies?
Yes to both. The M8 Coupé F92, Convertible F91 and Gran Coupé F93 share one fitment, and the M5 F90, M5 Competition and M5 CS use the same hub and 20″ factory wheels. A set can move between these cars; we only re-check brake clearance if the brake package differs.
Can the M8 run 21″ or 22″ wheels?
Yes. A 21″ set with 275/30 R21 at the front and 295/30 R21 at the rear stays within half a percent of the factory rolling diameter. 22″ is possible with 30-profile tyres; we check it against your car before production.
Will 21″ wheels make the M8 Gran Coupé ride harder?
A little, because the tyre sidewall gets lower: from 35 to 30 profile. The adaptive M suspension handles it well, and a lighter forged wheel reduces unsprung mass, which partly offsets the stiffer tyre. For long trips 20″ remains the most comfortable size.
How long does a set for the M8 take, and what does it cost?
Production takes 10–20 days after you approve the design and the fitment sheet, then we ship to your country. Sets start from $4,940 for four wheels; the price depends on diameter, construction and finish.

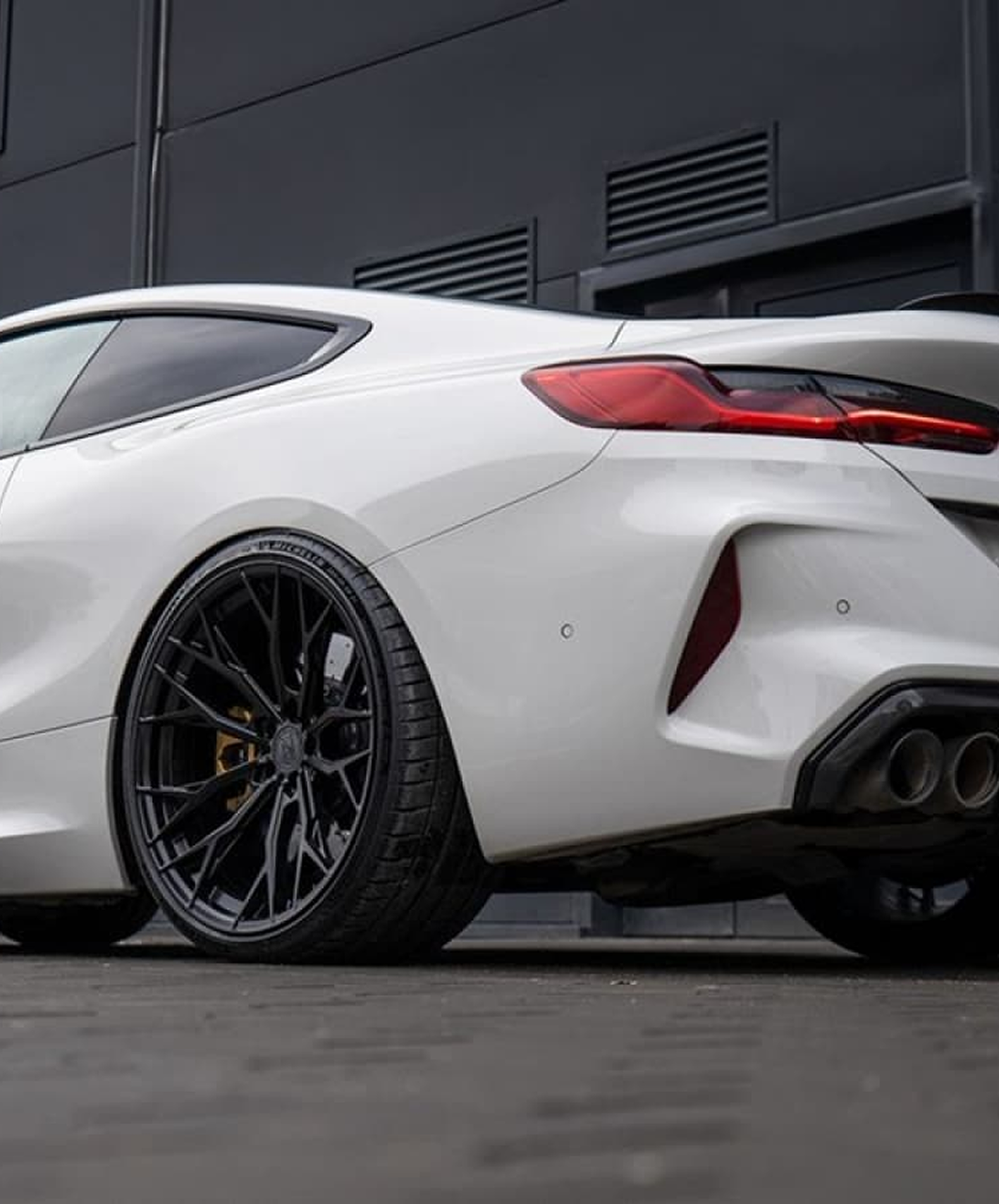

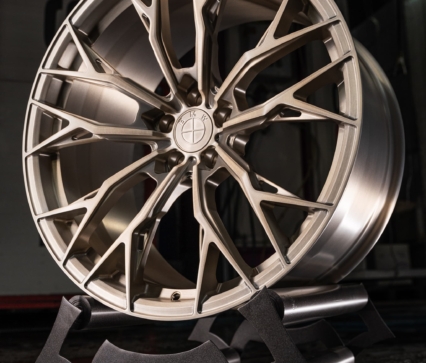

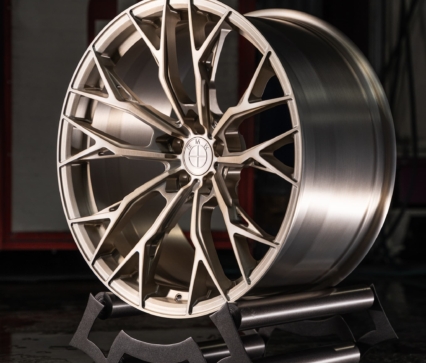

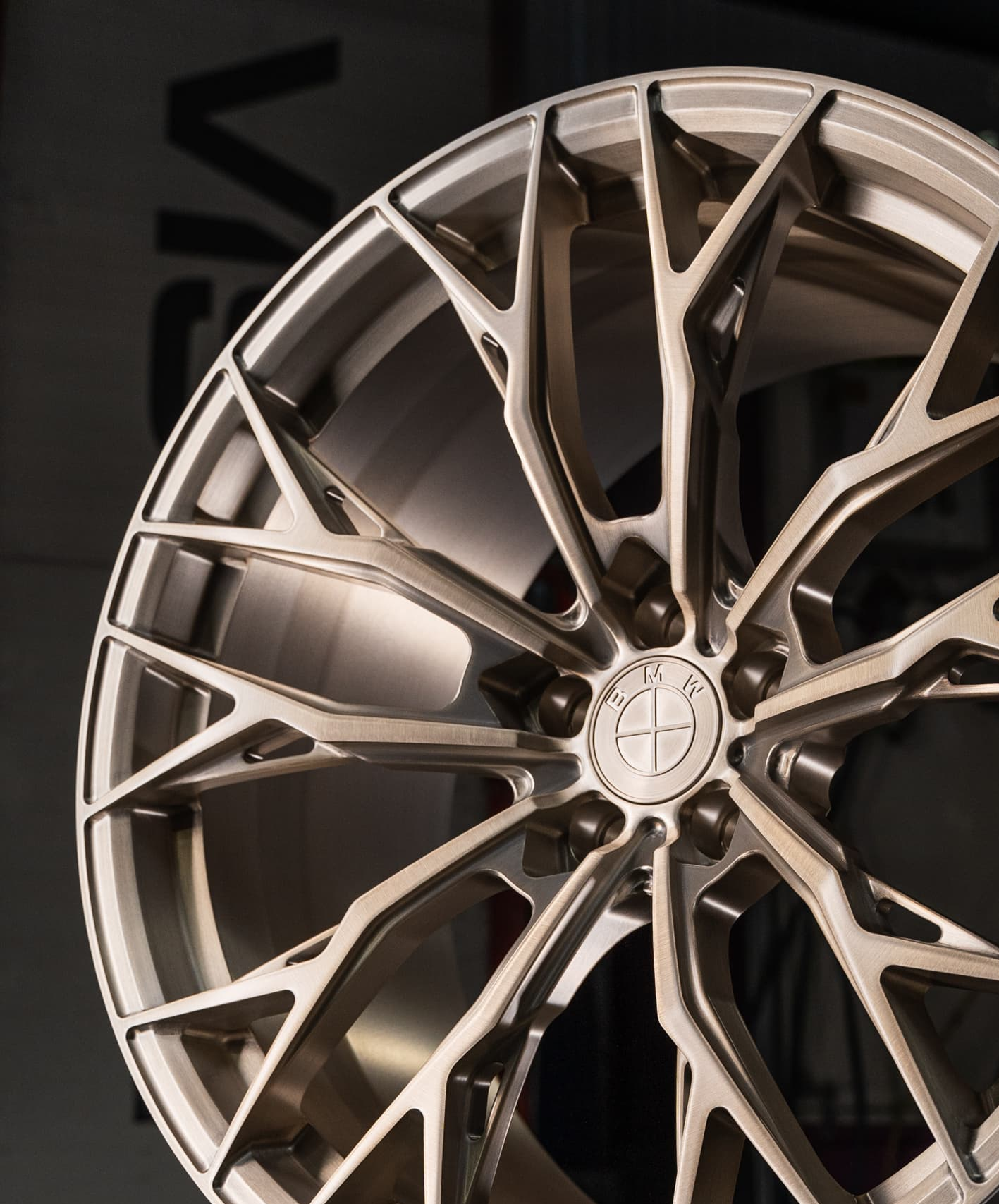

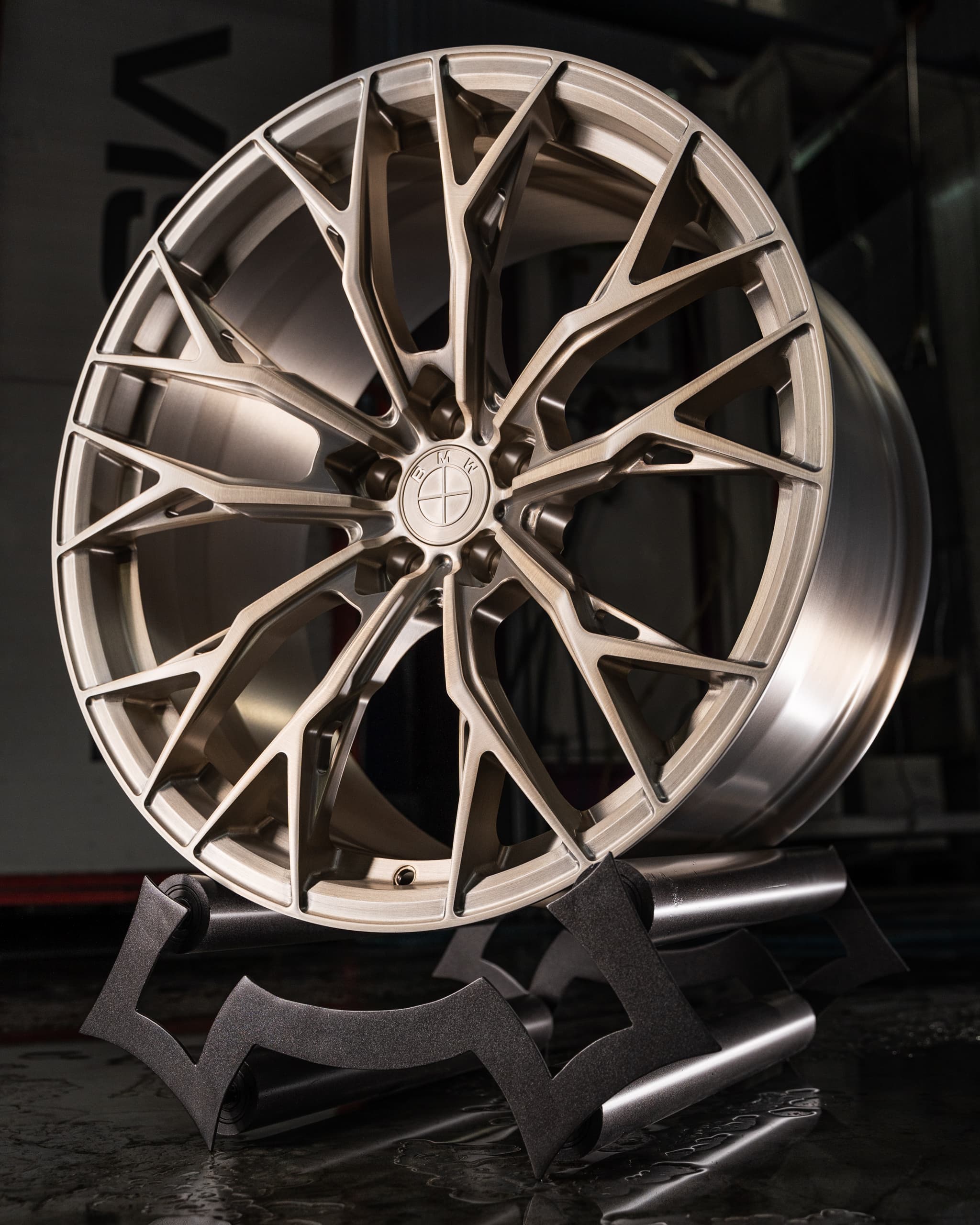

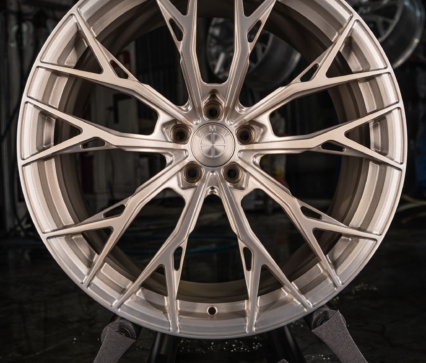

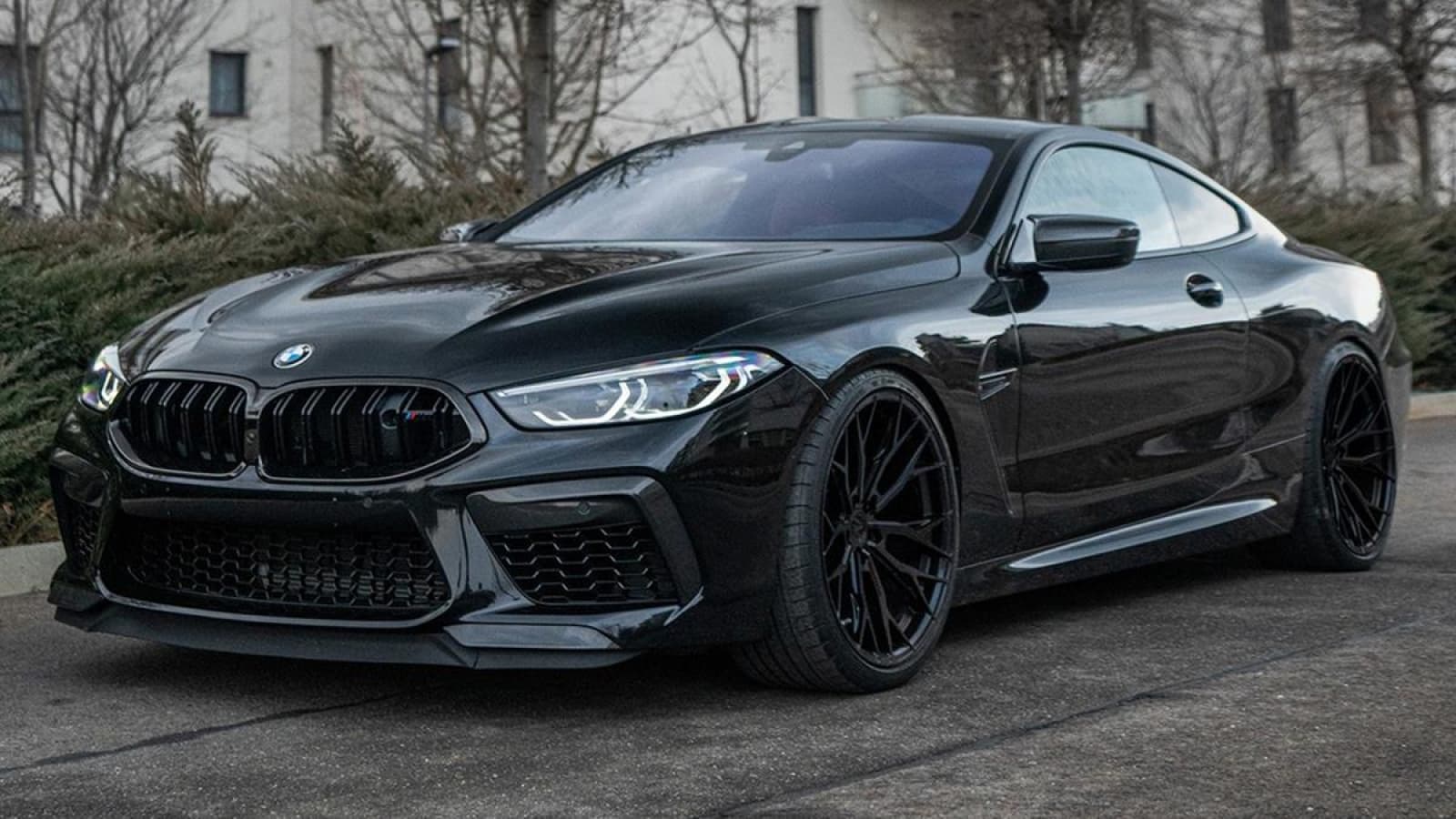

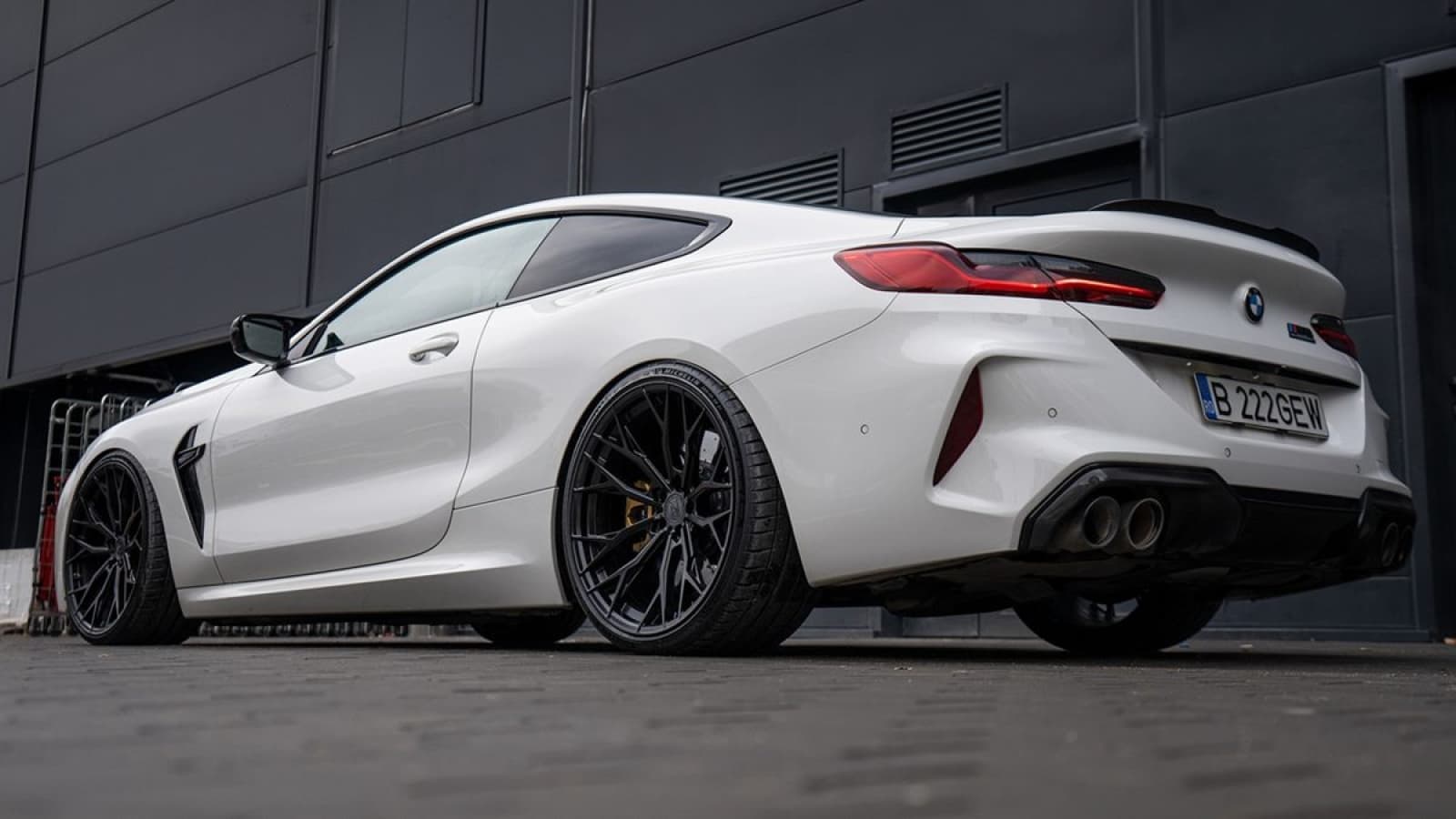

Forged wheels for BMW M8 are forged in-house by RNG Design from aviation-grade aluminium for the BMW M8, in sizes 21″, 22″, 23″, 24″. Weight per wheel: 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg. Every set uses the car's original bolt pattern and offset, and comes in 18 finishes, from brushed and matte to gloss, bronze, gunmetal and crystal tones. Price from $4,940 per set of four (USD, delivery not included); single wheels can be ordered. A set is made in 10–20 days; RNG Design ships worldwide and partner dealers handle fitting.
| Specification | Value |
|---|---|
| Wheels | Forged wheels for BMW M8 |
| Fits | BMW M8 |
| Sizes | 21″, 22″, 23″, 24″ |
| Weight per wheel | 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg |
| Material | forged aviation-grade aluminium, made in-house |
| Finishes | 18: brushed, matte, gloss, bronze, gunmetal, crystal and gold tones |
| Price | from $4,940 per set of four (USD, delivery not included) |
| Lead time | 10–20 days per set |
| Fitment | original bolt pattern and offset, no spacers |
Step into the world of unparalleled performance and luxury with Renegade Design’s custom forged wheels for the BMW M8. These wheels are more than just enhancements; they are integral to the M8’s ethos of combining high-speed performance with exquisite craftsmanship. Superior Forging for Optimal Performance Employing state-of-the-art forging technology, Renegade Design creates wheels that are lighter and stronger than conventional alloy wheels. This is crucial for the BMW M8, a vehicle that sets standards in both luxury and high-performance driving. The lighter weight improves handling and responsiveness, key for the M8’s sporty nature, while the increased strength ensures durability, essential for the rigors of performance driving. Lifetime Warranty: Assurance of Excellence We provide a lifetime warranty on our forged wheels, underscoring our dedication to top-tier quality and enduring performance. This warranty, covering manufacturing defects, is our assurance of the highest standards, giving you confidence in the long-term performance and reliability of our product. Customization: Echoing the M8’s Sophistication The BMW M8 is a masterpiece of automotive engineering, and our wheels are designed to complement this luxury sports car. With a wide variety of custom designs and colors, you can personalize your wheels to match the M8’s sleek and aggressive styling. Whether you prefer a look of understated elegance or a bold statement, our customization options cater to every individual style, enhancing the distinctive character of your BMW. Elevating the BMW M8 Experience Known for its exceptional speed and refined design, the M8 deserves wheels that enhance these attributes. Our forged wheels improve the vehicle’s handling and stability, adding a visually stunning element to its appearance. The design of our wheels is carefully crafted to align with the M8’s aerodynamic lines, reinforcing its status as a top-tier performance vehicle. Global Shipping: Bringing Performance to Your Doorstep Recognizing the international acclaim of the BMW M8, Renegade Design offers worldwide shipping. Our efficient and secure shipping process ensures that your custom wheels are delivered safely and promptly, ready to redefine your M8’s performance and style. A Blend of Art and Performance Each wheel from Renegade Design is a result of our passion for artistry and performance. Using the finest materials and the latest wheel technology, we ensure that each wheel not only fits the BMW M8 perfectly but also enhances its overall persona. Our wheels are a perfect fusion of design and functionality, crafted to elevate the driving experience of this iconic sports car. Conclusion Renegade Design’s custom forged wheels for the BMW M8 offer the perfect enhancement in performance, style, and individual expression. These wheels are essential for M8 owners who value the blend of speed, luxury, and distinctive style. Order now and transform your BMW M8 into an even more impressive and dynamic vehicle.
