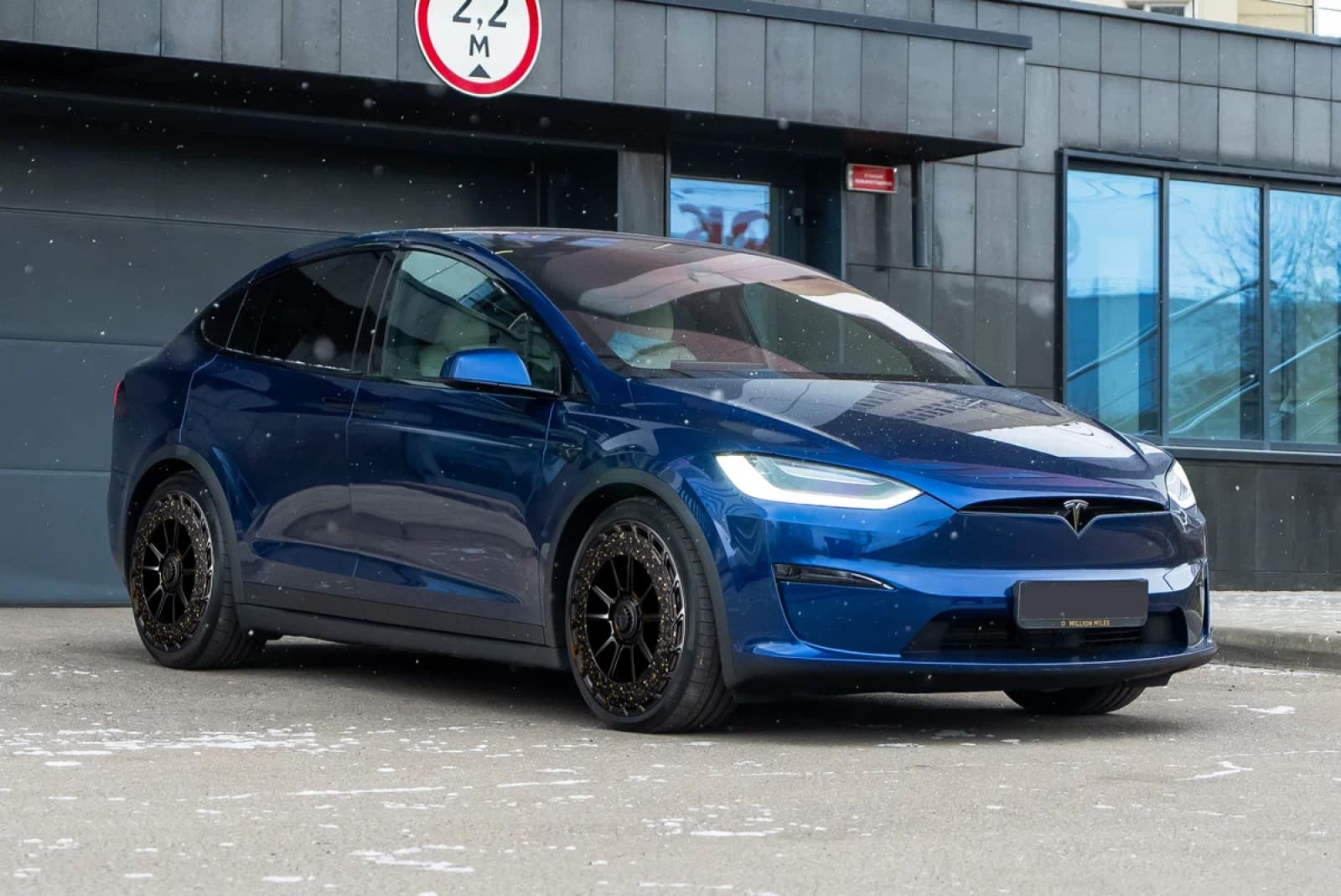

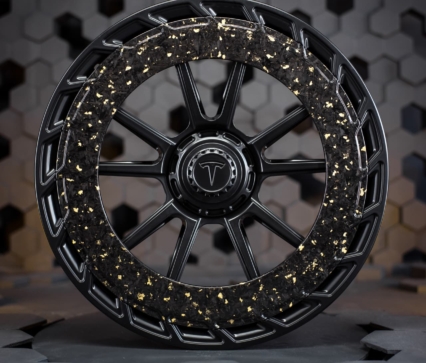

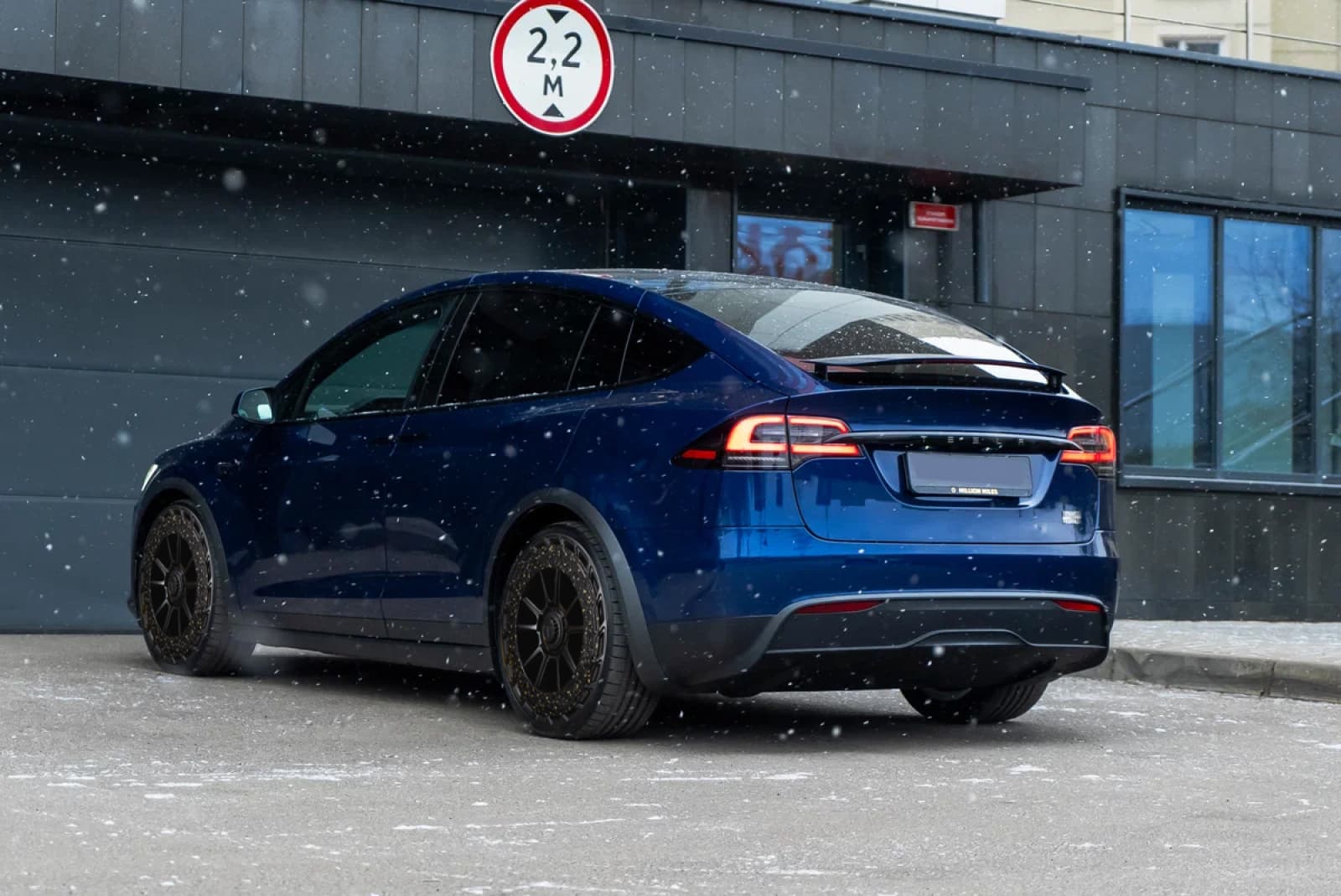

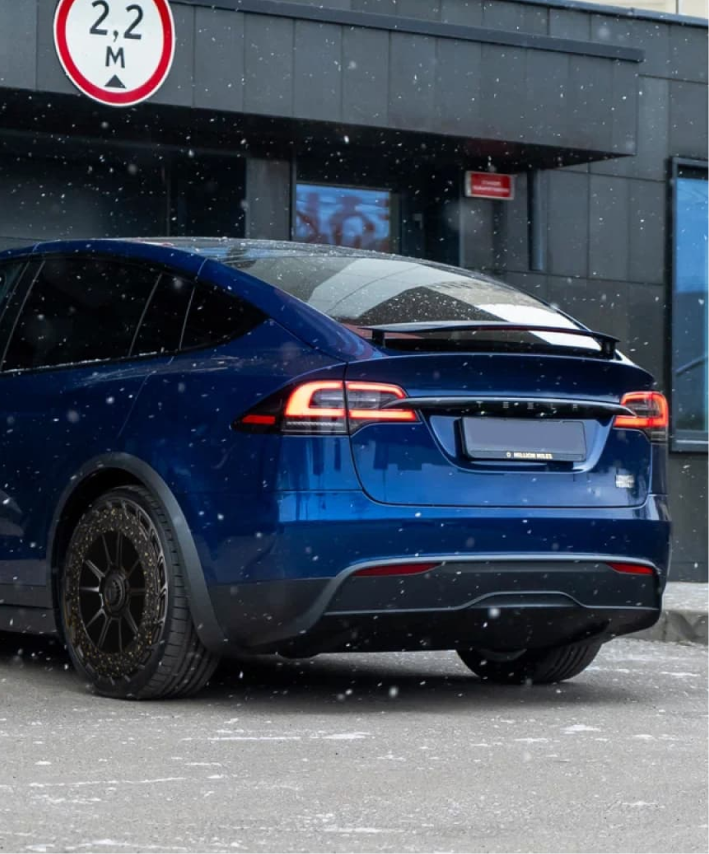

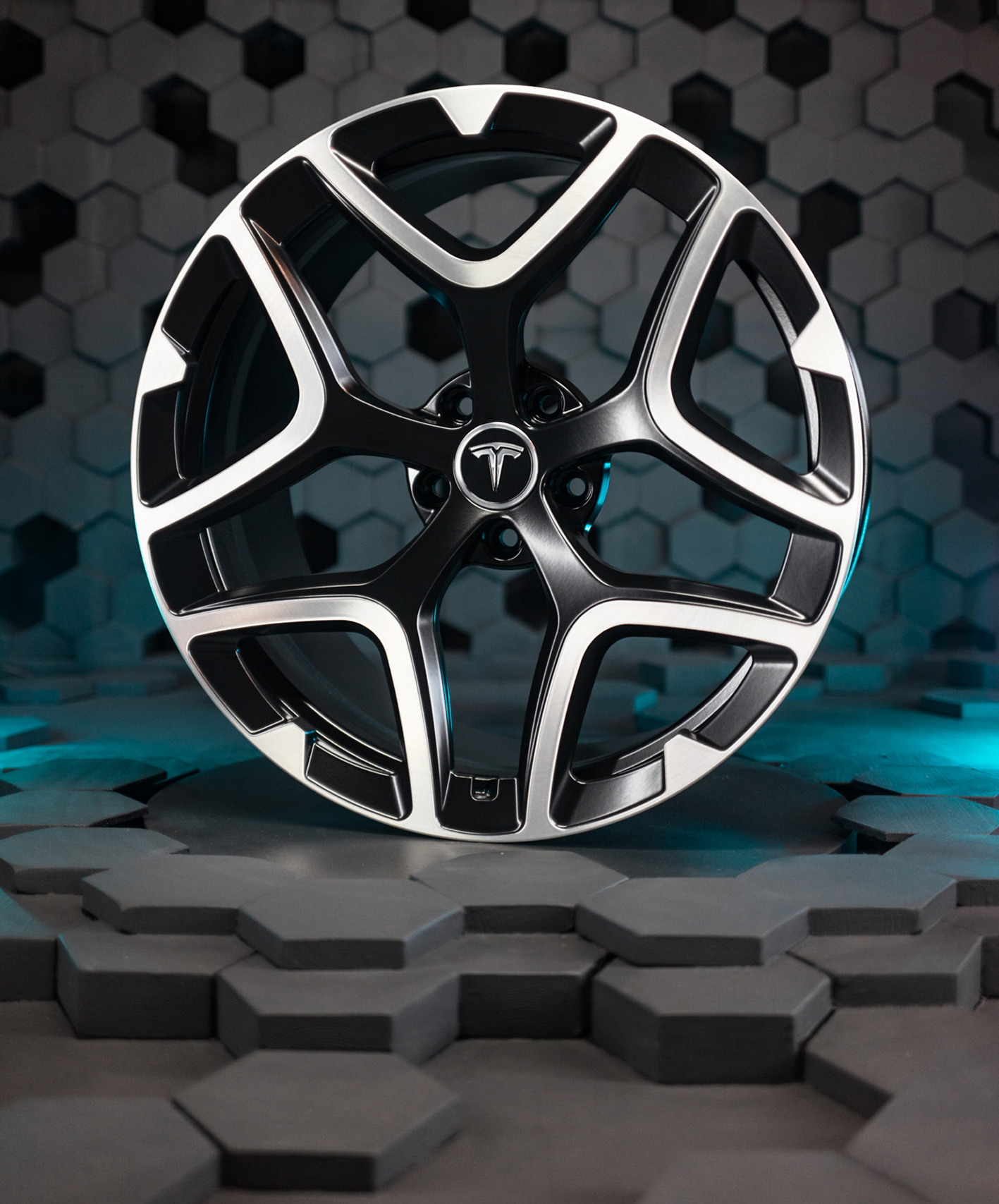

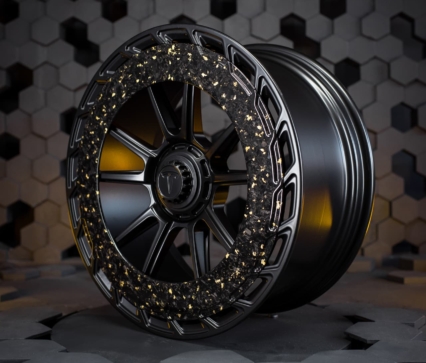

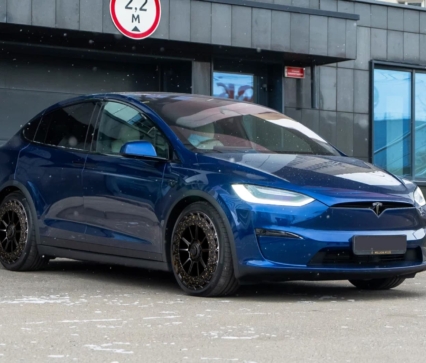

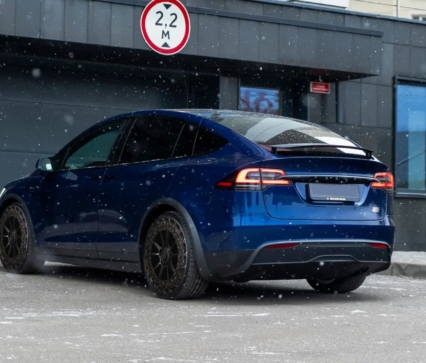

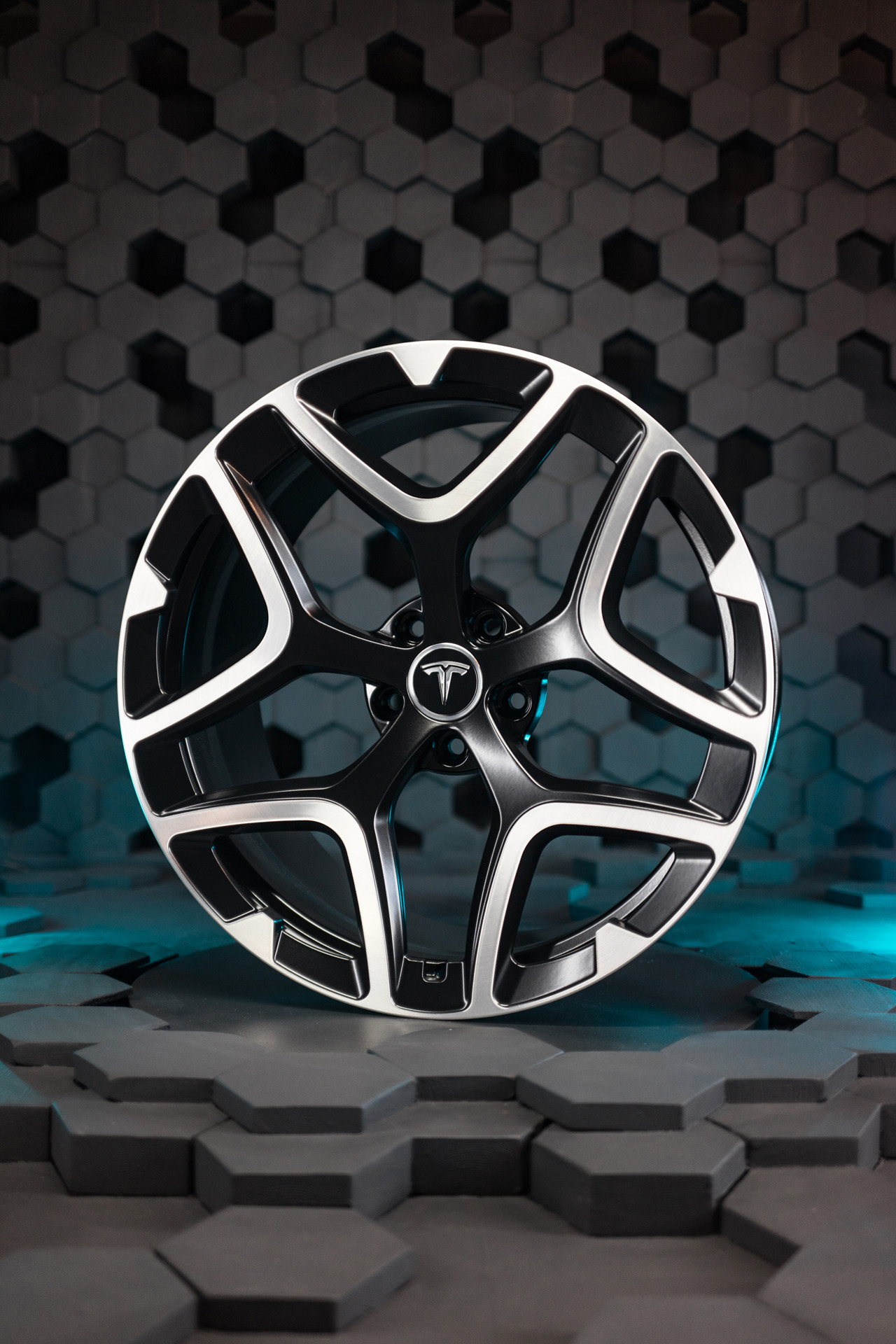

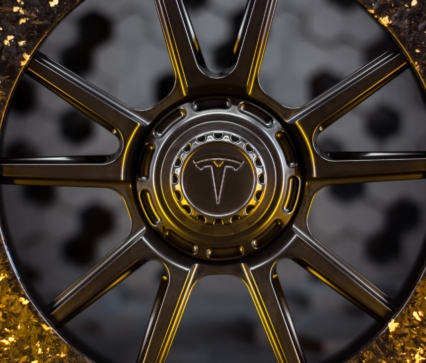

Forged wheels for Tesla Model X Forged wheels for Tesla Model X

Forged wheels for Tesla Model X

Price from:
$ 4 940
Delivery not included
Transform your Tesla Model X with Renegade Design's forged wheels, a perfect match for this revolutionary electric SUV. These wheels surpass traditional alloys in durability and style, complementing the Model X’s innovative and dynamic nature.
Forged wheels for Tesla Model X

Request for this model

Forged wheels for Tesla Model X

Sizes 21″ · 22″ · 23″ · 24″. We’ll send the price and delivery to your city for this exact model.

By clicking the "Submit" button, I agree to the data processing rules and the privacy policy
Forged wheels for Tesla Model X
Lifetime warranty
Each set is backed by a lifetime warranty, demonstrating our commitment to superior quality.
Forged wheels for Tesla Model X
Worldwide shipping
Choose from our selection of modern designs and colors, and enjoy our worldwide shipping, bringing a new level of bespoke elegance and performance to your Tesla.
Lifetime warranty
Each set is backed by a lifetime warranty, demonstrating our commitment to superior quality.
Forged wheels for Tesla Model X
Worldwide shipping
Choose from our selection of modern designs and colors, and enjoy our worldwide shipping, bringing a new level of bespoke elegance and performance to your Tesla.
Forged wheels for Tesla Model X
Forged wheels for Tesla Model X

Get a quote for Forged wheels for Tesla Model X

By clicking the "Submit" button, I agree to the data processing rules and the privacy policy

Colors available

Forged wheels for Tesla Model X

Brushed clear

Forged wheels for Tesla Model X

Brushed black

Forged wheels for Tesla Model X

Brushed dark black

Forged wheels for Tesla Model X

Brushed bronze

Forged wheels for Tesla Model X

Crystal coffee

Forged wheels for Tesla Model X

Amber

Forged wheels for Tesla Model X

Matte bronze

Forged wheels for Tesla Model X

Gloss bronze

Forged wheels for Tesla Model X

Matte gunmetally

Forged wheels for Tesla Model X

Gloss gunmetally

Forged wheels for Tesla Model X

Matte black

Forged wheels for Tesla Model X

Gloss black

Features of Renegade Design Forged Wheels

One-of-a-kind wheels
— your unique style
Aviation-grade aluminum
— the benchmark of strength
Quality under control
— from concept to completion
Design, color, texture
— bringing your ideas to life
Get the presentation
Forged wheels for Tesla Model X
Forged wheels for Tesla Model X
Forged wheels for Tesla Model X
Forged wheels for Tesla Model X
Forged wheels for Tesla Model X
Forged wheels for Tesla Model X
Color
Forged wheels for Tesla Model X
Brushed clear
Forged wheels for Tesla Model X
Brushed black
Forged wheels for Tesla Model X
Brushed dark black
Forged wheels for Tesla Model X
Brushed bronze
Forged wheels for Tesla Model X
Crystal coffee
Forged wheels for Tesla Model X
Amber
Forged wheels for Tesla Model X
Matte bronze
Forged wheels for Tesla Model X
Gloss bronze
Forged wheels for Tesla Model X
Matte gunmetally
Forged wheels for Tesla Model X
Gloss gunmetally
Forged wheels for Tesla Model X
Matte black
Forged wheels for Tesla Model X
Gloss black
Configuration

Color

Make a choice
order

Explore more from this collection

Forged wheels for Audi TT RS
Forged wheels for Audi TT RS
Forged wheels for Audi TT RS
21″ | 22″ | 23″ | 24″
Forged wheels for BMW M4 G82
Forged wheels for BMW M4 G82
Forged wheels for BMW M4 G82
21″ | 22″ | 23″ | 24″
Forged wheels for Jeep SRT WK2
Forged wheels for Jeep SRT WK2
Forged wheels for Jeep SRT WK2
21″ | 22″ | 23″ | 24″
Forged wheels for Audi A8 D5
Forged wheels for Audi A8 D5
Forged wheels for Audi A8 D5
21″ | 22″ | 23″ | 24″
Forged wheels for Audi RS4 B9
Forged wheels for Audi RS4 B9
Forged wheels for Audi RS4 B9
21″ | 22″ | 23″ | 24″
Forged wheels for Audi RS7 4K
Forged wheels for Audi RS7 4K
Forged wheels for Audi RS7 4K
21″ | 22″ | 23″ | 24″

Get your custom forged wheels

Get a custom quote with delivery and install in your area.
By clicking the "Submit" button, I agree to the data processing rules and the privacy policy

By clicking the "Submit" button, I agree to the data processing rules and the privacy policy

May be of interest

New Rolls-Royce Ghost Series II (2025) Body Kit by RNG Design New Rolls-Royce Ghost Series II (2025) Body Kit by RNG Design
New Rolls-Royce Ghost Series II (2025) Body Kit by RNG Design
09.24.2025
Forged wheels – operation and maintenance recommendations Forged wheels – operation and maintenance recommendations
Forged wheels - operation and maintenance recommendations
06.04.2025
What is included in a car body kit? What is included in a car body kit?
What is included in a car body kit?
05.11.2025
Body kit for Mercedes-Benz G63 2025 W465 by Renegade Design Body kit for Mercedes-Benz G63 2025 W465 by Renegade Design
Body kit for Mercedes-Benz G63 2025 W465 by Renegade Design
05.10.2025
BMW X7 LCI New body kit for the BMW dealer BMW X7 LCI New body kit for the BMW dealer
BMW X7 LCI New body kit for the BMW dealer
05.09.2025
The role of an automotive splitter in the construction of a vehicle The role of an automotive splitter in the construction of a vehicle
The role of an automotive splitter in the construction of a vehicle
05.09.2025

Fitment

Wheel fitment for the Tesla Model X

The current Model X is staggered with the wider wheel and lower offset at the rear: 9J×20 ET40 with 265/45 R20 at the front and 10J×20 ET35 with 275/45 R20 at the rear, or 22″ with 265/35 R22 and 285/35 R22. RNG sets keep the stagger, the 5×120 pattern and the 64.1 mm hub bore.

The Model X Plaid uses the same sizes. Model X cars built before the 2021 refresh share the bolt pattern and bore, but their wheel offsets vary by design, so we confirm the offset for those cars before production.

Bolt pattern5×120
Centre bore64.1 mm, hub-centric
Wheel nutsM14×1.5, 175 Nm
Factory front9J×20 ET40, 265/45 R20 · option 9J×22 ET40, 265/35 R22
Factory rear10J×20 ET35, 275/45 R20 · option 10J×22 ET35, 285/35 R22
Towingup to 2,268 kg (5,000 lb) on 20″ wheels
Same fitmentModel X Plaid (2021 onwards)
RNG sets for the Model X21–24″, staggered, monoblock or multi-piece

Factory data for the Tesla Model X from 2021 (Long Range, Plaid). Widths, offsets and tyres for your set come in the fitment sheet with the quote.

(A)

What is the bolt pattern of the Tesla Model X?

The Model X uses 5×120 with a 64.1 mm centre bore and M14×1.5 wheel nuts tightened to 175 Nm, the same as the Model S. RNG wheels are machined to this bore, so the set is hub-centric and needs no rings.

(B)

What wheel size does the Model X have from the factory?

Staggered: 9J×20 ET40 with 265/45 R20 at the front and 10J×20 ET35 with 275/45 R20 at the rear. The 22″ option is 9J×22 ET40 with 265/35 R22 and 10J×22 ET35 with 285/35 R22.

(C)

Do Model X Plaid wheels fit a Model X Long Range?

Yes. From 2021 the Model X Long Range and the Plaid share the hub, the 5×120 pattern and the factory sizes front and rear, so one RNG set fits both. Model S wheels share the bolt pattern but not the offsets and load rating, so they are not a Model X fitment.

(D)

Can the Model X run 23″ or 24″ wheels?

Yes. We keep the stagger and hold the overall diameter close to the factory 22″ set with lower-profile tyres, so the speedometer and the air suspension read correctly. Widths and offsets are chosen to clear the wheel-well liners at the lowest suspension setting.

(E)

Can the Model X tow on forged wheels?

Yes. Tesla rates the Model X to tow up to 2,268 kg (5,000 lb) on 20″ wheels and less on 22″. Every RNG set is drawn for the weight of the car, about 2.5 tonnes, plus the trailer load, and the load rating of each wheel is in the fitment sheet.

(F)

How long does a set for the Model X take, and what does it cost?

Production takes 10–20 days after you approve the design and the fitment sheet, then we ship to your country. Sets start from $4,940 for four wheels; 23″ and 24″ sets and multi-piece construction cost more.

Forged wheels for Tesla Model X: sizes, weight, price

Forged wheels for Tesla Model X are forged in-house by RNG Design from aviation-grade aluminium for the Tesla Model X, in sizes 21″, 22″, 23″, 24″. Weight per wheel: 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg. Every set uses the car's original bolt pattern and offset, and comes in 18 finishes, from brushed and matte to gloss, bronze, gunmetal and crystal tones. Price from $4,940 per set of four (USD, delivery not included); single wheels can be ordered. A set is made in 10–20 days; RNG Design ships worldwide and partner dealers handle fitting.

Specification Value
Wheels Forged wheels for Tesla Model X
Fits Tesla Model X
Sizes 21″, 22″, 23″, 24″
Weight per wheel 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg
Material forged aviation-grade aluminium, made in-house
Finishes 18: brushed, matte, gloss, bronze, gunmetal, crystal and gold tones
Price from $4,940 per set of four (USD, delivery not included)
Lead time 10–20 days per set
Fitment original bolt pattern and offset, no spacers

Embrace the fusion of innovation and style with Renegade Design’s custom forged wheels for the Tesla Model X. These wheels are not just upgrades; they are essential enhancements that amplify the Model X’s status as a leader in electric SUV performance. Advanced Forging for Superior Electric Performance Renegade Design utilizes advanced forging techniques to create wheels that are both lighter and stronger than standard alloy wheels. This is crucial for the Tesla Model X, a vehicle at the forefront of electric mobility and performance. Lighter wheels contribute to improved handling and agility, essential for the Model X’s dynamic driving experience, while their increased strength ensures reliability and endurance, complementing the vehicle’s advanced capabilities. Lifetime Warranty: A Commitment to Excellence Our forged wheels come with a lifetime warranty, underlining our dedication to quality and innovation. This warranty, covering manufacturing defects, is our assurance of the highest standards, providing you with confidence in the long-term performance and durability of our product. Customization: Tailored to the Model X’s Futuristic Design The Tesla Model X is a symbol of automotive progress, and our wheels are designed to match its futuristic appeal. With a variety of custom designs and colors, you can personalize your wheels to enhance the Model X’s sleek, aerodynamic appearance. Whether you opt for a subtle refinement or a bold statement, our options cater to every preference, augmenting the distinctive character of your Tesla. Enhancing the Tesla Model X Experience Known for its exceptional electric technology and exhilarating driving dynamics, the Model X deserves wheels that enhance these attributes. Our forged wheels improve the vehicle’s handling and stability, adding a visually captivating dimension to its appearance. The design of our wheels is crafted to integrate seamlessly with the Model X’s innovative lines, reinforcing its status as a cutting-edge electric SUV. Global Shipping: Delivering Innovation Worldwide Recognizing the international popularity of the Tesla Model X, Renegade Design offers worldwide shipping. Our efficient and secure shipping process ensures that your custom wheels are delivered safely and promptly, ready to elevate your Model X’s performance and style, wherever you are. The Intersection of Art and Technology Each wheel from Renegade Design is a product of our passion for artistry and technological advancement. Using the finest materials and the latest wheel technology, we ensure that each wheel not only fits the Tesla Model X perfectly but also enhances its overall character. Our wheels are a perfect blend of design and innovation, crafted to enhance the unique electric driving experience of the Model X. Renegade Design’s custom forged wheels for the Tesla Model X offer the perfect enhancement in modern design, performance, and personal expression. These wheels are an essential upgrade for Model X owners who value the harmony of electric innovation, dynamic driving, and distinctive style. Order now and transform your Tesla Model X into an even more sophisticated and high-performing electric SUV.
