Fitment
Since the 2021 refresh the Model S is staggered: 9.5J×19 ET40 with 255/45 R19 at the front and 10.5J×19 ET45 with 285/40 R19 at the rear, or 21″ with 265/35 R21 and 295/30 R21. RNG sets keep the stagger, the 5×120 pattern and the 64.1 mm hub bore.
The Model S Plaid uses exactly the same wheel sizes. The 2012–2020 Model S shares the bolt pattern and bore, but sits on square 8J×19 or 8.5J×21 ET40 wheels, so wheels for a refreshed car are wider at the rear.
| Bolt pattern | 5×120 |
|---|---|
| Centre bore | 64.1 mm, hub-centric |
| Wheel nuts | M14×1.5, 175 Nm |
| Factory front | 9.5J×19 ET40, 255/45 R19 · option 9.5J×21 ET40, 265/35 R21 |
| Factory rear | 10.5J×19 ET45, 285/40 R19 · option 10.5J×21 ET45, 295/30 R21 |
| Model S 2012–2020 | 8J×19 ET40, 245/45 R19 · 8.5J×21 ET40, 245/35 R21 front, 265/35 R21 rear |
| Same fitment | Model S Plaid (2021 onwards) |
| RNG sets for the Model S | 21–24″, staggered, monoblock or multi-piece |
Factory data for the Tesla Model S from 2021 (Long Range, Dual Motor) with 2012–2020 cars for comparison. Widths, offsets and tyres for your set come in the fitment sheet with the quote.
What is the bolt pattern of the Tesla Model S?
Every Model S uses 5×120 with a 64.1 mm centre bore and M14×1.5 wheel nuts tightened to 175 Nm. RNG wheels are machined to this bore, so the set is hub-centric and needs no rings.
What wheel size does the Model S have from the factory?
Since 2021 it is staggered: 9.5J×19 ET40 with 255/45 R19 at the front and 10.5J×19 ET45 with 285/40 R19 at the rear, or 21″ with 265/35 R21 and 295/30 R21. The 2012–2020 cars used square 8J×19 ET40 or 8.5J×21 ET40 wheels.
Do Model S Plaid wheels fit a Model S Long Range?
Yes. The Model S Long Range and the Plaid from 2021 share the hub, the 5×120 pattern and the same factory sizes front and rear, so one RNG set fits either. Wheels for a 2012–2020 Model S fit the hub too, but are narrower and not staggered.
Can the Model S run 22″ wheels?
Yes. We keep the stagger and the overall diameter of the factory 21″ set and use lower-profile tyres, so the speedometer and the air suspension read correctly. Widths and offsets are chosen to clear the wheel-well liners at the lowest suspension setting.
Do larger wheels reduce the range of the Model S?
Wheel weight and aerodynamics both affect range. RNG forged wheels are lighter than cast wheels of the same size, and we can add a flatter face to the design to limit the loss. Expect larger diameters and wider tyres to cost some range, as they do with the factory 21″ set.
How long does a set for the Model S take, and what does it cost?
Production takes 10–20 days after you approve the design and the fitment sheet, then we ship to your country. Sets start from $4,940 for four wheels; the price depends on diameter, construction and finish.

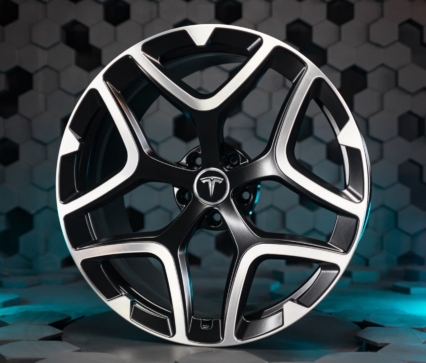

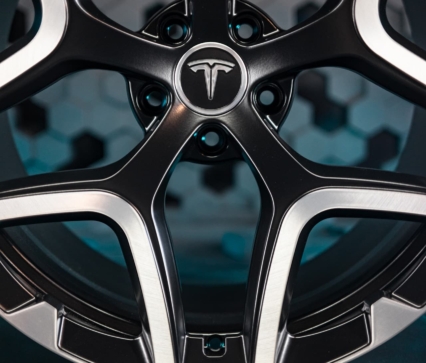

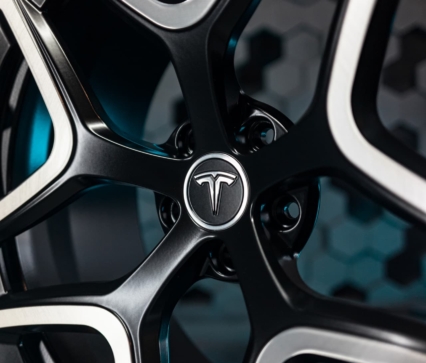

Forged wheels for Tesla Model S are forged in-house by RNG Design from aviation-grade aluminium for the Tesla Model S, in sizes 21″, 22″, 23″, 24″. Weight per wheel: 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg. Every set uses the car's original bolt pattern and offset, and comes in 18 finishes, from brushed and matte to gloss, bronze, gunmetal and crystal tones. Price from $4,940 per set of four (USD, delivery not included); single wheels can be ordered. A set is made in 10–20 days; RNG Design ships worldwide and partner dealers handle fitting.
| Specification | Value |
|---|---|
| Wheels | Forged wheels for Tesla Model S |
| Fits | Tesla Model S |
| Sizes | 21″, 22″, 23″, 24″ |
| Weight per wheel | 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg |
| Material | forged aviation-grade aluminium, made in-house |
| Finishes | 18: brushed, matte, gloss, bronze, gunmetal, crystal and gold tones |
| Price | from $4,940 per set of four (USD, delivery not included) |
| Lead time | 10–20 days per set |
| Fitment | original bolt pattern and offset, no spacers |
Step into the future of automotive luxury with Renegade Design’s custom forged wheels for the Tesla Model S. These wheels are more than just upgrades; they are a harmonious integration of style and innovation, enhancing the Model S’s status as a leader in electric vehicle technology. Superior Forging for Enhanced Electric Performance Using cutting-edge forging technology, Renegade Design creates wheels that are both lighter and stronger than traditional alloy wheels. This improvement is vital for the Tesla Model S, a vehicle that epitomizes efficiency and performance. Lighter wheels contribute to better handling and potentially increased range, while their increased strength ensures durability, aligning with the Tesla Model S’s high-performance standards. Lifetime Warranty: Commitment to Sustainability and Quality Our forged wheels are backed by a lifetime warranty, a testament to our dedication to sustainable quality and enduring performance. This warranty, covering manufacturing defects, ensures your peace of mind and confidence in the long-term reliability of our product. Customization: Reflecting the Tesla Model S’s Futuristic Design The Tesla Model S is a beacon of modern automotive design, and our wheels are crafted to complement this innovation. With an array of custom designs and colors, you can personalize your wheels to enhance the Model S’s sleek, futuristic appearance. Whether you prefer understated refinement or a bold, avant-garde look, our options cater to every preference, augmenting the unique character of your Tesla. Enhancing the Tesla Driving Experience The Model S is known for its groundbreaking electric technology and exhilarating driving experience. Our forged wheels are engineered to enrich these traits, improving the vehicle’s handling and stability while adding a visually captivating element to its appearance. The design of our wheels is meticulously crafted to integrate seamlessly with the Model S’s aerodynamic profile, reinforcing its status as a cutting-edge electric vehicle. Worldwide Shipping: Innovation Delivered Recognizing the international appeal of the Tesla Model S, Renegade Design offers worldwide shipping. Our secure and efficient shipping process ensures that your custom wheels are delivered safely and promptly, ready to transform your Model S’s performance and style, no matter where you are. A Blend of Art and Technology Each wheel from Renegade Design is a product of our passion for artistry and technological advancement. Utilizing the finest materials and the latest wheel technology, we ensure that each wheel not only fits the Tesla Model S perfectly but also enhances its overall character. Our wheels are a perfect amalgamation of design and innovation, crafted to heighten the Tesla Model S’s electric driving experience. Renegade Design’s custom forged wheels for the Tesla Model S offer the ultimate upgrade in modern design, performance enhancement, and personal expression. These wheels are an essential addition for Model S owners who value the blend of electric innovation, dynamic driving, and distinctive style. Order now and take your Tesla Model S to new heights of automotive sophistication.
