Fitment
The Plaid uses the same staggered sizes as the refreshed Model S: 9.5J×21 ET40 with 265/35 R21 at the front and 10.5J×21 ET45 with 295/30 R21 at the rear, or the 19″ set with 255/45 R19 and 285/40 R19. RNG sets keep the stagger, the 5×120 pattern and the 64.1 mm hub bore.
With the optional carbon ceramic brakes of the Track Package the 19″ wheels no longer fit; 20″ and 21″ do. We draw every Plaid set with clearance for these brakes, so it stays usable if you add them later.
| Bolt pattern | 5×120 |
|---|---|
| Centre bore | 64.1 mm, hub-centric |
| Wheel nuts | M14×1.5, 175 Nm |
| Factory front | 9.5J×21 ET40, 265/35 R21 · 9.5J×19 ET40, 255/45 R19 |
| Factory rear | 10.5J×21 ET45, 295/30 R21 · 10.5J×19 ET45, 285/40 R19 |
| Carbon ceramic brakes | Track Package: 20″ and 21″ only, not 19″ |
| Same fitment | Model S Long Range and Dual Motor (2021 onwards) |
| RNG sets for the Plaid | 21–22″, staggered, monoblock or multi-piece |
Factory data for the Tesla Model S Plaid, 2021 onwards. Widths, offsets and tyres for your set come in the fitment sheet with the quote.
What is the bolt pattern of the Tesla Model S Plaid?
The Plaid uses 5×120 with a 64.1 mm centre bore and M14×1.5 wheel nuts tightened to 175 Nm. RNG wheels are machined to this bore, so the set is hub-centric and needs no rings.
What wheel size does the Model S Plaid have from the factory?
Staggered: 9.5J×21 ET40 with 265/35 R21 at the front and 10.5J×21 ET45 with 295/30 R21 at the rear. The 19″ option is 9.5J×19 ET40 with 255/45 R19 and 10.5J×19 ET45 with 285/40 R19.
Will Plaid wheels fit a Model S Long Range?
Yes. The Plaid and the Model S Long Range and Dual Motor from 2021 share the hub, the 5×120 pattern and the factory sizes, so the same RNG set fits both. Wheels for the 2012–2020 Model S are square and narrower.
Can the Plaid run 22″ wheels?
Yes. 22″ works with lower-profile tyres at the overall diameter of the factory 21″ set, keeping the stagger. For track days we recommend staying at 21″, where the tyre choice for high speeds is widest.
Do the wheels clear the Plaid carbon ceramic brakes?
Yes. The Track Package brakes need at least a 20″ wheel; every RNG set for the Plaid is drawn with clearance to these calipers and discs, and the check is in the fitment sheet. The same set fits a Plaid with the standard brakes.
How long does a set for the Plaid take, and what does it cost?
Production takes 10–20 days after you approve the design and the fitment sheet, then we ship to your country. Sets start from $4,940 for four wheels; the price depends on diameter, construction and finish.

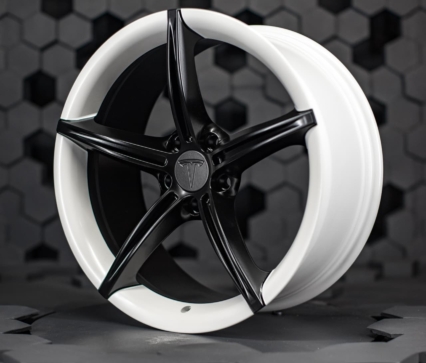

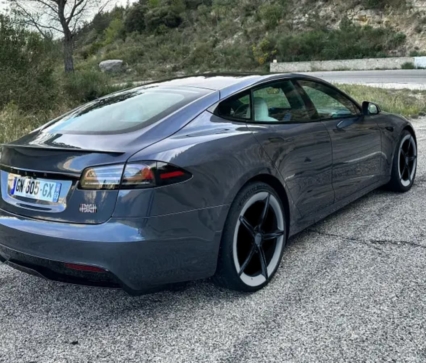

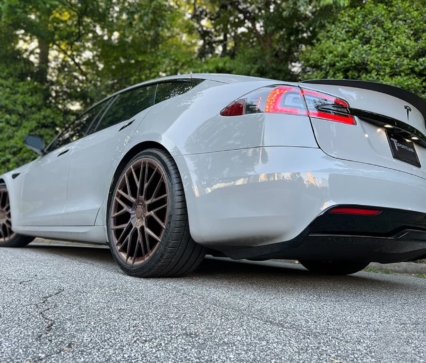

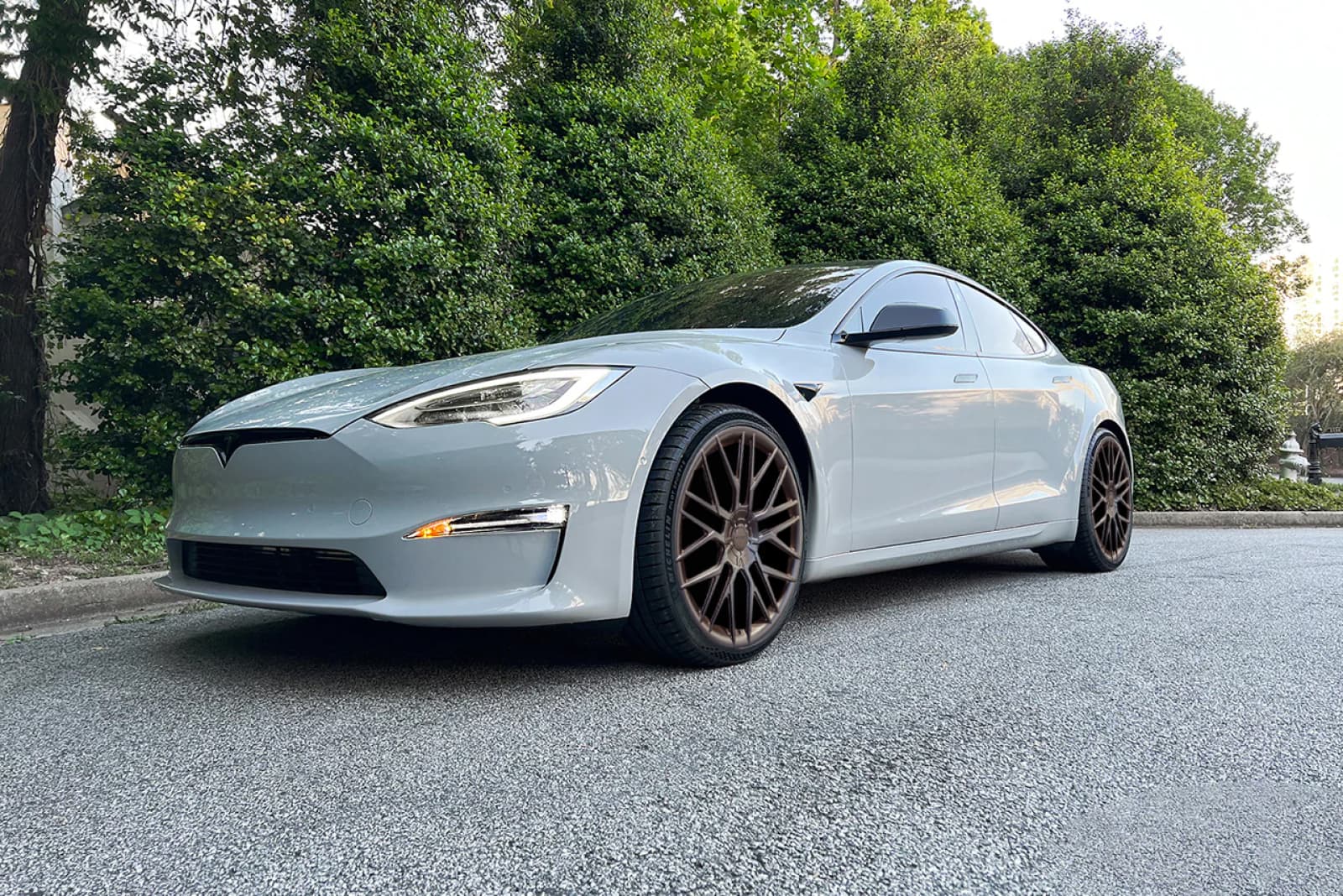

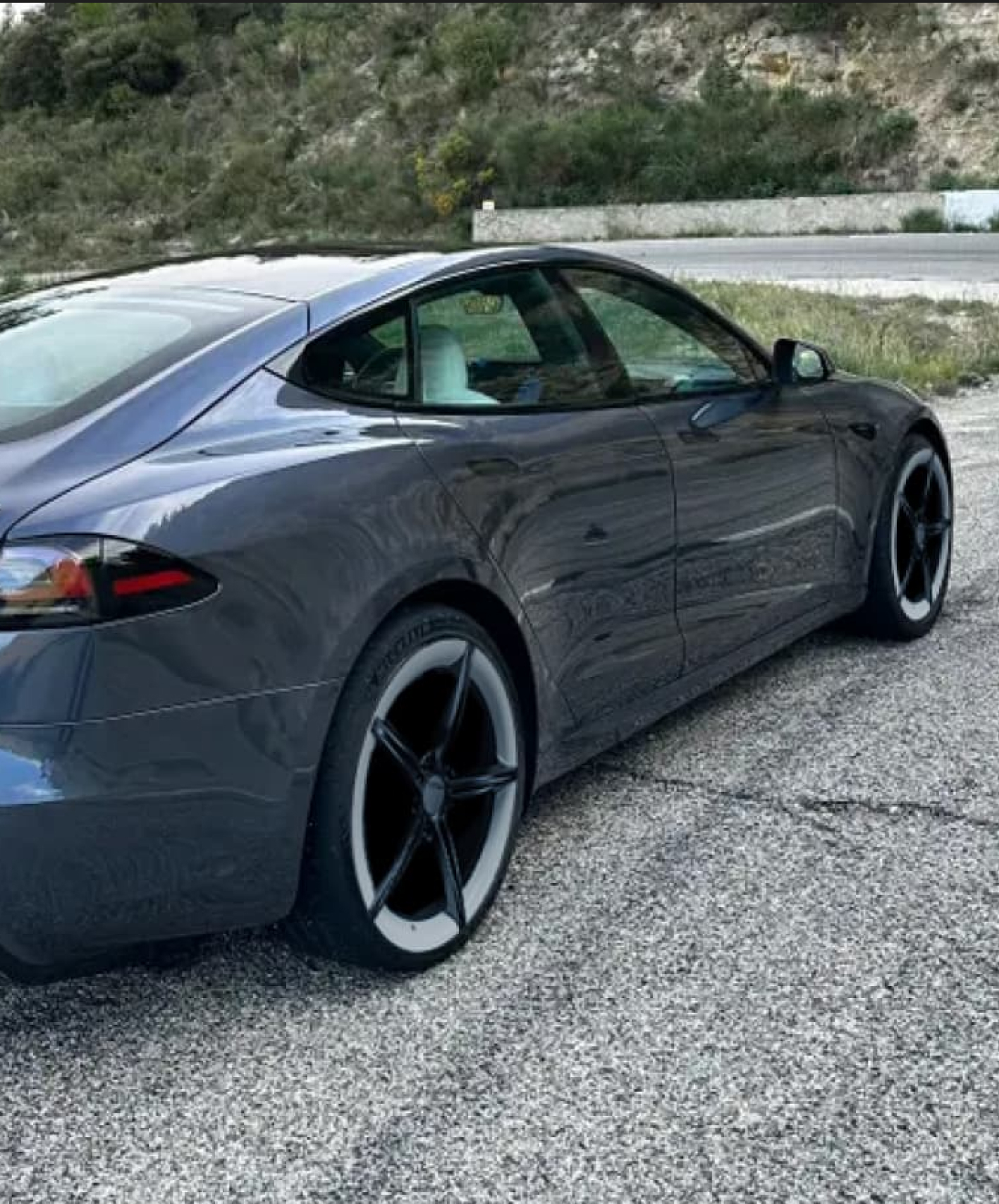

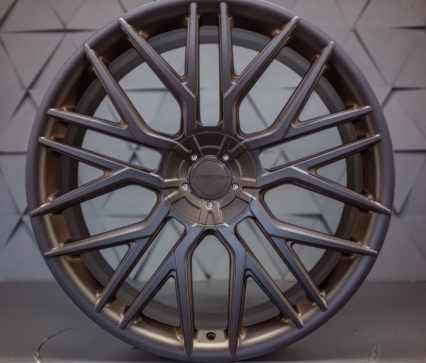

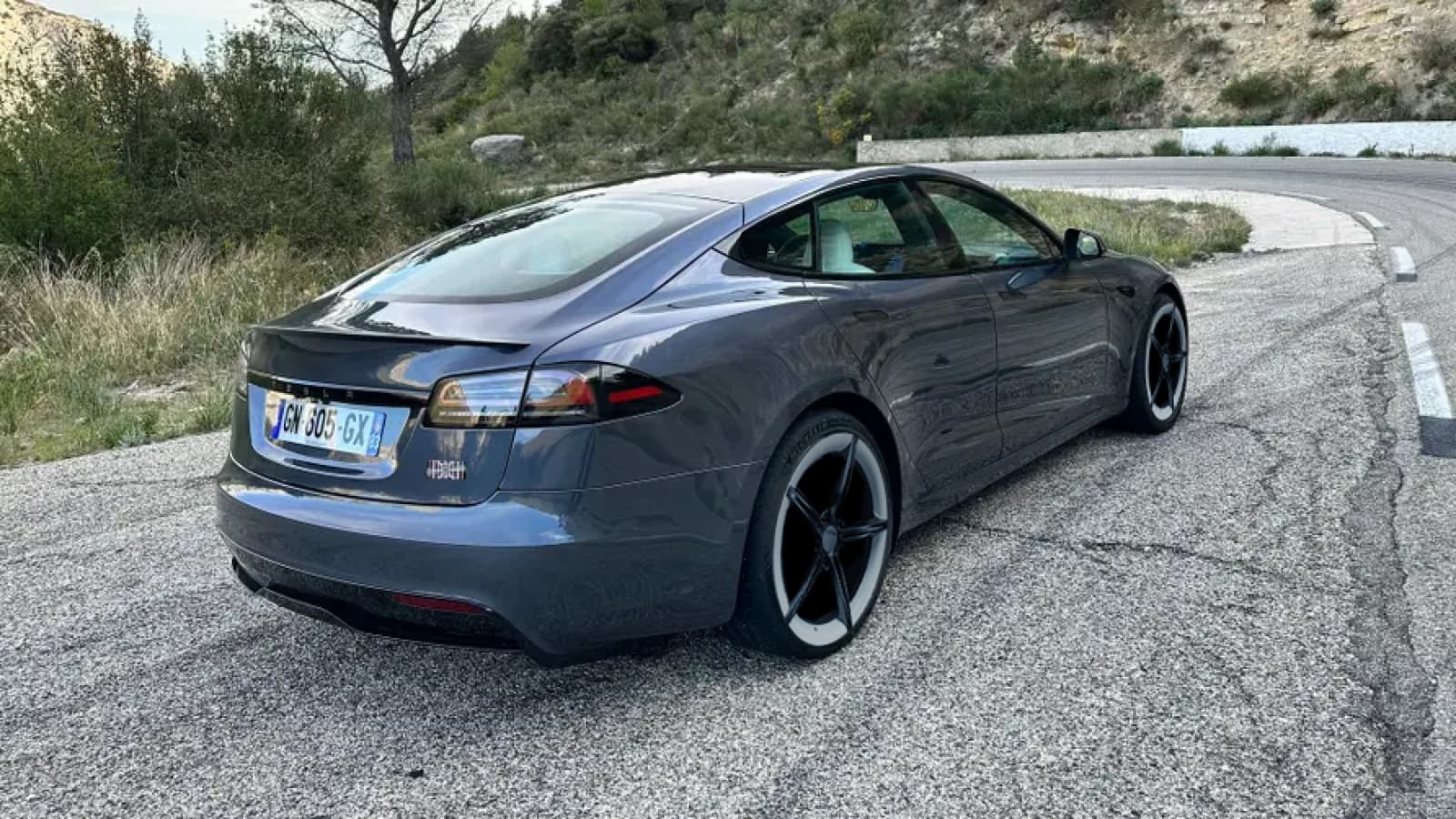

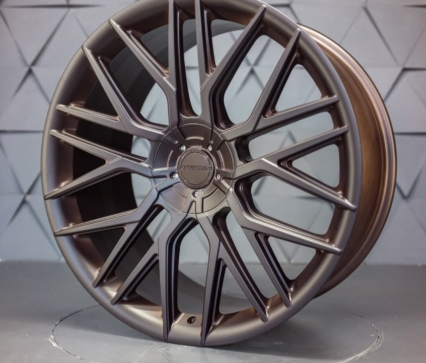

Forged wheels for Tesla Model S Plaid are forged in-house by RNG Design from aviation-grade aluminium for the Tesla Model S Plaid, in sizes 21″, 22″, 23″, 24″. Weight per wheel: 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg. Every set uses the car's original bolt pattern and offset, and comes in 18 finishes, from brushed and matte to gloss, bronze, gunmetal and crystal tones. Price from $4,940 per set of four (USD, delivery not included); single wheels can be ordered. A set is made in 10–20 days; RNG Design ships worldwide and partner dealers handle fitting.
| Specification | Value |
|---|---|
| Wheels | Forged wheels for Tesla Model S Plaid |
| Fits | Tesla Model S Plaid |
| Sizes | 21″, 22″, 23″, 24″ |
| Weight per wheel | 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg |
| Material | forged aviation-grade aluminium, made in-house |
| Finishes | 18: brushed, matte, gloss, bronze, gunmetal, crystal and gold tones |
| Price | from $4,940 per set of four (USD, delivery not included) |
| Lead time | 10–20 days per set |
| Fitment | original bolt pattern and offset, no spacers |
Step into the future of high-performance electric driving with Renegade Design’s custom forged wheels for the Tesla Model S Plaid. These wheels are more than just enhancements; they are an integral part of the Plaid’s extraordinary capabilities and sleek design. Revolutionary Forging for Enhanced Dynamics Utilizing advanced forging technology, Renegade Design creates wheels that are lighter and stronger than conventional alloys. This is essential for the Tesla Model S Plaid, a vehicle that redefines electric performance. The lighter wheels contribute to the Plaid’s exceptional handling and acceleration, maximizing its efficiency and speed, while the increased strength ensures durability, matching the vehicle’s high-performance nature. Lifetime Warranty: Our Assurance of Exceptional Quality We offer a lifetime warranty on our forged wheels, underscoring our dedication to superior craftsmanship and lasting performance. This warranty, protecting against manufacturing defects, assures you of our confidence in the long-term quality and durability of our product. Customization: Complementing the Model S Plaid’s Design The Tesla Model S Plaid stands as a testament to innovative engineering, and our wheels are crafted to enhance this prowess. With a wide array of custom designs and colors, you can personalize your wheels to accentuate the Model S Plaid’s aerodynamic and aggressive appearance. Whether seeking a minimalist elegance or a bold statement, our options cater to every style, augmenting the distinctive nature of your Tesla. Elevating the Tesla Driving Experience The Model S Plaid is synonymous with cutting-edge electric technology and thrilling performance. Our forged wheels are engineered to enrich these qualities, improving the vehicle’s handling and stability while adding a visually stunning aspect to its appearance. The design of our wheels is meticulously crafted to integrate with the Model S Plaid’s dynamic lines, enhancing its commanding presence. Global Delivery: Performance Without Boundaries Recognizing the global acclaim of the Tesla Model S Plaid, Renegade Design offers worldwide shipping. Our secure and efficient shipping ensures that your custom wheels are delivered safely and promptly, ready to redefine your Model S Plaid’s performance and style, no matter where you are. Artistry Meets Innovation Each wheel from Renegade Design is a fusion of artistic design and technological innovation. By using the finest materials and latest wheel technology, we ensure that each wheel not only perfectly fits the Tesla Model S Plaid but also complements its overall character. Our wheels are a harmonious blend of design and performance, crafted to elevate the driving experience of this unparalleled electric vehicle. Renegade Design’s custom forged wheels for the Tesla Model S Plaid offer the ultimate enhancement in performance, style, and personal expression. These wheels are essential for Model S Plaid owners who value the pinnacle of electric innovation, dynamic driving, and distinctive aesthetics. Order now and transform your Tesla Model S Plaid into an extraordinary expression of automotive advancement.
