Fitment
Since the 2023 facelift the Cayenne leaves the factory on staggered 20″ wheels, with 21″ on the GTS and Turbo E-Hybrid and 22″ on the options list. The rear wheel is 1.5 J wider and sits 14 mm further in; every RNG set keeps that split and is machined for the 71.6 mm Porsche hub.
The Cayenne Coupé and the 2018–2023 Cayenne share the hub, bolts and offset range, so one fitment sheet covers both bodies.
| Bolt pattern | 5×130 |
|---|---|
| Centre bore | 71.6 mm, hub-centric |
| Wheel bolts | M14×1.5, 160 Nm |
| Factory front | 9J×20 ET50, 255/55 R20 · GTS, Turbo E-Hybrid 9.5J×21 ET46, 285/45 R21 |
| Factory rear | 10.5J×20 ET64, 295/45 R20 · GTS, Turbo E-Hybrid 11J×21 ET58, 315/40 R21 |
| Factory option | 22″: 10J×22 ET48, 285/40 R22 + 11.5J×22 ET61, 315/35 R22 |
| Same fitment | Cayenne Coupé, Cayenne S, E-Hybrid, S E-Hybrid, GTS, Turbo E-Hybrid, Cayenne 2018–2023 |
| RNG sets for the Cayenne | 21–24″, staggered, monoblock or multi-piece |
Factory data for the Cayenne E3 facelift, 2023 onwards. Widths, offsets and tyres for your car come in the fitment sheet with the quote.
What is the bolt pattern of the Porsche Cayenne?
The third-generation Cayenne uses 5×130 with a 71.6 mm centre bore and M14×1.5 wheel bolts tightened to 160 Nm. RNG wheels are bored to 71.6 mm, so the set centres on the hub without rings or spacers.
What size wheels does the Cayenne have from the factory?
Since the 2023 facelift the Cayenne, Cayenne S and E-Hybrid models get 9J×20 ET50 with 255/55 R20 at the front and 10.5J×20 ET64 with 295/45 R20 at the rear. The GTS and Turbo E-Hybrid start on 21″: 9.5J×21 ET46 with 285/45 R21 and 11J×21 ET58 with 315/40 R21. Before the facelift the base car ran 19″.

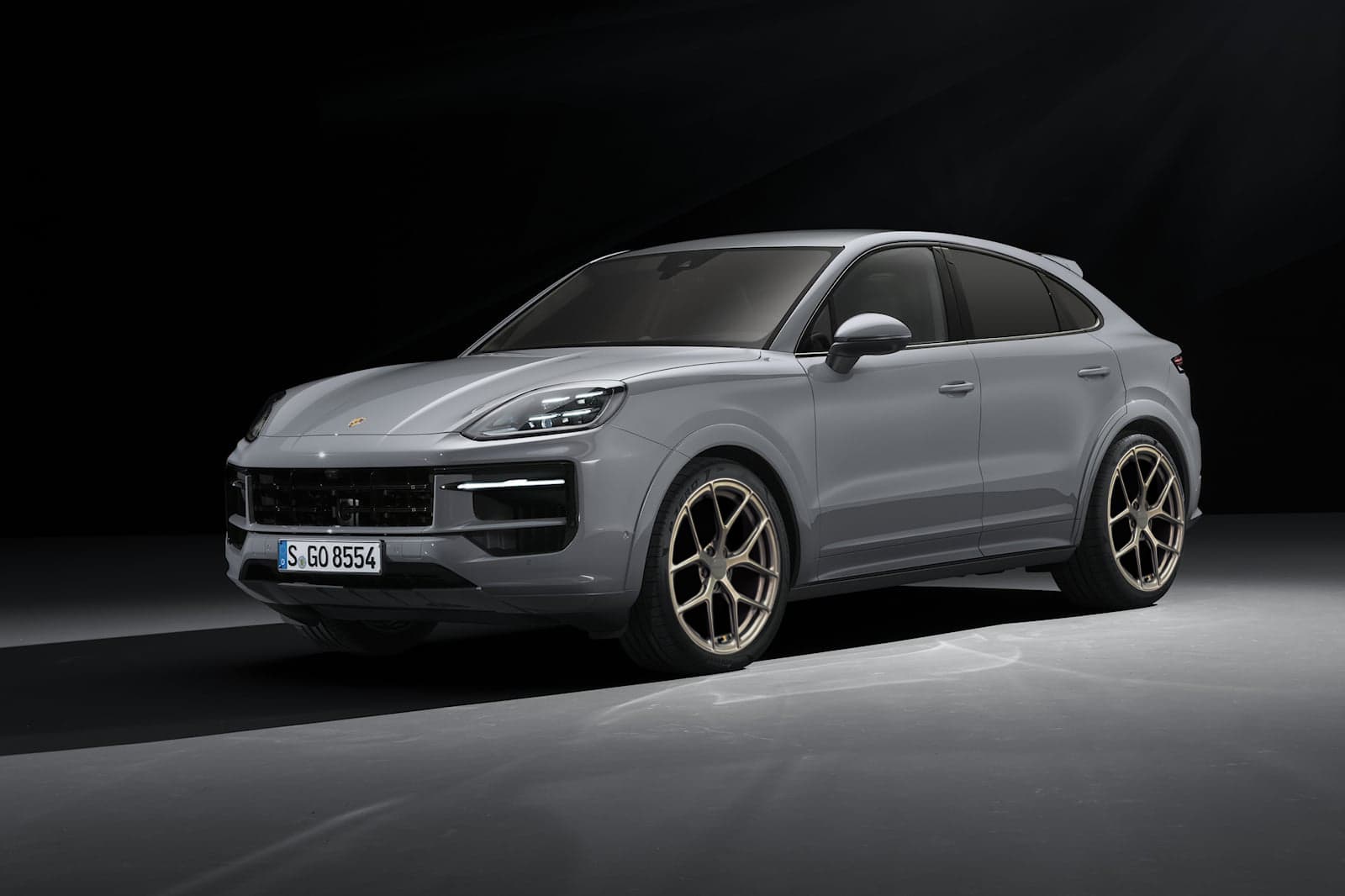

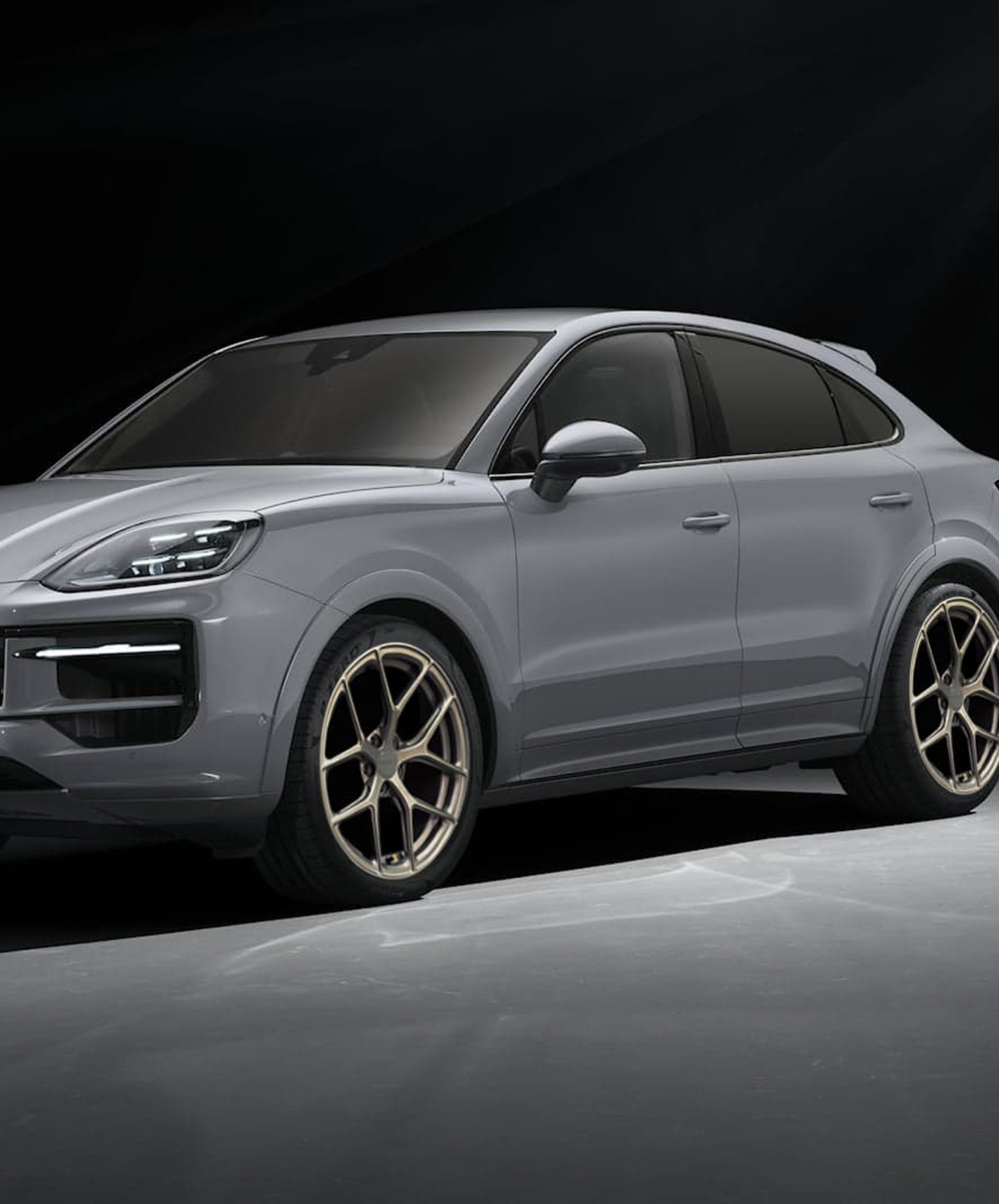

Do wheels for the Cayenne fit the Cayenne Coupé?
Yes. The Cayenne and Cayenne Coupé share the hub, the bolts and the offset range, and the 2018–2023 cars use the same fitment. The Lamborghini Urus and Bentley Bentayga also run 5×130 but with offsets around ET18–ET28, so a Cayenne set does not bolt straight onto them.
Can the Cayenne run 23″ or 24″ wheels?
Yes. 22″ is a factory size, and 23″ or 24″ work with lower-profile tyres. We keep the 1.5 J stagger, hold the rolling diameter close to stock for the all-wheel drive and check the clearance at the lowest air-suspension level.
Which brakes do the wheels have to clear on a Cayenne?
The Cayenne comes with iron, surface-coated or ceramic composite brakes, and the Turbo E-Hybrid has the largest calipers. We draw the spokes and barrel for your brake package and do not go below 21″ on cars with ceramic brakes; the check is in the fitment sheet.
How long does a set for the Cayenne take, and what does it cost?
Production takes 10–20 days after you approve the design and the fitment sheet, then we ship to your country. Sets start from $4,940 for four wheels; the price depends on diameter, construction and finish.

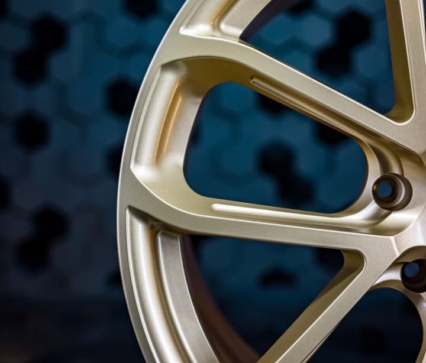

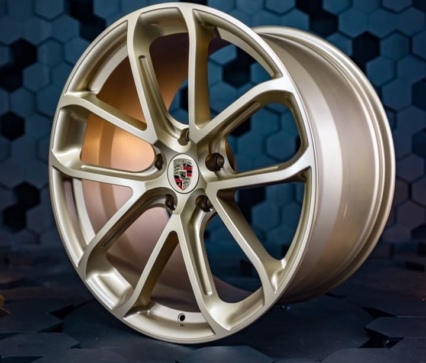

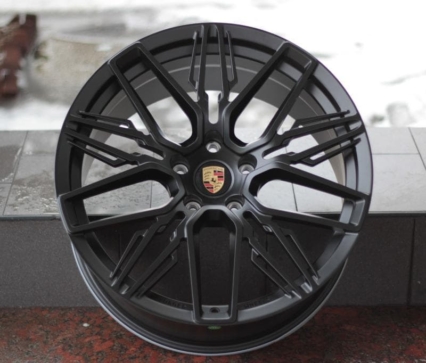

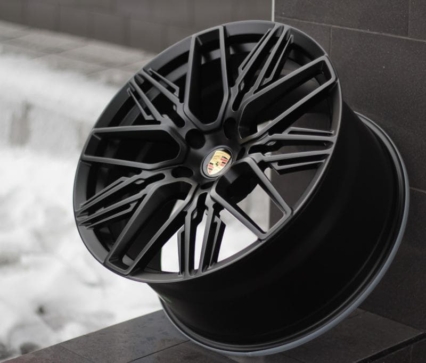

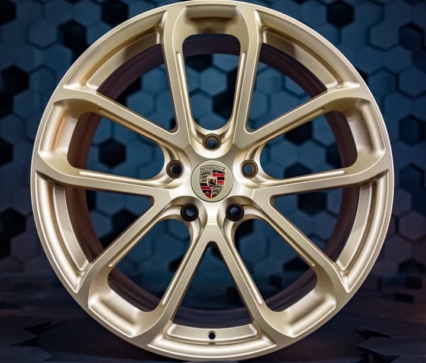

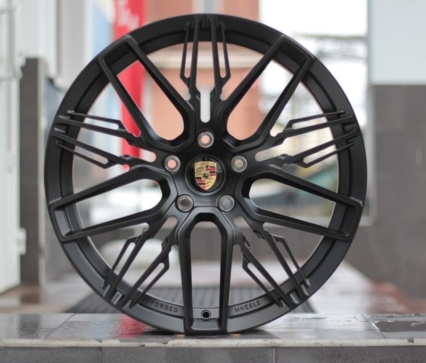

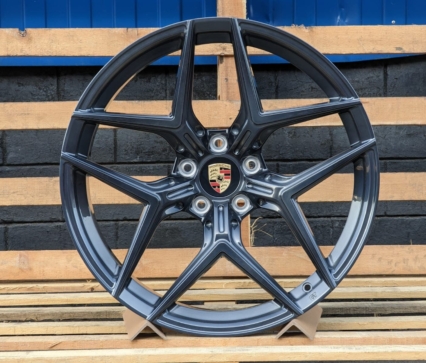

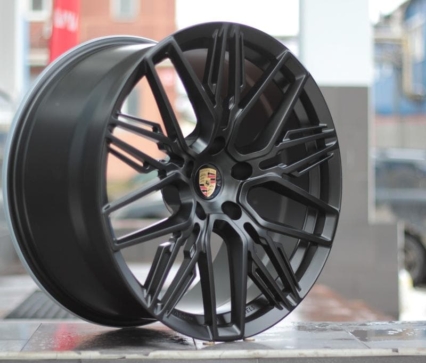

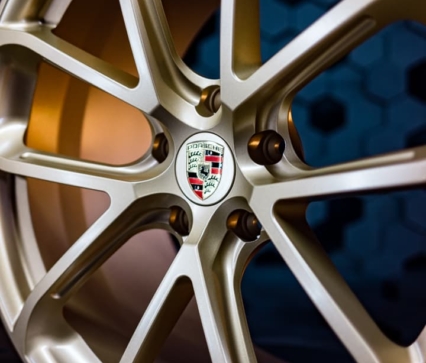

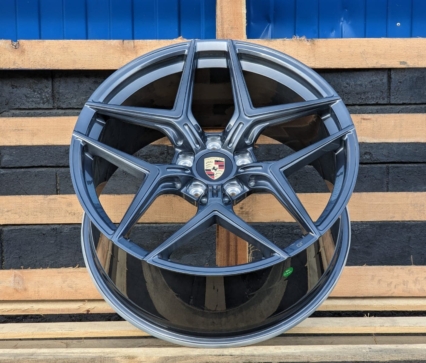

Forged wheels for Porsche Cayenne are forged in-house by RNG Design from aviation-grade aluminium for the Porsche Cayenne, in sizes 21″, 22″, 23″, 24″. Weight per wheel: 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg. Every set uses the car's original bolt pattern and offset, and comes in 18 finishes, from brushed and matte to gloss, bronze, gunmetal and crystal tones. Price from $4,940 per set of four (USD, delivery not included); single wheels can be ordered. A set is made in 10–20 days; RNG Design ships worldwide and partner dealers handle fitting.
| Specification | Value |
|---|---|
| Wheels | Forged wheels for Porsche Cayenne |
| Fits | Porsche Cayenne |
| Sizes | 21″, 22″, 23″, 24″ |
| Weight per wheel | 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg |
| Material | forged aviation-grade aluminium, made in-house |
| Finishes | 18: brushed, matte, gloss, bronze, gunmetal, crystal and gold tones |
| Price | from $4,940 per set of four (USD, delivery not included) |
| Lead time | 10–20 days per set |
| Fitment | original bolt pattern and offset, no spacers |
Step into a realm where performance and luxury intersect with Renegade Design’s custom forged wheels for the Porsche Cayenne. These wheels are not just upgrades; they are an integral part of enhancing the Cayenne’s blend of sportiness and sophistication. Crafted Forging for Enhanced Performance Renegade Design employs cutting-edge forging techniques to create wheels that offer superior strength and reduced weight compared to traditional alloy wheels. This is particularly beneficial for the Porsche Cayenne, a vehicle that balances SUV utility with sports car agility. The lighter weight of our wheels results in improved handling and efficiency, complementing the dynamic performance of the Cayenne, while their increased strength provides durability for all driving adventures. Lifetime Warranty: Assurance of Quality Our commitment to top-tier craftsmanship is underscored by the lifetime warranty on our forged wheels. This warranty reflects our confidence in their durability and quality, offering you peace of mind and trust in their long-term performance on your Porsche Cayenne. Customization: Mirroring the Cayenne’s Versatility The Porsche Cayenne is a symbol of versatile luxury, and our wheels are designed to match this prestige. With a wide variety of custom designs and colors, you can personalize your wheels to align with the Cayenne’s unique aesthetic. Whether seeking a subtle elegance or a bold statement, our options cater to every individual preference, enhancing the distinct personality of your Cayenne. Elevating the Porsche Driving Experience The Cayenne is known for its exceptional driving experience, and our forged wheels are crafted to amplify these qualities. They enhance the vehicle’s handling and stability, while adding a visually captivating dimension to its appearance. The design of our wheels is carefully crafted to complement the Cayenne’s robust lines, adding an element of artistry that reinforces its commanding presence. Global Delivery: Excellence at Your Doorstep Recognizing the global appeal of the Porsche Cayenne, Renegade Design offers international shipping. Our efficient and secure shipping process ensures that your custom wheels are delivered safely and promptly, ready to redefine your vehicle’s performance and style, no matter where you are. Precision and Artistry Combined Each wheel from Renegade Design represents our passion for precision and aesthetic excellence. Using the finest materials and the latest in wheel technology, we ensure that each wheel not only perfectly fits the Porsche Cayenne but also enhances its overall persona. Our wheels are a harmonious blend of functionality and style, designed to elevate the driving experience of the Porsche Cayenne. Renegade Design’s custom forged wheels for the Porsche Cayenne offer the perfect enhancement in performance, style, and personal expression. Ideal for Cayenne owners who demand the best in vehicle aesthetics and driving capabilities, these wheels are an essential upgrade for a truly elevated driving experience. Order now and transform your Porsche Cayenne into a remarkable showcase of automotive sophistication.
