Fitment
The Cayenne Coupé uses the same hub and wheel sizes as the Cayenne SUV: staggered 20″ as standard, 21″ on the GTS and Turbo E-Hybrid, 22″ as an option. The Turbo GT is the exception: it comes only on 22″ with a lower rear offset, ET52 instead of ET61.
A set drawn for the Coupé also fits the Cayenne SUV of 2018 onwards; for the Turbo GT we draw the rear wheels separately.
| Bolt pattern | 5×130 |
|---|---|
| Centre bore | 71.6 mm, hub-centric |
| Wheel bolts | M14×1.5, 160 Nm |
| Factory front | 9J×20 ET50, 255/55 R20 · GTS, Turbo E-Hybrid 9.5J×21 ET46, 285/45 R21 |
| Factory rear | 10.5J×20 ET64, 295/45 R20 · GTS, Turbo E-Hybrid 11J×21 ET58, 315/40 R21 |
| Turbo GT | 10J×22 ET49, 285/40 R22 + 11.5J×22 ET52, 315/35 R22 |
| Same fitment | Cayenne SUV E3, Coupé S, E-Hybrid, GTS, Turbo E-Hybrid; Turbo GT with its own rear offset |
| RNG sets for the Cayenne Coupé | 21–24″, staggered, monoblock or multi-piece |
Factory data for the Cayenne Coupé E3, 2023 onwards. Widths, offsets and tyres for your car come in the fitment sheet with the quote.
What is the bolt pattern of the Porsche Cayenne Coupé?
5×130 with a 71.6 mm centre bore, the same as the Cayenne SUV. The wheels are held by M14×1.5 bolts tightened to 160 Nm, and RNG wheels are bored to the hub, so no rings or spacers are needed.
What size wheels does the Cayenne Coupé have from the factory?
The Coupé, Coupé S and E-Hybrid models run 9J×20 ET50 with 255/55 R20 at the front and 10.5J×20 ET64 with 295/45 R20 at the rear. The GTS and Turbo E-Hybrid Coupé start on 21″, and 22″ (285/40 R22 + 315/35 R22) is the largest factory option.
Will Cayenne Coupé wheels fit the regular Cayenne?
Yes. The Coupé and the SUV share the hub, the bolts and the offset range, so one set fits both bodies of the E3 generation. Only the Turbo GT needs its own rear wheels because of its lower rear offset.
Can the Cayenne Coupé run 23″ wheels?
Yes. With 22″ as the factory maximum, 23″ is the next step for the Coupé and 24″ is possible with lower-profile tyres. We keep the stagger and hold the rolling diameter close to stock, so the speedometer and the all-wheel drive stay correct.
What is different about the wheels of the Cayenne Turbo GT?
The Turbo GT runs 22″ only, with 10J×22 ET49 at the front and 11.5J×22 ET52 at the rear and ceramic brakes as standard. Its rear wheel sits 9 mm further out than on other Coupés, so for the Turbo GT we draw the rear offset separately and check the large calipers.
How long does a set for the Cayenne Coupé take, and what does it cost?
Production takes 10–20 days after you approve the design and the fitment sheet, then we ship to your country. Sets start from $4,940 for four wheels; 22″ and larger sets and multi-piece construction cost more.

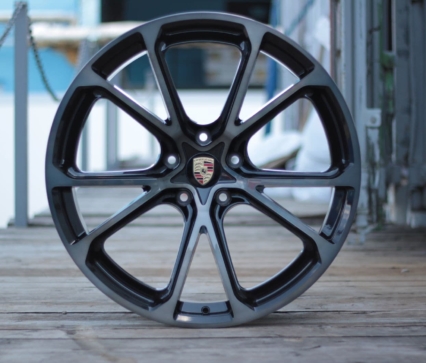

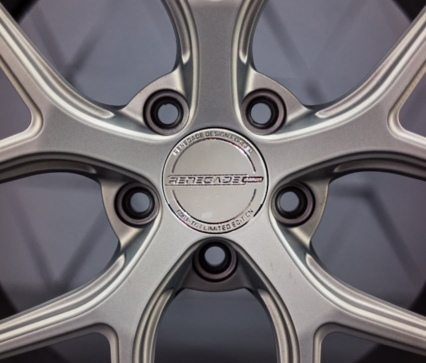

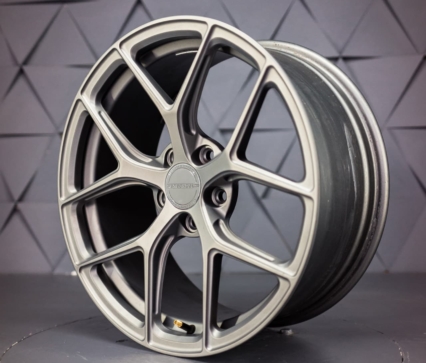

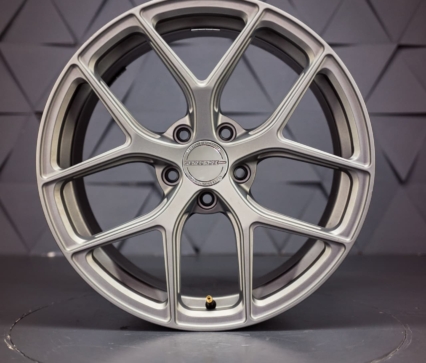

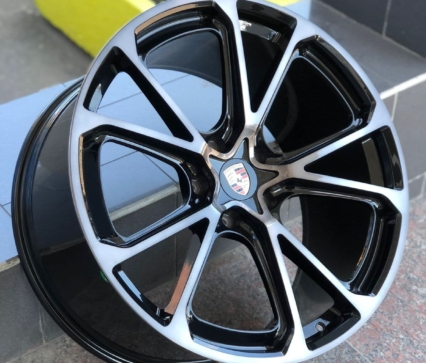

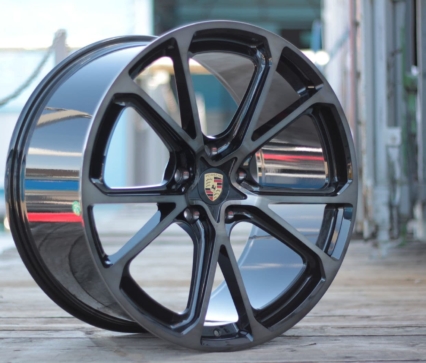

Forged wheels for Porsche Cayenne Coupe are forged in-house by RNG Design from aviation-grade aluminium for the Porsche Cayenne Coupe, in sizes 21″, 22″, 23″, 24″. Weight per wheel: 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg. Every set uses the car's original bolt pattern and offset, and comes in 18 finishes, from brushed and matte to gloss, bronze, gunmetal and crystal tones. Price from $4,940 per set of four (USD, delivery not included); single wheels can be ordered. A set is made in 10–20 days; RNG Design ships worldwide and partner dealers handle fitting.
| Specification | Value |
|---|---|
| Wheels | Forged wheels for Porsche Cayenne Coupe |
| Fits | Porsche Cayenne Coupe |
| Sizes | 21″, 22″, 23″, 24″ |
| Weight per wheel | 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg |
| Material | forged aviation-grade aluminium, made in-house |
| Finishes | 18: brushed, matte, gloss, bronze, gunmetal, crystal and gold tones |
| Price | from $4,940 per set of four (USD, delivery not included) |
| Lead time | 10–20 days per set |
| Fitment | original bolt pattern and offset, no spacers |
Embrace the fusion of luxury and sportiness with Renegade Design’s custom forged wheels for the Porsche Cayenne Coupe. These wheels are more than mere enhancements; they are an integral component of the Cayenne Coupe’s dynamic lifestyle. Innovative Forging for Enhanced Dynamics At Renegade Design, we use advanced forging techniques to create wheels that are significantly stronger and lighter than standard alloys. This technological advantage is vital for the Porsche Cayenne Coupe, blending SUV versatility with sports car performance. Lighter wheels mean improved handling and responsiveness, essential for the Cayenne Coupe’s driving experience, while the increased strength ensures reliability in a variety of driving conditions. Lifetime Warranty: Commitment to Excellence We stand by the quality of our forged wheels with a lifetime warranty. This warranty, covering manufacturing defects, is a testament to our dedication to superior craftsmanship and enduring performance, giving you the confidence in a product that matches the prestige of the Porsche Cayenne Coupe. Customization: Accentuating the Cayenne Coupe’s Style The Porsche Cayenne Coupe is a statement of sophisticated athleticism, and our wheels are designed to complement this. Our wide range of custom designs and colors allows you to personalize your wheels to match the vehicle’s unique character. Whether you prefer understated elegance or bold statements, our options cater to every individual preference, enhancing the distinctiveness of your Cayenne Coupe. Elevating the Porsche Experience Known for its cutting-edge design and performance, the Cayenne Coupe deserves wheels that amplify these traits. Our forged wheels enhance the vehicle’s sporty profile and improve its handling and stability, adding a visually captivating element to its appearance. The design of our wheels is meticulously crafted to harmonize with the Cayenne Coupe’s sleek lines, reinforcing its athletic presence. Global Reach for a Global Icon Understanding the worldwide appeal of the Porsche Cayenne Coupe, Renegade Design offers international shipping. Our secure and efficient shipping process ensures that your custom wheels are delivered safely and promptly, ready to transform your vehicle’s performance and style. Art and Engineering in Harmony Every wheel from Renegade Design is a blend of artistic design and engineering precision. Utilizing only the best materials and the latest technology, we ensure that each wheel not only fits the Porsche Cayenne Coupe perfectly but also enhances its overall driving experience. Our wheels are a testament to the harmony of art and functionality, crafted to elevate the essence of the Porsche Cayenne Coupe. Renegade Design’s custom forged wheels for the Porsche Cayenne Coupe offer the ultimate upgrade in performance, style, and individual expression. They are an essential addition for any Cayenne Coupe owner who values a perfect blend of luxury, agility, and aesthetic distinction. Order now and take your Porsche Cayenne Coupe to new heights of automotive excellence.
