Fitment

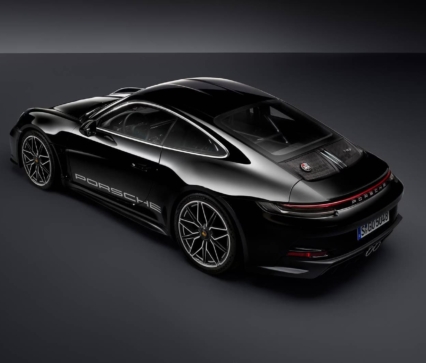

The 992 is the first 911 with mixed diameters on every car: 19″ at the front and 20″ at the rear on the Carrera, 20″ and 21″ on the Carrera S, 4S and Turbo. The rear wheel is 11.5 J wide with ET67, and RNG sets keep both the stagger and the mixed diameters.
The Carrera, Carrera 4, T, Targa and Cabriolet share the five-bolt hub; the GT3, Turbo S and other centre-lock cars use a different hub.

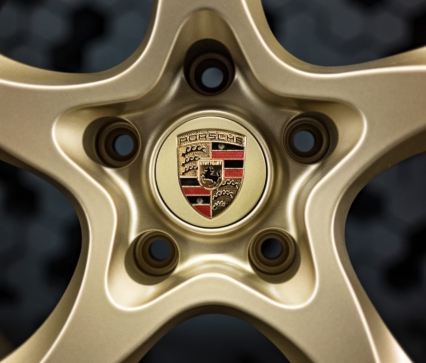

| Bolt pattern | 5×130 (five-bolt cars) |
|---|---|
| Centre bore | 71.6 mm, hub-centric |
| Wheel bolts | M14×1.5, 160 Nm |
| Factory front | Carrera 8.5J×19 ET52, 235/40 R19 · Carrera S, 4S 8.5J×20 ET53, 245/35 R20 |
| Factory rear | Carrera 11.5J×20 ET67, 295/35 R20 · Carrera S, 4S 11.5J×21 ET67, 305/30 R21 |
| Turbo | 9J×20 ET41, 255/35 R20 + 11.5J×21 ET67, 315/30 R21 |
| Same fitment | Carrera, Carrera 4, Carrera T, Carrera S, 4S, Cabriolet, Targa 4 and 4S |
| RNG sets for the 911 | 20–22″, staggered, monoblock or multi-piece |
Factory data for the 992 with five-bolt hubs, 2019 onwards. Rear offsets on the 2024+ 992.2 are confirmed for your car in the fitment sheet.
What is the bolt pattern of the Porsche 911 992?
The five-bolt 992 uses 5×130 with a 71.6 mm centre bore and M14×1.5 bolts tightened to 160 Nm. The GT3, GT3 RS, Turbo S, Sport Classic and some GTS cars use a single centre-lock nut instead, so tell us your exact model before we draw the set.
What wheel size does the 992 Carrera have from the factory?
The Carrera runs 8.5J×19 ET52 with 235/40 R19 at the front and 11.5J×20 ET67 with 295/35 R20 at the rear. The Carrera S and 4S step up to 8.5J×20 ET53 with 245/35 R20 and 11.5J×21 ET67 with 305/30 R21, which is also an option for the Carrera.
Do wheels for the Carrera S fit the Carrera 4S, Targa and Cabriolet?
Yes. Every 992 has the same wide rear body, so the Carrera, Carrera 4, T, S, 4S, Cabriolet and Targa share the hub and the 20/21″ offsets. The Turbo needs a lower front offset (ET41), and centre-lock cars need a different wheel centre.
Can a 911 992 run 21″ front and 22″ rear wheels?
Yes, as a 21/22″ staggered set with lower-profile tyres. We keep the rolling diameter close to the factory 20/21″ set and check the front lock-to-lock clearance and the front axle lift, if your car has it.
What about a centre-lock 911 GT3 or Turbo S?
This page is about the five-bolt 911. Centre-lock cars such as the GT3 and Turbo S have a different hub and their own offsets, so send us your VIN and we confirm whether a set can be made for your car.
How long does a set for the 911 take, and what does it cost?
Production takes 10–20 days after you approve the design and the fitment sheet, then we ship to your country. Sets start from $4,940 for four wheels; multi-piece construction costs more.

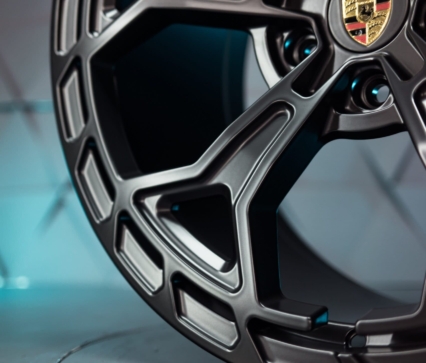

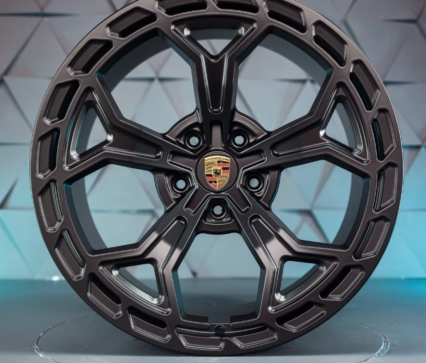

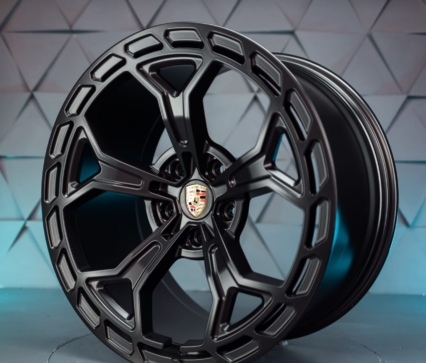

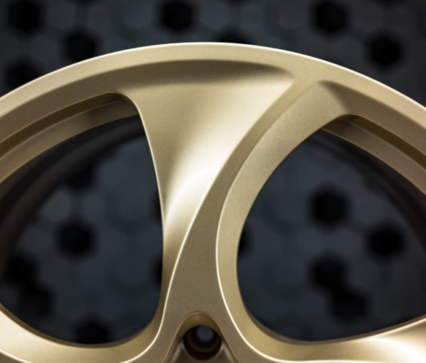

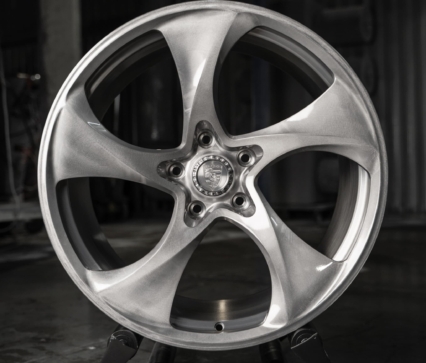

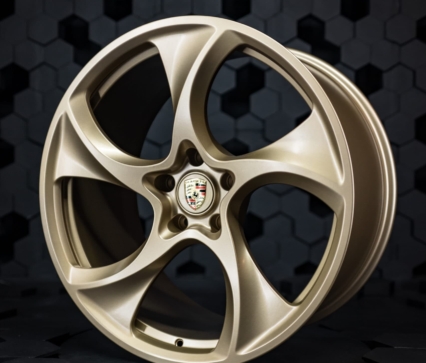

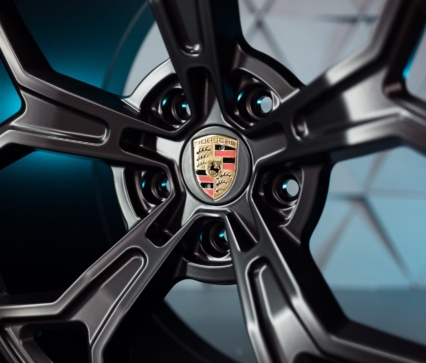

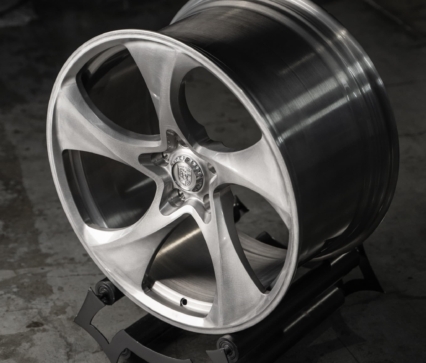

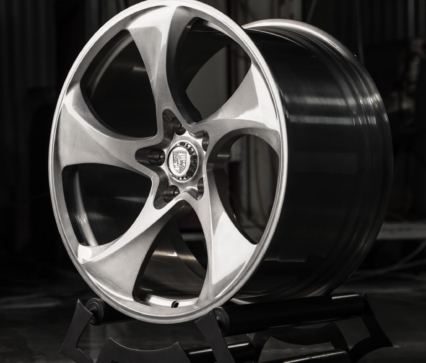

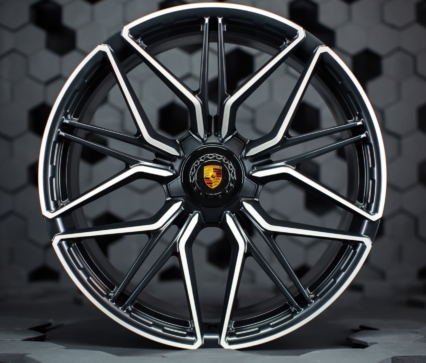

Forged wheels for Porsche 911 (992) are forged in-house by RNG Design from aviation-grade aluminium for the Porsche 911 (992), in sizes 21″, 22″, 23″, 24″. Weight per wheel: 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg. Every set uses the car's original bolt pattern and offset, and comes in 18 finishes, from brushed and matte to gloss, bronze, gunmetal and crystal tones. Price from $4,940 per set of four (USD, delivery not included); single wheels can be ordered. A set is made in 10–20 days; RNG Design ships worldwide and partner dealers handle fitting.
| Specification | Value |
|---|---|
| Wheels | Forged wheels for Porsche 911 (992) |
| Fits | Porsche 911 (992) |
| Sizes | 21″, 22″, 23″, 24″ |
| Weight per wheel | 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg |
| Material | forged aviation-grade aluminium, made in-house |
| Finishes | 18: brushed, matte, gloss, bronze, gunmetal, crystal and gold tones |
| Price | from $4,940 per set of four (USD, delivery not included) |
| Lead time | 10–20 days per set |
| Fitment | original bolt pattern and offset, no spacers |
Experience the pinnacle of automotive engineering with Renegade Design’s custom forged wheels for the Porsche 911 (992). These wheels are more than an upgrade; they are a harmonious blend of performance and aesthetics, tailor-made for the Porsche 911’s distinguished legacy. Advanced Forging for Unmatched Performance Utilizing cutting-edge forging technology, Renegade Design creates wheels that are significantly lighter and stronger than traditional alloy wheels. This is especially beneficial for the Porsche 911 (992), a car known for its agility and speed. The lighter weight of our wheels enhances handling and acceleration, complementing the 911’s sports car dynamics, while their increased strength ensures reliability and durability, even under the most demanding driving conditions. Lifetime Warranty: A Seal of Exceptional Quality Our commitment to superior craftsmanship is evidenced by the lifetime warranty on our forged wheels. This warranty is a testament to our confidence in their durability and quality, providing you with the assurance of a product that meets the highest standards of performance and longevity. Customization: Echoing the Porsche 911’s Elegance The Porsche 911 (992) is an icon of automotive design, and its wheels should enhance this status. Our range of custom designs and colors allows you to personalize your wheels to match the 911’s sleek and sporty aesthetic. Whether you’re seeking a classic look or a bold statement, our customization options cater to every preference, ensuring your Porsche stands out for its unique style. Enhancing the 911’s Racing Heritage The Porsche 911 is synonymous with racing heritage and exceptional driving experiences. Our forged wheels are designed to accentuate these qualities, improving the vehicle’s performance while adding a visually striking dimension to its appearance. The design of our wheels is crafted to complement the 911’s dynamic lines, adding a touch of elegance that befits this iconic sports car. Worldwide Shipping: Bringing Excellence to Your Garage Recognizing the global fanbase of the Porsche 911 (992), Renegade Design offers worldwide shipping. Our efficient and secure shipping process ensures that your custom wheels are delivered safely and promptly, allowing you to redefine your 911’s performance and style wherever you are. Precision Craftsmanship for the Ultimate Sports Car Each wheel from Renegade Design is a product of our passion for precision and performance. By employing the finest materials and the latest wheel technology, we ensure that each wheel not only perfectly fits the Porsche 911 (992) but also elevates its overall driving experience. Our wheels are a fusion of art and engineering, designed to enhance the legendary status of the Porsche 911. Renegade Design’s custom forged wheels for the Porsche 911 (992) offer the perfect combination of performance enhancement and stylistic refinement. They are an essential upgrade for any 911 owner who values the blend of speed, agility, and aesthetic appeal. Order now and transform your Porsche 911 (992) into an even more exhilarating and distinctive sports car.
