Forged Wheels for Mercedes-Benz S-Class W223
- 21–24″Monoblock and multi-piece
- Fitted to the S-ClassHubs, brakes and arches
- 10–20 daysProduction time
- 21 designsShown on the S-Class below
- Worldwide shippingDelivery to your country
Real cars, real wheels

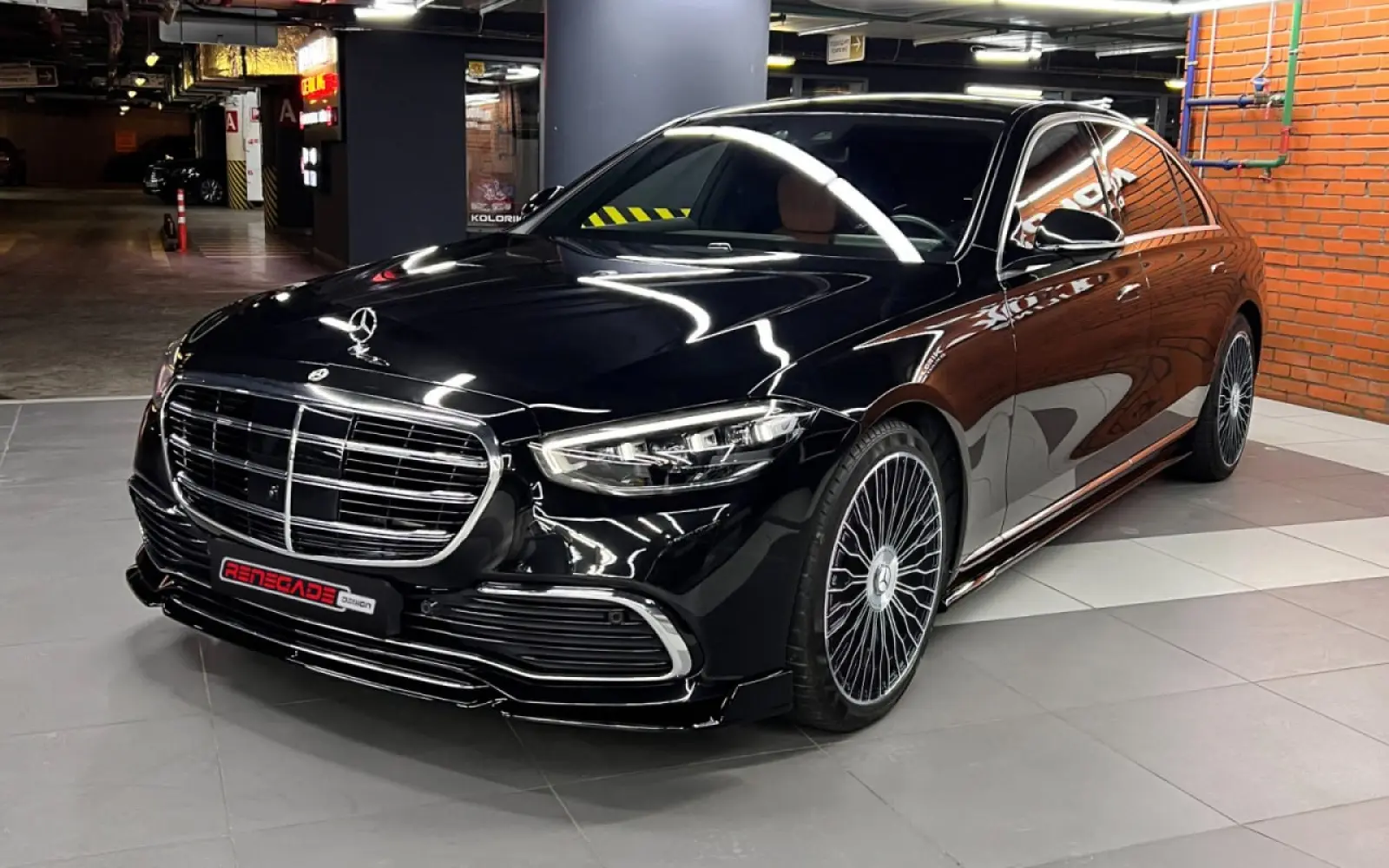

Mercedes-Benz S-Class W223 by Renegade Design
S-Class W223 saloons from our clients and studio on RNG forged wheels, including cars with the RNG body kit. The same sets fit the short and long wheelbase.





Fitment
Wheel fitment for the Mercedes-Benz S-Class W223
The S-Class W223 is staggered on every size from 19″ up: an 8.5J or 9J wheel at the front and a 10J wheel at the rear, with 255 tyres in front and 285 at the back. RNG sets keep this stagger and the factory offsets of about ET34 front and ET48 rear.
The short W223 and the long V223 share the hub, bolts and offsets with every engine, from the S 350 d to the S 580 and the S 580 e hybrid.
| Bolt pattern | 5×112 |
|---|---|
| Centre bore | 66.6 mm, hub-centric |
| Wheel bolts | M14×1.5, 150 Nm |
| Factory front | 8.5J×19 ET31.5, 255/45 R19 · 9J×20 ET34, 255/40 R20 |
| Factory rear | 10J×19 ET48, 285/40 R19 · 10J×20 ET48, 285/35 R20 |
| Factory options | 21″: 9J×21 ET34, 255/35 R21 + 10J×21 ET48, 285/30 R21 |
| Same fitment | S-Class W223 and V223: S 350 d to S 580, S 450 4MATIC, S 580 e |
| RNG sets for the S-Class | 21–24″, staggered, monoblock or multi-piece |
Factory data for the Mercedes-Benz S-Class W223/V223, 2020 onwards. Widths and offsets for your car come in the fitment sheet with the quote.
21 designs · 5 collections
See every design on the Mercedes-Benz S-Class W223
Our forged designs rendered on the S-Class W223, from quiet multi-spoke to bold 22″ sets. Tap a design to see it front and rear.
Visualisations of the 9X collection on the Mercedes-Benz S-Class W223. The final profile, concavity and finish are agreed for your set before production. Any of the 26 RNG catalogue designs can also be made for the S-Class.
Wheels for your Mercedes-Benz S-Class W223
Get the designs, sizes and price for your car
Choose a design and leave a contact. We reply with design options, the fitment sheet and a price for your Mercedes-Benz S-Class W223.
- Any diameter21–24″, monoblock or multi-piece
- Any designOne of the 21, any RNG design or your own
- Any colourSilver, black, bronze, two-tone or your own
- 10–20 daysProduction, then shipping to your country
Complete the look
Wheels and body kit for the Mercedes-Benz S-Class W223
The wheels and the S-Class body kit come from the same studio, so the width and offset suit the wide body as well as the stock arches. Any part of the kit is also sold separately, from dealer stock or made to order in 5–15 working days.
Mercedes-Benz S-Class W223 wheels
Questions about wheels for the S-Class
What is the bolt pattern of the Mercedes S-Class W223?
The S-Class W223 uses 5×112 with a 66.6 mm centre bore and M14×1.5 wheel bolts tightened to 150 Nm. RNG wheels are bored to 66.6 mm and centre on the hub without rings.
What size wheels does the S-Class W223 have from the factory?
Staggered: 8.5J×19 ET31.5 with 255/45 R19 at the front and 10J×19 ET48 with 285/40 R19 at the rear, or 20″ (255/40 R20 and 285/35 R20) and 21″ (255/35 R21 and 285/30 R21). Some markets also have an 18″ base wheel.
Do wheels for the short S-Class fit the long-wheelbase V223?
Yes. The W223 and V223 share the hub, bolt pattern and offsets with all engines and 4MATIC. The AMG S63 uses a wider 10.5J rear wheel at ET50, so its sets are drawn separately, and the Maybach S-Class is checked on its own data.
Can the S-Class run 22″ wheels?
Yes. We keep the stagger, use 255 and 285 tyres of a lower profile and hold the rolling diameter close to the 21″ factory size for the air suspension and rear-axle steering.
Do the wheels suit the RNG body kit for the S-Class?
Yes. The wheels and the S-Class body kit come from the same studio, so the spoke design and finish are matched to the kit parts, and the car sits right with the kit fitted.
How long does a set for the S-Class take, and what does it cost?
Production takes 10–20 days after you approve the design and the fitment sheet, then we ship to your country. Sets start from $4,940 for four wheels; 22″–24″ and multi-piece sets cost more.
Forged wheels for Mercedes-Benz S223: sizes, weight, price
Forged wheels for Mercedes-Benz S223 are forged in-house by RNG Design from aviation-grade aluminium for the Mercedes-Benz S223, 2020–present, in sizes 21″, 22″, 23″, 24″. Weight per wheel: 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg. Every set uses the car's original bolt pattern and offset, and comes in 18 finishes, from brushed and matte to gloss, bronze, gunmetal and crystal tones. Price from $4,940 per set of four (USD, delivery not included); single wheels can be ordered. A set is made in 10–20 days; RNG Design ships worldwide and partner dealers handle fitting. The wheels match the body kit for Mercedes-Benz S-Class W223.
| Specification | Value |
|---|---|
| Wheels | Forged wheels for Mercedes-Benz S223 |
| Fits | Mercedes-Benz S223, 2020–present |
| Sizes | 21″, 22″, 23″, 24″ |
| Weight per wheel | 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg |
| Material | forged aviation-grade aluminium, made in-house |
| Finishes | 18: brushed, matte, gloss, bronze, gunmetal, crystal and gold tones |
| Price | from $4,940 per set of four (USD, delivery not included) |
| Lead time | 10–20 days per set |
| Fitment | original bolt pattern and offset, no spacers |
Artisanal Forging for Superior Performance
Utilizing advanced forging technology, Renegade Design creates wheels that are lighter and stronger than traditional alloys. This is crucial for the S-Class S223, a vehicle renowned for its seamless blend of comfort and performance. The reduced weight of our wheels enhances handling and efficiency, while their increased strength ensures durability and reliability, aligning with the high standards of Mercedes-Benz engineering.
Lifetime Warranty: Our Assurance of Unrivaled Quality
Our commitment to exceptional craftsmanship is reflected in our lifetime warranty on these forged wheels. This warranty, covering any manufacturing defects, is our promise of quality and durability, offering you peace of mind and confidence in your investment.
Tailored Customization: Complementing the S-Class Aura
The Mercedes-Benz S-Class S223 is a vehicle of distinction, and its wheels should mirror this exclusivity. Our range of custom designs and colors allows you to tailor your wheels to the S223’s luxurious aesthetic. Whether seeking a classic, understated look or a more striking design, our options cater to your unique style and the vehicle’s elegant character.
Elevating the Essence of the S-Class
The S-Class S223 stands as a symbol of automotive luxury and innovation. Our forged wheels enhance these attributes, improving the vehicle’s driving dynamics while adding a visually stunning dimension to its appearance. The design of our wheels complements the S-Class’s sophisticated lines, adding an element of artistry that accentuates its majestic presence.
Worldwide Shipping: Bringing Luxury to Your Doorstep
Recognizing the global prestige of the Mercedes-Benz S-Class S223, Renegade Design offers worldwide shipping. Our efficient and secure shipping process ensures that your custom wheels are delivered safely and promptly, allowing you to redefine luxury and performance wherever you are.
Craftsmanship in Every Detail
Each wheel from Renegade Design is a masterpiece of precision and luxury. Employing the finest materials and latest technology, we ensure every wheel not only fits the Mercedes-Benz S-Class S223 perfectly but also enhances its overall persona. Our wheels are a harmonious blend of technology and luxury, crafted to elevate the status of the S-Class. Renegade Design’s custom forged wheels for the Mercedes-Benz S-Class S223 offer the ultimate enhancement in elegance and performance. These wheels are an essential upgrade for S-Class owners who value sophistication, comfort, and driving excellence. Order now and transform your S-Class S223 into an even more exquisite expression of automotive luxury.
