Forged Wheels for BMW X6M F96
- 21–24″Monoblock and multi-piece
- Fitted to the X6MHubs, brakes and arches
- 10–20 daysProduction time
- 21 designsShown on the X6M below
- Worldwide shippingDelivery to your country
Real cars, real wheels

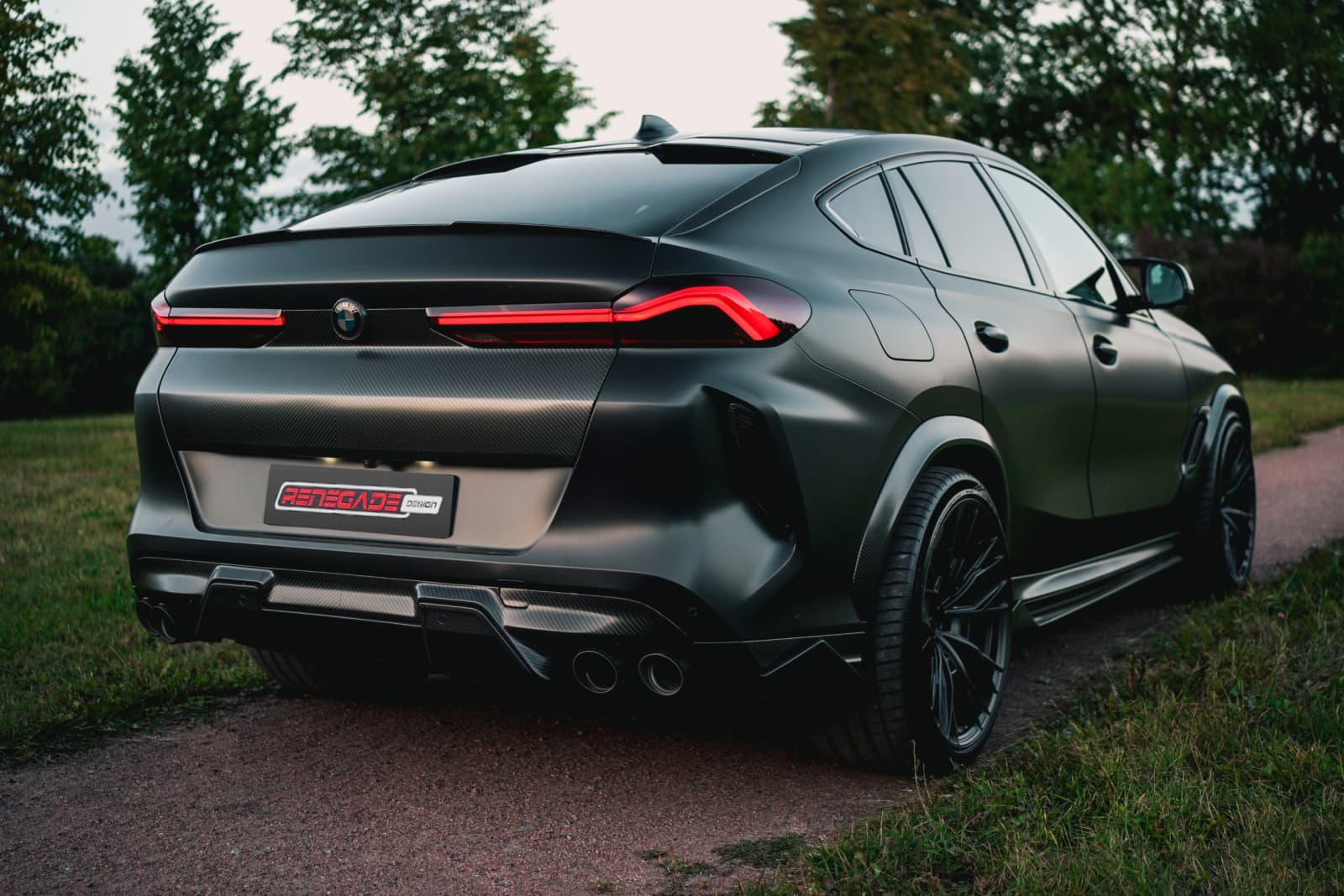

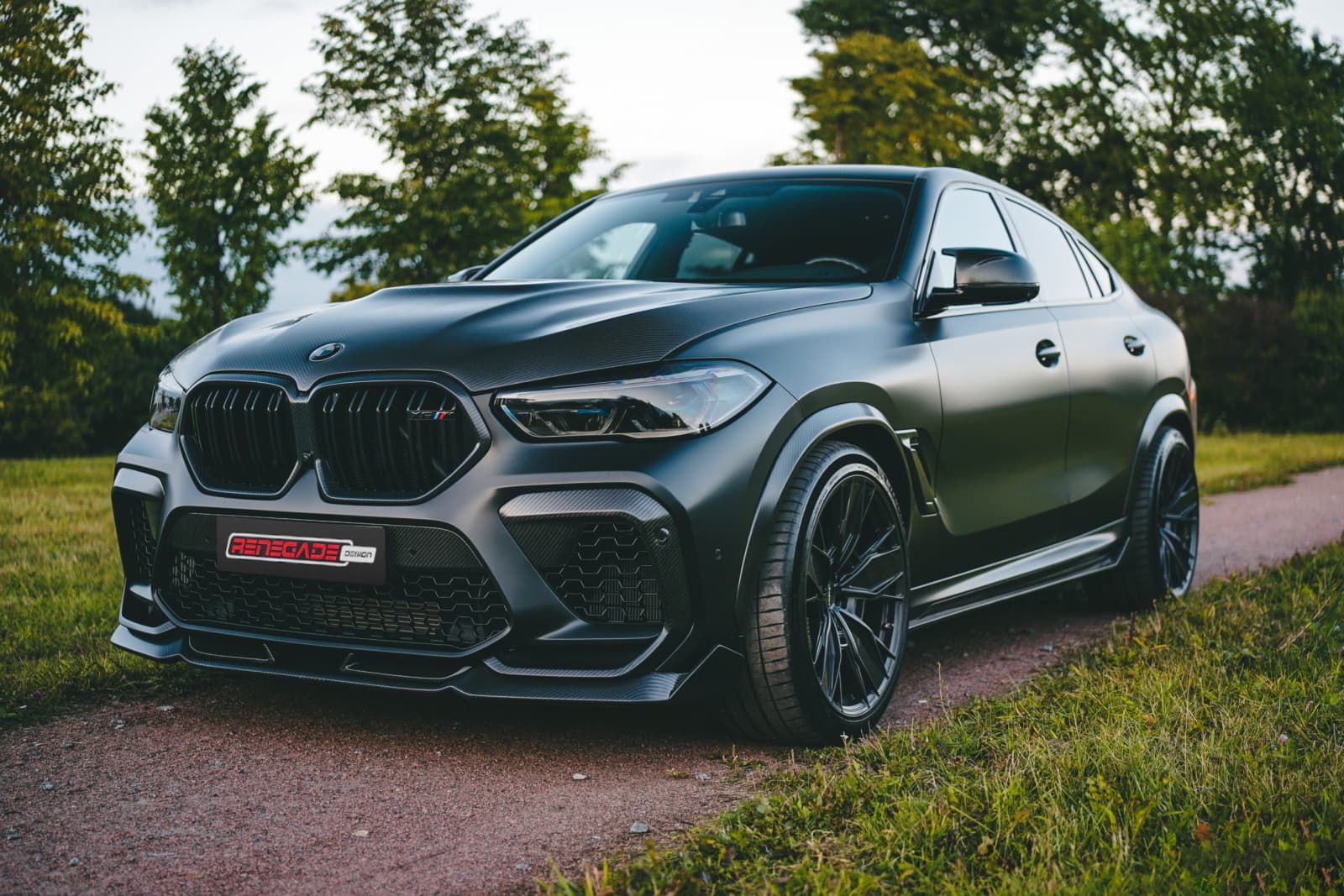

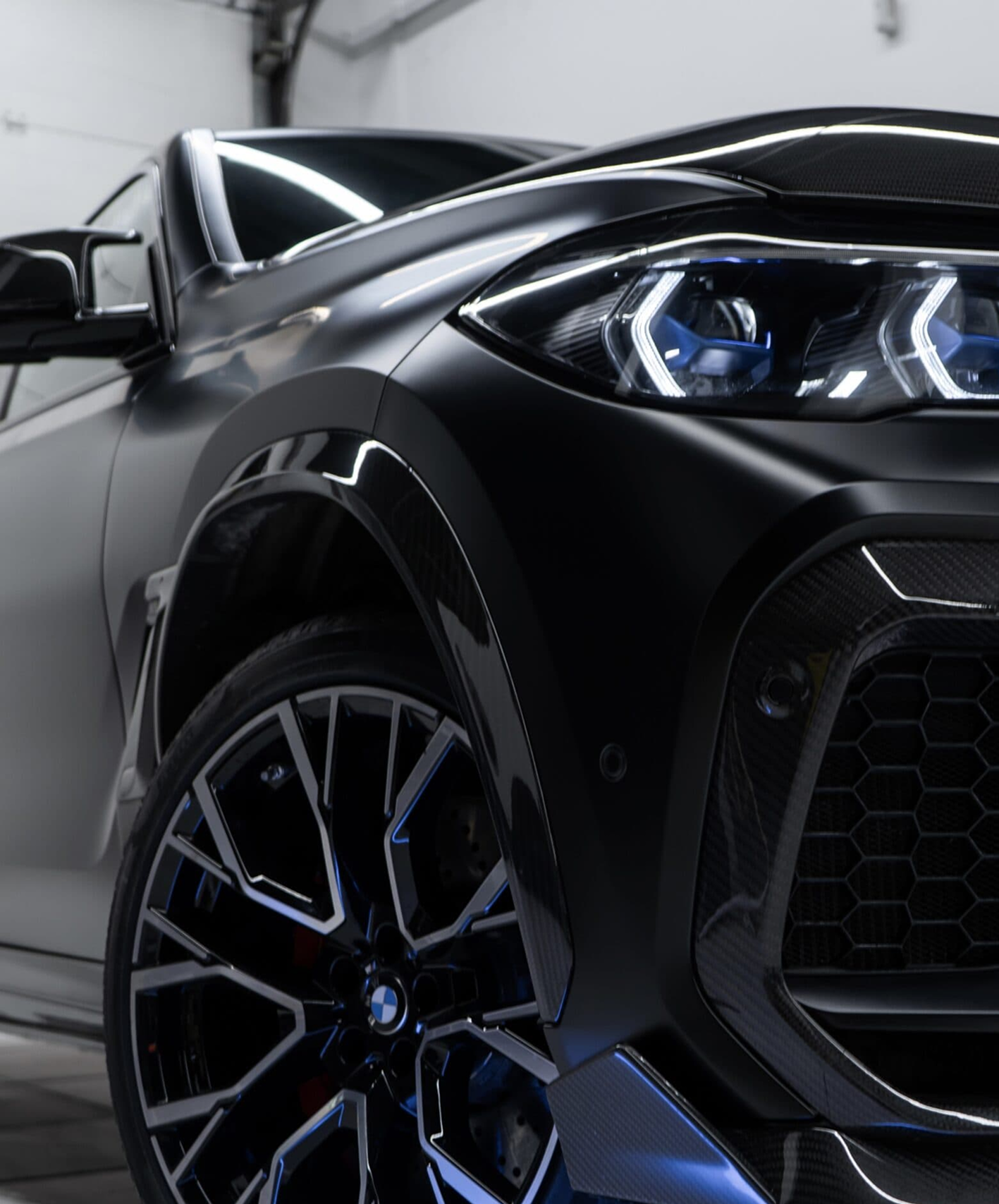

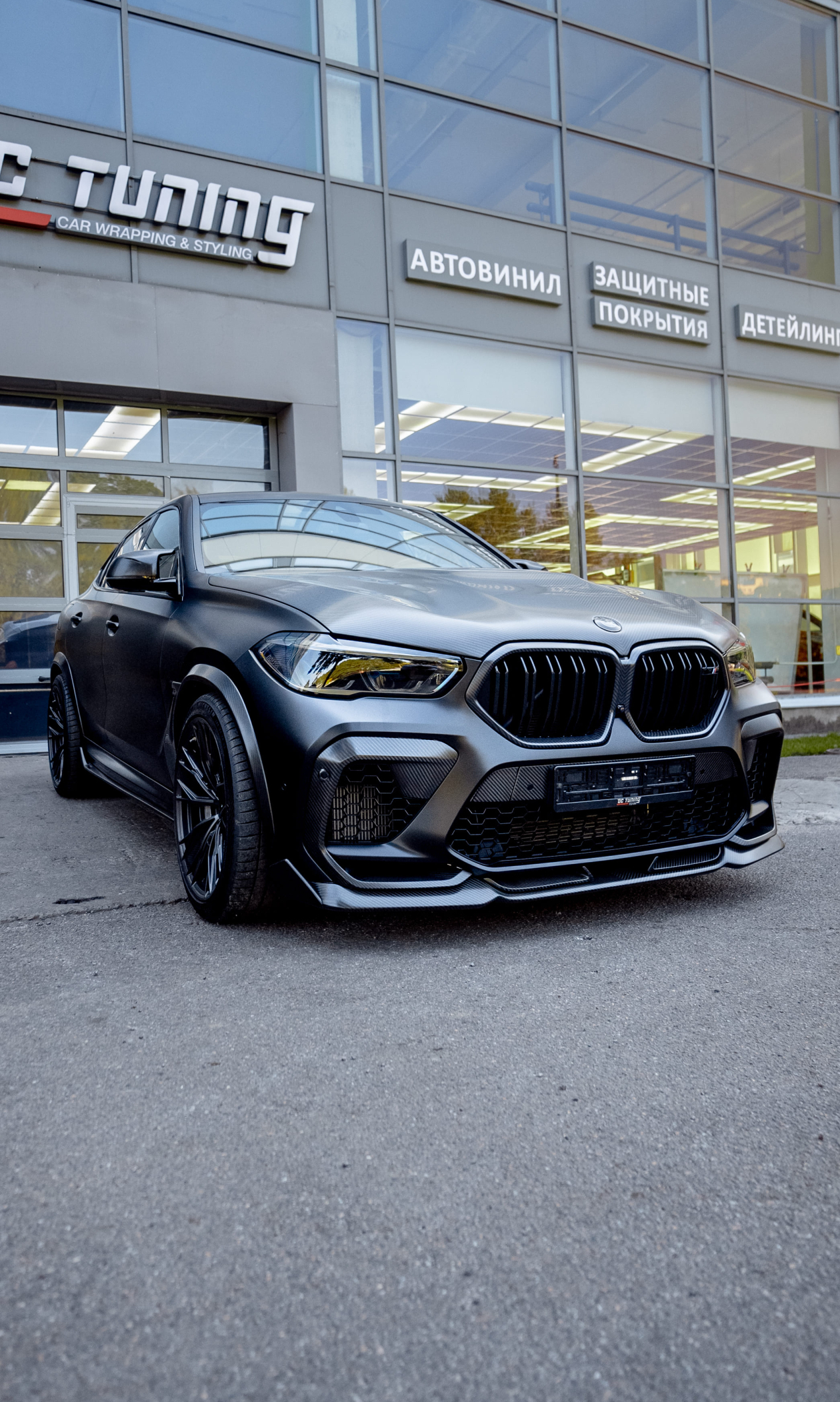

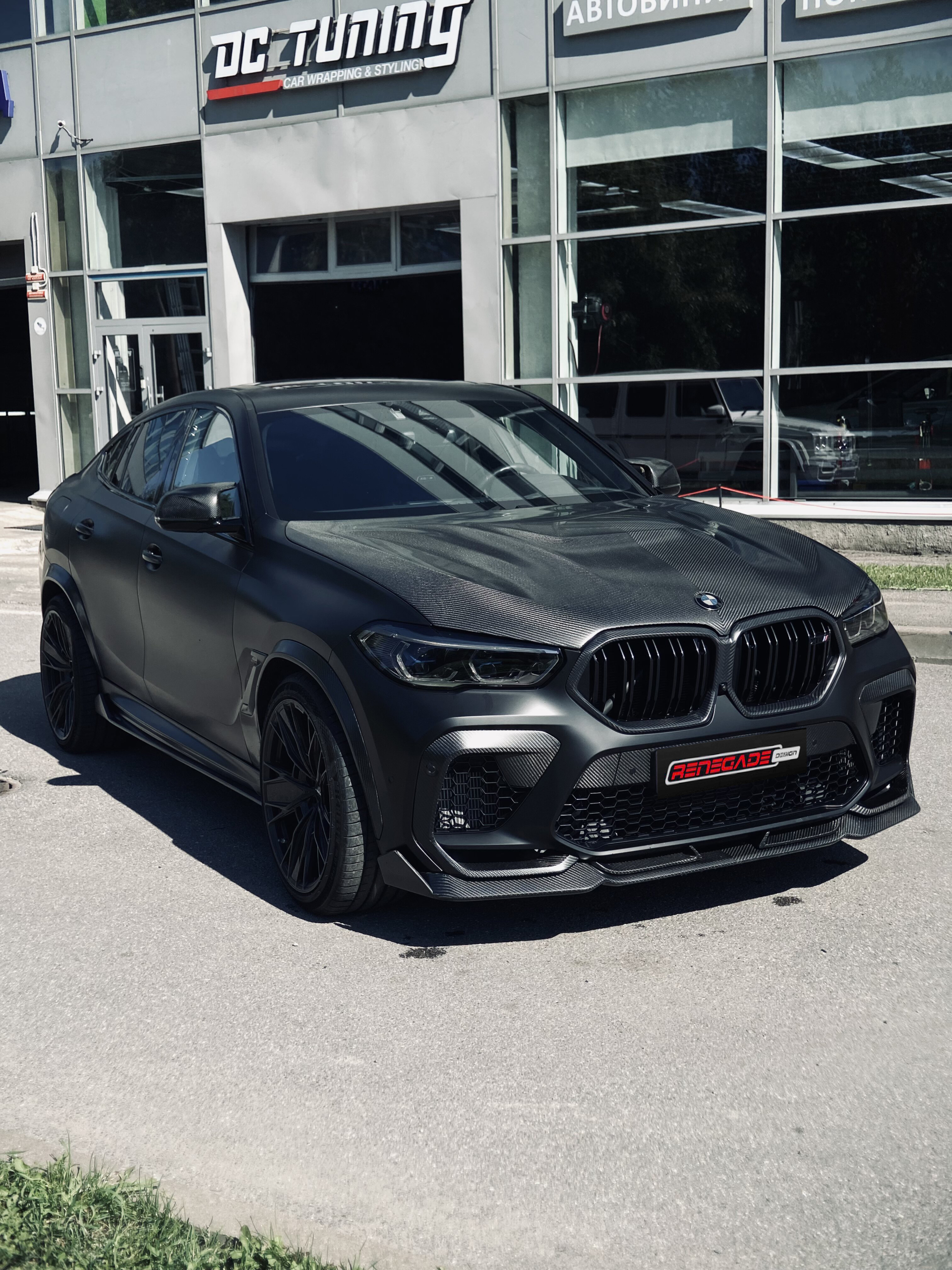

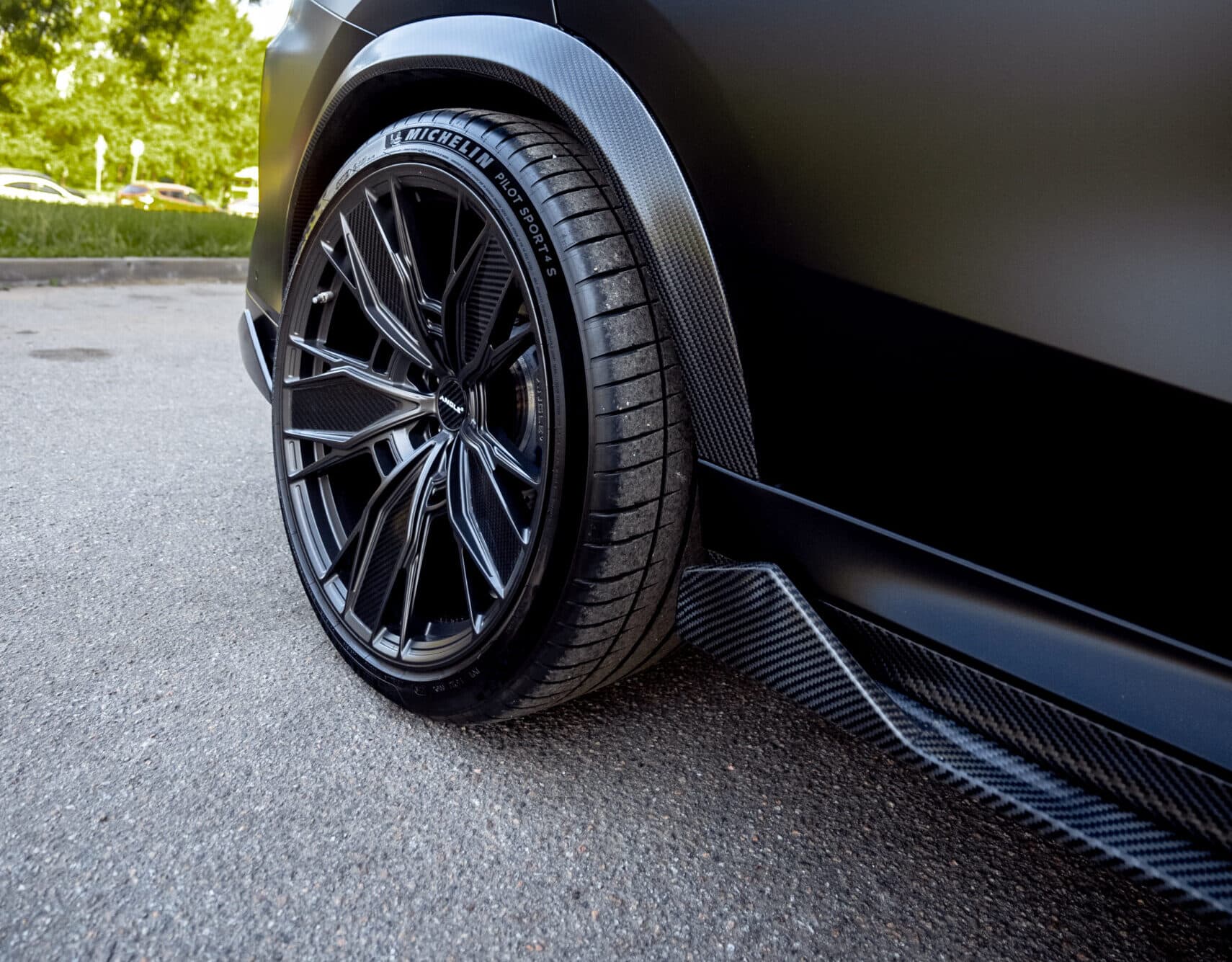

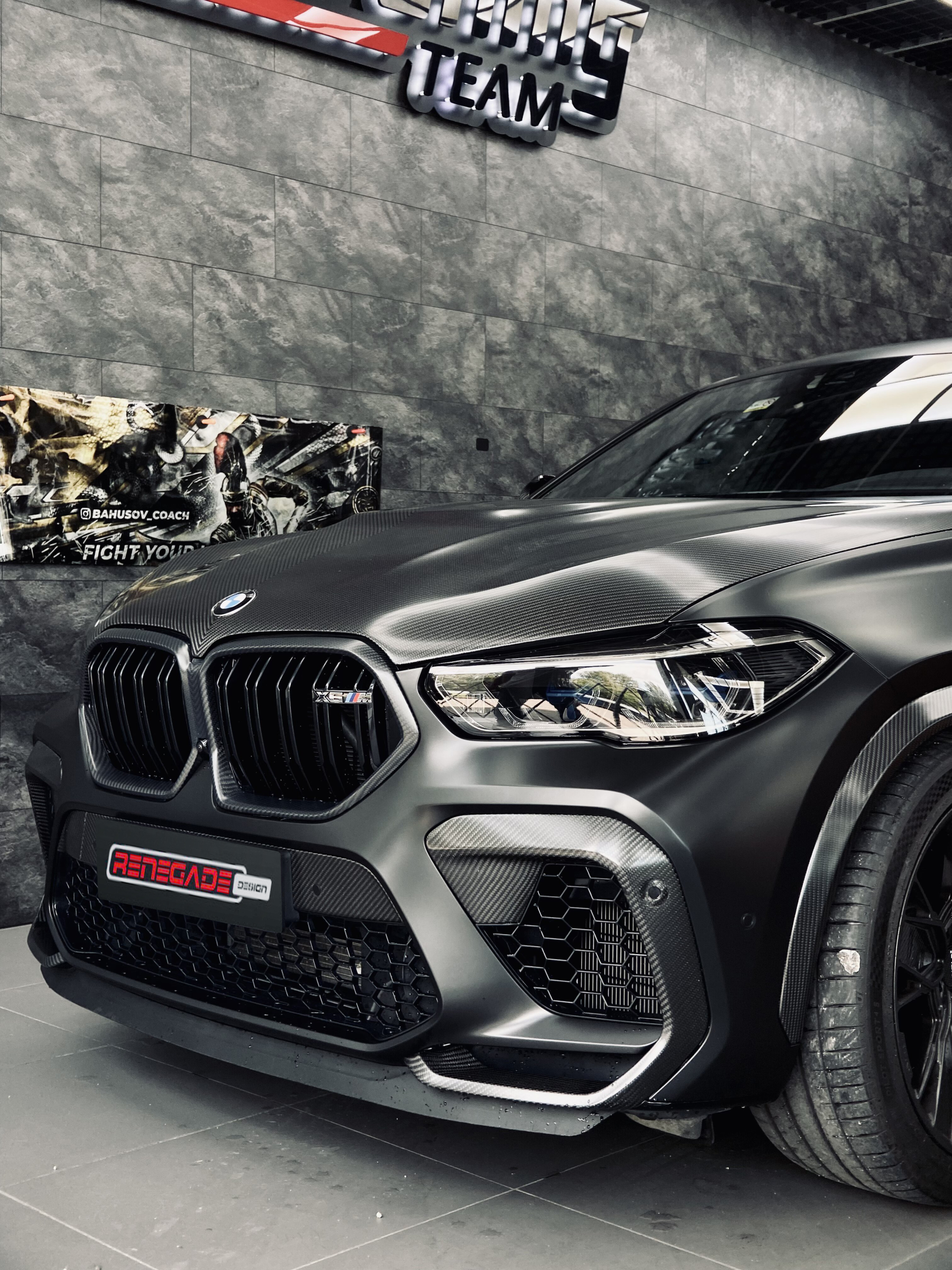

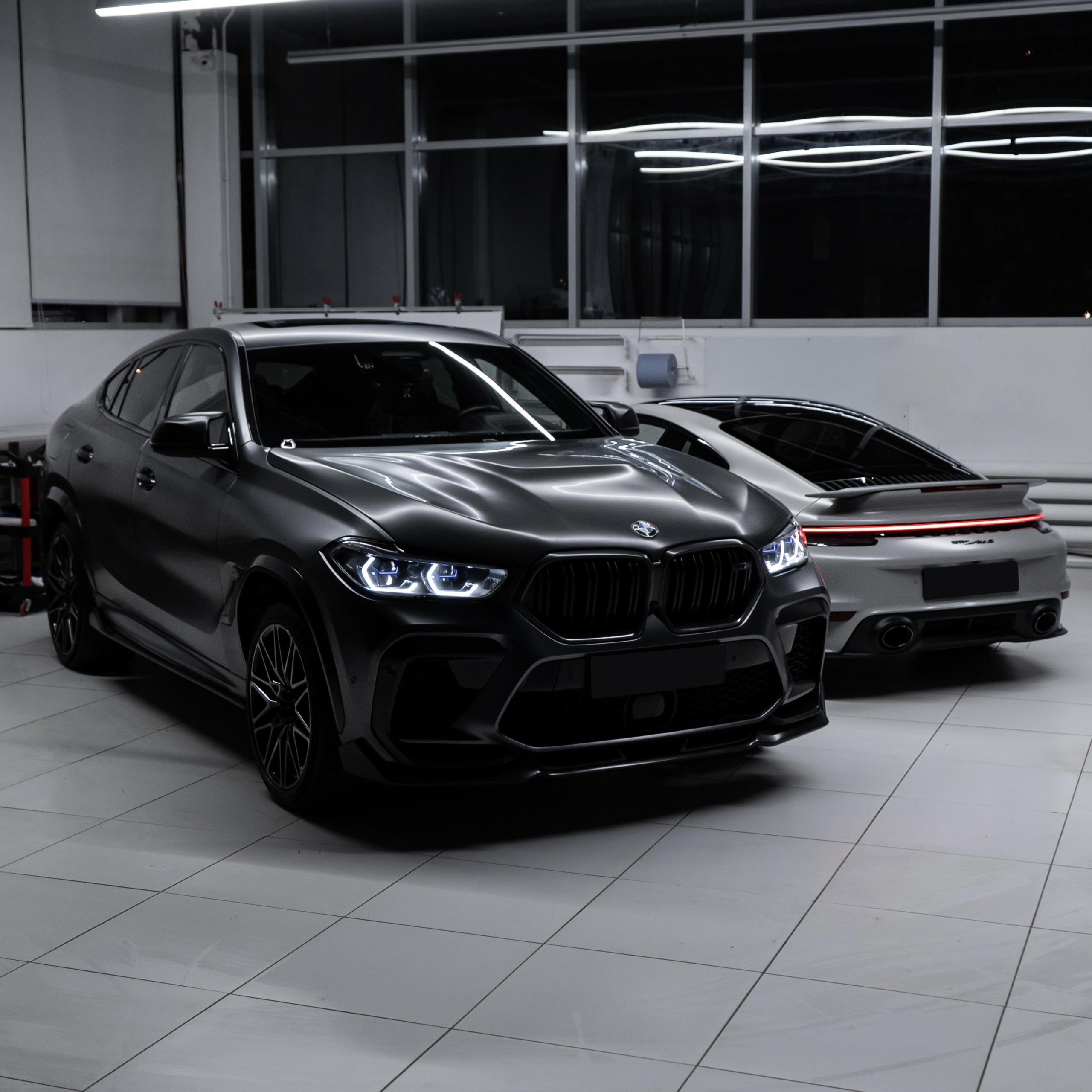

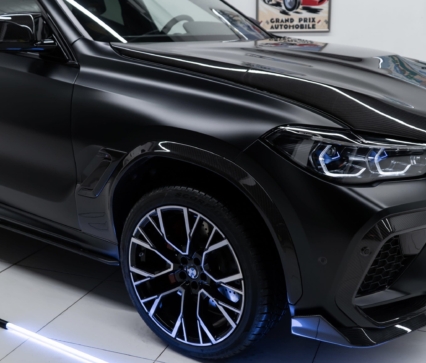

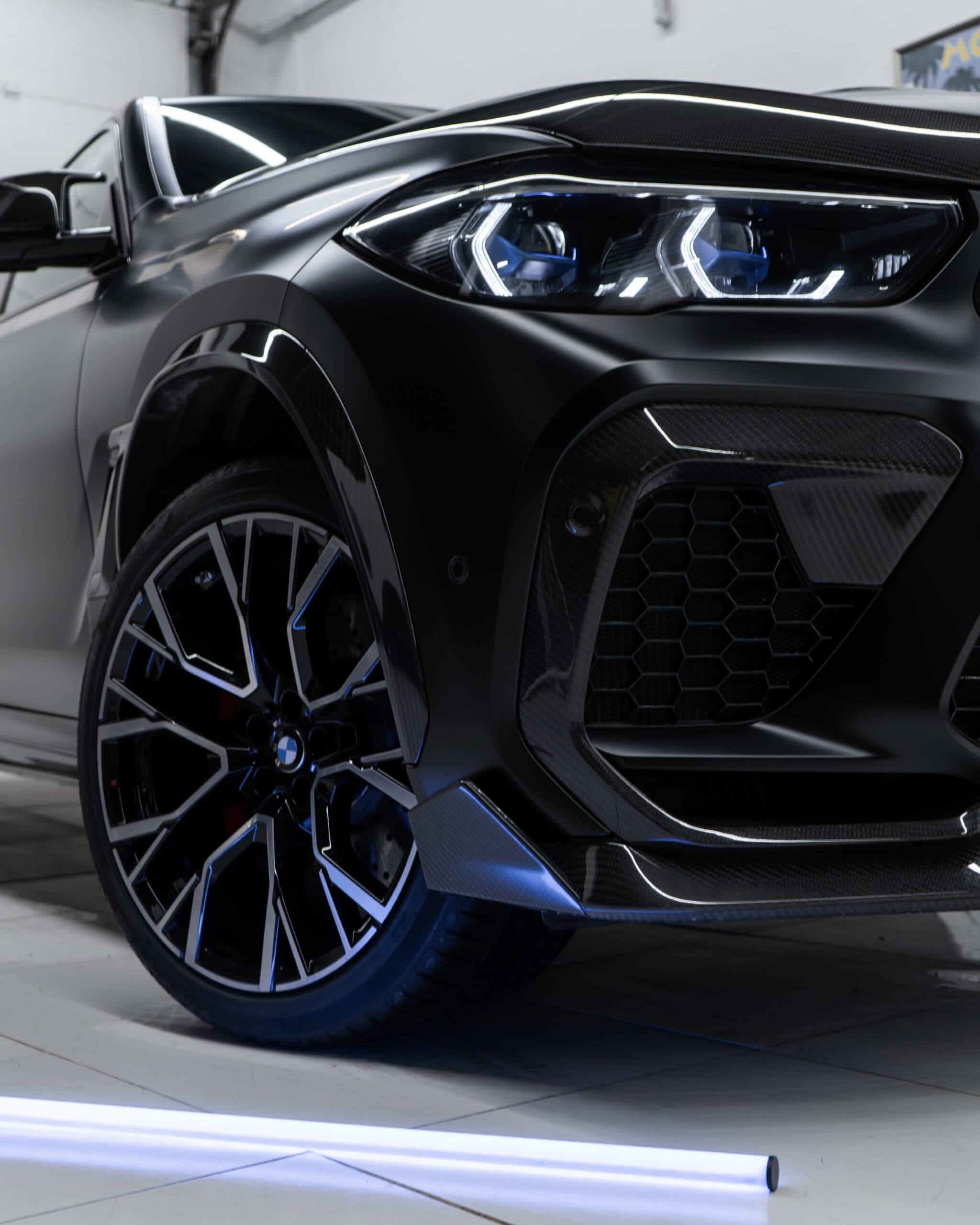

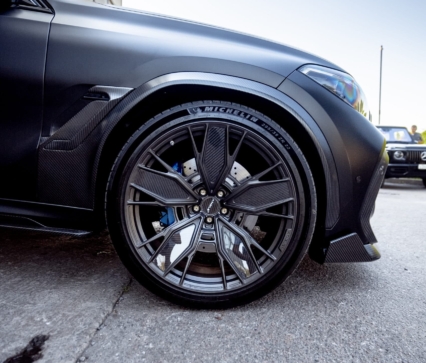

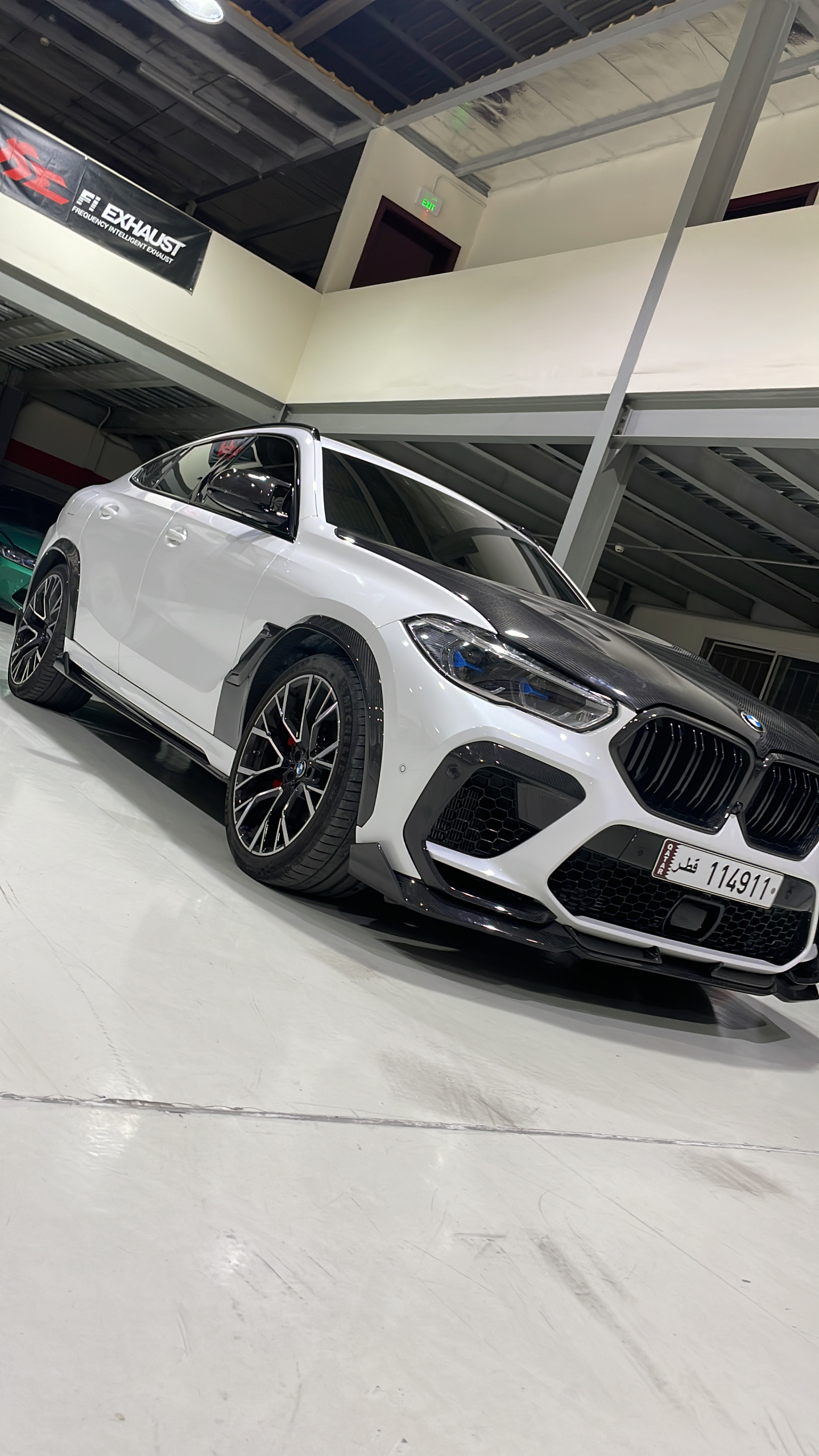

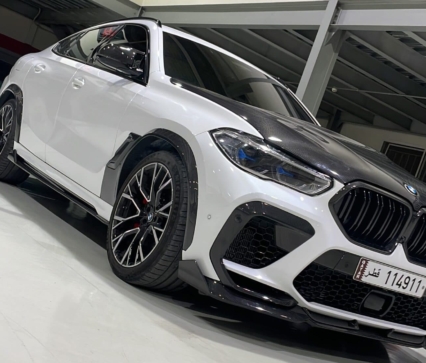

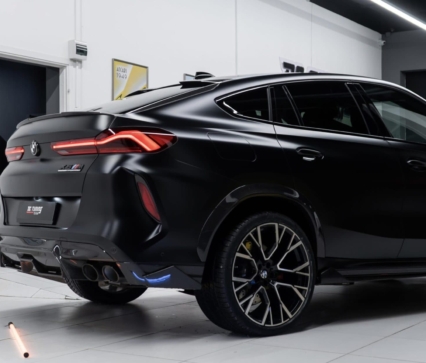

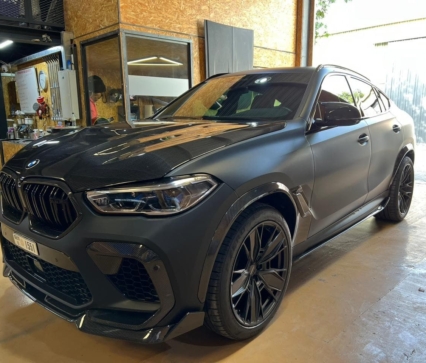

BMW X6M F96 by Renegade Design
X6 M and X6 M Competition coupés on RNG forged wheels, from our studio and client cars, with and without the RNG body kit.
Fitment
Wheel fitment for the BMW X6M F96
The X6 M carries the widest wheels in the X6 range: 10.5J×21 with 295/35 R21 at the front and 11.5J×22 with 315/30 R22 at the rear, over M Compound brakes that rule out anything below 21″. Every RNG set for the F96 keeps that stagger and is cut for the 66.6 mm hub and the factory bolts.
The X5 M F95 uses the same wheels, so one fitment sheet serves both M SUVs, before and after the 2023 update.
| Bolt pattern | 5×112 |
|---|---|
| Centre bore | 66.6 mm, hub-centric |
| Wheel bolts | M14×1.25, 140 Nm |
| Factory front | 10.5J×21 ET31, 295/35 R21 |
| Factory rear | 11.5J×22 ET43, 315/30 R22 |
| Factory options | 21″ rear: 11.5J×21 ET43 (LCI) · winter 21″ rear: 11J×21 ET48, 295/35 R21 |
| Same fitment | X6 M Competition, X6 M F96 LCI, X5 M F95 and F95 LCI |
| RNG sets for the X6 M | 21–24″, staggered, monoblock or multi-piece |
Factory data for the X6 M and X6 M Competition F96 from 2019, including the 2023 LCI. Your widths and offsets come in the fitment sheet with the quote.
21 designs · 5 collections
See every design on the BMW X6M F96
Twenty-one forged designs rendered on the X6 M F96, each as a 21/22″ staggered pair for its 315 rear tyres. Tap a design to see it front and rear.
Visualisations of the 9X collection on the BMW X6M F96. The final profile, concavity and finish are agreed for your set before production. Any of the 26 RNG catalogue designs can also be made for the X6M.
Wheels for your BMW X6M F96
Get the designs, sizes and price for your car
Choose a design and leave a contact. We reply with design options, the fitment sheet and a price for your BMW X6M F96.
- Any diameter21–24″, monoblock or multi-piece
- Any designOne of the 21, any RNG design or your own
- Any colourSilver, black, bronze, two-tone or your own
- 10–20 daysProduction, then shipping to your country
Complete the look
Wheels and body kit for the BMW X6M F96

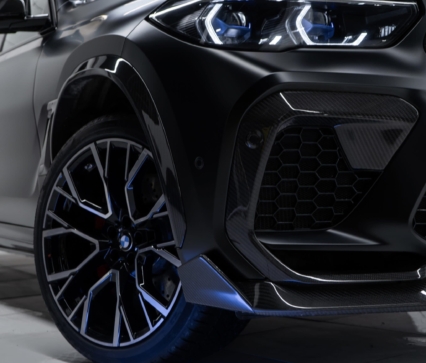

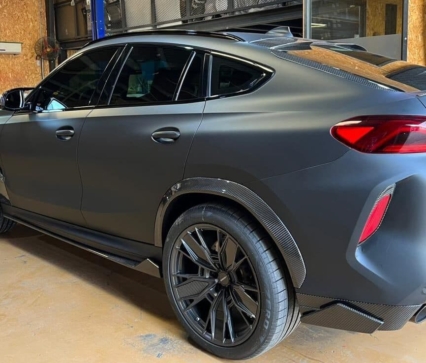

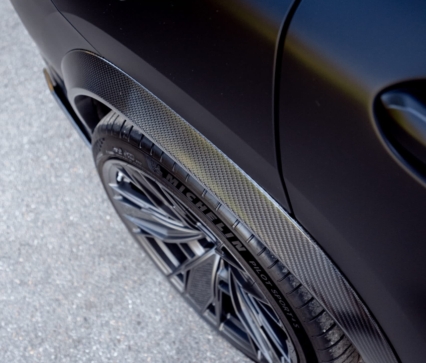

The wheels and the X6M body kit come from the same studio, so the width and offset suit the wide body as well as the stock arches. Any part of the kit is also sold separately, from dealer stock or made to order in 5–15 working days.
BMW X6M F96 wheels
Questions about wheels for the X6M
What is the bolt pattern of the BMW X6 M F96?
5×112 with a 66.6 mm centre bore and M14×1.25 wheel bolts at 140 Nm. RNG wheels for the X6 M are machined to this bore and drawn for the M car's own offsets, not those of the regular X6.
What size wheels does the X6 M Competition have from the factory?
Staggered 21/22″: 10.5J×21 ET31 with 295/35 R21 at the front and 11.5J×22 ET43 with 315/30 R22 at the rear. After the 2023 update a 21″ rear (11.5J×21 ET43) is also listed, and winter sets run 295/35 R21 all round with an 11J×21 ET48 rear.
Are X6 M wheels the same as X5 M wheels?
Yes. The X6 M F96 and the X5 M F95 share the hub, bolt pattern, centre bore, widths and offsets, so a set made for one fits the other, before and after the 2023 update. Wheels for the regular X6 G06 are narrower at the front and are not a direct match.
Can the X6 M run 23″ or 24″ wheels?
Yes. We go one or two sizes above the factory 22″ with lower-profile tyres, keep the wider rear wheel and the rolling diameter of the factory set, so the M xDrive system, the launch control and the speedometer stay correct.
Do the wheels suit the RNG body kit for the X6 M?
Yes. The wheels and the X6 M body kit come from the same studio, so the design and finish are matched to the kit parts, and the offsets are set for the stance with the kit fitted.
How long does a set for the X6 M take, and what does it cost?
Production takes 10–20 days after you approve the design and the fitment sheet, then we ship to your country. Sets start from $4,940 for four wheels; staggered 23″ and 24″ sets and multi-piece construction cost more.
Forged wheels for BMW X6M F96: sizes, weight, price
Forged wheels for BMW X6M F96 are forged in-house by RNG Design from aviation-grade aluminium for the BMW X6M F96, 2020–2023, in sizes 21″, 22″, 23″, 24″. Weight per wheel: 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg. Every set uses the car's original bolt pattern and offset, and comes in 18 finishes, from brushed and matte to gloss, bronze, gunmetal and crystal tones. Price from $4,940 per set of four (USD, delivery not included); single wheels can be ordered. A set is made in 10–20 days; RNG Design ships worldwide and partner dealers handle fitting. The wheels match the body kit for BMW X6M F96.
| Specification | Value |
|---|---|
| Wheels | Forged wheels for BMW X6M F96 |
| Fits | BMW X6M F96, 2020–2023 |
| Sizes | 21″, 22″, 23″, 24″ |
| Weight per wheel | 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg |
| Material | forged aviation-grade aluminium, made in-house |
| Finishes | 18: brushed, matte, gloss, bronze, gunmetal, crystal and gold tones |
| Price | from $4,940 per set of four (USD, delivery not included) |
| Lead time | 10–20 days per set |
| Fitment | original bolt pattern and offset, no spacers |
The BMW X6M F96 is a performance SUV with a strong personality: aggressive proportions, M-engineered power, and the comfort expected from a premium vehicle. For owners who want to make the exterior more distinctive, forged wheels are one of the most effective upgrades. If you are looking for BMW X6M wheels for sale, Renegade Design offers custom forged wheels created specifically for the X6M F96. Each set is designed to enhance the vehicle’s stance, improve visual balance, and support the powerful character of the model.
Forged Wheels Designed for the X6M F96
The vehicle has a wide body, strong arches, and a dynamic coupe-like profile. Standard wheels may suit the factory design, but a custom forged set can make the SUV look more exclusive and complete. The upgrade is developed with attention to model-specific fitment, correct offset, brake clearance, visual balance, strength, and long-term durability. This makes it suitable for owners who want more than a generic catalog solution.
Strength, Lightweight Construction, and Better Driving Feel
Forged wheels are valued not only for their appearance. Compared with many cast alternatives, forged construction provides a stronger and lighter structure. For a powerful SUV like this, that matters in everyday driving and at higher speeds. Lower unsprung mass can support sharper steering response, better suspension behavior, and a more precise driving feel. The exact result depends on the selected size, tire setup, and configuration, but high-quality forged construction helps preserve the performance character of the car.
Custom Design and Finishing Options
Every owner has a different vision. Some prefer a clean OEM-plus appearance, while others want a more aggressive and expressive build. Available design directions may include satin black, gloss black, graphite, dark metallic finishes, brushed metal, bronze, custom colors, and concave profiles. The right finish can completely change the impression of the vehicle. Dark wheels make the SUV look sharper and more focused, while polished or brushed surfaces add contrast and highlight its premium side.
Fitment That Changes the Stance
A successful wheel upgrade is not only about design. Fitment determines whether the final result looks balanced. For the BMW X6M F96, diameter, width, offset, tire profile, and brake clearance must work together. A properly selected forged set fills the arches cleanly, makes the body appear wider and more planted, and preserves everyday usability. Whether the goal is a luxury street look or a more motorsport-inspired appearance, the final setup should feel natural and complete.
For Different BMW X6M Builds
Custom forged wheels can work as a standalone upgrade or as part of a larger tuning project. They pair well with carbon fiber exterior elements, body kits, lowered suspension, and sport exhaust systems. For a discreet premium build, a simple multi-spoke design in satin black or graphite can look elegant and serious. For a more aggressive project, deeper concavity, sharper spokes, and contrast finishes can create a stronger visual effect. The main goal is to make the wheels match the full concept of the vehicle rather than look like a separate detail.
Quality, Warranty, and Worldwide Delivery
Renegade Design forged wheels are supplied with a lifetime warranty against manufacturing defects. This is important for owners who expect premium quality, durability, and confidence in every component installed on their vehicle. The company also supports international orders and offers worldwide shipping. Clients in Europe, the Middle East, North America, and other regions can order a custom forged set and receive professional support during the selection process.
Buy BMW X6M Wheels from Renegade Design
Renegade Design offers BMW X6M wheels for sale for owners who want a stronger stance, more exclusive styling, and high-quality forged construction. These BMW X6M rims are created to match the proportions, performance, and luxury character of the F96 generation. Order custom forged wheels for your BMW X6M and give your SUV a more confident, distinctive, and complete appearance.
