Fitment

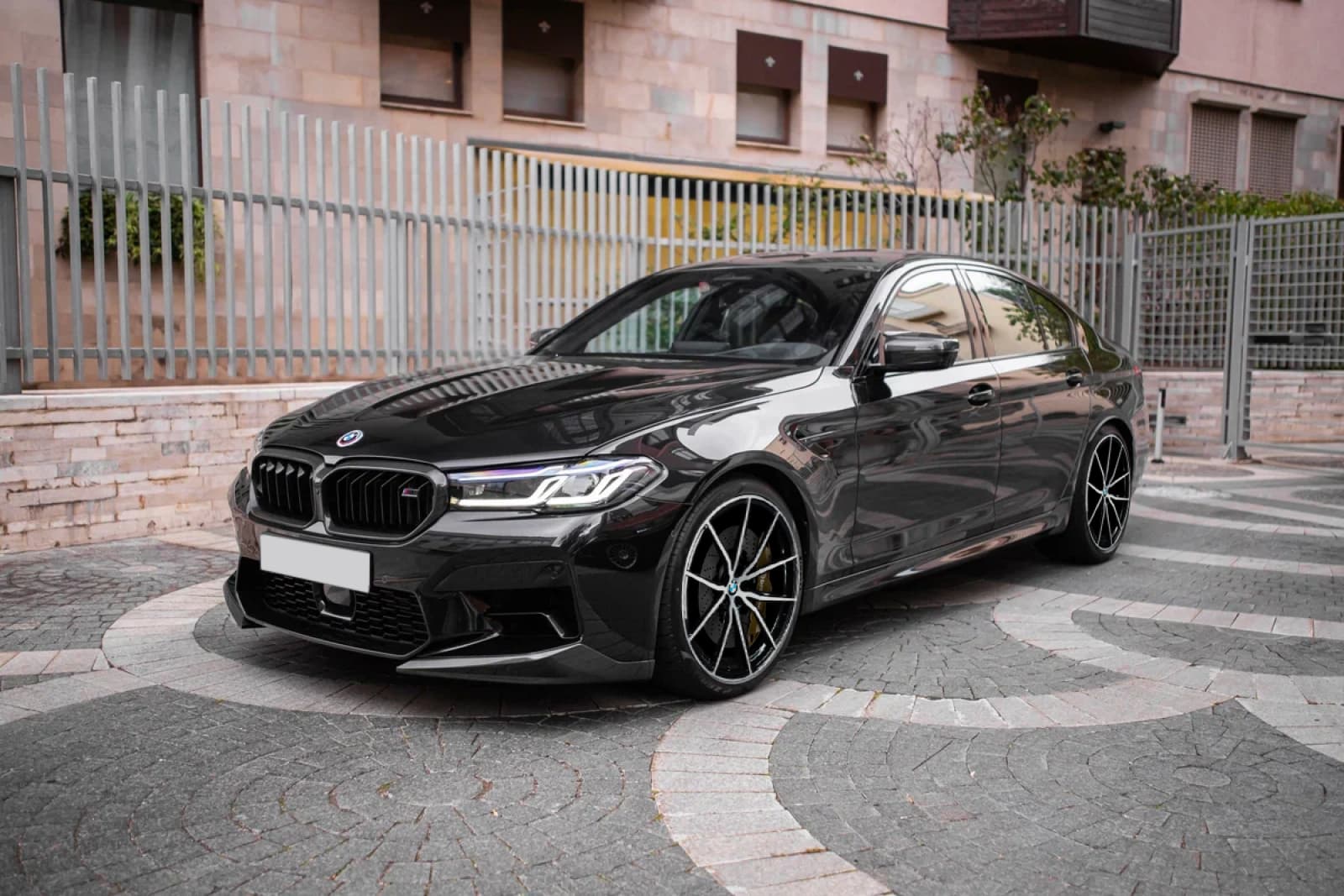

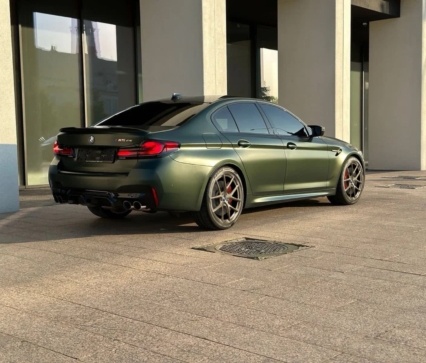

The M5 F90 is staggered from the factory: the M5 runs 19″ with ET26 at the front and ET28 at the rear, while the M5 Competition and M5 CS come on 20″ with ET28 on both axles. The car weighs about 1.9 tonnes and has xDrive with a rear-drive mode, so every RNG set keeps the stagger and matches the rolling diameters front to rear.
The M8 F91, F92 and F93 use the same hub and the same 9.5J×20 ET28 / 10.5J×20 ET28 factory wheels, so an M5 F90 set also fits the M8.
| Bolt pattern | 5×112 |
|---|---|
| Centre bore | 66.6 mm, hub-centric |
| Wheel bolts | M14×1.25, 140 Nm |
| Factory front | M5: 9.5J×19 ET26, 275/40 R19 · Competition, CS: 9.5J×20 ET28, 275/35 R20 |
| Factory rear | M5: 10.5J×19 ET28, 285/40 R19 · Competition, CS: 10.5J×20 ET28, 285/35 R20 |
| Same fitment | M5 Competition, M5 CS, M8 Coupé F92, M8 Convertible F91, M8 Gran Coupé F93 |
| RNG sets for the M5 | 20–22″, staggered, monoblock or multi-piece |
Factory data for the M5, M5 Competition and M5 CS (F90), 2017–2023. Your exact widths, offsets and tyres come in the fitment sheet with the quote.
What is the bolt pattern of the BMW M5 F90?
The M5 F90 uses 5×112 with a 66.6 mm centre bore and M14×1.25 wheel bolts tightened to 140 Nm. The M5 F10 before it used 5×120, so older M5 wheels do not fit. RNG sets are machined to the F90 bore and need no spacers or rings.
What size wheels does the M5 F90 have from the factory?
The M5 has 9.5J×19 ET26 with 275/40 R19 at the front and 10.5J×19 ET28 with 285/40 R19 at the rear; the 20″ set is an option. The M5 Competition and M5 CS have 9.5J×20 ET28 with 275/35 R20 and 10.5J×20 ET28 with 285/35 R20 as standard.
Do M5 F90 wheels fit the BMW M8?
Yes. The M8 Coupé F92, Convertible F91 and Gran Coupé F93 share the hub, bolt pattern and 20″ factory wheels with the M5 Competition. The 5 Series G30 has the same bolt pattern but different offsets and smaller brakes, so we draw it as a separate fitment.
Can the M5 F90 run 21″ or 22″ wheels?
Yes. A 21″ set with 275/30 R21 at the front and 295/30 R21 at the rear stays within half a percent of the factory 20″ rolling diameter. 22″ works with 30-profile tyres and slightly more diameter, which we check against your car before production.
Why must the front and rear rolling diameters match on the M5 F90?
The F90 drives all four wheels through xDrive and can switch to rear-drive mode. If the front and rear tyres roll at different speeds, the transfer case works against itself. We pick tyre sizes so both axles stay within the factory tolerance, and note the figures in the fitment sheet.
How long does a set for the M5 F90 take, and what does it cost?
Production takes 10–20 days after you approve the design and the fitment sheet, then we ship to your country. Sets start from $4,940 for four wheels; the price depends on diameter, construction and finish.

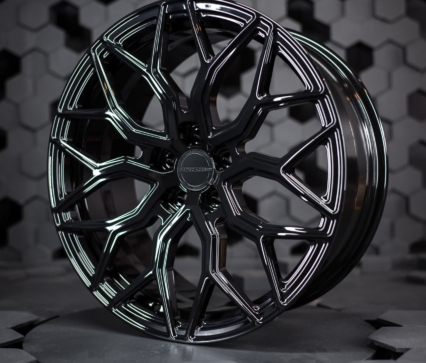

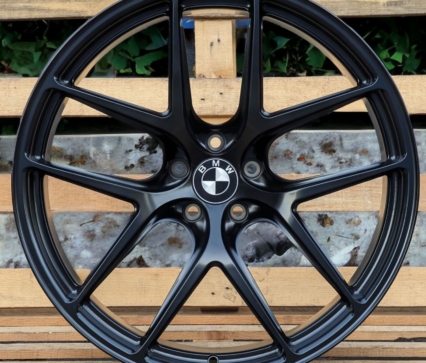

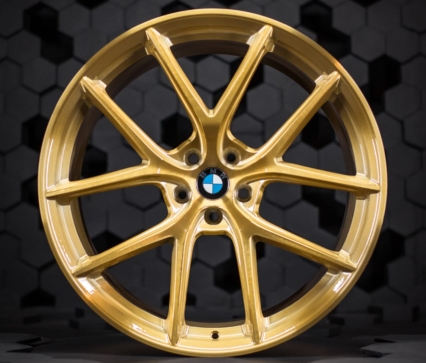

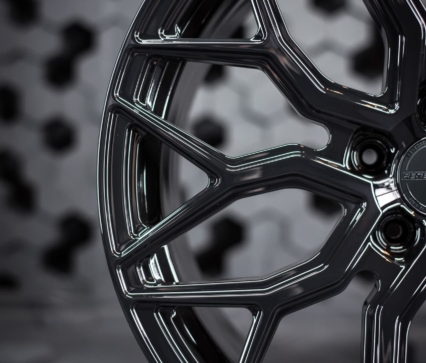

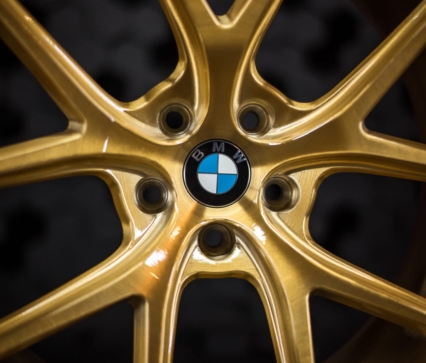

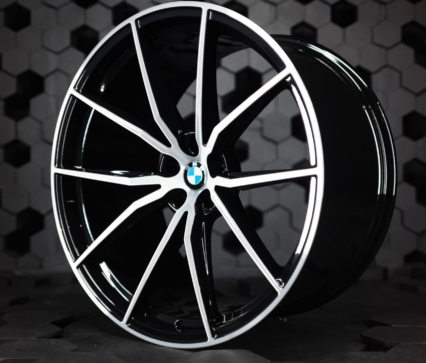

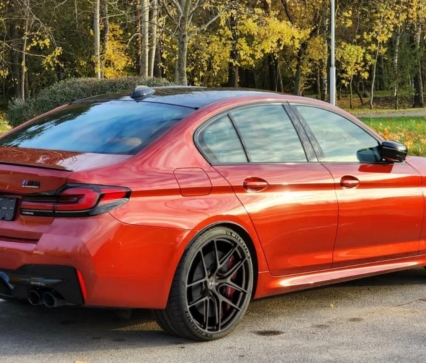

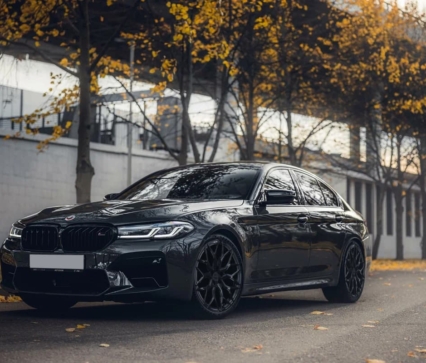

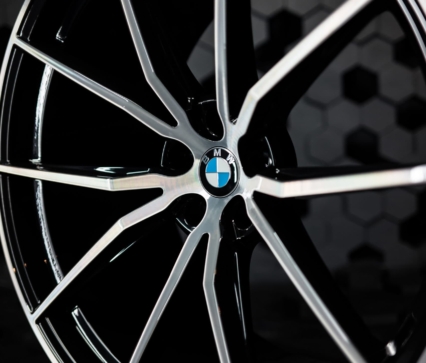

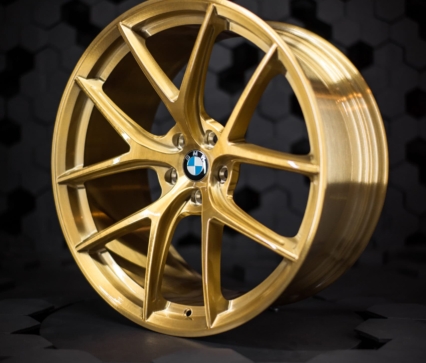

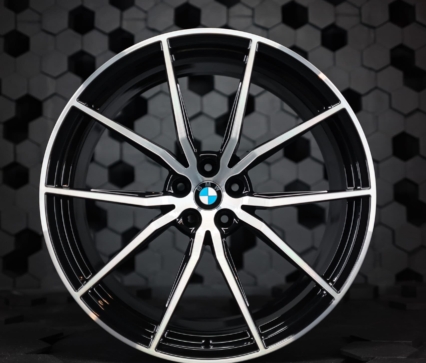

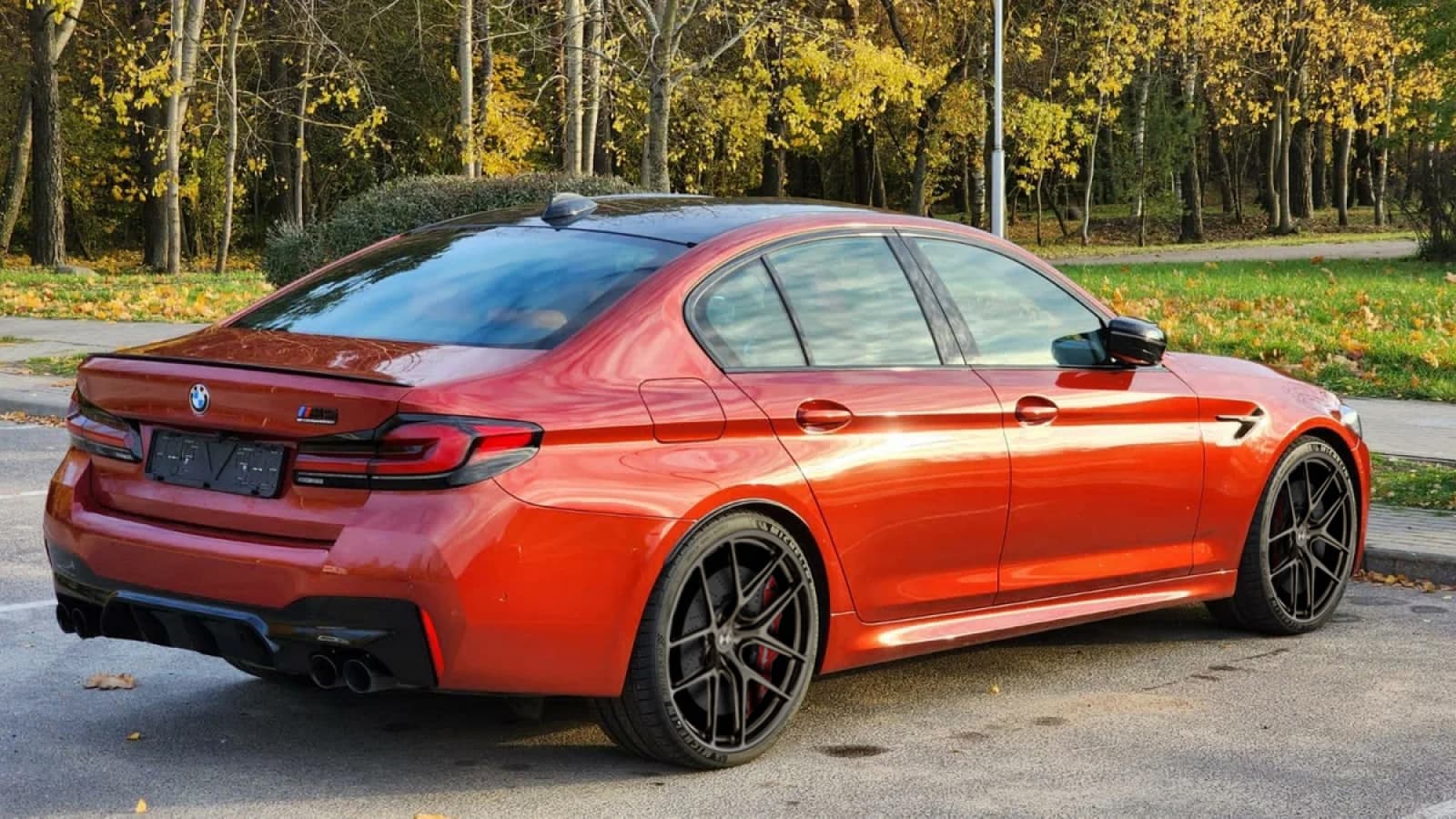

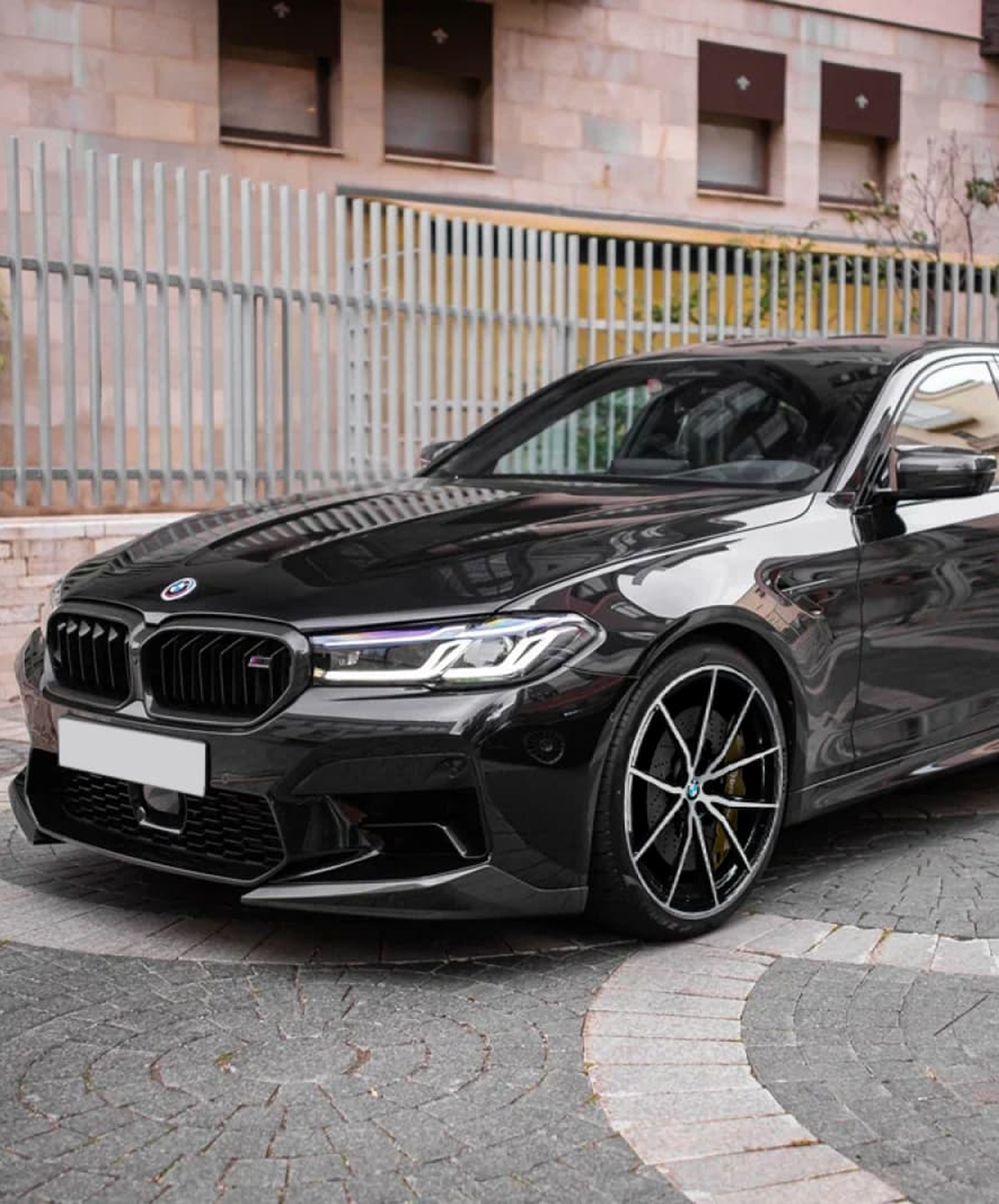

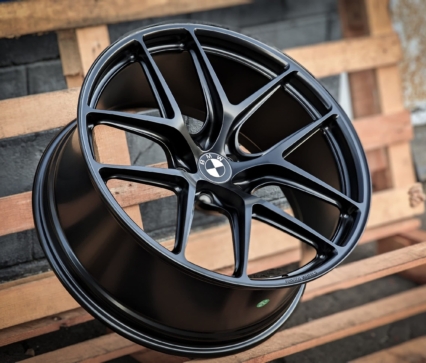

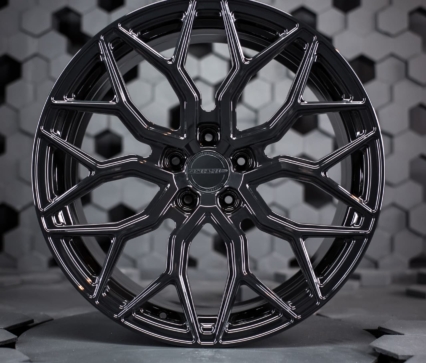

Forged wheels for BMW M5 F90 are forged in-house by RNG Design from aviation-grade aluminium for the BMW M5 F90, in sizes 21″, 22″, 23″, 24″. Weight per wheel: 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg. Every set uses the car's original bolt pattern and offset, and comes in 18 finishes, from brushed and matte to gloss, bronze, gunmetal and crystal tones. Price from $4,940 per set of four (USD, delivery not included); single wheels can be ordered. A set is made in 10–20 days; RNG Design ships worldwide and partner dealers handle fitting.
| Specification | Value |
|---|---|
| Wheels | Forged wheels for BMW M5 F90 |
| Fits | BMW M5 F90 |
| Sizes | 21″, 22″, 23″, 24″ |
| Weight per wheel | 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg |
| Material | forged aviation-grade aluminium, made in-house |
| Finishes | 18: brushed, matte, gloss, bronze, gunmetal, crystal and gold tones |
| Price | from $4,940 per set of four (USD, delivery not included) |
| Lead time | 10–20 days per set |
| Fitment | original bolt pattern and offset, no spacers |
Step into the world of luxury with Renegade Design’s custom forged wheels for your BMW M5 F90. Designed for those who value exceptional quality and style, our wheels represent the pinnacle of automotive enhancement. Forged Wheels vs. Alloy Wheels Our forged wheels stand in a league of their own compared to traditional alloy wheels. Through the forging process, where intense pressure shapes the wheel, the resulting material is both denser and stronger. This means a lighter, more resilient wheel that elevates performance, handling, and fuel efficiency. Lifetime Warranty: A Pledge of Quality At Renegade Design, our forged wheels come with a lifetime warranty, underscoring our commitment to top-tier quality and customer satisfaction. This warranty covers any manufacturing defects, ensuring your peace of mind. Personalized Customization Options Your BMW M5 F90 is distinctive, and it deserves wheels that are equally unique. We offer an extensive selection of custom designs and colors, allowing you to express your personal style. Whether you prefer a classic, elegant look or a bold, avant-garde design, we cater to all preferences. Global Reach with Worldwide Shipping Understanding the global appeal of the BMW M5 F90, Renegade Design offers worldwide shipping. Our efficient and secure delivery system ensures that your custom wheels reach you, no matter where you are. Your BMW M5 F90 is not just a car; it’s a statement. Renegade Design’s forged wheels are crafted to enhance this statement, blending unmatched style with superior performance. Order now and start the journey of transforming your BMW M5 F90 into a masterpiece of automotive art.
