Price from:
$ 4 940 Delivery not included
$ 4 940 Delivery not included
Upgrade your BMW iX with Renegade Design's premium forged wheels. These wheels surpass traditional alloy wheels in strength and aesthetic appeal, offering a superior driving experience.
Request for this model

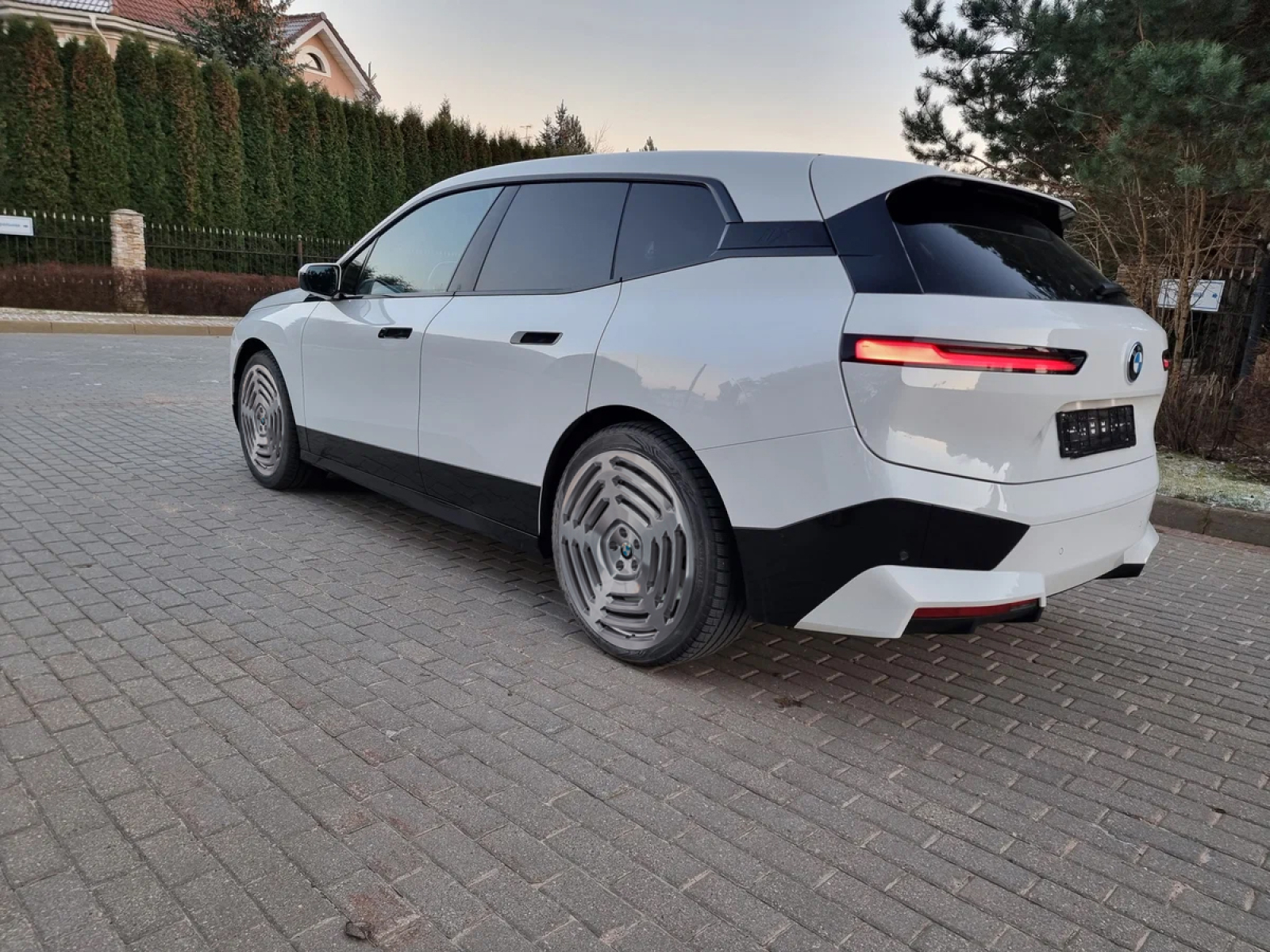

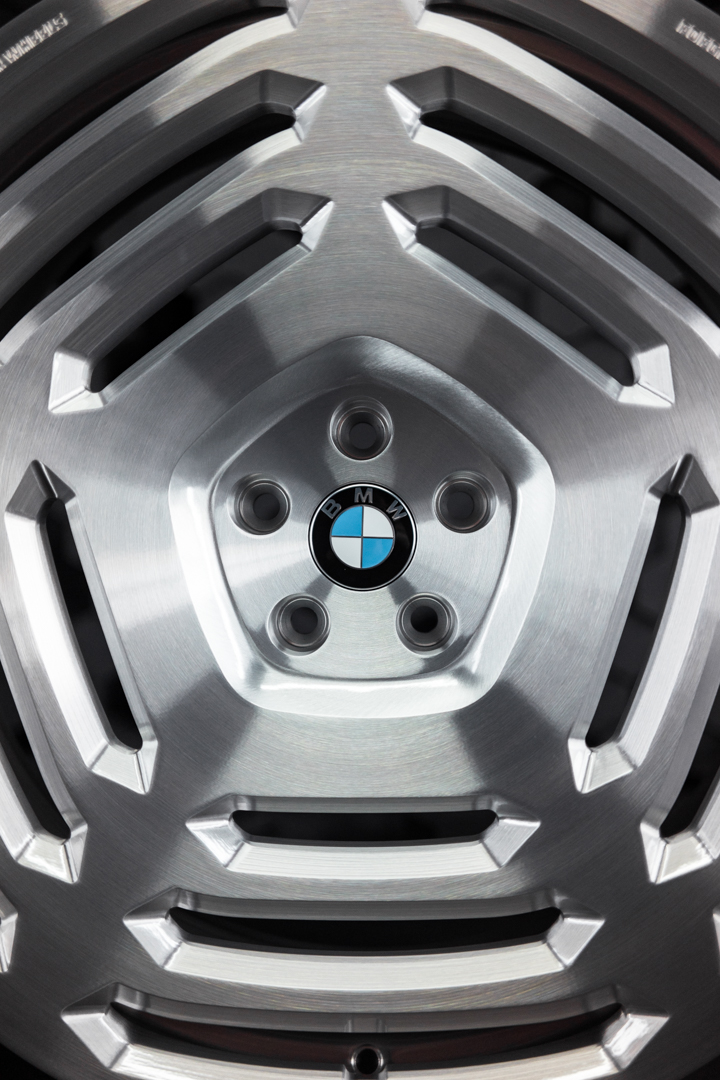

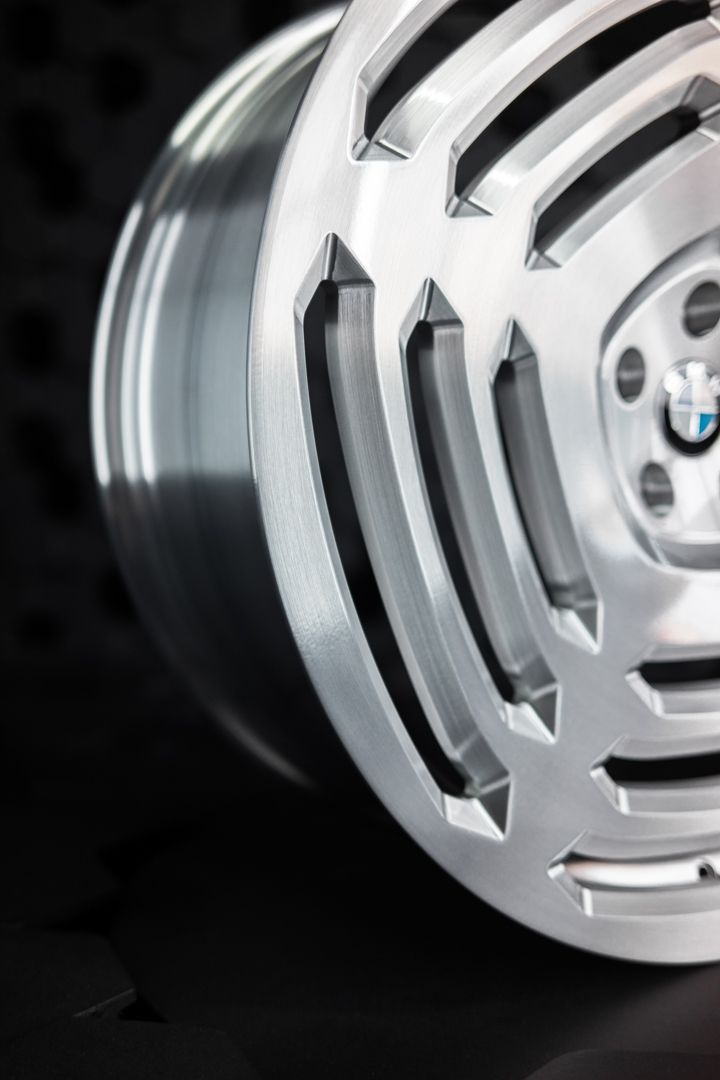

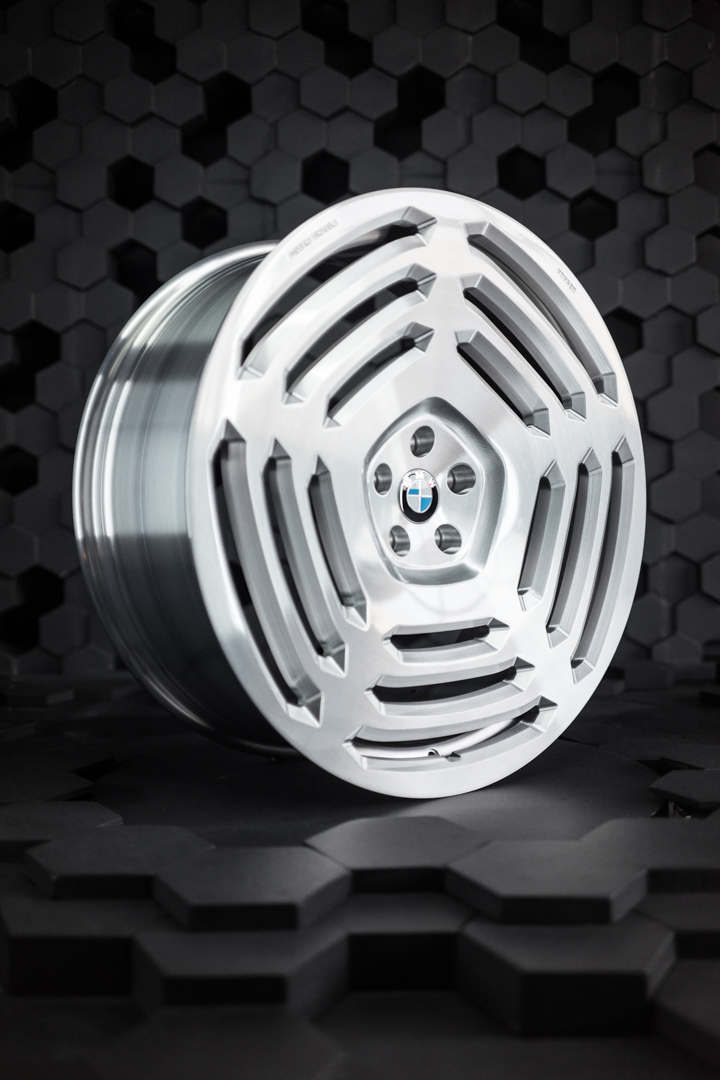

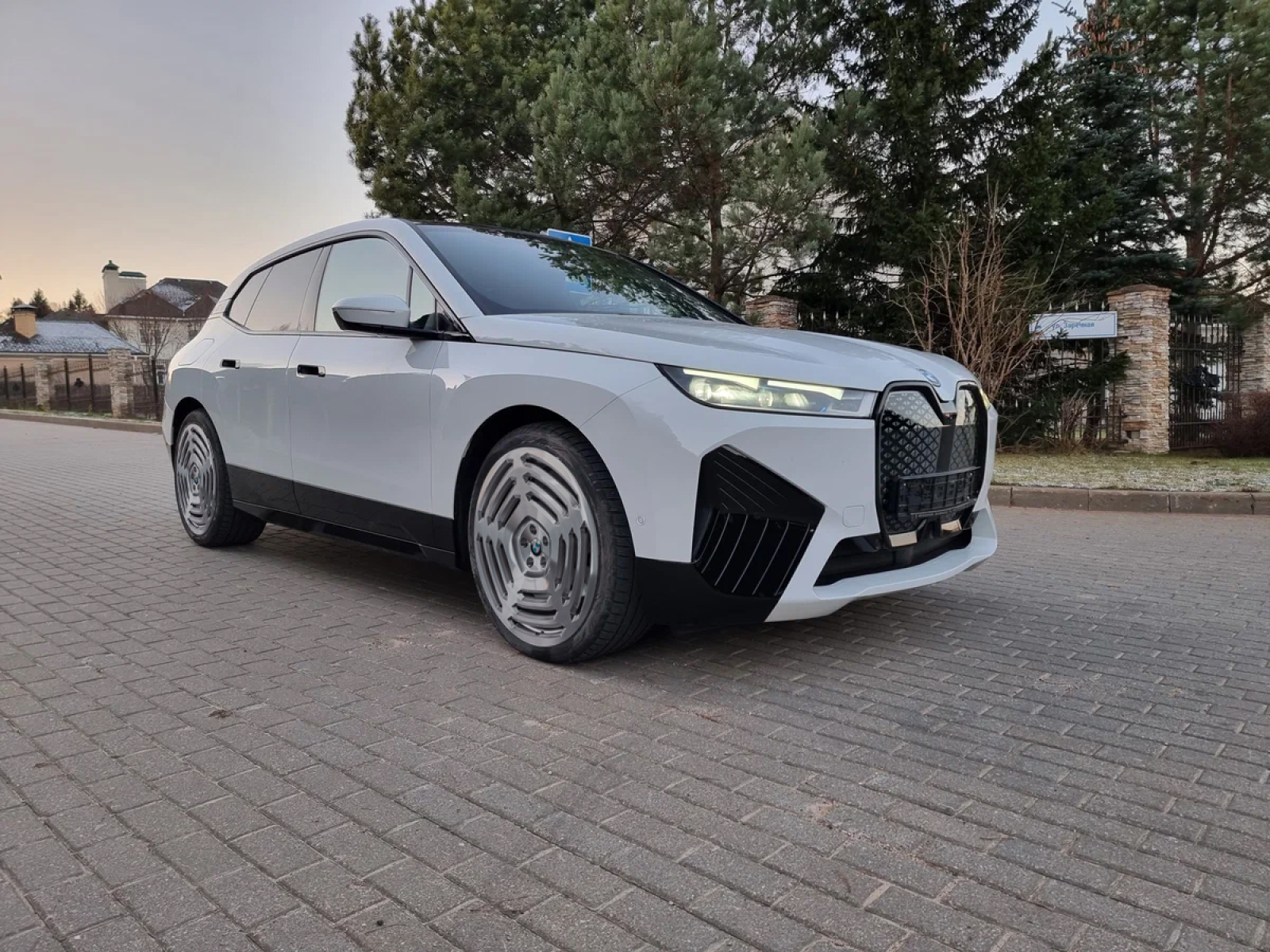

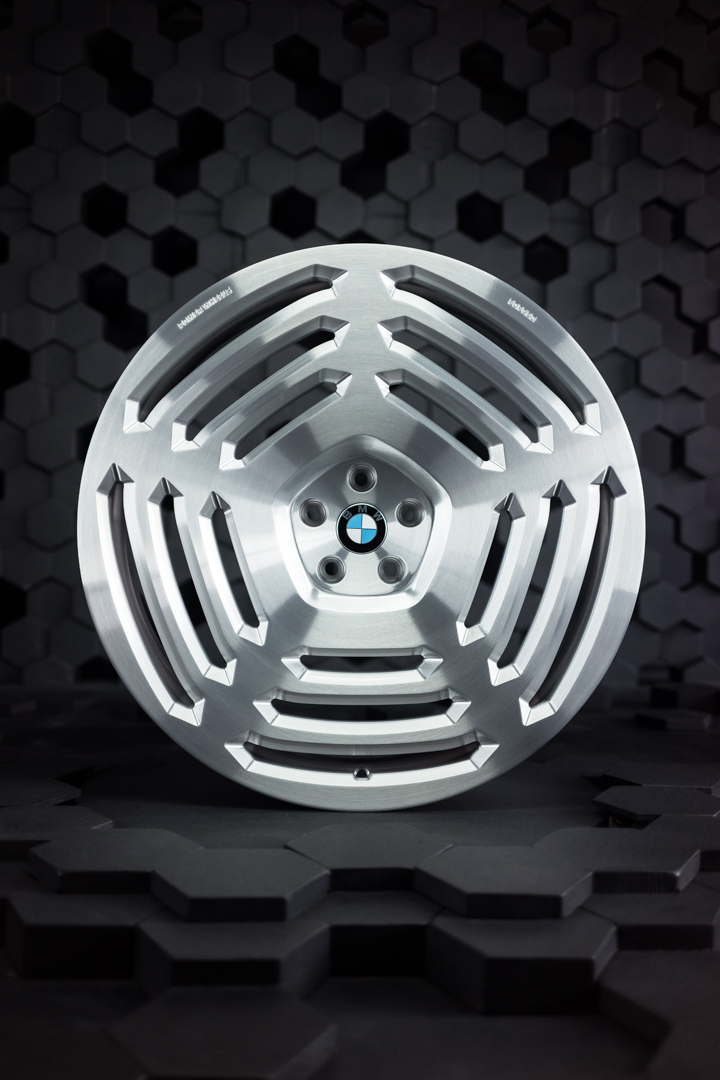

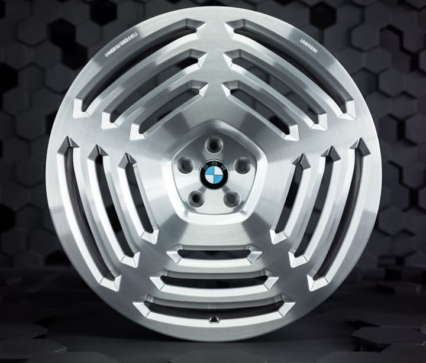

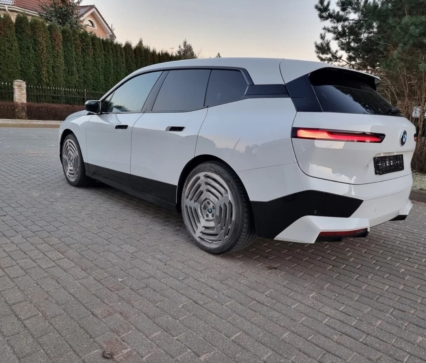

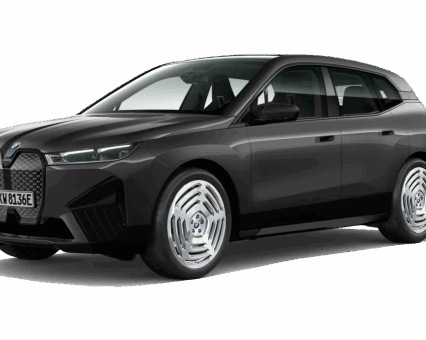

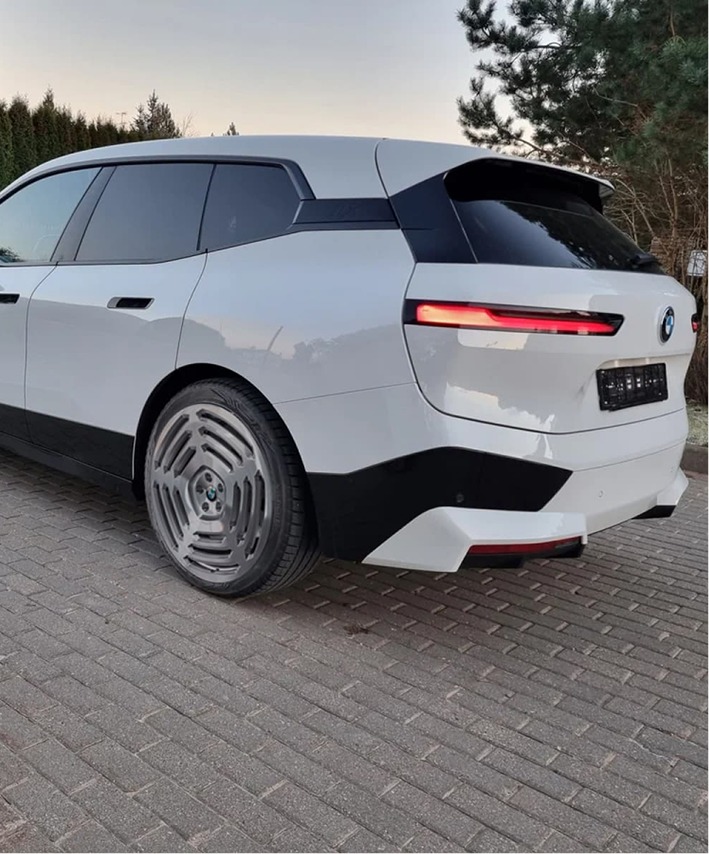

Forged wheels for BMW iX
Lifetime warranty
With a commitment to quality, each set comes with a lifetime warranty. Customize your BMW iX with our wide range of design and color options.
Worldwide shipping
Our worldwide shipping ensures that no matter where you are, you can experience the excellence of Renegade Design. Transform your BMW iX into a masterpiece of style and performance.
Get a quote for Forged wheels for BMW iX
Colors available
Brushed clear
Brushed black
Brushed dark black
Brushed bronze
Crystal coffee
Amber
Matte bronze
Gloss bronze
Matte gunmetally
Gloss gunmetally
Matte black
Gloss black
Features of Renegade Design Forged Wheels
One-of-a-kind wheels
— your unique style
— your unique style
Aviation-grade aluminum
— the benchmark of strength
— the benchmark of strength
Quality under control
— from concept to completion
— from concept to completion
Design, color, texture
— bringing your ideas to life
— bringing your ideas to life
Color
Brushed clear
Brushed black
Brushed dark black
Brushed bronze
Crystal coffee
Amber
Matte bronze
Gloss bronze
Matte gunmetally
Gloss gunmetally
Matte black
Gloss black
Explore more from this collection
Get your custom forged wheels
Get a custom quote with delivery and install in your area.
By clicking the "Submit" button, I agree to the data processing rules and the privacy policy
May be of interest
Audi RS7 Carbon Body Kit Care: Washing, Protection, and Seasonal Tips
Audi RS7 Carbon Body Kit Care: Washing, Protection, and Seasonal Tips
11.11.2026
Carbon Care: Washing, Surface Protection, and Seasonal Tips
Carbon Care: Washing, Surface Protection, and Seasonal Tips
11.11.2026
New Rolls-Royce Ghost Series II (2025) Body Kit by RNG Design
New Rolls-Royce Ghost Series II (2025) Body Kit by RNG Design
09.24.2025
Forged wheels – operation and maintenance recommendations
Forged wheels - operation and maintenance recommendations
06.04.2025
Body kit for Mercedes-Benz G63 2025 W465 by Renegade Design
Body kit for Mercedes-Benz G63 2025 W465 by Renegade Design
05.10.2025
Fitment
Wheel fitment for the BMW iX
The iX runs square wheels on all versions: 8.5J×20 with tall 235/60 R20 tyres, 9J×21 with 255/50 R21, or 9.5J×22 with 275/40 R22 on the M60 and M70. Every RNG set for the iX is drawn for the weight of an electric SUV of about 2.5–2.6 tonnes and for the instant torque of its two motors.
All iX versions share one fitment, from the xDrive40 and xDrive50 to the M60 and the 2025 xDrive45, xDrive60 and M70.
| Bolt pattern | 5×112 |
|---|---|
| Centre bore | 66.6 mm, hub-centric |
| Wheel bolts | M14×1.25, 140 Nm |
| Factory front | 8.5J×20 ET28, 235/60 R20 · 9J×21 ET36, 255/50 R21 |
| Factory rear | As front (square) |
| Factory options | 22″: 9.5J×22 ET37, 275/40 R22 (standard on M60 and M70) |
| Same fitment | iX xDrive40, xDrive45, xDrive50, xDrive60, M60, M70 |
| RNG sets for the iX | 21–24″, square, monoblock or multi-piece |
Factory data for the BMW iX I20 from 2021, including the 2025 update. Widths, offsets and tyres for your car come in the fitment sheet with the quote.
(A)
What is the bolt pattern of the BMW iX?
The iX uses 5×112 with a 66.6 mm centre bore and M14×1.25 wheel bolts tightened to 140 Nm. RNG wheels are machined to this bore, so the set is hub-centric and needs no spacers or rings.
(B)
What size wheels does the BMW iX have from the factory?
All versions are square. The xDrive40 and xDrive50 start on 8.5J×20 ET28 with 235/60 R20 or 9J×21 ET36 with 255/50 R21. The M60 and M70 come on 9.5J×22 ET37 with 275/40 R22, which is also an option for the other versions.
(C)
Do wheels for one iX version fit the others?
Yes. The xDrive40, xDrive50 and M60, and the xDrive45, xDrive60 and M70 after the 2025 update share the hub, bolt pattern, centre bore and offset range. We note the version and brake size in the fitment sheet before production.
(D)
Can the iX run 23″ or 24″ wheels?
Yes. The iX starts on tall 235/60 R20 tyres, so there is room to go up: 23″ and 24″ with 275 tyres keep the overall diameter close to stock. We size the set for the air suspension of your car and its lowest setting.
(E)
Do bigger forged wheels reduce the range of the iX?
A little. Wider tyres and a larger diameter cost some range, while forged wheels are lighter than the factory cast ones and recover part of it. For owners who drive long distances we offer flat-face designs with closed spokes that keep the air flow close to the factory aero wheels.
(F)
How long does a set for the iX take, and what does it cost?
Production takes 10–20 days after you approve the design and the fitment sheet, then we ship to your country. Sets start from $4,940 for four wheels; 23″ and 24″ sets cost more.
Forged wheels for BMW iX: sizes, weight, price
Forged wheels for BMW iX are forged in-house by RNG Design from aviation-grade aluminium for the BMW iX, in sizes 21″, 22″, 23″, 24″. Weight per wheel: 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg. Every set uses the car's original bolt pattern and offset, and comes in 18 finishes, from brushed and matte to gloss, bronze, gunmetal and crystal tones. Price from $4,940 per set of four (USD, delivery not included); single wheels can be ordered. A set is made in 10–20 days; RNG Design ships worldwide and partner dealers handle fitting.
| Specification | Value |
|---|---|
| Wheels | Forged wheels for BMW iX |
| Fits | BMW iX |
| Sizes | 21″, 22″, 23″, 24″ |
| Weight per wheel | 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg |
| Material | forged aviation-grade aluminium, made in-house |
| Finishes | 18: brushed, matte, gloss, bronze, gunmetal, crystal and gold tones |
| Price | from $4,940 per set of four (USD, delivery not included) |
| Lead time | 10–20 days per set |
| Fitment | original bolt pattern and offset, no spacers |
Forged wheels for BMW iX
Elevate your BMW iX experience with Renegade Design’s custom forged wheels. Designed for the forward-thinking driver, our wheels blend advanced technology with bespoke craftsmanship. Forged Wheels: The Superior Choice Renegade Design’s forged wheels offer significant advantages over traditional alloy wheels. The forging process, under high pressure, creates wheels that are denser and more robust. This results in a lighter, yet stronger wheel, enhancing the dynamic performance and efficiency of your BMW iX. Lifetime Warranty: Our Guarantee of Excellence Our commitment to quality is reflected in the lifetime warranty offered with our forged wheels. This warranty covers any manufacturing defects, ensuring your peace of mind and confidence in our products. Customization to Your Specifications The BMW iX is a beacon of innovation, and it deserves wheels that match its groundbreaking spirit. We offer a broad selection of designs and colors, allowing you to tailor the wheels to your vehicle’s style and your personal preferences. Worldwide Shipping for Global Customers Understanding the global appeal of the BMW iX, Renegade Design offers worldwide shipping. Our efficient delivery process ensures that your custom wheels are brought to your doorstep safely and promptly, wherever you may be located. The BMW iX is more than just an electric vehicle; it’s a statement of futuristic luxury and performance. With Renegade Design’s forged wheels, enhance this statement, making your BMW iX a true icon of innovation and style. Order now and begin your journey to redefine your BMW iX with unparalleled elegance and quality.
