Forged Wheels for Zeekr 9X
- 21–24″Monoblock and multi-piece
- Fitted to the 9XHubs, brakes and arches
- 10–20 daysProduction time
- 21 designsShown on the 9X below
- Worldwide shippingDelivery to your country
Real cars, real wheels

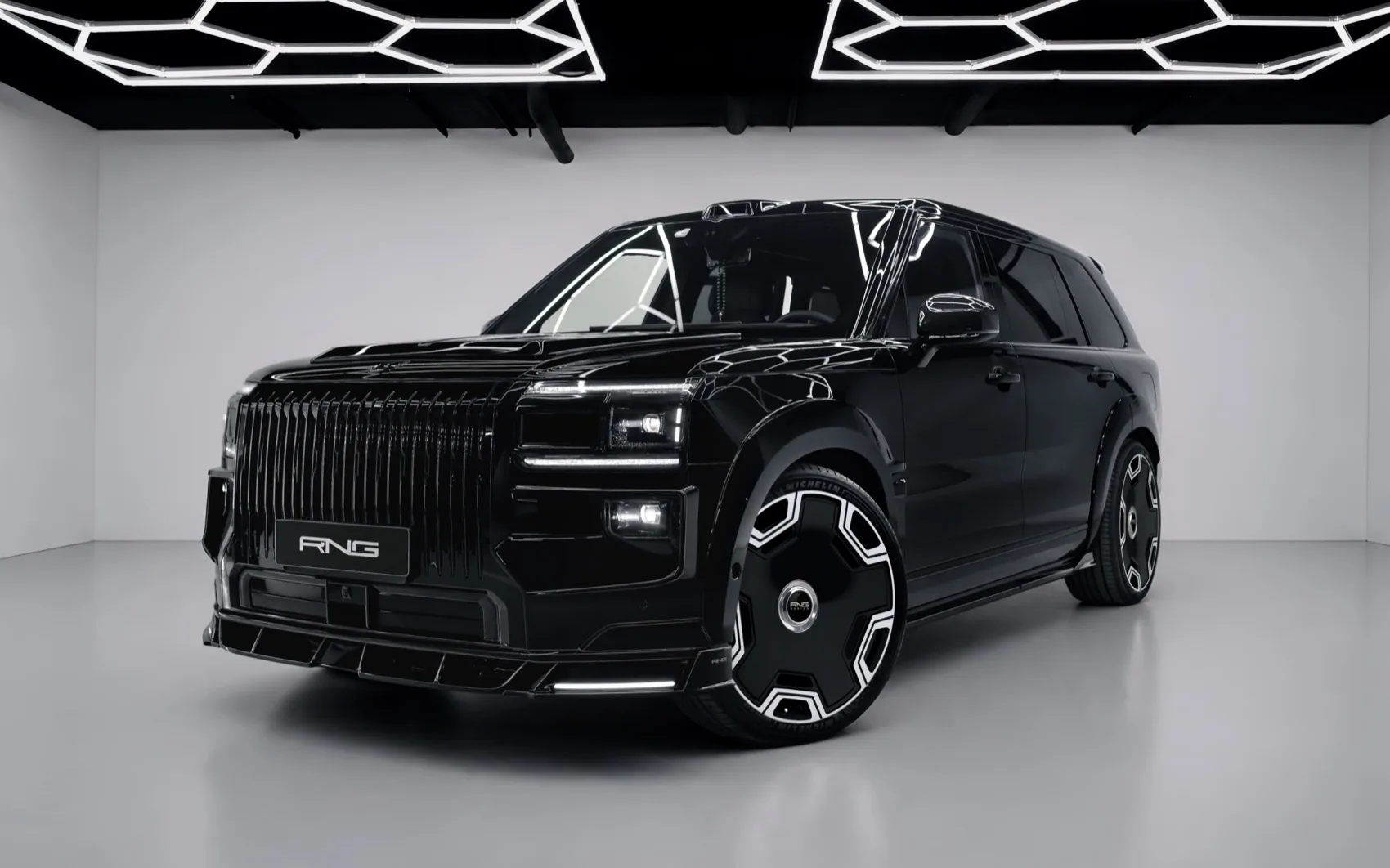

Zeekr 9X on Renegade Design wheels

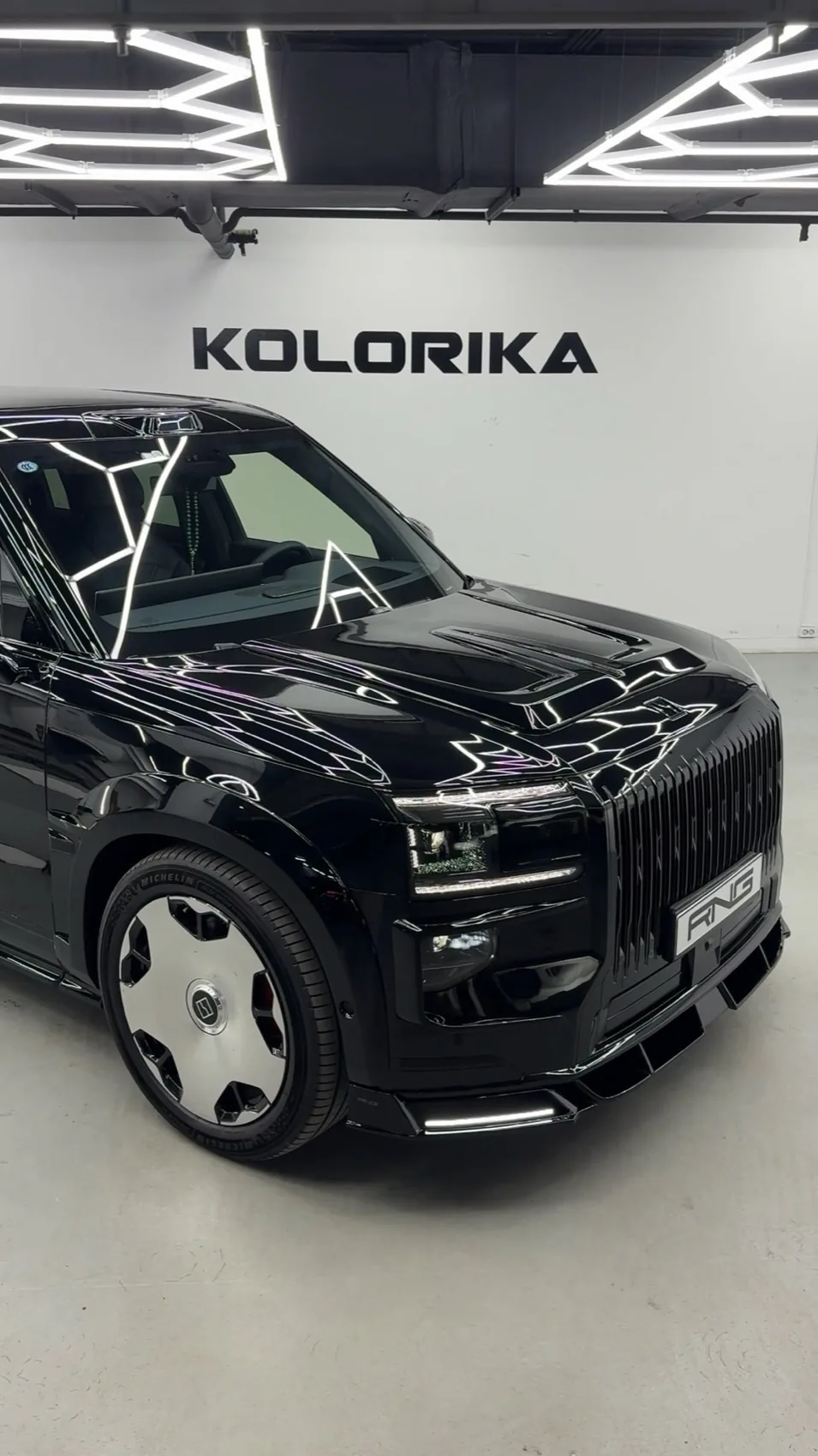

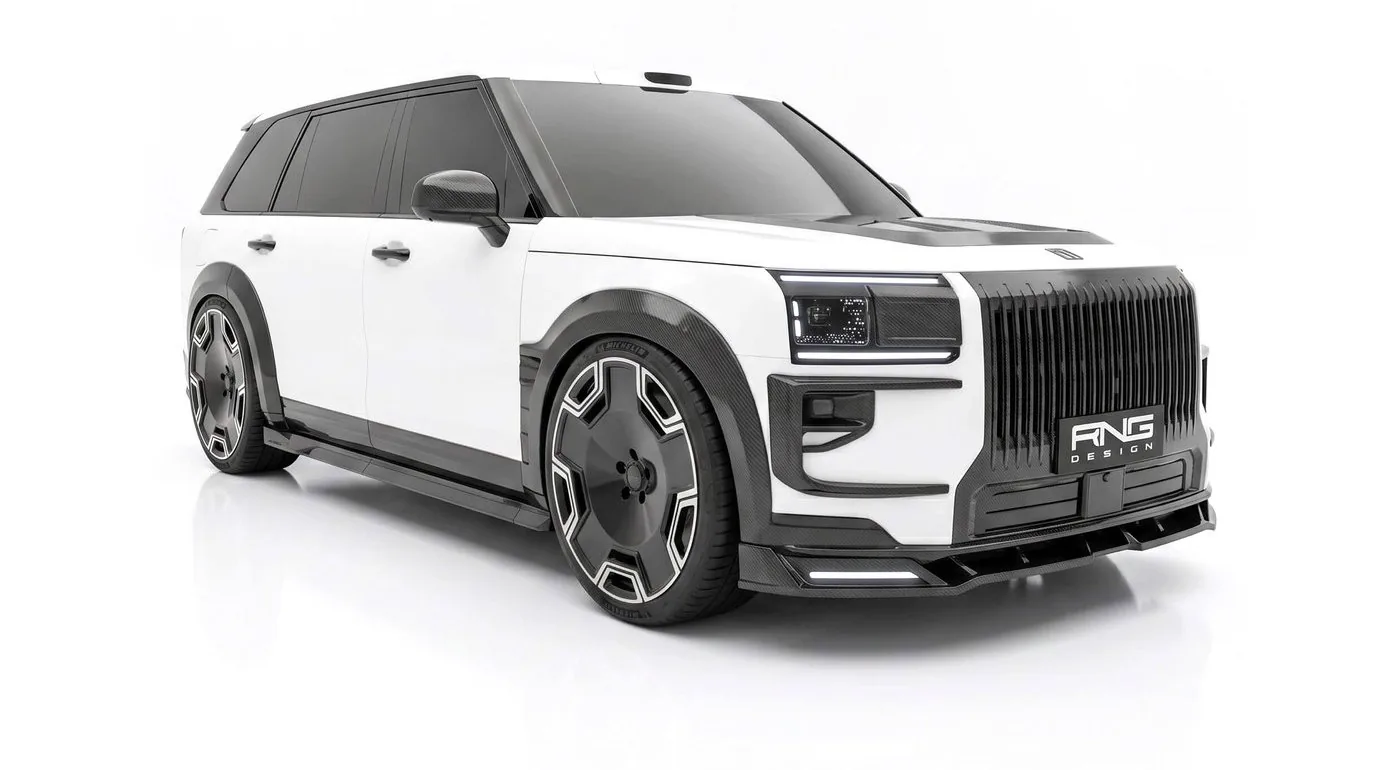

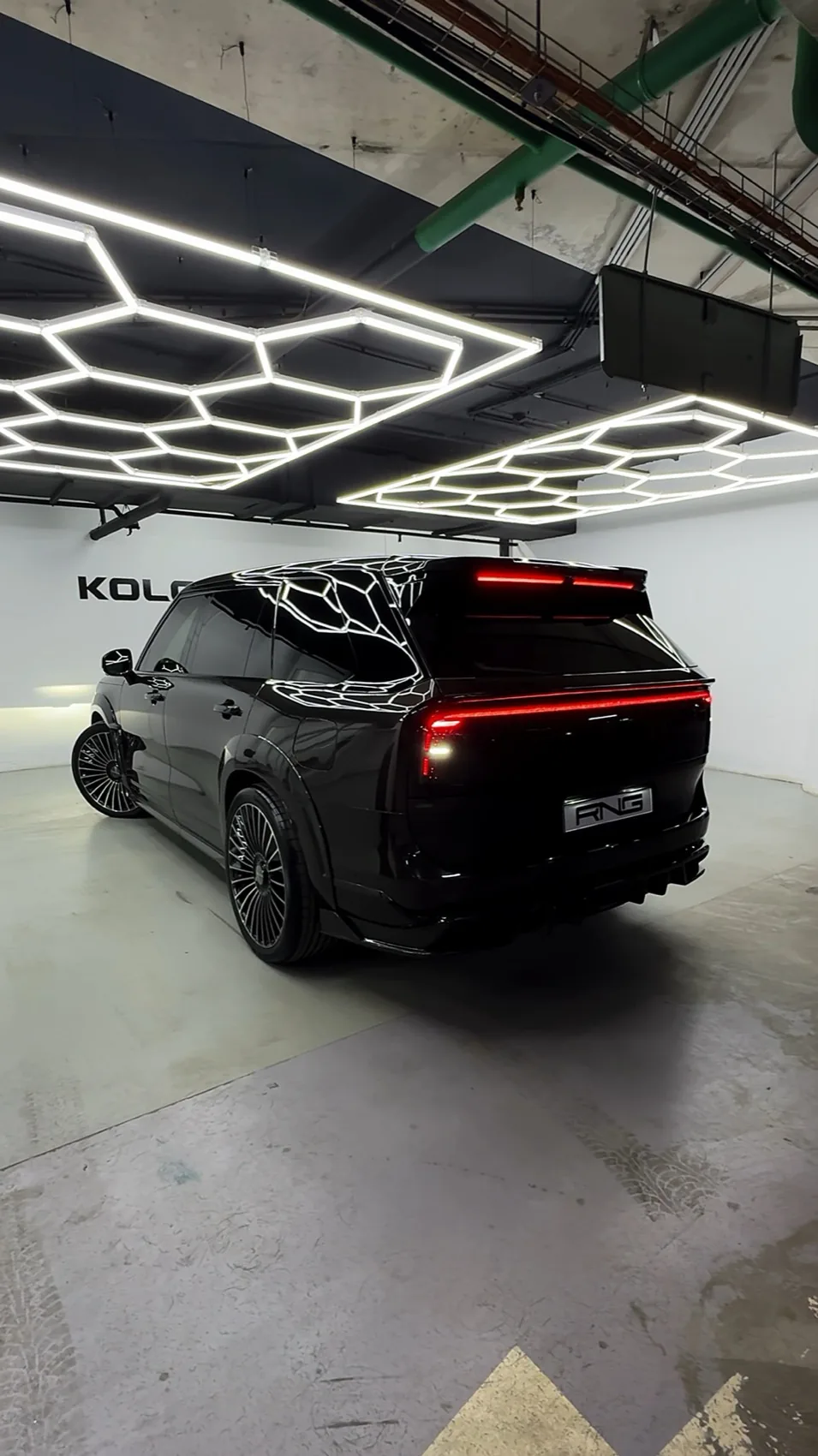

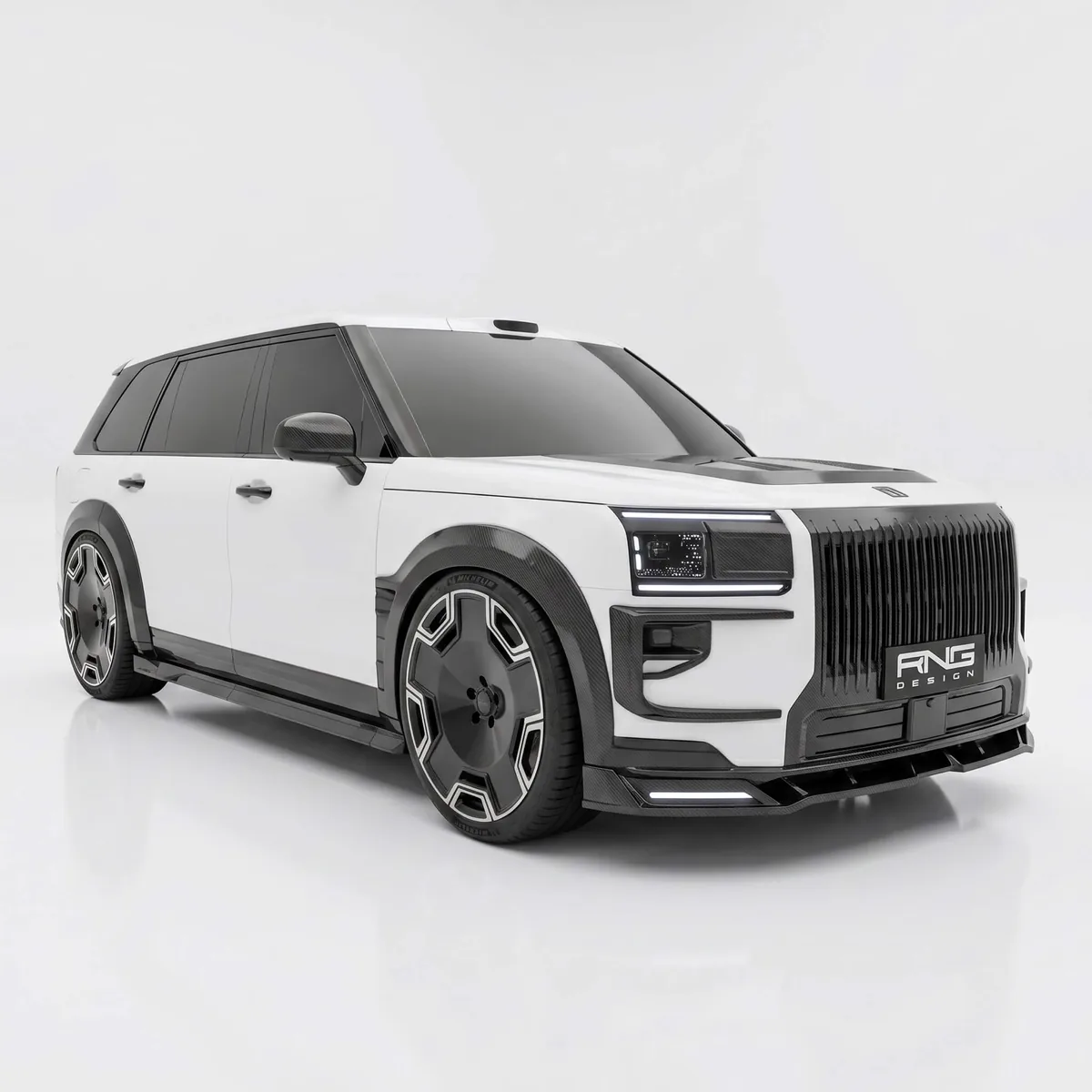

Our own 9X builds on 24-inch forged wheels: gloss black, carbon and a two-tone white car.





Fitment
Wheel fitment for the Zeekr 9X
The Zeekr 9X uses a 5×108 bolt pattern, not the 5×112 of most German SUVs, so wheels made for other cars do not bolt on. From the factory it runs the same size on all four corners, from 20″ to 22″; our own 9X builds run 24″. Every RNG set is drilled for 5×108 and rated for the weight of this plug-in hybrid.
We check the set against your car’s brake package and body before production, with or without the RNG wide body kit.
| Bolt pattern | 5×108 |
|---|---|
| Factory 20″ | 8.5J×20, 255/60 R20 |
| Factory 21″ | 9J×21, 275/50 R21 |
| Factory 22″ | 9.5J×22, 285/45 R22 |
| Stagger | Same size front and rear on every factory set |
| RNG builds | Our own 9X cars run 24″ RNG forged wheels |
| RNG sets for the 9X | 21–24″, monoblock or multi-piece |
Factory data for the Zeekr 9X from 2025. Centre bore, widths and offsets for your set come in the fitment sheet with the quote.
21 designs · 5 collections
See every design on the Zeekr 9X
A collection our designers drew for the 9X, forged to order for your car. Each design is shown in profile, front three-quarter and rear three-quarter; tap a design to see all three angles.
Visualisations of the 9X collection on the Zeekr 9X. The final profile, concavity and finish are agreed for your set before production. Any of the 26 RNG catalogue designs can also be made for the 9X.
Wheels for your Zeekr 9X
Get the designs, sizes and price for your car
Choose a design and leave a contact. We reply with design options, the fitment sheet and a price for your Zeekr 9X.
- Any diameter21–24″, monoblock or multi-piece
- Any designOne of the 21, any RNG design or your own
- Any colourSilver, black, bronze, two-tone or your own
- 10–20 daysProduction, then shipping to your country

Complete the look
Wheels and body kit for the Zeekr 9X
The wheels and the 9X body kit come from the same studio, so the width and offset suit the wide body as well as the stock arches. Any part of the kit is also sold separately.
Zeekr 9X wheels
Questions about wheels for the 9X
What is the bolt pattern of the Zeekr 9X?
The 9X uses 5×108, which is rare among large SUVs: most German competitors use 5×112, so their wheels do not fit the 9X. RNG sets are drilled for 5×108 and machined to the 9X hub, so they are hub-centric and need no adapters or centring rings.
What wheel size does the Zeekr 9X have from the factory?
Three square sets, depending on the trim: 8.5J×20 with 255/60 R20, 9J×21 with 275/50 R21 and 9.5J×22 with 285/45 R22. The front and rear wheels are the same size on every factory set.
Can the Zeekr 9X run 24-inch wheels?

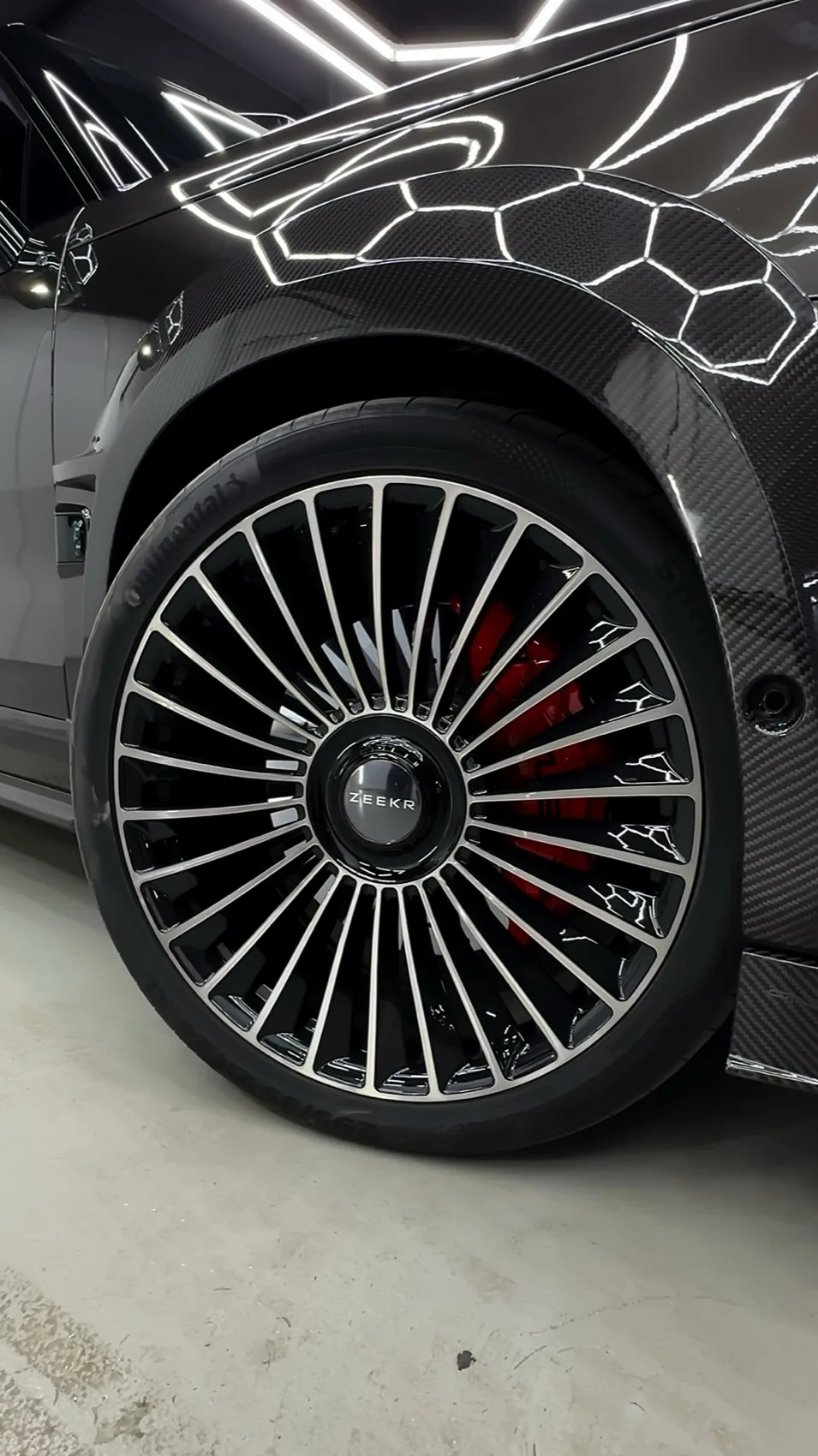

Yes. Our own gloss black, carbon and two-tone white 9X builds run 24-inch RNG forged wheels. We keep the overall diameter close to the factory 22″ set with lower-profile tyres, so the speedometer and the ride stay correct, and we check brake and body clearance before production.
Are the wheels strong enough for the 9X?
The 9X is a large plug-in hybrid SUV weighing around three tonnes, so every set is forged from aviation-grade aluminium and drawn for that load. The load rating is stated in the fitment sheet.
Do the wheels suit the RNG body kit for the 9X?
Yes. The wheels and the Zeekr 9X body kit come from the same studio, so the width and offset are chosen for the wide body kit as well as for the stock car, and the design and finish are matched to the kit parts.
How long does a set for the 9X take, and what does it cost?
Production takes 10–20 days after you approve the design and the fitment sheet, then we ship to your country. Sets start from $4,940 for four wheels; 24″ and multi-piece sets cost more.
Forged wheels for Zeekr 9X: sizes, designs, fitment
RNG Design forges wheels for the Zeekr 9X (2025+) in 21″, 22″, 23″ and 24″, as monoblock or multi-piece sets. Our own 9X builds — gloss black, carbon and a two-tone white car — run 24-inch forged wheels. Each set is drawn for the 9X: the hub fitment, offset and brake clearance are checked against your car before production, and the width is chosen for the stock arches or for the RNG carbon fibre wide body kit for the Zeekr 9X. The page above shows a collection of 21 designs drawn for the 9X, in profile and front and rear three-quarter; any of the 26 RNG catalogue designs or a design drawn from scratch is also available.
| Specification | Value |
|---|---|
| Wheels | Forged wheels for Zeekr 9X |
| Fits | Zeekr 9X, 2025+ |
| Sizes | 21″, 22″, 23″, 24″ (our 9X builds run 24″) |
| Construction | monoblock or multi-piece, forged aluminium |
| Designs | 21 drawn for the 9X, any RNG design or your own |
| Finishes | silver, black, bronze, gunmetal, two-tone or your colour |
| Fitment | fitment sheet with hub fitment, widths and offsets for your car |
| Production | 10–20 days after the design and fitment sheet are approved |
| Price | from $4,940 per set of four (USD, delivery not included) |
24-inch wheels on a large electric SUV
The 9X is a large, heavy SUV, and a 24-inch wheel suits its proportions. A forged wheel is lighter and stiffer than a cast one of the same size, which keeps the unsprung weight down on a big wheel. We agree the tyre size with you so the car keeps its ride and the wheel clears the brakes and arches.
Wheels and body kit from one studio
The wheels and the Zeekr 9X body kit come from the same studio, so the offset is matched to the carbon wide body extensions as well as to the stock arches. Any part of the kit — wide body extensions, side skirts, front splitter with DRLs, rear diffuser, hood cover — can be bought separately, from dealer stock or made to order in 5–15 working days.
How to order
Choose a design on this page or send us your idea, leave a contact, and we reply with design options, the fitment sheet and a price for your 9X. After approval the set is forged in 10–20 days and shipped worldwide; a local dealer can fit it.
