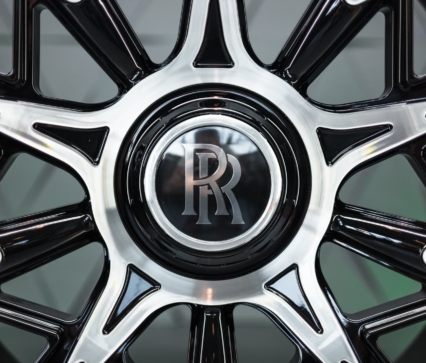

Forged Wheels for Rolls-Royce Wraith
- 21–24″Monoblock and multi-piece
- Fitted to the WraithHubs, brakes and arches
- 10–20 daysProduction time
- 21 designsShown on the Wraith below
- Worldwide shippingDelivery to your country
Real cars, real wheels

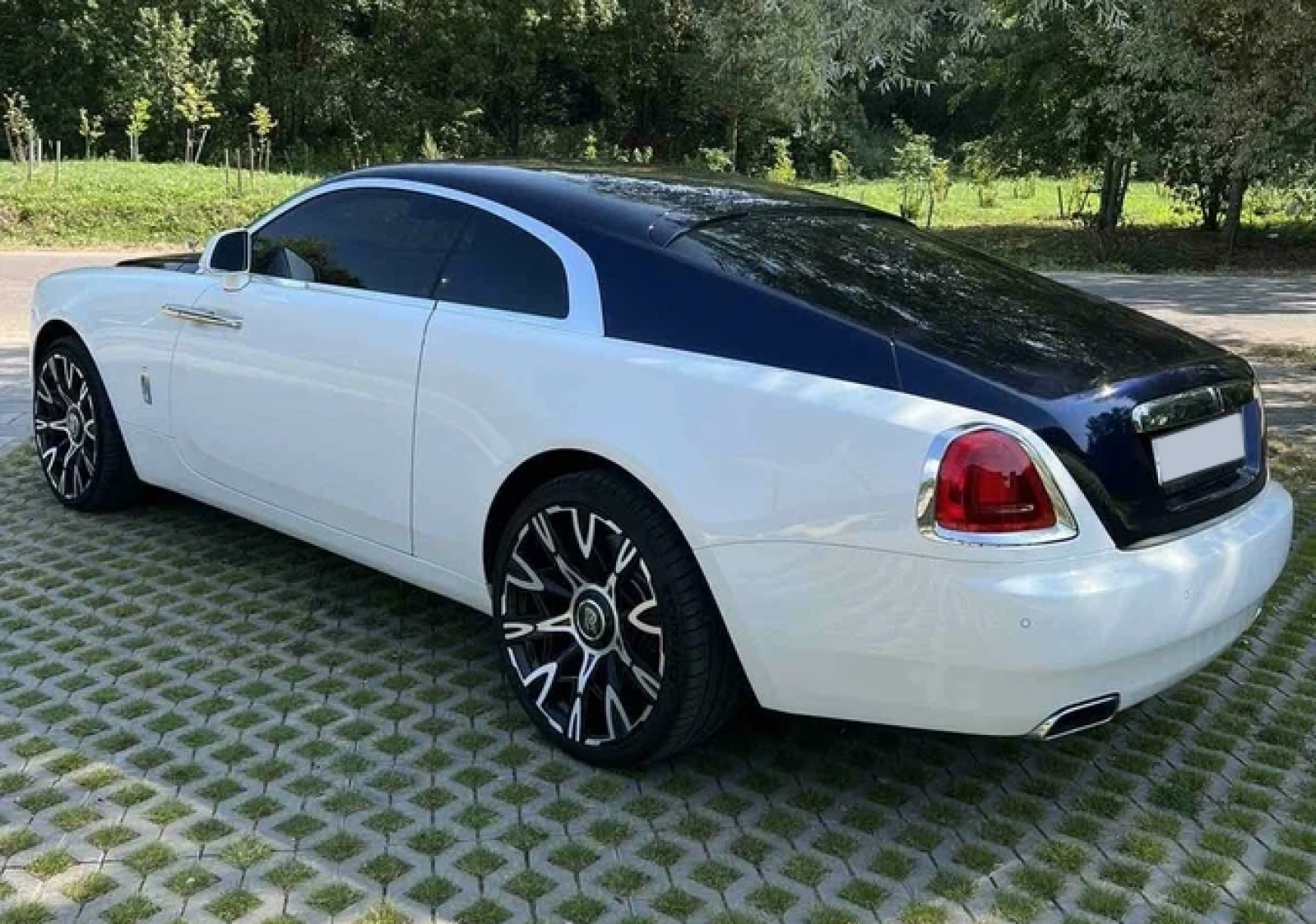

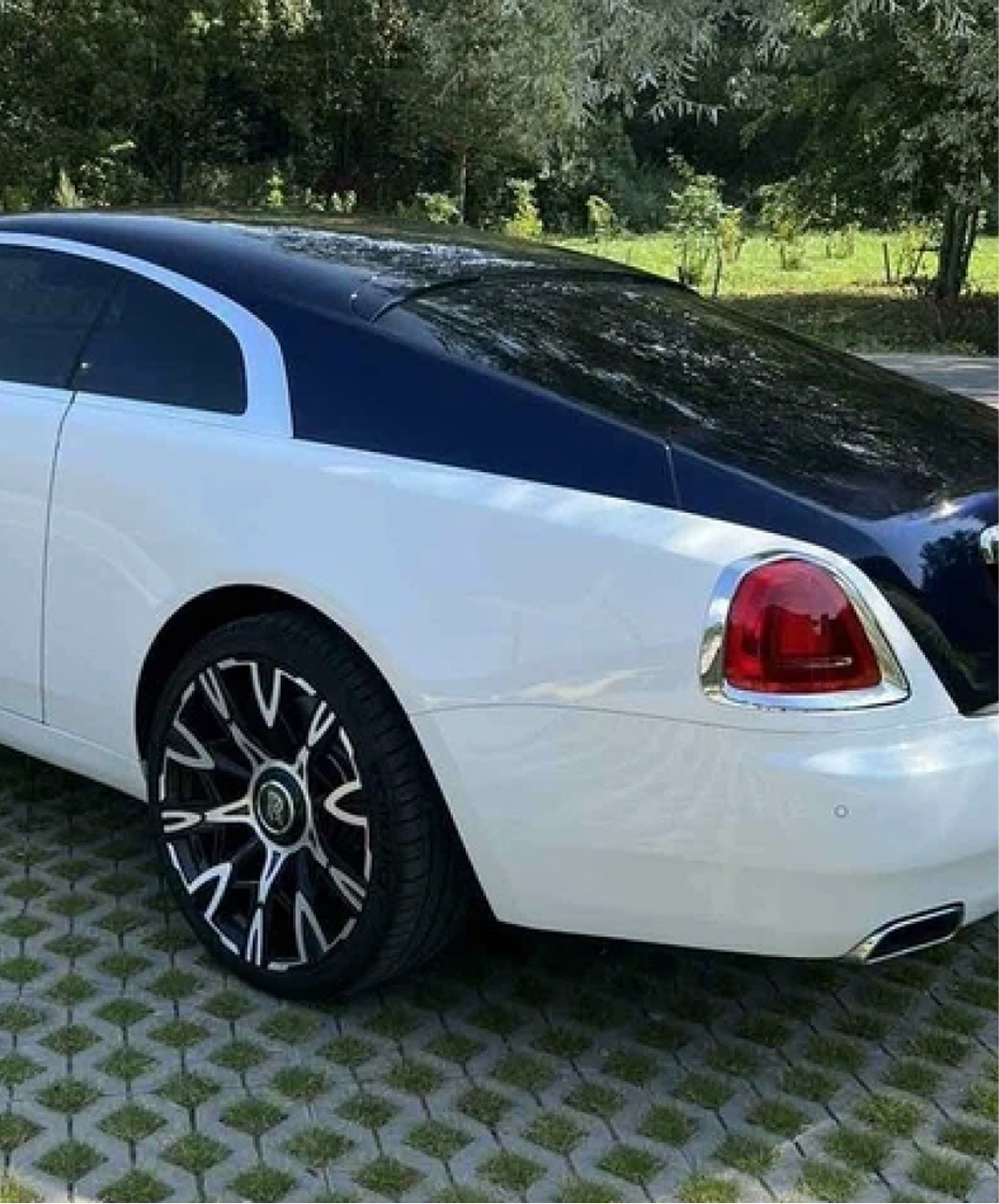

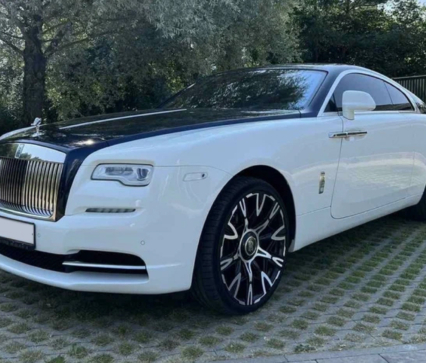

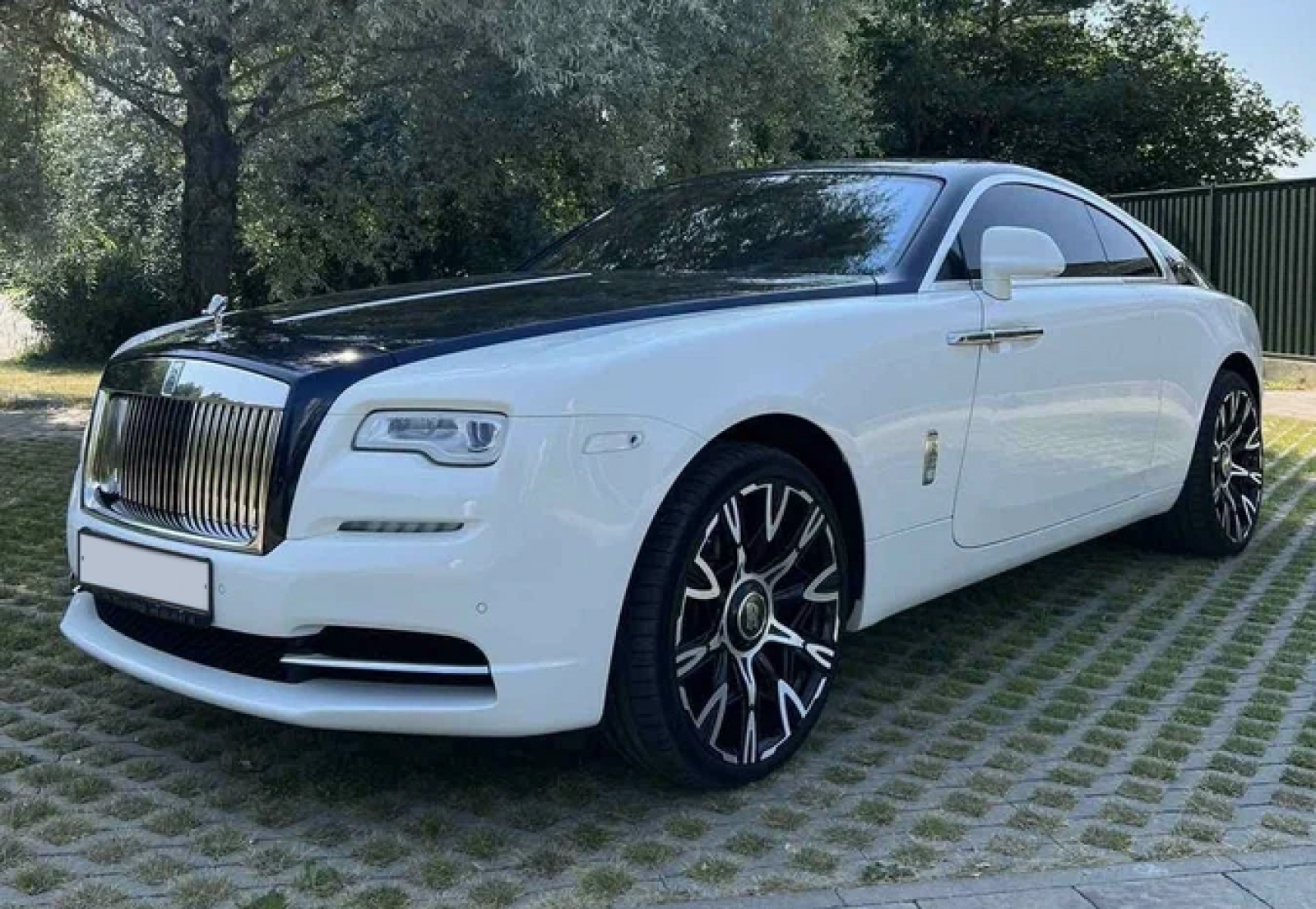

Rolls-Royce Wraith by Renegade Design
Wraith coupés from our clients and studio on RNG forged wheels, from Black Badge cars to classic two-tone builds.
Fitment
Wheel fitment for the Rolls-Royce Wraith
The Wraith rides on the older 5×120 hub with a 72.6 mm bore, not on the 5×112 hub of the current Ghost and Cullinan. It is staggered on 20″ and 21″: 8.5J at ET25 with 255 tyres at the front and 9.5J at ET33 with 285 tyres at the rear. RNG sets keep this stagger and are drawn for the 2.4-tonne coupé.
The Dawn convertible shares the Wraith's hub, bolts and sizes, so one fitment sheet covers both cars, including Black Badge versions.
| Bolt pattern | 5×120 |
|---|---|
| Centre bore | 72.6 mm, hub-centric |
| Wheel bolts | M14×1.25 |
| Factory front | 8.5J×20 ET25, 255/45 R20 · base 8.5J×19 ET25, 255/50 R19 |
| Factory rear | 9.5J×20 ET33, 285/40 R20 |
| Factory options | 21″: 8.5J×21 ET25, 255/40 R21 + 9.5J×21 ET33, 285/35 R21 |
| Same fitment | Wraith and Dawn, including Black Badge Wraith and Black Badge Dawn |
| RNG sets for the Wraith | 21–23″, staggered, monoblock or multi-piece |
Factory data for the Rolls-Royce Wraith, 2013–2023. Widths and offsets for your set come in the fitment sheet with the quote.
21 designs · 5 collections
See every design on the Rolls-Royce Wraith
Our forged designs rendered on the Wraith, sized for its long bonnet and fastback roofline. Tap a design to see it front and rear.
Visualisations of the 9X collection on the Rolls-Royce Wraith. The final profile, concavity and finish are agreed for your set before production. Any of the 26 RNG catalogue designs can also be made for the Wraith.
Wheels for your Rolls-Royce Wraith
Get the designs, sizes and price for your car
Choose a design and leave a contact. We reply with design options, the fitment sheet and a price for your Rolls-Royce Wraith.
- Any diameter21–24″, monoblock or multi-piece
- Any designOne of the 21, any RNG design or your own
- Any colourSilver, black, bronze, two-tone or your own
- 10–20 daysProduction, then shipping to your country
Rolls-Royce Wraith wheels
Questions about wheels for the Wraith
What is the bolt pattern of the Rolls-Royce Wraith?
The Wraith uses 5×120 with a 72.6 mm centre bore and M14×1.25 wheel bolts. RNG wheels are bored to 72.6 mm, so the set centres on the hub without rings.
What size wheels does the Wraith have from the factory?
Staggered 20″: 8.5J×20 ET25 with 255/45 R20 at the front and 9.5J×20 ET33 with 285/40 R20 at the rear. The 21″ option is 8.5J×21 with 255/40 R21 and 9.5J×21 with 285/35 R21; early cars could also have 19″ wheels with 255/50 R19.
Do Wraith wheels fit the Dawn?
Yes. The Dawn convertible is built on the Wraith platform and shares the hub, bolt pattern and sizes. We note the body in the fitment sheet, because the Dawn is slightly heavier.
Can the Wraith run 22″ wheels?
Yes. 22″ is the most balanced step up for the Wraith. We keep the stagger, use 255 and 285 tyres of a lower profile and hold the rolling diameter close to the 21″ factory size, so the ride stays soft and the speedometer correct.
Do wheels from the new Ghost or Cullinan fit the Wraith?
No. The Ghost from 2020, the Cullinan, the Phantom VIII and the Spectre use a different hub with 5×112, while the Wraith keeps 5×120 and a 72.6 mm bore. The first-generation Ghost shares the Wraith's bolt pattern, and its wheels are checked for offset before fitting.
How long does a set for the Wraith take, and what does it cost?
Production takes 10–20 days after you approve the design and the fitment sheet, then we ship to your country. Sets start from $4,940 for four wheels; 22″, 23″ and multi-piece sets cost more.
Forged wheels for Rolls-Royce Wraith: sizes, weight, price
Forged wheels for Rolls-Royce Wraith are forged in-house by RNG Design from aviation-grade aluminium for the Rolls-Royce Wraith, in sizes 21″, 22″, 23″, 24″. Weight per wheel: 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg. Every set uses the car's original bolt pattern and offset, and comes in 18 finishes, from brushed and matte to gloss, bronze, gunmetal and crystal tones. Price from $4,940 per set of four (USD, delivery not included); single wheels can be ordered. A set is made in 10–20 days; RNG Design ships worldwide and partner dealers handle fitting.
| Specification | Value |
|---|---|
| Wheels | Forged wheels for Rolls-Royce Wraith |
| Fits | Rolls-Royce Wraith |
| Sizes | 21″, 22″, 23″, 24″ |
| Weight per wheel | 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg |
| Material | forged aviation-grade aluminium, made in-house |
| Finishes | 18: brushed, matte, gloss, bronze, gunmetal, crystal and gold tones |
| Price | from $4,940 per set of four (USD, delivery not included) |
| Lead time | 10–20 days per set |
| Fitment | original bolt pattern and offset, no spacers |
Elevate the presence of your Rolls-Royce Wraith with Renegade Design’s custom forged wheels. These wheels are more than just enhancements; they are a celebration of the Wraith’s fusion of majestic luxury and compelling performance. Innovative Forging for Unparalleled Quality Employing advanced forging techniques, Renegade Design crafts wheels that offer superior strength and reduced weight compared to traditional alloy wheels. This innovation is crucial for the Rolls-Royce Wraith, a vehicle that epitomizes sophistication and driving pleasure. Lighter wheels enhance the Wraith’s responsive handling, accentuating its dynamic driving experience, while their increased strength provides the durability needed for a vehicle of such prestige. Lifetime Warranty: A Promise of Enduring Elegance We offer a lifetime warranty on our forged wheels, a testament to our commitment to excellence and enduring quality. This warranty ensures our wheels are free from manufacturing defects, providing you with peace of mind in their long-term performance on your Rolls-Royce Wraith. Customization: A Tribute to the Wraith’s Elegance The Rolls-Royce Wraith is a vehicle of distinction, and our wheels are crafted to complement this exclusivity. With an extensive range of custom designs and colors, you can tailor your wheels to match the Wraith’s luxurious style. Whether you aim for subtle elegance or a more pronounced statement, our options cater to every preference, enhancing the unique allure of your Rolls-Royce. Elevating the Rolls-Royce Experience The Wraith stands as a symbol of automotive excellence, and our forged wheels are designed to heighten this experience. They improve the vehicle’s handling and stability, adding a visually stunning element to its appearance. The design of our wheels aligns seamlessly with the Wraith’s sleek lines and commanding presence, augmenting its status as a pinnacle of luxury. Global Shipping: Delivering Sophistication Worldwide Recognizing the global acclaim of the Rolls-Royce Wraith, Renegade Design offers worldwide shipping. Our secure and efficient shipping process ensures that your custom wheels are delivered safely and promptly, ready to redefine your vehicle’s luxury and performance, wherever you are. Artistry and Engineering in Harmony Each wheel from Renegade Design is a result of our passion for precision and luxury. Using the finest materials and the latest wheel technology, we ensure that each wheel not only fits the Rolls-Royce Wraith perfectly but also enhances its overall persona. Our wheels are a blend of art and engineering, crafted to elevate the essence of the Rolls-Royce Wraith. Renegade Design’s custom forged wheels for the Rolls-Royce Wraith offer the ultimate enhancement in sophistication, performance, and individual style. These wheels are an essential upgrade for Wraith owners who value the harmony of unrivaled luxury and dynamic presence. Order now and transform your Rolls-Royce Wraith into an even more magnificent expression of automotive excellence.
