Forged Wheels for Mercedes-AMG S63 W223
- 21–24″Monoblock and multi-piece
- Fitted to the S63Hubs, brakes and arches
- 10–20 daysProduction time
- 21 designsShown on the S63 below
- Worldwide shippingDelivery to your country
Real cars, real wheels

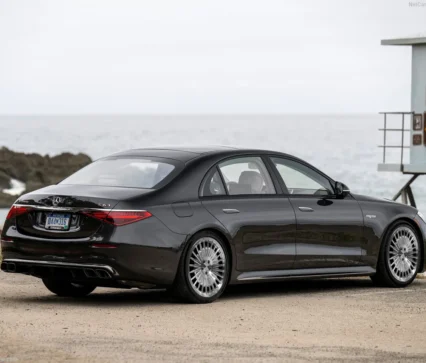

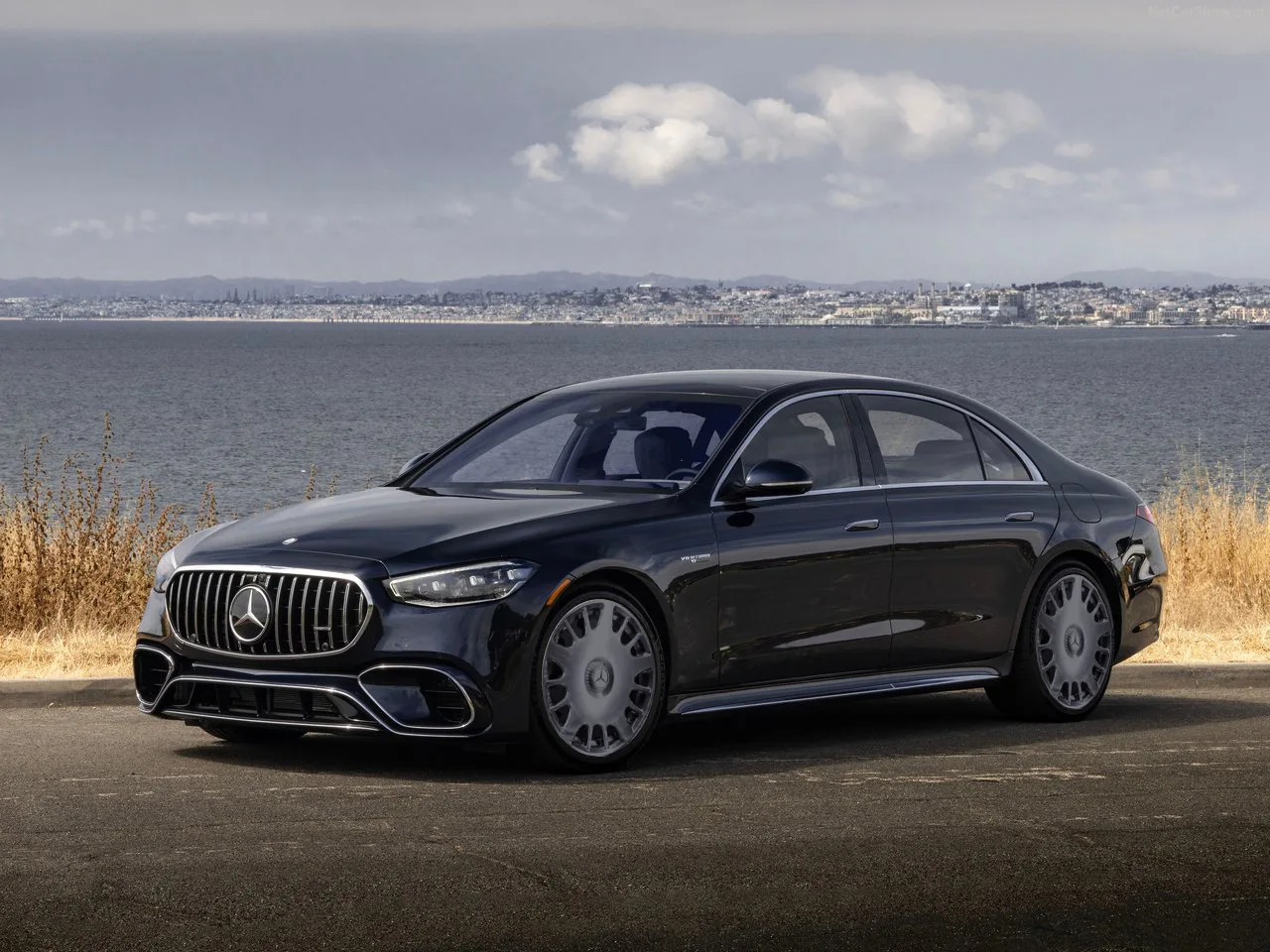

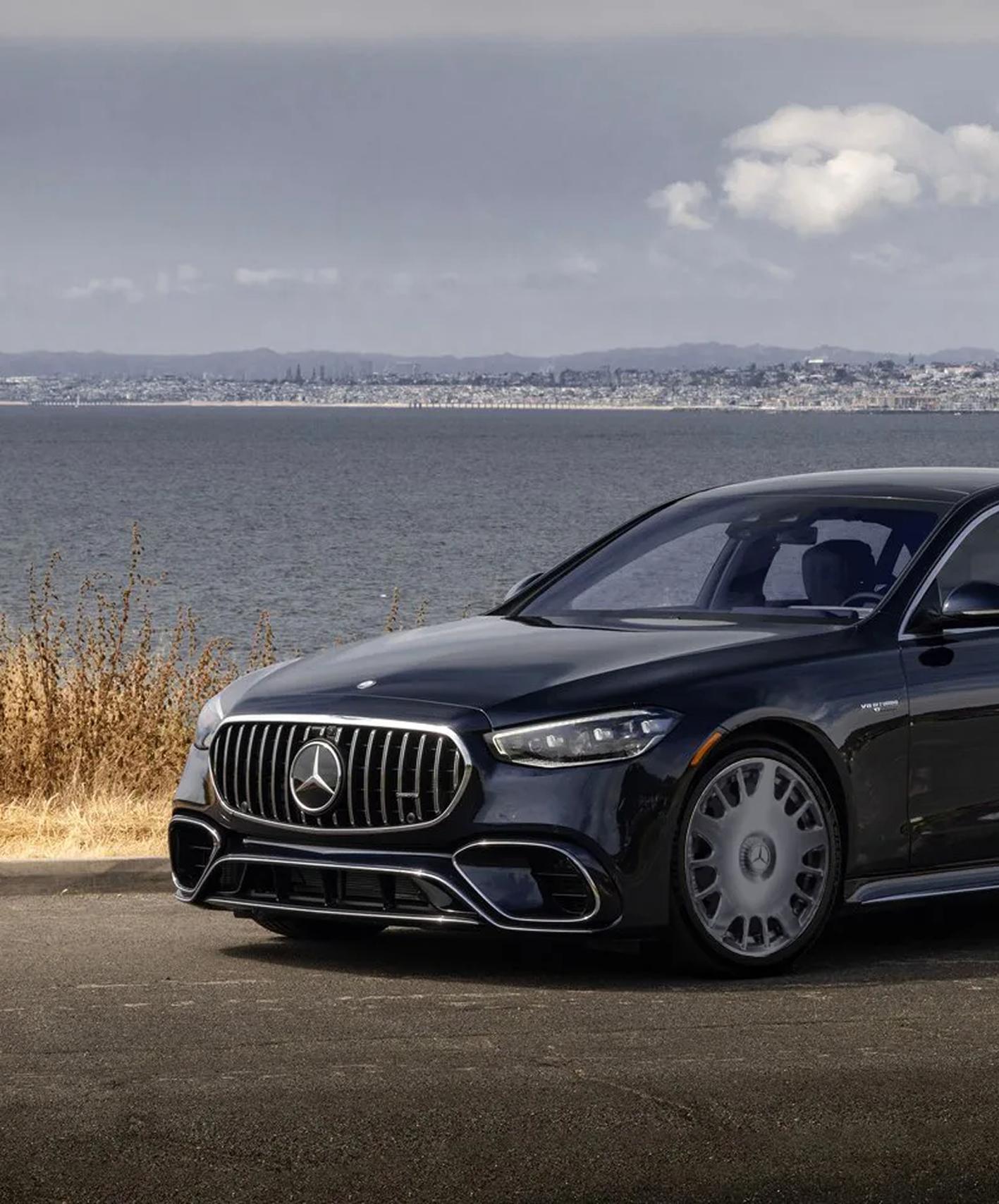

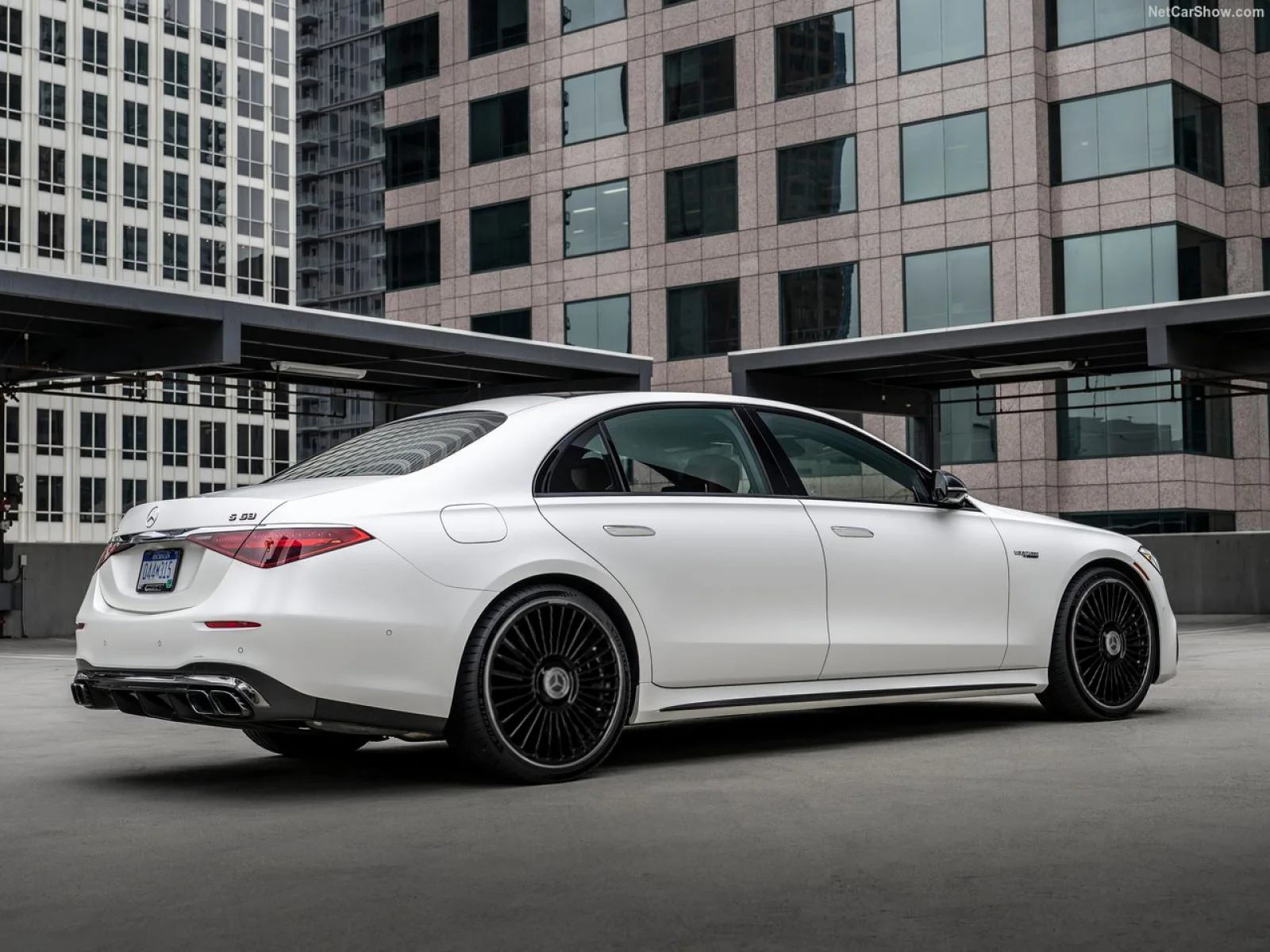

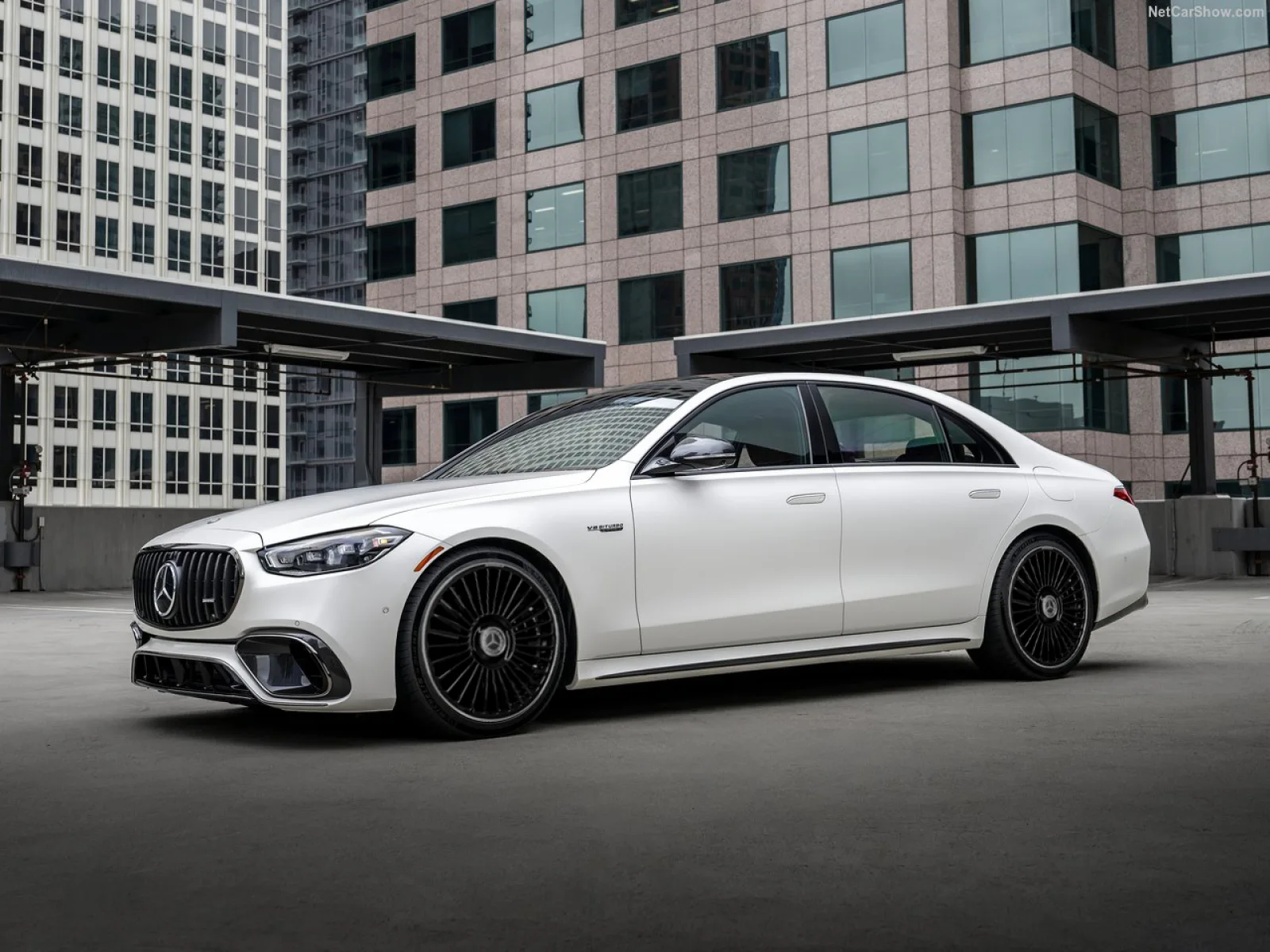

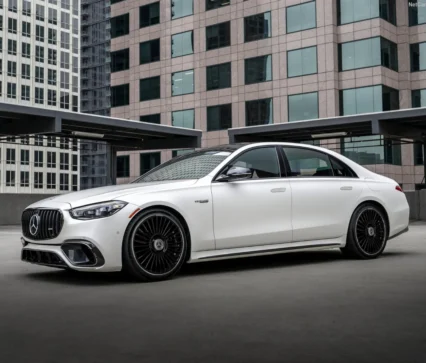

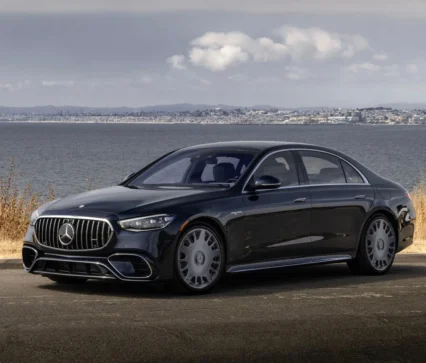

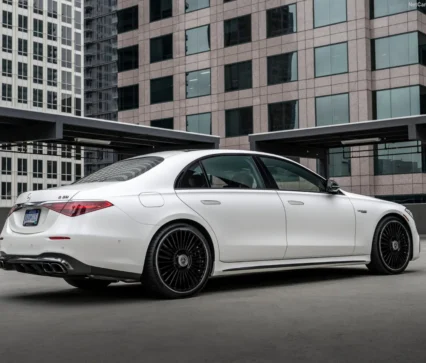

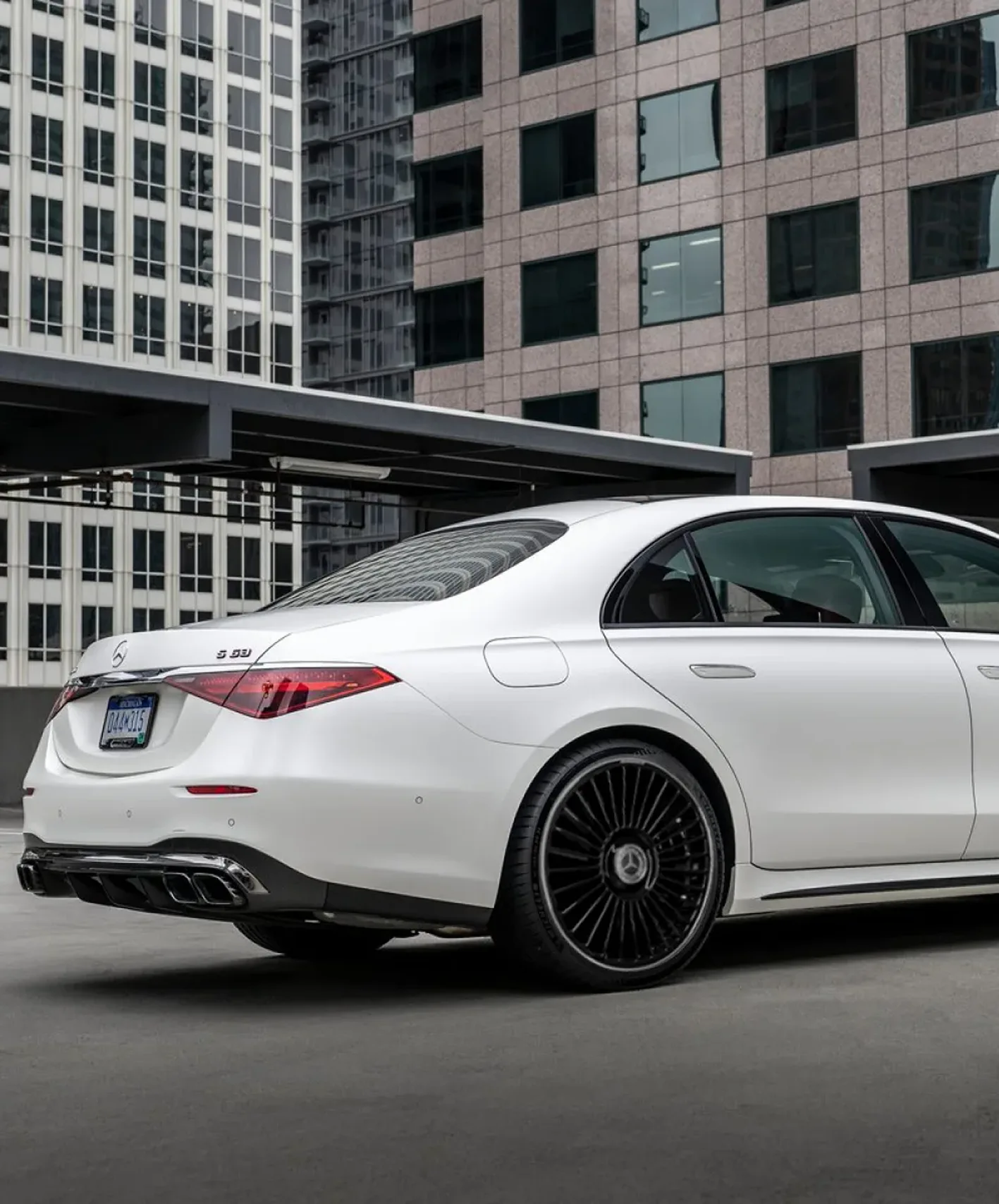

Mercedes-AMG S63 W223 by Renegade Design
S63 E Performance builds from our studio and client cars on RNG forged wheels, including S63 with the RNG body kit.
Fitment
Wheel fitment for the Mercedes-AMG S63 W223
The S63 E Performance comes on staggered 21″ wheels: 9.5J with 255/40 R21 at the front and 10.5J with 285/35 R21 at the rear. With the battery and electric motor the car weighs about 2.6 tonnes, so every RNG set is drawn for that load and keeps the factory stagger.
The S63 is built only as the long-wheelbase V223. The S-Class W223 shares the hub, bore and bolts, but its rear wheel is 10J at ET48 instead of 10.5J at ET50, so S-Class wheels are checked before they go on an S63.
| Bolt pattern | 5×112 |
|---|---|
| Centre bore | 66.6 mm, hub-centric |
| Wheel bolts | M14×1.5 |
| Factory front | 9.5J×21 ET33, 255/40 R21 |
| Factory rear | 10.5J×21 ET50, 285/35 R21 |
| Factory options | 20″: 9.5J×20 ET33.5, 255/45 R20 + 10.5J×20 ET50, 285/40 R20 |
| Same fitment | S63 E Performance V223 only; S-Class W223 has the same hub, rear offset differs |
| RNG sets for the S63 | 21–24″, staggered, rated for about 2.6 t |
Factory data for the Mercedes-AMG S63 E Performance V223, 2023 onwards. Widths and offsets for your set come in the fitment sheet with the quote.
21 designs · 5 collections
See every design on the Mercedes-AMG S63 W223
Our forged designs rendered on the S63, sized for its 21″ factory wheels and the weight of the hybrid long-wheelbase body. Tap a design to see it front and rear.
Visualisations of the 9X collection on the Mercedes-AMG S63 W223. The final profile, concavity and finish are agreed for your set before production. Any of the 26 RNG catalogue designs can also be made for the S63.
Wheels for your Mercedes-AMG S63 W223
Get the designs, sizes and price for your car
Choose a design and leave a contact. We reply with design options, the fitment sheet and a price for your Mercedes-AMG S63 W223.
- Any diameter21–24″, monoblock or multi-piece
- Any designOne of the 21, any RNG design or your own
- Any colourSilver, black, bronze, two-tone or your own
- 10–20 daysProduction, then shipping to your country
Complete the look
Wheels and body kit for the Mercedes-AMG S63 W223
The wheels and the S63 body kit come from the same studio, so the width and offset suit the wide body as well as the stock arches. Any part of the kit is also sold separately, from dealer stock or made to order in 5–15 working days.
- Mercedes-AMG S63 W223 body kit
- Carbon front bumper grille for Mercedes-Benz S63 W223
- Carbon front bumper inserts for Mercedes-Benz S63 W223
- Carbon front bumper splitter for Mercedes-Benz S63 W223
- Carbon rear bumper diffuser for Mercedes-Benz S63 W223
- Carbon rear bumper inserts for Mercedes-Benz S63 W223
- Carbon side skirts for Mercedes-Benz S63 W223
Mercedes-AMG S63 W223 wheels
Questions about wheels for the S63
What is the bolt pattern of the Mercedes-AMG S63 W223?

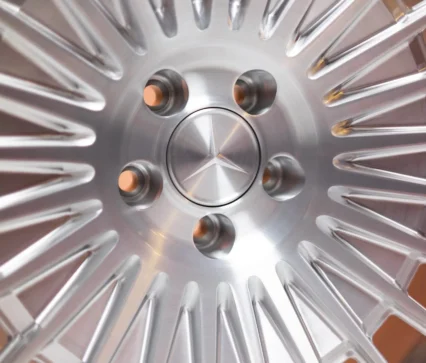

The S63 E Performance uses 5×112 with a 66.6 mm centre bore and M14×1.5 wheel bolts. RNG wheels are bored to the hub, so the set centres without rings or spacers.
What wheel size does the S63 E Performance have from the factory?
Staggered 21″: 9.5J×21 ET33 with 255/40 R21 at the front and 10.5J×21 ET50 with 285/35 R21 at the rear. A 20″ set (255/45 R20 and 285/40 R20) is offered mainly for winter.
Do S-Class W223 wheels fit the S63?
The hub, bolt pattern and bore are the same, but the S63 runs a wider 10.5J rear wheel at ET50, while the S-Class uses 10J at ET48. We draw S63 sets to the AMG figures and check any S-Class wheel against your car before fitting.
Can the S63 run 22″ or 23″ wheels?
Yes. We keep the stagger, use 255 and 285 tyres of a lower profile and hold the rolling diameter close to 21″, so the air suspension, rear-axle steering and speedometer keep working as designed.
Do the wheels suit the RNG body kit for the S63?
Yes. The wheels and the S63 body kit come from the same studio, so the spoke design and finish are matched to the kit parts, and the stance stays right with the kit fitted.
How long does a set for the S63 take, and what does it cost?
Production takes 10–20 days after you approve the design and the fitment sheet, then we ship to your country. Sets start from $4,940 for four wheels; 22″–24″ and multi-piece sets cost more.
Forged wheels for Mercedes-Benz S63: sizes, weight, price
Forged wheels for Mercedes-Benz S63 are forged in-house by RNG Design from aviation-grade aluminium for the Mercedes-Benz S63, 2021–present, in sizes 21″, 22″, 23″, 24″. Weight per wheel: 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg. Every set uses the car's original bolt pattern and offset, and comes in 18 finishes, from brushed and matte to gloss, bronze, gunmetal and crystal tones. Price from $4,940 per set of four (USD, delivery not included); single wheels can be ordered. A set is made in 10–20 days; RNG Design ships worldwide and partner dealers handle fitting. The wheels match the body kit for Mercedes-Benz S63 AMG W223.
| Specification | Value |
|---|---|
| Wheels | Forged wheels for Mercedes-Benz S63 |
| Fits | Mercedes-Benz S63, 2021–present |
| Sizes | 21″, 22″, 23″, 24″ |
| Weight per wheel | 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg |
| Material | forged aviation-grade aluminium, made in-house |
| Finishes | 18: brushed, matte, gloss, bronze, gunmetal, crystal and gold tones |
| Price | from $4,940 per set of four (USD, delivery not included) |
| Lead time | 10–20 days per set |
| Fitment | original bolt pattern and offset, no spacers |
Embrace a fusion of high performance and elegance with Renegade Design’s custom forged wheels for the Mercedes-Benz S63. These wheels are not merely additions; they are an integral part of expressing the S63’s combination of power and sophistication.
Advanced Forging for Enhanced Dynamics
At Renegade Design, we employ a sophisticated forging process to produce wheels that are substantially lighter and stronger than traditional alloys. This advantage is essential for the S63, a vehicle that excels in both power and luxury. Lighter wheels translate into more responsive handling and acceleration, enhancing the already impressive performance of the S63, while their increased strength ensures reliability under vigorous driving conditions.
Lifetime Warranty: A Promise of Enduring Excellence
Our commitment to quality is reflected in the lifetime warranty offered with our forged wheels. This warranty, safeguarding against manufacturing defects, is our guarantee of your satisfaction and trust in our product’s resilience and quality.
Bespoke Customization: A Tribute to Your Style
The Mercedes-Benz S63 is more than a car; it’s a symbol of luxury and power. Our customization options allow you to personalize your wheels to complement the S63’s commanding presence. From classic elegance to bold designs, our diverse range of styles and colors ensures your vehicle reflects your individual taste and the car’s high-performance nature.
Elevating the S63’s Prestige
The S63 is renowned for its unparalleled luxury and potent performance. Our forged wheels are designed to amplify these qualities, improving the vehicle’s handling and stability, while adding a visually captivating element to its appearance. The intricate design of our wheels aligns seamlessly with the S63’s aggressive yet refined lines, enhancing its overall allure.
Global Reach: Luxury Wheels Delivered Worldwide
Understanding the international appeal of the Mercedes-Benz S63, Renegade Design offers worldwide shipping. Our efficient and reliable shipping process ensures that your custom wheels are delivered safely and promptly, ready to elevate your driving experience.
Craftsmanship and Precision in Every Wheel
Each wheel from Renegade Design is a testament to our dedication to craftsmanship and precision. Utilizing the latest technologies and the highest quality materials, we ensure every wheel not only complements the Mercedes-Benz S63 but also elevates its status as a top-tier performance vehicle. Our wheels are a perfect blend of art and engineering, crafted to enhance the S63’s distinctive character. Renegade Design’s custom forged wheels for the Mercedes-Benz S63 offer the ultimate expression of performance-enhanced luxury. Perfect for those who demand the best in vehicle aesthetics and dynamic capabilities, these wheels are an essential upgrade for any S63 owner. Order now and transform your Mercedes-Benz S63 into an extraordinary showcase of automotive excellence.
