Forged Wheels for Ram 1500 TRX
- 21–24″Monoblock and multi-piece
- Fitted to the TRXHubs, brakes and arches
- 10–20 daysProduction time
- 21 designsShown on the TRX below
- Worldwide shippingDelivery to your country
Real cars, real wheels

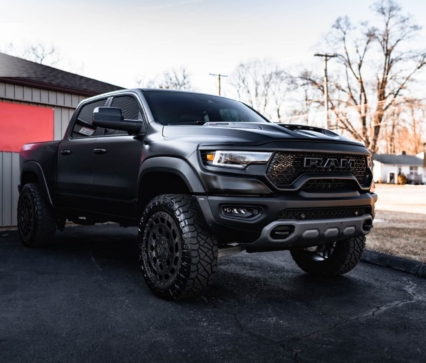

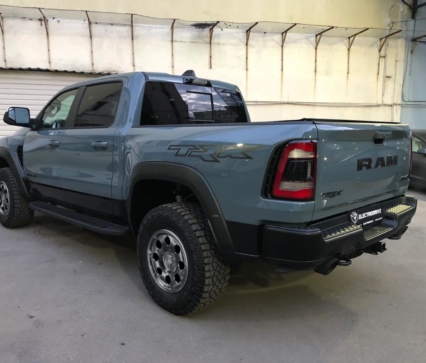

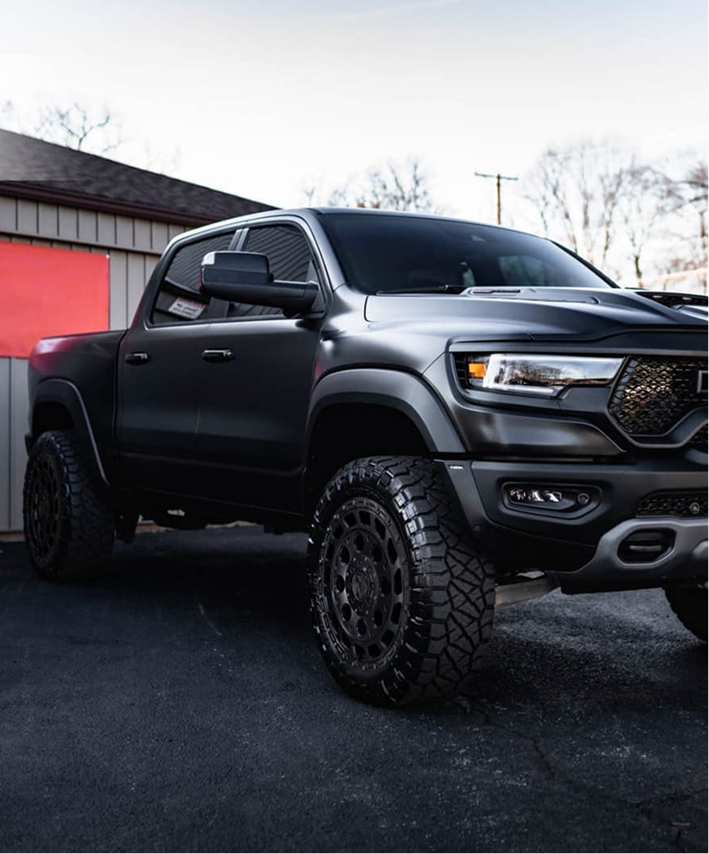

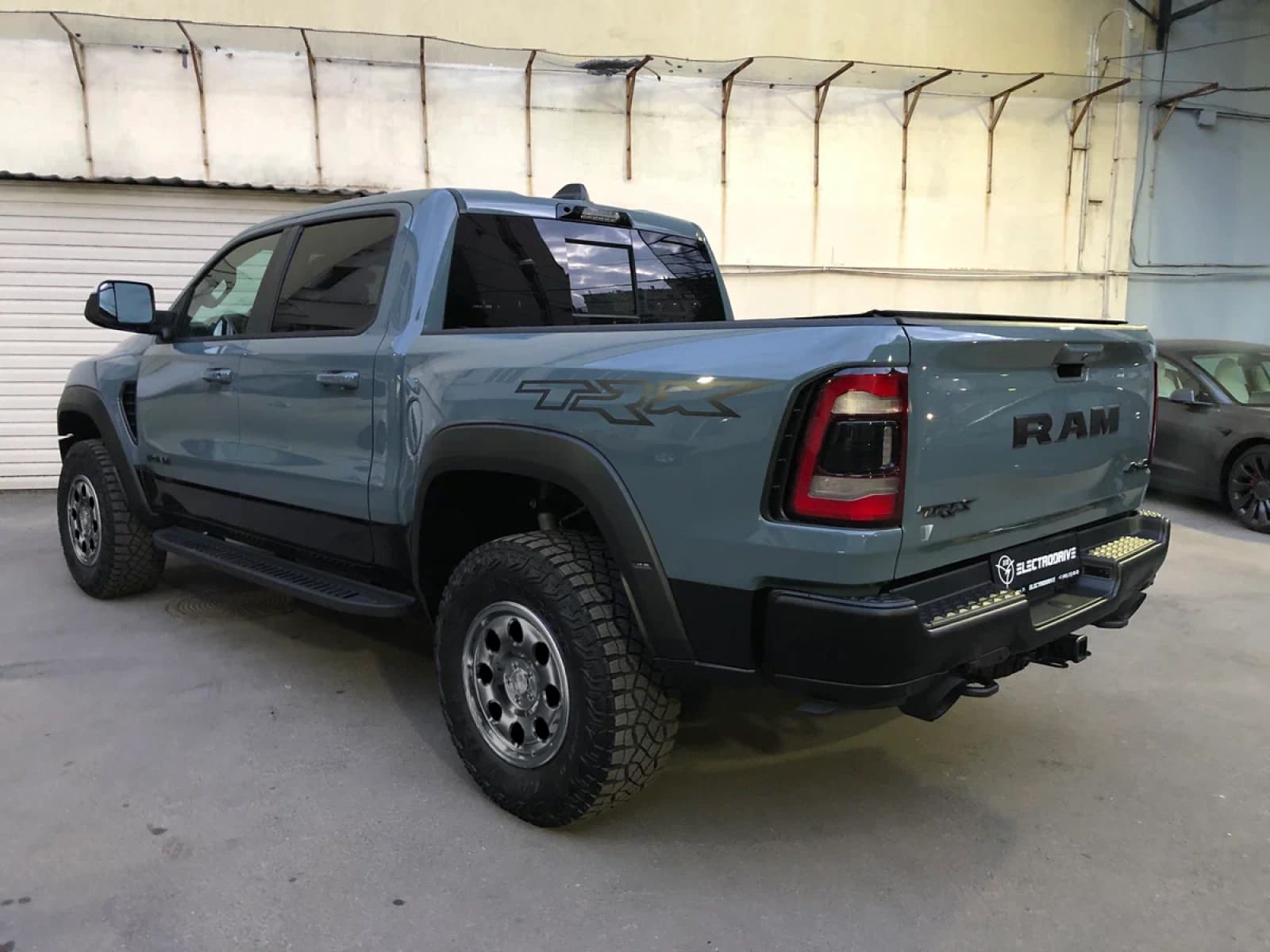

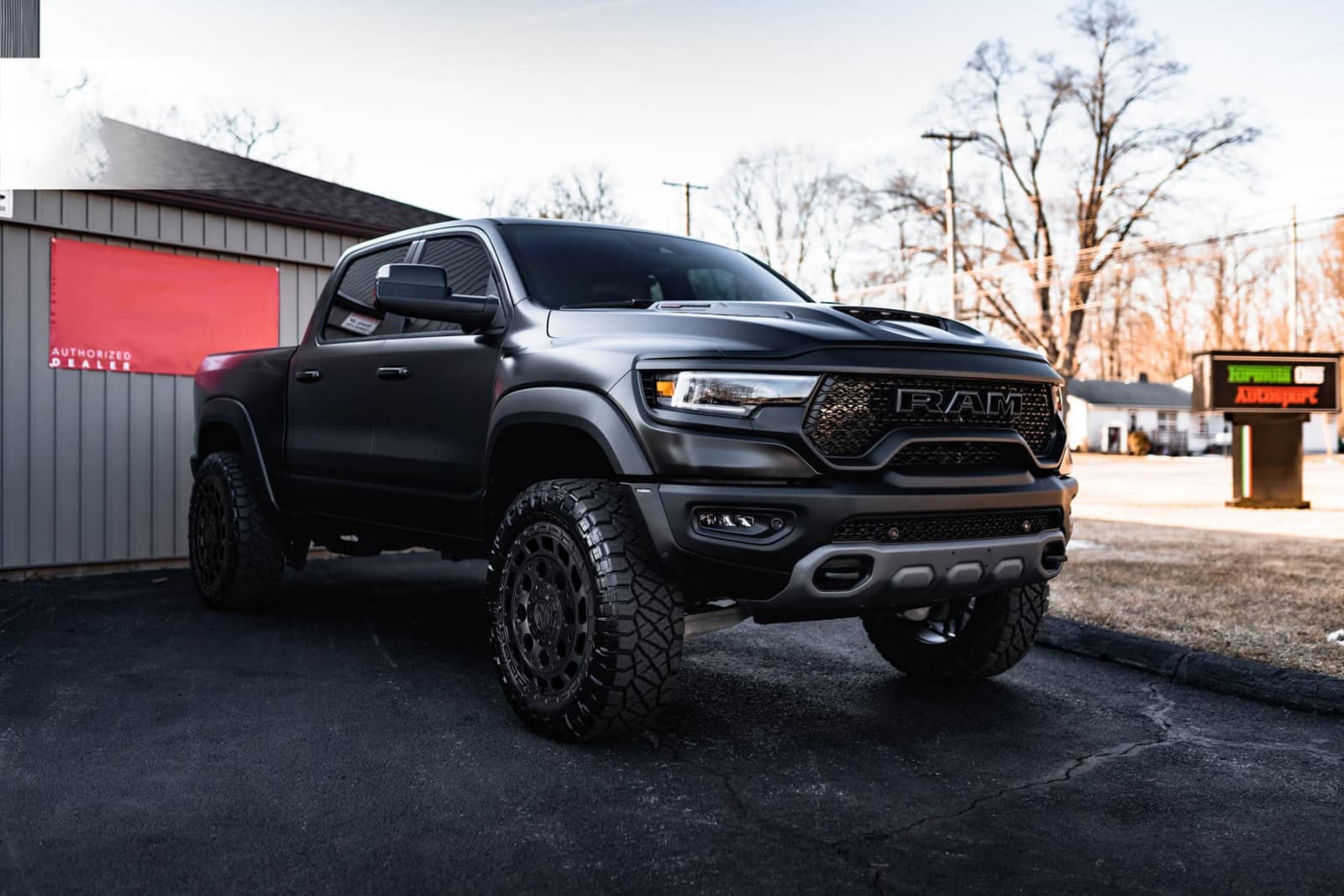

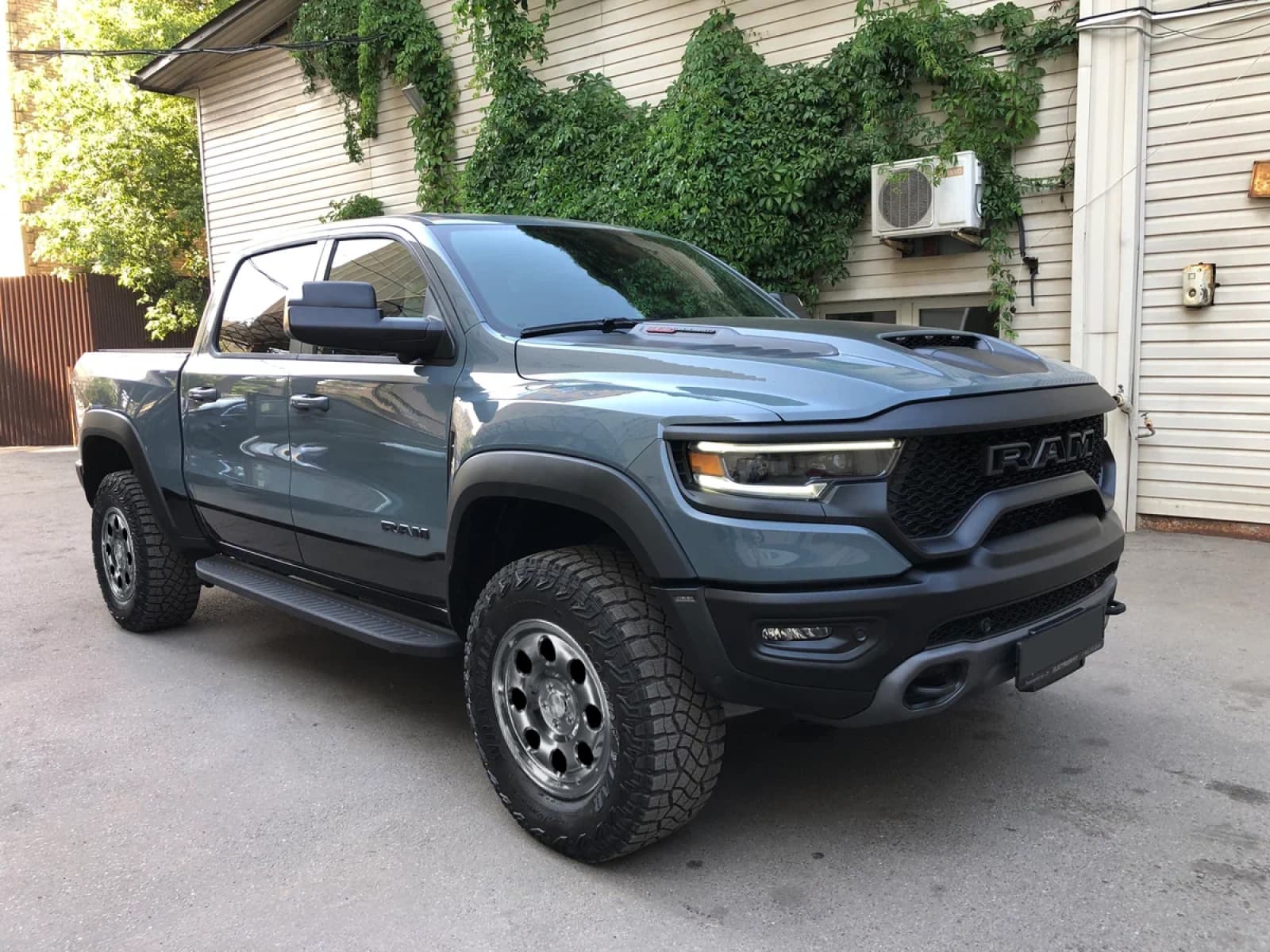

Ram 1500 TRX by Renegade Design

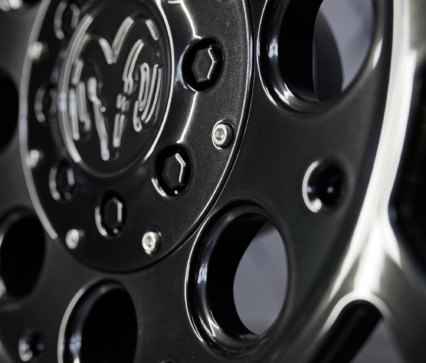

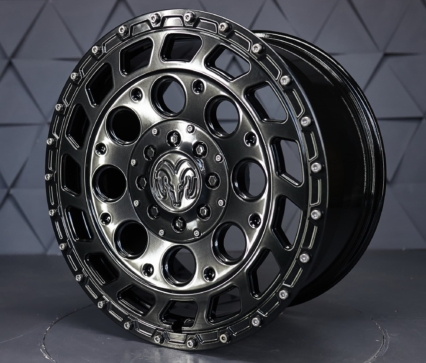

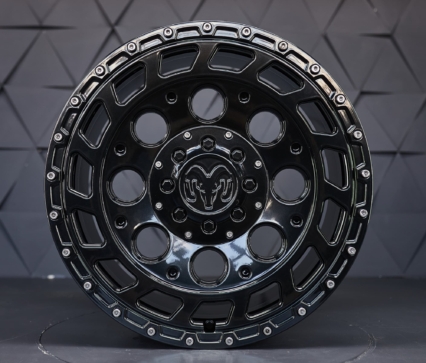

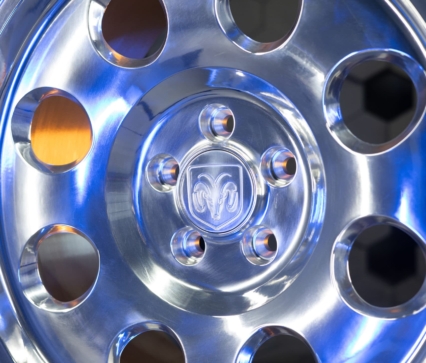

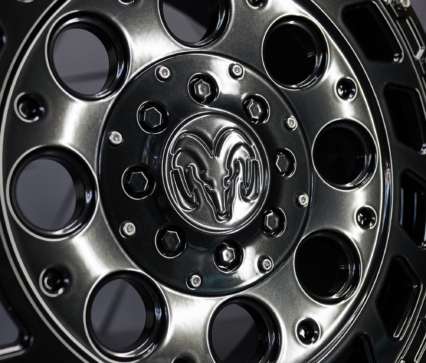

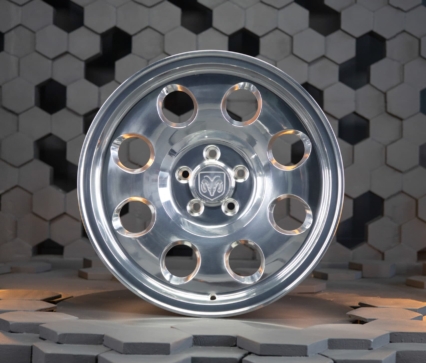

Ram TRX builds from our studio and client trucks on RNG forged wheels, drawn for 35-inch tyres and real off-road use.
Fitment
Wheel fitment for the Ram 1500 TRX
The TRX leaves the factory on 9J×18 ET19 wheels with LT325/65 R18 tyres, about 35 inches tall. RNG sets keep the 6×139.7 pattern and the 77.8 mm Ram hub bore and are drawn for a truck of about 2.9 tonnes that jumps and lands.
The Ram 1500 RHO uses the same 9J×18 ET19 wheel and LT325/65 R18 tyre. GM trucks also use 6×139.7, but with a 78.1 mm bore and a different offset, so their wheels are not a TRX fitment.
| Bolt pattern | 6×139.7 |
|---|---|
| Centre bore | 77.8 mm, hub-centric |
| Wheel nuts | M14×1.5, 176 Nm |
| Factory, front and rear | 9J×18 ET19, LT325/65 R18 |
| Factory tyre height | about 35″ |
| Same fitment | Ram 1500 RHO |
| RNG sets for the TRX | 21–24″, monoblock or multi-piece |
Factory data for the Ram 1500 TRX, 2021–2024. Widths, offsets and tyres for your set come in the fitment sheet with the quote.
21 designs · 5 collections
See every design on the Ram 1500 TRX
Forged designs rendered on the Ram 1500 TRX, from 18″ trail sets to 24″ street builds. Tap a design to see it front and rear.
Visualisations of the 9X collection on the Ram 1500 TRX. The final profile, concavity and finish are agreed for your set before production. Any of the 26 RNG catalogue designs can also be made for the TRX.
Wheels for your Ram 1500 TRX
Get the designs, sizes and price for your car
Choose a design and leave a contact. We reply with design options, the fitment sheet and a price for your Ram 1500 TRX.
- Any diameter21–24″, monoblock or multi-piece
- Any designOne of the 21, any RNG design or your own
- Any colourSilver, black, bronze, two-tone or your own
- 10–20 daysProduction, then shipping to your country
Ram 1500 TRX wheels
Questions about wheels for the TRX
What is the bolt pattern of the Ram 1500 TRX?
The TRX uses 6×139.7 with a 77.8 mm centre bore and M14×1.5 wheel nuts tightened to 176 Nm. The bore is Ram-specific, so RNG wheels are machined to it and centre on the hub without rings.
What size wheels and tyres does the TRX have from the factory?
9J×18 ET19 with LT325/65 R18 tyres on all four corners, an overall height of about 35 inches. The relatively low offset pushes the wheels out to the wide TRX body.
Will TRX wheels fit the Ram 1500 RHO or other Ram trucks?
The Ram 1500 RHO has the same 9J×18 ET19 wheel and LT325/65 R18 tyre, so a TRX set fits it directly. Other Ram 1500 trucks share the bolt pattern and bore, but sit narrower, so we draw the offset for your truck.
Can the TRX run 22″ or 24″ wheels?
Yes, for street builds. We keep the overall diameter near the factory 35 inches with lower-profile light-truck tyres and set the offset so the tyres clear the wheel-well liners at full steering lock. For off-road use we recommend staying at 20″ or less and the tallest sidewall possible.
Are forged wheels strong enough for off-road driving with the TRX?
The TRX weighs about 2.9 tonnes and is built to jump and land on rough ground, so every RNG set for it is forged from aviation-grade aluminium and drawn for that impact load. The load rating is stated in the fitment sheet, and the lip profile is chosen to resist rock damage.
How long does a set for the TRX take, and what does it cost?
Production takes 10–20 days after you approve the design and the fitment sheet, then we ship to your country. Sets start from $4,940 for four wheels; 23″ and 24″ sets and multi-piece construction cost more.
Forged wheels for Dodge Ram 1500 TRX: sizes, weight, price
Forged wheels for Dodge Ram 1500 TRX are forged in-house by RNG Design from aviation-grade aluminium for the Dodge Ram 1500 TRX, in sizes 21″, 22″, 23″, 24″. Weight per wheel: 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg. Every set uses the car's original bolt pattern and offset, and comes in 18 finishes, from brushed and matte to gloss, bronze, gunmetal and crystal tones. Price from $4,940 per set of four (USD, delivery not included); single wheels can be ordered. A set is made in 10–20 days; RNG Design ships worldwide and partner dealers handle fitting.
| Specification | Value |
|---|---|
| Wheels | Forged wheels for Dodge Ram 1500 TRX |
| Fits | Dodge Ram 1500 TRX |
| Sizes | 21″, 22″, 23″, 24″ |
| Weight per wheel | 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg |
| Material | forged aviation-grade aluminium, made in-house |
| Finishes | 18: brushed, matte, gloss, bronze, gunmetal, crystal and gold tones |
| Price | from $4,940 per set of four (USD, delivery not included) |
| Lead time | 10–20 days per set |
| Fitment | original bolt pattern and offset, no spacers |
Enhance your Dodge Ram 1500 TRX’s capabilities with Renegade Design’s custom forged wheels. Designed for the bold and adventurous, our wheels are the perfect complement to this rugged vehicle. Forged Wheels: The Ultimate Upgrade Our forged wheels outshine traditional alloy wheels in every aspect. Created under high-pressure forging, these wheels are denser and stronger, resulting in a product that is both lighter and more durable. This upgrade significantly improves the Ram 1500 TRX’s performance, handling, and off-road capabilities. Lifetime Warranty: A Symbol of Trust Renegade Design offers a lifetime warranty on our forged wheels, underscoring our dedication to quality and customer satisfaction. This warranty covers manufacturing defects, ensuring your peace of mind in the toughest conditions. Customization for the Adventurous The Dodge Ram 1500 TRX is more than just a truck; it’s a symbol of power and versatility. We offer a wide range of custom designs and colors, allowing you to tailor your wheels to your vehicle’s rugged style and your personal preferences. Worldwide Shipping: Renegade Design Anywhere Recognizing the global appeal of the Dodge Ram 1500 TRX, Renegade Design provides worldwide shipping. Our efficient and reliable shipping ensures that your custom wheels are delivered safely and promptly, no matter where your journey takes you. The Dodge Ram 1500 TRX is built for the extraordinary, and with Renegade Design’s forged wheels, it is set to conquer new horizons. These wheels are not just an accessory; they are an enhancement to your vehicle’s performance and aesthetics. Order now and start your adventure with a Ram 1500 TRX that stands out in both function and style.
