Forged Wheels for BMW X5M F95
- 21–24″Monoblock and multi-piece
- Fitted to the X5MHubs, brakes and arches
- 10–20 daysProduction time
- 21 designsShown on the X5M below
- Worldwide shippingDelivery to your country
Real cars, real wheels

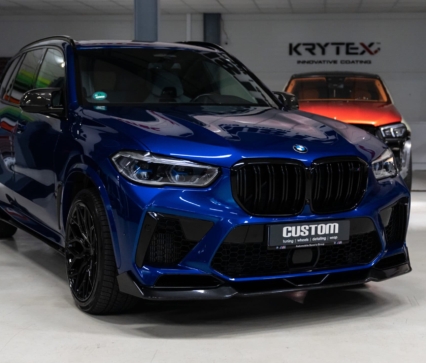

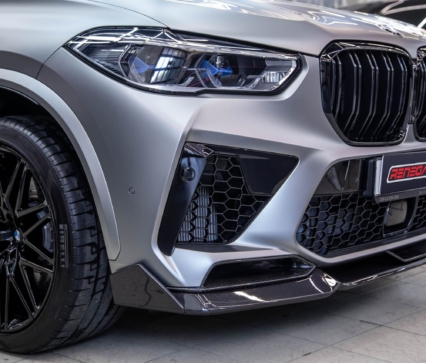

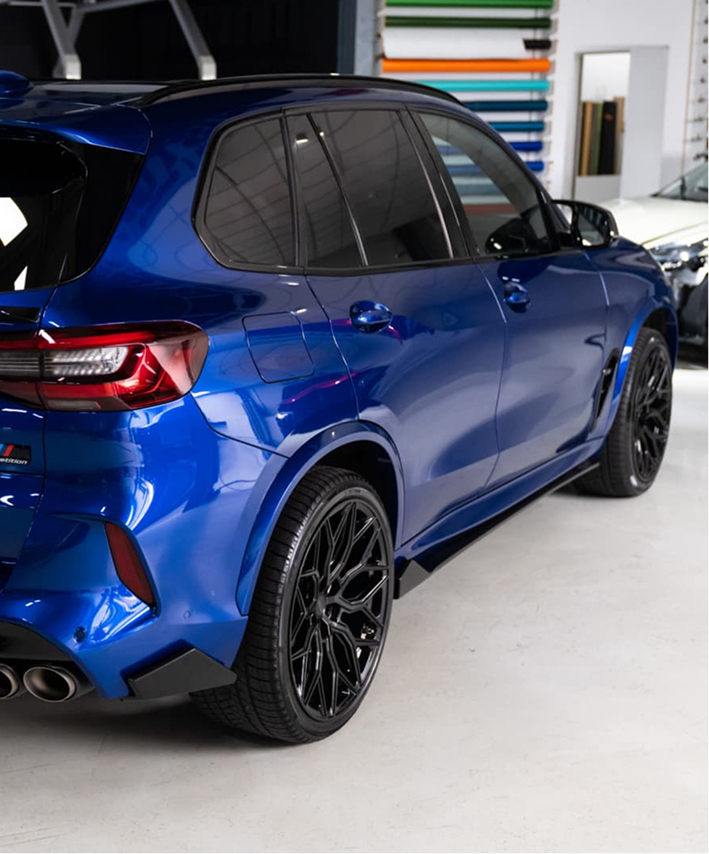

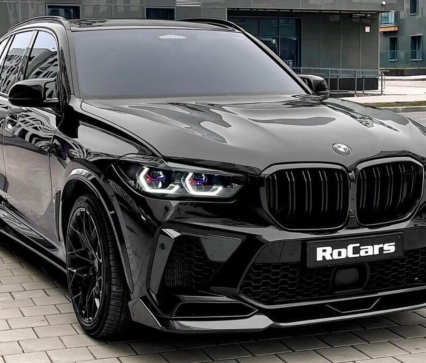

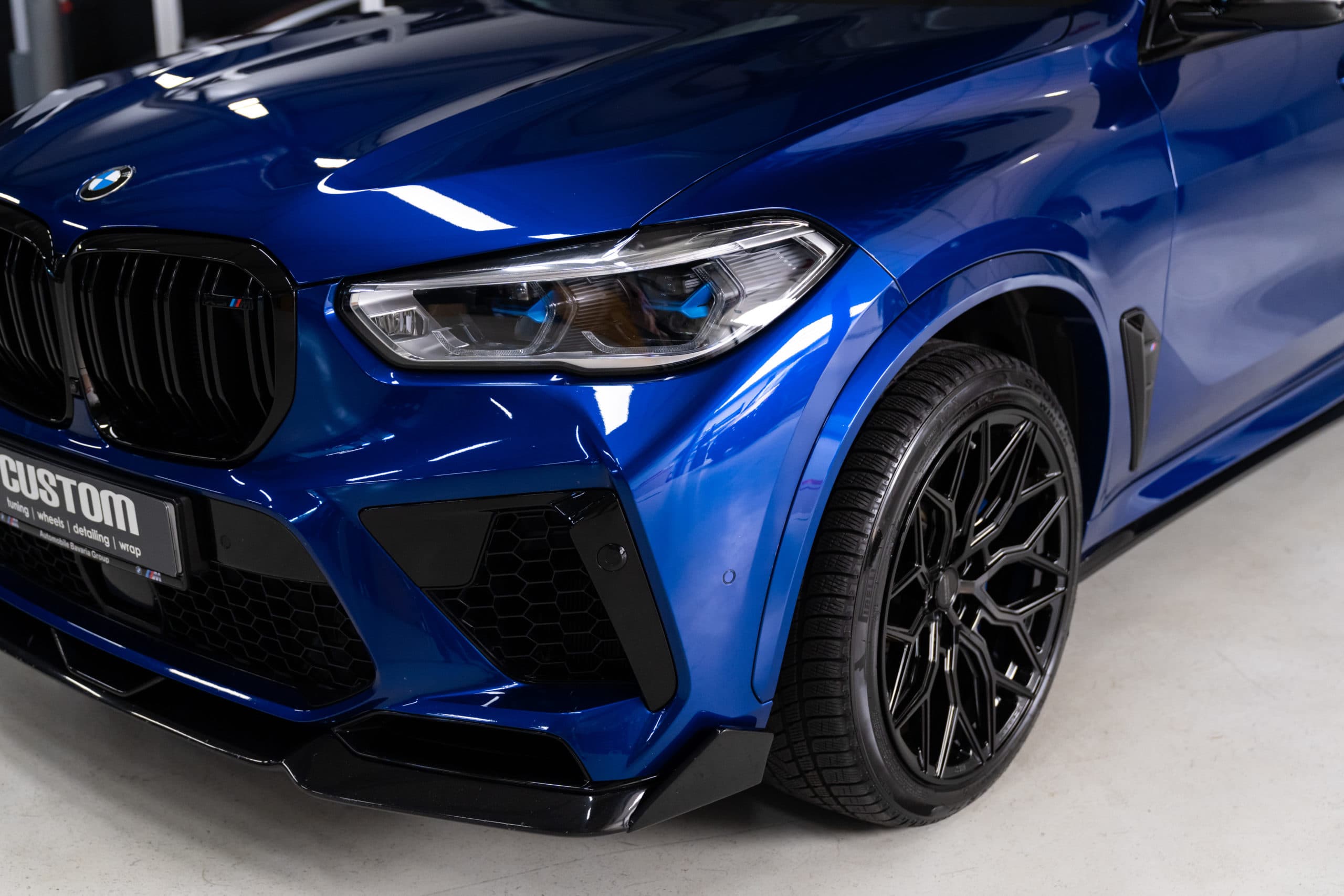

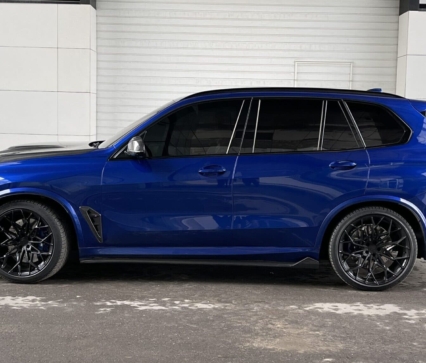

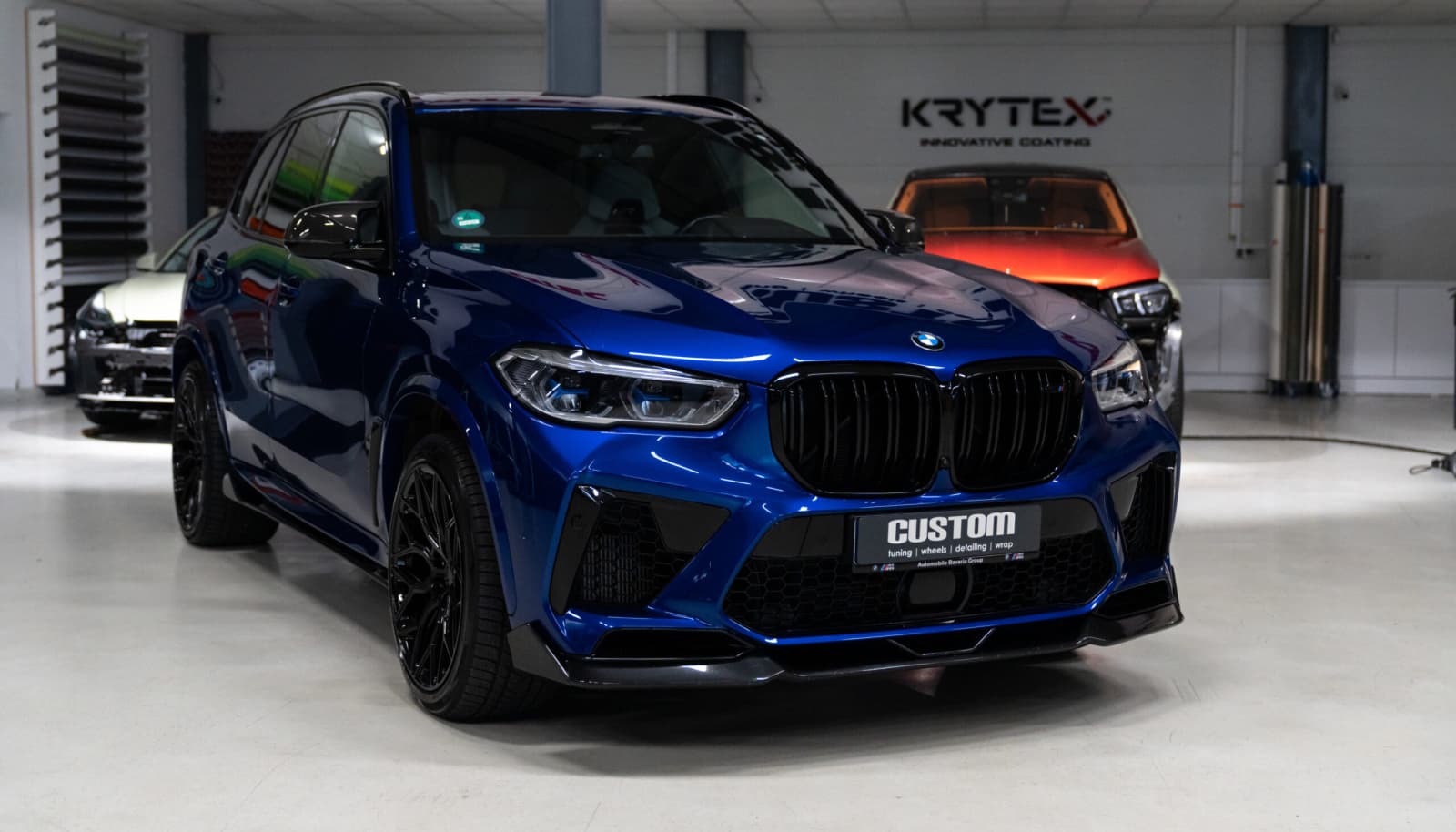

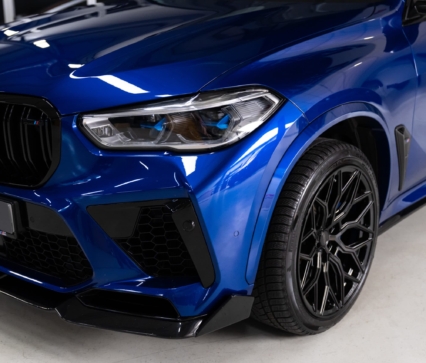

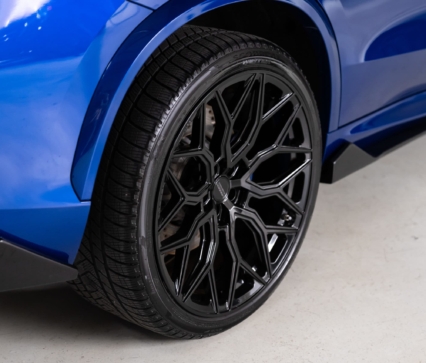

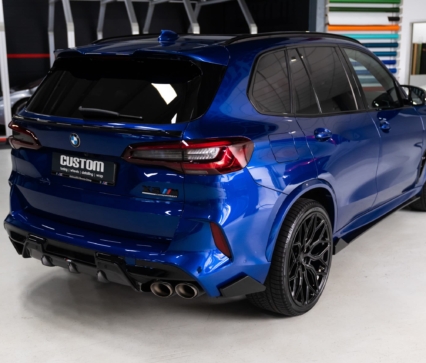

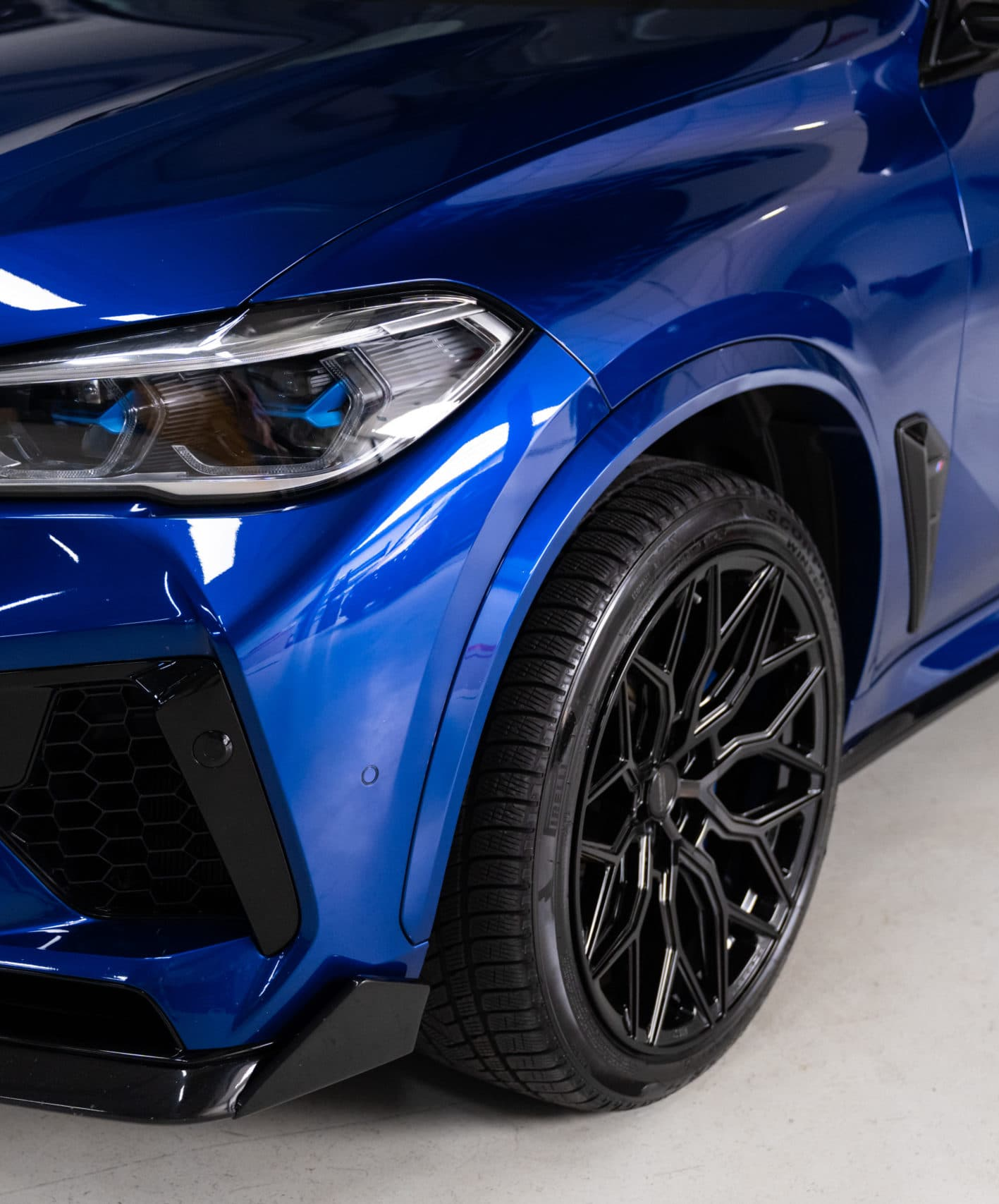

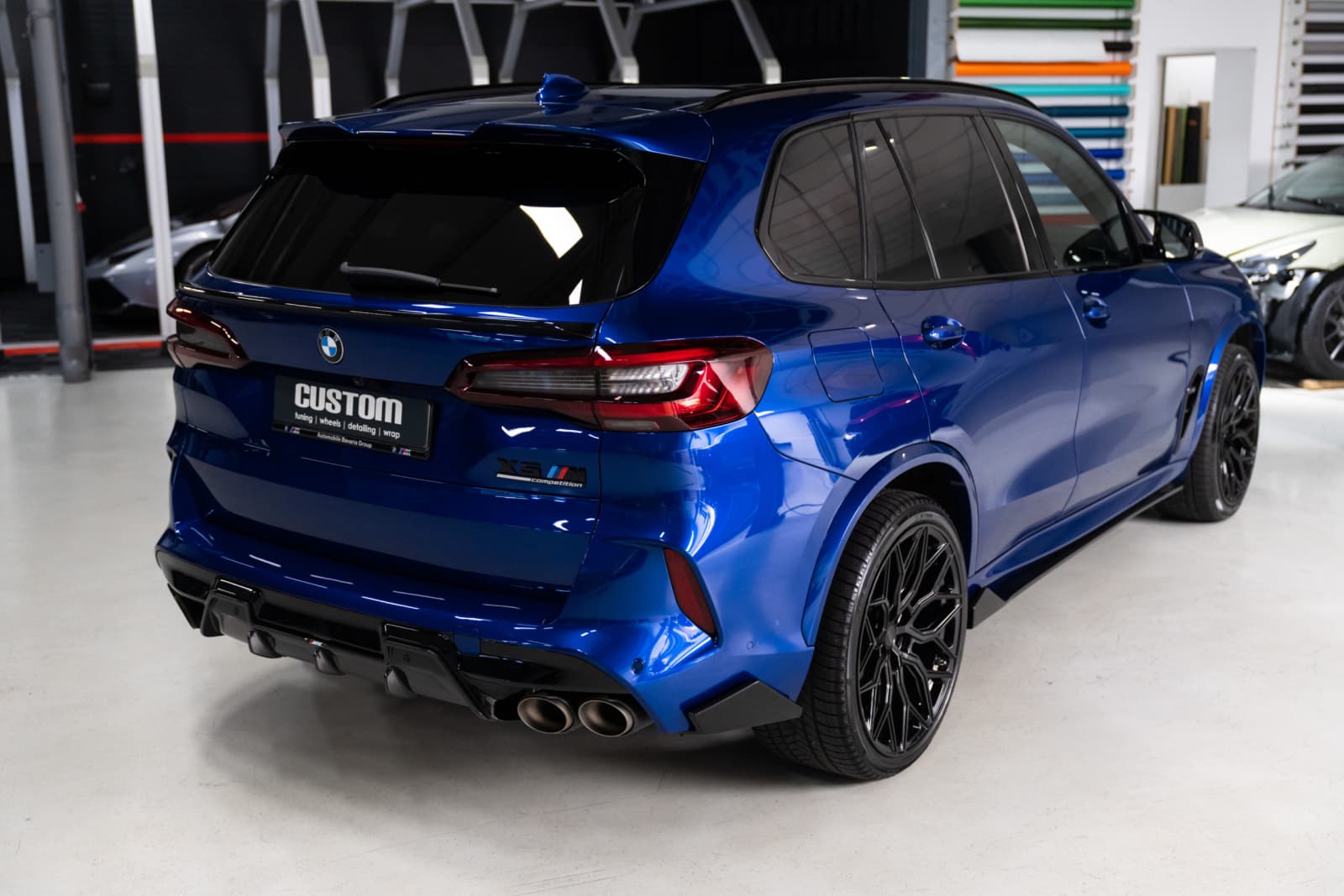

BMW X5M F95 by Renegade Design
X5 M and X5 M Competition cars on RNG forged wheels, from our studio and from clients, including F95 builds with the RNG body kit.
Fitment
Wheel fitment for the BMW X5M F95
The X5 M is not an X5 on bigger wheels. Its front wheels are 10.5J wide with ET31 for 295 tyres, the rear runs 11.5J×22 with 315/30 R22, and the M Compound brakes leave 21″ as the smallest factory size. RNG sets for the F95 keep this 21/22″ stagger and are machined for the 66.6 mm hub.
The X6 M F96 uses exactly the same wheels, so one fitment sheet covers the X5 M and the X6 M, before and after the 2023 update.
| Bolt pattern | 5×112 |
|---|---|
| Centre bore | 66.6 mm, hub-centric |
| Wheel bolts | M14×1.25, 140 Nm |
| Factory front | 10.5J×21 ET31, 295/35 R21 |
| Factory rear | 11.5J×22 ET43, 315/30 R22 |
| Factory options | 21″ rear: 11.5J×21 ET43, 315/35 R21 · winter 21″ rear: 11J×21 ET48, 295/35 R21 |
| Same fitment | X5 M Competition, X5 M F95 LCI, X6 M F96 and F96 LCI |
| RNG sets for the X5 M | 21–24″, staggered, monoblock or multi-piece |
Factory data for the X5 M and X5 M Competition F95, 2019 onwards, including the 2023 LCI. Your widths and offsets come in the fitment sheet with the quote.
21 designs · 5 collections
See every design on the BMW X5M F95
Twenty-one forged designs rendered on the X5 M F95, drawn around its 295 front and 315 rear tyres. Tap a design to see it front and rear.
Visualisations of the 9X collection on the BMW X5M F95. The final profile, concavity and finish are agreed for your set before production. Any of the 26 RNG catalogue designs can also be made for the X5M.
Wheels for your BMW X5M F95
Get the designs, sizes and price for your car
Choose a design and leave a contact. We reply with design options, the fitment sheet and a price for your BMW X5M F95.
- Any diameter21–24″, monoblock or multi-piece
- Any designOne of the 21, any RNG design or your own
- Any colourSilver, black, bronze, two-tone or your own
- 10–20 daysProduction, then shipping to your country
Complete the look
Wheels and body kit for the BMW X5M F95
The wheels and the X5M body kit come from the same studio, so the width and offset suit the wide body as well as the stock arches. Any part of the kit is also sold separately, from dealer stock or made to order in 5–15 working days.
BMW X5M F95 wheels
Questions about wheels for the X5M
What is the bolt pattern of the BMW X5 M F95?
The X5 M F95 uses 5×112 with a 66.6 mm centre bore and M14×1.25 wheel bolts tightened to 140 Nm. The pattern matches the regular X5, but the offsets and brakes do not, so we machine every set specifically for the M car.
What size wheels does the X5 M Competition have?
From the factory it is staggered 21/22″: 10.5J×21 ET31 with 295/35 R21 at the front and 11.5J×22 ET43 with 315/30 R22 at the rear. A 21″ rear (11.5J×21 ET43, 315/35 R21) is also offered, and BMW winter sets use 295/35 R21 on all four corners with an 11J×21 ET48 rear.
Do X5 M wheels fit the X6 M and the regular X5?
They fit the X6 M F96 one to one, before and after the 2023 update. They are not a direct match for the X5 G05: the 10.5J front wheel with ET31 sits much further out than the X5's 9–9.5J with ET35–ET44, and regular X5 wheels in 18″–20″ do not clear the M Compound brakes.
Can the X5 M run 23″ or 24″ wheels?
Yes. We keep the stagger with 295 or 305 tyres at the front and 315 or 325 at the rear in lower profiles, and hold the rolling diameter close to the factory 22″ set so the M xDrive system and the speedometer stay correct.
Do the wheels clear the M Compound brakes of the X5 M?
Yes. The X5 M has six-piston front calipers on large M Compound discs, which is why BMW starts at 21″. We draw the spoke profile and barrel with clearance to these calipers and check it against your car's brake package in the fitment sheet.
How long does a set for the X5 M take, and what does it cost?
Production takes 10–20 days after you approve the design and the fitment sheet, then we ship to your country. Sets start from $4,940 for four wheels; 23″, 24″ and multi-piece sets for the X5 M cost more.
Forged wheels for BMW X5M F95: sizes, weight, price
Forged wheels for BMW X5M F95 are forged in-house by RNG Design from aviation-grade aluminium for the BMW X5M F95, 2020–2023, in sizes 21″, 22″, 23″, 24″. Weight per wheel: 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg. Every set uses the car's original bolt pattern and offset, and comes in 18 finishes, from brushed and matte to gloss, bronze, gunmetal and crystal tones. Price from $4,940 per set of four (USD, delivery not included); single wheels can be ordered. A set is made in 10–20 days; RNG Design ships worldwide and partner dealers handle fitting. The wheels match the body kit for BMW X5M F95.
| Specification | Value |
|---|---|
| Wheels | Forged wheels for BMW X5M F95 |
| Fits | BMW X5M F95, 2020–2023 |
| Sizes | 21″, 22″, 23″, 24″ |
| Weight per wheel | 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg |
| Material | forged aviation-grade aluminium, made in-house |
| Finishes | 18: brushed, matte, gloss, bronze, gunmetal, crystal and gold tones |
| Price | from $4,940 per set of four (USD, delivery not included) |
| Lead time | 10–20 days per set |
| Fitment | original bolt pattern and offset, no spacers |
Forged wheels for BMW X5M F95
Step into the world of unmatched power and luxury with Renegade Design’s custom forged wheels for the BMW X5M F95. These wheels are more than just enhancements; they are a vital component in unleashing the full potential of the X5M’s high-performance capabilities. Superior Forging for Ultimate Dynamics Using cutting-edge forging technology, Renegade Design creates wheels that are significantly lighter and stronger than conventional alloy wheels. This is crucial for the BMW X5M F95, a vehicle that sets benchmarks in SUV performance and agility. The lighter weight enhances the X5M’s handling and responsiveness, essential for its sporty driving experience, while the increased strength provides the durability needed for high-powered driving sessions. Lifetime Warranty: A Promise of Enduring Performance Our forged wheels come with a lifetime warranty, showcasing our commitment to exceptional quality and lasting durability. This warranty, protecting against manufacturing defects, offers you peace of mind and confidence in the long-term performance and reliability of our product. Customization: Tailoring to the X5M F95’s Aggressive Style The BMW X5M F95 is a statement of power and sophistication, and our wheels are crafted to complement this. With a wide range of custom designs and colors, you can personalize your wheels to match the X5M F95’s bold and sporty aesthetic. Whether seeking a refined look or a more pronounced visual statement, our customization options cater to every preference, enhancing the distinctive character of your BMW. Elevating the BMW X5M F95 Experience Known for its exhilarating speed and luxurious design, the X5M F95 deserves wheels that enhance these attributes. Our forged wheels improve the vehicle’s handling and stability, adding a visually striking element to its appearance. The design of our wheels is meticulously crafted to align with the X5M F95’s aerodynamic lines, reinforcing its status as a high-performance SUV. Global Shipping: Delivering Performance Worldwide Recognizing the global appeal of the BMW X5M F95, Renegade Design offers worldwide shipping. Our secure and efficient shipping process ensures that your custom wheels are delivered safely and promptly, ready to transform your X5M F95’s performance and style. The Fusion of Art and Engineering Each wheel from Renegade Design is a result of our passion for precision and performance. Utilizing the finest materials and the latest wheel technology, we ensure that each wheel not only fits the BMW X5M F95 perfectly but also enhances its overall persona. Our wheels are a perfect amalgamation of design and functionality, crafted to elevate the driving experience of this powerhouse SUV. Renegade Design’s custom forged wheels for the BMW X5M F95 offer the ultimate upgrade in performance, aesthetics, and personal expression. These wheels are essential for X5M owners who value the blend of supreme power, dynamic agility, and distinctive style. Order now and transform your BMW X5M F95 into an even more formidable and stylish high-performance SUV.
