Forged Wheels for BMW X5 LCI
- 21–24″Monoblock and multi-piece
- Fitted to the X5Hubs, brakes and arches
- 10–20 daysProduction time
- 21 designsShown on the X5 below
- Worldwide shippingDelivery to your country
Real cars, real wheels

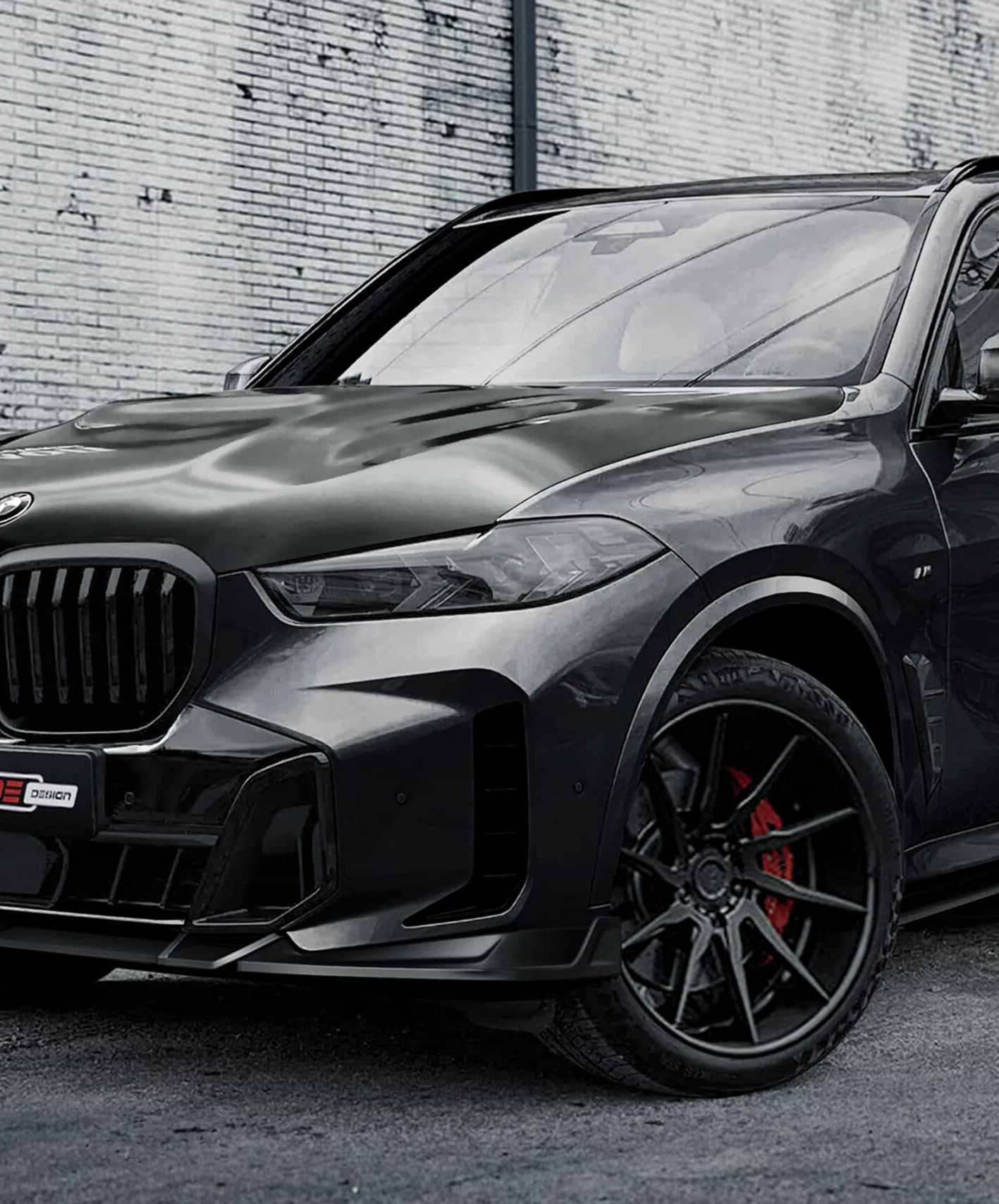

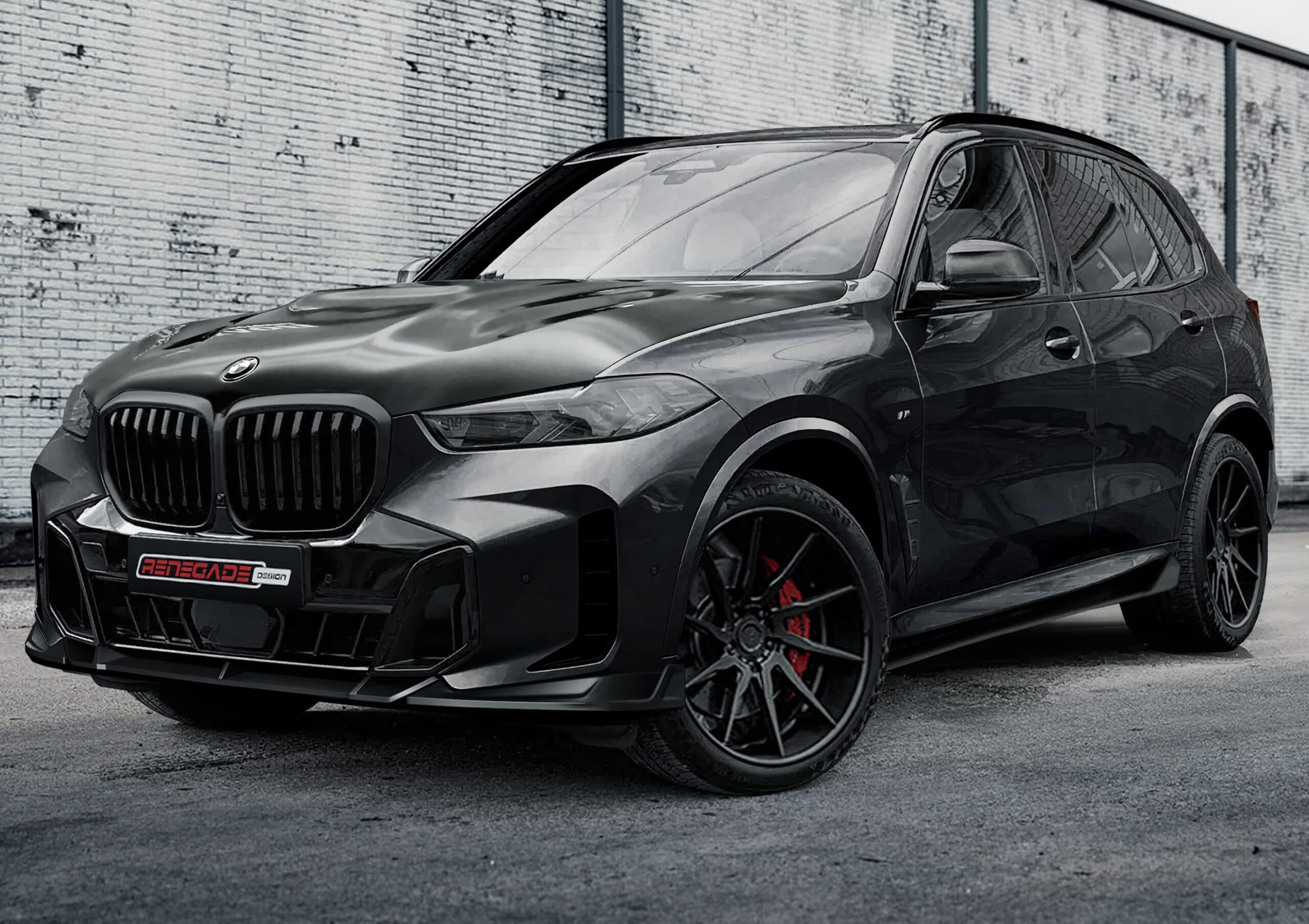

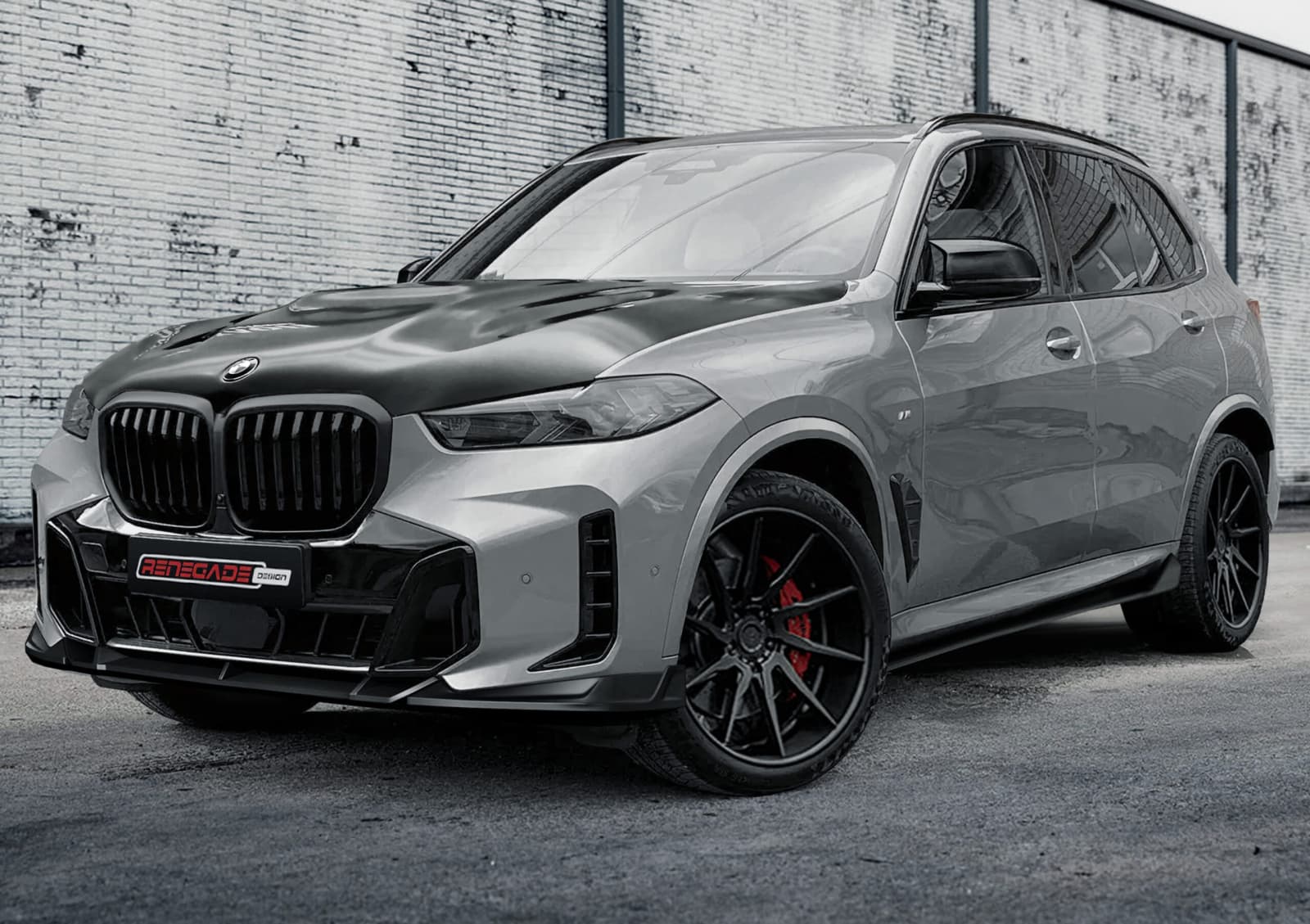

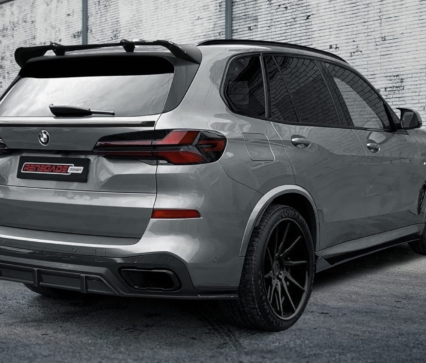

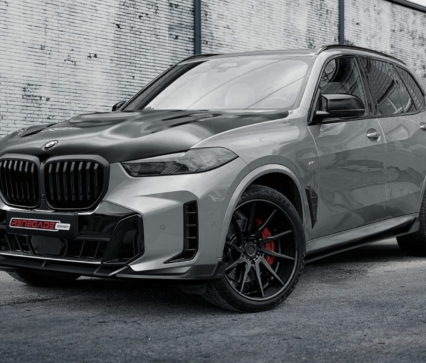

BMW X5 LCI by Renegade Design
Facelifted X5 cars from 2023 onwards on RNG forged wheels, from xDrive40i daily drivers to M60i builds with the RNG body kit.
Fitment
Wheel fitment for the BMW X5 LCI
The 2023 update changed the lights, the grille and the engines of the X5, but not the wheel hub: the X5 LCI keeps 5×112, the 66.6 mm bore and the factory offsets of the G05. The M60i comes on staggered 21″ with 315 rear tyres; the xDrive40i and xDrive50e start on square 18″ to 20″ sets.
Wheels made for the 2018–2023 X5 G05 and for the X6 G06 fit the LCI without changes, and the other way round.
| Bolt pattern | 5×112 |
|---|---|
| Centre bore | 66.6 mm, hub-centric |
| Wheel bolts | M14×1.25, 140 Nm |
| Factory front | 8.5J×18 ET44, 255/55 R18 · 9J×20 ET35, 275/45 R20 · M60i: 9.5J×21 ET37, 275/40 R21 |
| Factory rear | 18″–20″ as front (square) · M60i: 10.5J×21 ET43, 315/35 R21 |
| Factory options | 19″: 9J×19 ET38, 265/50 R19 · 20″ staggered with 10.5J×20 ET40, 305/40 R20 · 22″: 9.5J×22 ET37, 275/35 R22 + 10.5J×22 ET43, 315/30 R22 |
| Same fitment | X5 G05 2018–2023, X6 G06 and G06 LCI, X5 xDrive50e |
| RNG sets for the X5 | 21–24″, square or staggered, monoblock or multi-piece |
Factory data for the X5 G05 LCI from 2023: xDrive30d, xDrive40i, xDrive40d, xDrive50e and M60i. Your widths and offsets come in the fitment sheet with the quote.
21 designs · 5 collections
See every design on the BMW X5 LCI
Twenty-one forged designs rendered on the facelifted X5, sized around its 21″ M60i stance. Tap a design to see it front and rear.
Visualisations of the 9X collection on the BMW X5 LCI. The final profile, concavity and finish are agreed for your set before production. Any of the 26 RNG catalogue designs can also be made for the X5.
Wheels for your BMW X5 LCI
Get the designs, sizes and price for your car
Choose a design and leave a contact. We reply with design options, the fitment sheet and a price for your BMW X5 LCI.
- Any diameter21–24″, monoblock or multi-piece
- Any designOne of the 21, any RNG design or your own
- Any colourSilver, black, bronze, two-tone or your own
- 10–20 daysProduction, then shipping to your country
Complete the look
Wheels and body kit for the BMW X5 LCI
The wheels and the X5 body kit come from the same studio, so the width and offset suit the wide body as well as the stock arches. Any part of the kit is also sold separately, from dealer stock or made to order in 5–15 working days.
BMW X5 LCI wheels
Questions about wheels for the X5
What is the bolt pattern of the 2023 BMW X5 facelift?
The same as before the update: 5×112, a 66.6 mm centre bore and M14×1.25 wheel bolts at 140 Nm. RNG wheels for the X5 LCI are machined to this bore and fit hub-centric with the factory bolts.
What wheels does the X5 M60i have from the factory?
Staggered 21″: 9.5J×21 ET37 with 275/40 R21 at the front and 10.5J×21 ET43 with 315/35 R21 at the rear. The xDrive40i, xDrive30d and xDrive50e start on square 18″ (8.5J×18 ET44, 255/55 R18) or 20″ (9J×20 ET35, 275/45 R20) sets; 22″ with 275/35 R22 and 315/30 R22 is the largest factory option.
Will wheels from the pre-facelift X5 G05 fit the X5 LCI?
Yes. The hub, bolt pattern, centre bore, bolts and offset range did not change in 2023, so G05 wheels from 2018–2023 and X6 G06 wheels fit the LCI directly. Only the brake package needs a check, which we do for every set.
Can the facelifted X5 run 23″ or 24″ wheels?
Yes. With 22″ already offered by BMW, 23″ and 24″ are a step up with lower-profile tyres. We match the rolling diameter of the factory set, keep the stagger on M60i cars and draw the wheel for the weight of the xDrive50e plug-in hybrid, the heaviest X5.
Do the wheels suit the RNG body kit for the X5?
Yes. The wheels and the X5 body kit come from the same studio, so the spoke design and finish are matched to the kit parts, and we choose offsets that sit right with the kit fitted.
How long does a set for the X5 LCI take, and what does it cost?
Production takes 10–20 days after you approve the design and the fitment sheet, then we ship to your country. Sets start from $4,940 for four wheels; the price depends on diameter, construction and finish.
Forged wheels for BMW X5 LCI: sizes, weight, price
Forged wheels for BMW X5 LCI are forged in-house by RNG Design from aviation-grade aluminium for the BMW X5 LCI, 2024–present, in sizes 21″, 22″, 23″, 24″. Weight per wheel: 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg. Every set uses the car's original bolt pattern and offset, and comes in 18 finishes, from brushed and matte to gloss, bronze, gunmetal and crystal tones. Price from $4,940 per set of four (USD, delivery not included); single wheels can be ordered. A set is made in 10–20 days; RNG Design ships worldwide and partner dealers handle fitting. The wheels match the body kit for BMW X5 G05 LCI (2024+ facelift).
| Specification | Value |
|---|---|
| Wheels | Forged wheels for BMW X5 LCI |
| Fits | BMW X5 LCI, 2024–present |
| Sizes | 21″, 22″, 23″, 24″ |
| Weight per wheel | 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg |
| Material | forged aviation-grade aluminium, made in-house |
| Finishes | 18: brushed, matte, gloss, bronze, gunmetal, crystal and gold tones |
| Price | from $4,940 per set of four (USD, delivery not included) |
| Lead time | 10–20 days per set |
| Fitment | original bolt pattern and offset, no spacers |
Forged wheels for BMW X5 LCI
Discover the perfect fusion of luxury and capability with Renegade Design’s custom forged wheels for the BMW X5 LCI. These wheels are not mere additions; they are a pivotal enhancement, elevating the X5 LCI’s status as a leader in premium SUV performance and design. Innovative Forging for Superior Dynamics Employing advanced forging techniques, Renegade Design crafts wheels that are significantly stronger and lighter than traditional alloys. This is essential for the BMW X5 LCI, an SUV celebrated for its versatility, comfort, and driving dynamics. The lighter wheels enhance handling and responsiveness, key for the X5 LCI’s engaging driving experience, while their increased strength ensures reliability and resilience, matching the vehicle’s all-terrain capability. Lifetime Warranty: Assurance of Premium Quality Our forged wheels come with a lifetime warranty, underscoring our dedication to unparalleled craftsmanship and lasting performance. This warranty, safeguarding against manufacturing defects, provides you with confidence in the long-term quality and durability of our product. Customization: Tailoring to the X5 LCI’s Elegance The BMW X5 LCI is a masterpiece of automotive engineering, and our wheels are designed to complement this. With a wide array of custom designs and colors, you can personalize your wheels to match the X5 LCI’s sophisticated and dynamic styling. Whether aiming for a refined look or a bold visual statement, our options cater to every individual taste, enhancing the distinctive appeal of your BMW. Elevating the BMW X5 LCI Experience Known for its luxurious interior and powerful performance, the X5 LCI deserves wheels that amplify these traits. Our forged wheels improve the vehicle’s handling and stability, adding a visually captivating dimension to its appearance. The design of our wheels is meticulously crafted to align with the X5 LCI’s powerful lines, reinforcing its commanding presence and sporty elegance. Global Shipping: Bringing Excellence to Your Doorstep Recognizing the global admiration for the BMW X5 LCI, Renegade Design offers worldwide shipping. Our efficient and secure shipping ensures that your custom wheels are delivered safely and promptly, ready to redefine your X5 LCI’s performance and style, no matter your location. The Intersection of Art and Performance Each wheel from Renegade Design is a product of our passion for artistry and performance innovation. Utilizing the finest materials and the latest wheel technology, we ensure that each wheel not only fits the BMW X5 LCI perfectly but also enhances its overall character. Our wheels are a perfect blend of design and functionality, crafted to heighten the driving experience of this luxurious SUV. Renegade Design’s custom forged wheels for the BMW X5 LCI offer the ultimate enhancement in sophistication, performance, and personal style. These wheels are essential for X5 LCI owners who value the perfect blend of luxury, versatility, and distinctive elegance. Order now and transform your BMW X5 LCI into an even more impressive and capable vehicle.
