Forged Wheels for BMW X5 G05
- 21–24″Monoblock and multi-piece
- Fitted to the X5Hubs, brakes and arches
- 10–20 daysProduction time
- 21 designsShown on the X5 below
- Worldwide shippingDelivery to your country
Real cars, real wheels

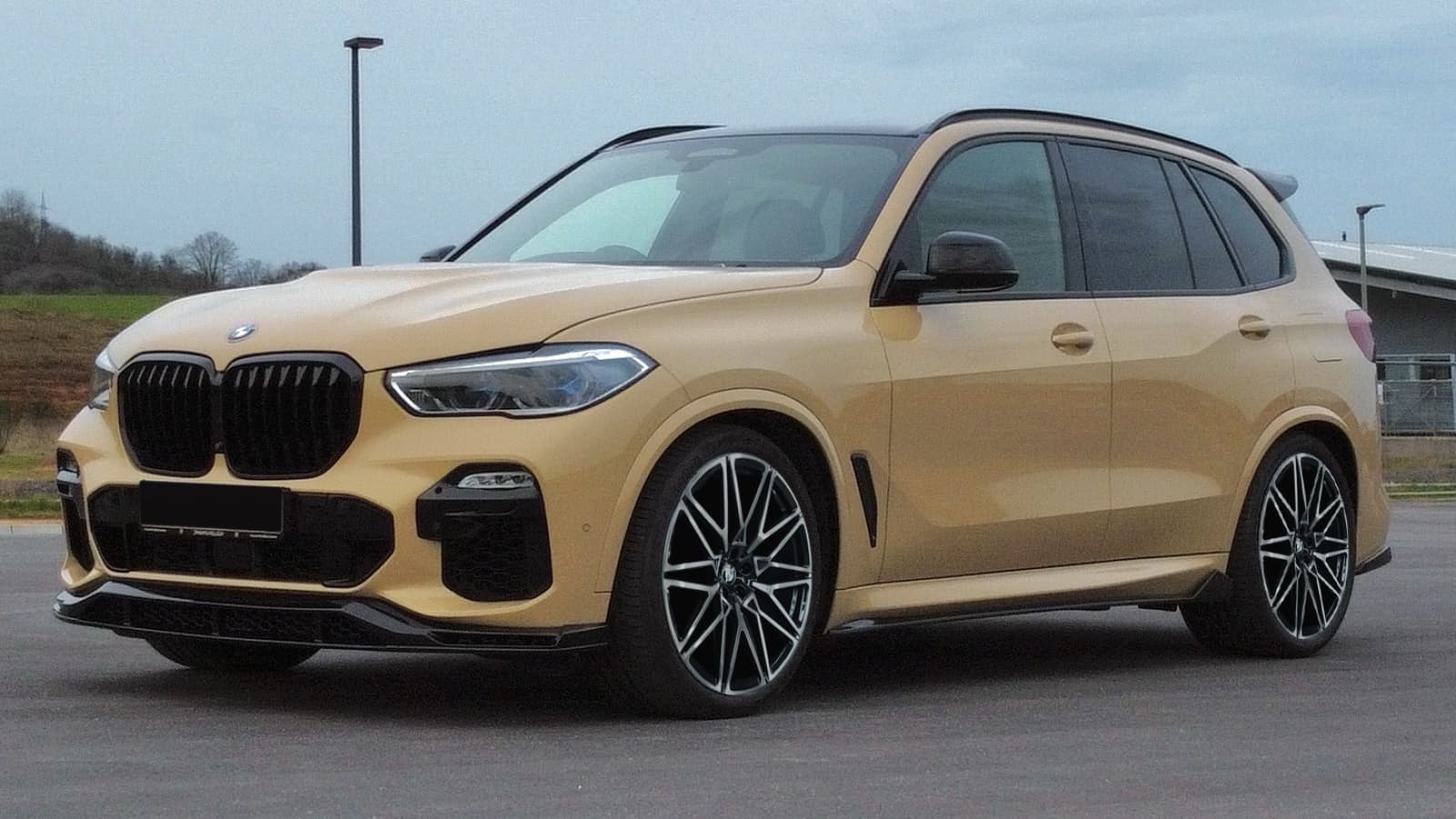

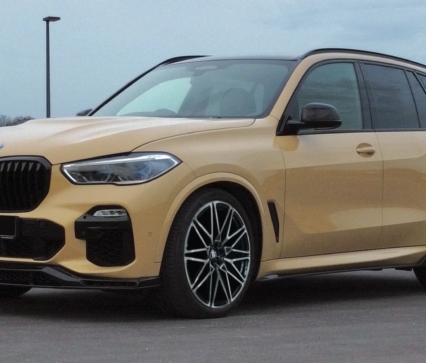

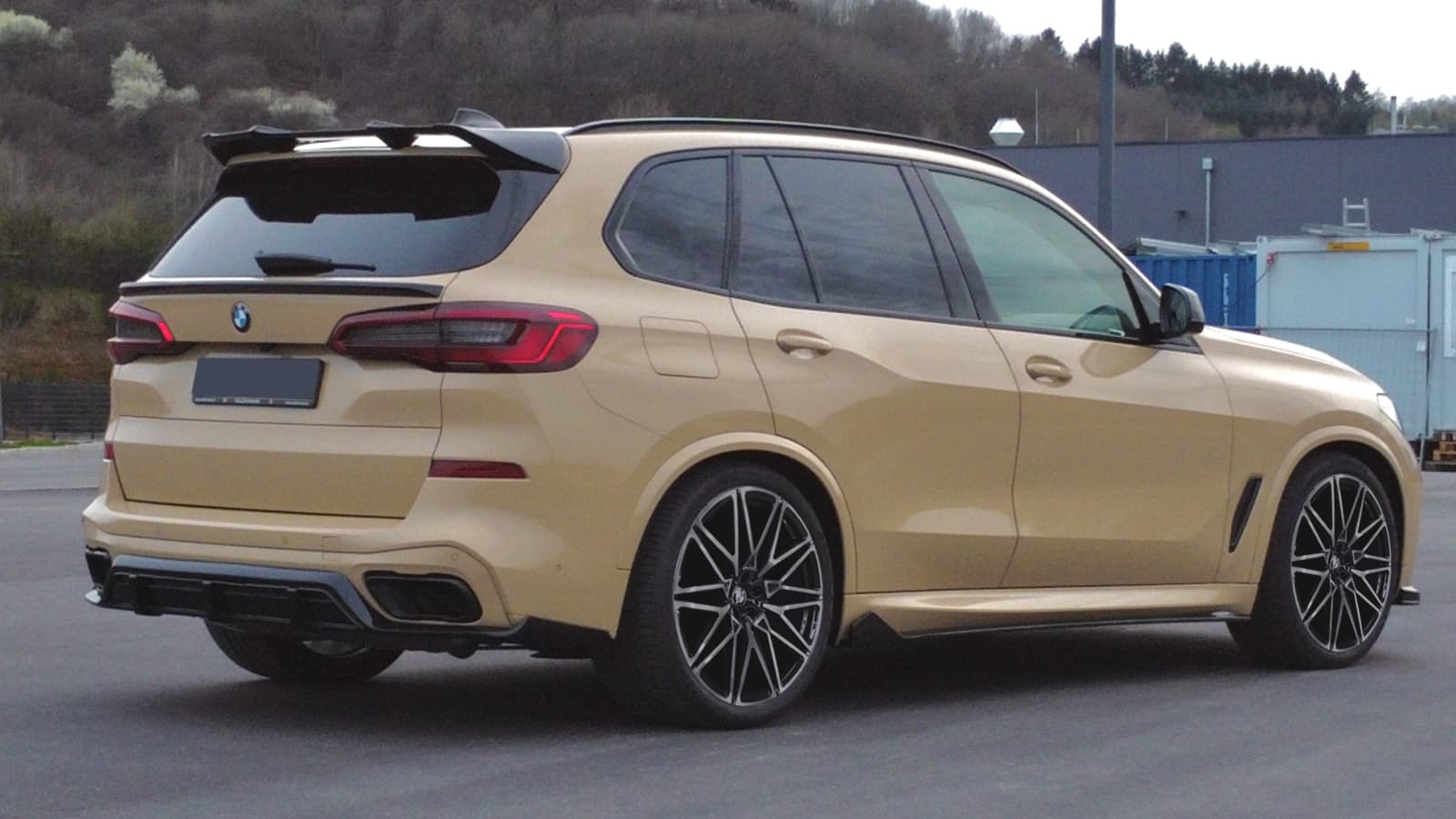

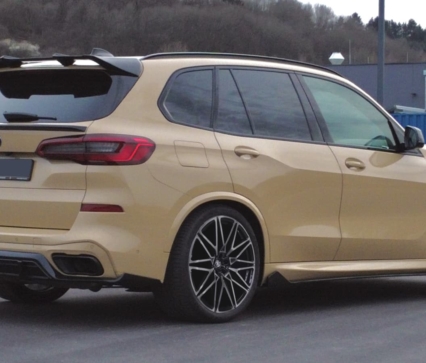

BMW X5 G05 by Renegade Design
X5 G05 builds from our studio and client cars on RNG forged wheels, several of them with the RNG body kit fitted.
Fitment
Wheel fitment for the BMW X5 G05
The X5 G05 is one of the few SUVs that BMW sells on both square and staggered wheels: 18″ to 20″ sets are the same size on all four corners, while the 21″ and 22″ options put 315 tyres at the rear. RNG sets are machined to the 66.6 mm hub, so they go on with the factory bolts and no rings.
The X5 after the 2023 update and the X6 G06 use the same hub, bolts and offset range, so the same fitment sheet works for both bodies.
| Bolt pattern | 5×112 |
|---|---|
| Centre bore | 66.6 mm, hub-centric |
| Wheel bolts | M14×1.25, 140 Nm |
| Factory front | 8.5J×18 ET44, 255/55 R18 · 9J×19 ET38, 265/50 R19 · M50i/M50d: 9.5J×21 ET37, 275/40 R21 |
| Factory rear | 18″ and 19″ as front (square) · M50i/M50d: 10.5J×21 ET43, 315/35 R21 |
| Factory options | 20″: 9J×20 ET35, 275/45 R20, square or with 10.5J×20 ET40, 305/40 R20 · 22″: 9.5J×22 ET37, 275/35 R22 + 10.5J×22 ET43, 315/30 R22 |
| Same fitment | X5 G05 LCI, X6 G06 and G06 LCI, X5 xDrive45e |
| RNG sets for the X5 | 21–24″, square or staggered, monoblock or multi-piece |
Factory data for the X5 G05, 2018–2023, from xDrive25d to M50i. Widths, offsets and tyres for your car come in the fitment sheet with the quote.
21 designs · 5 collections
See every design on the BMW X5 G05
Twenty-one forged designs rendered on the X5 G05, from 21″ daily sets to 24″ show builds. Tap a design to see it front and rear.
Visualisations of the 9X collection on the BMW X5 G05. The final profile, concavity and finish are agreed for your set before production. Any of the 26 RNG catalogue designs can also be made for the X5.
Wheels for your BMW X5 G05
Get the designs, sizes and price for your car
Choose a design and leave a contact. We reply with design options, the fitment sheet and a price for your BMW X5 G05.
- Any diameter21–24″, monoblock or multi-piece
- Any designOne of the 21, any RNG design or your own
- Any colourSilver, black, bronze, two-tone or your own
- 10–20 daysProduction, then shipping to your country
Complete the look
Wheels and body kit for the BMW X5 G05
The wheels and the X5 body kit come from the same studio, so the width and offset suit the wide body as well as the stock arches. Any part of the kit is also sold separately, from dealer stock or made to order in 5–15 working days.
BMW X5 G05 wheels
Questions about wheels for the X5
What is the bolt pattern of the BMW X5 G05?
The X5 G05 uses 5×112 with a 66.6 mm centre bore and M14×1.25 wheel bolts tightened to 140 Nm. That is the same hub as the X6 G06, so RNG wheels for the X5 are hub-centric and need no spacers or centring rings.
What size wheels did the X5 G05 come with?
Six- and four-cylinder cars left the factory on square sets: 8.5J×18 ET44 with 255/55 R18 or 9J×19 ET38 with 265/50 R19. The M50i and M50d came on staggered 21″: 9.5J×21 ET37 with 275/40 R21 at the front and 10.5J×21 ET43 with 315/35 R21 at the rear. The largest factory option is 22″ with 275/35 R22 and 315/30 R22.
Do wheels for the X5 G05 fit the X6 and the facelifted X5?
Yes. The X5 G05, the X5 after the 2023 update and the X6 G06 share the 5×112 hub, the 66.6 mm bore, the bolts and the factory offsets (ET35–ET44 front, ET40–ET43 rear). The X5 M F95 is different: its wider front wheels and larger brakes need their own fitment.
Can the X5 G05 run 23″ or 24″ wheels?
Yes. 22″ is already a factory size, so 23″ and 24″ only need lower-profile tyres. We keep the overall diameter close to the factory 755 mm so the speedometer and xDrive stay correct, and size the set for the lowest setting of the air suspension if your car has it.
Do RNG wheels clear the M Sport brakes on the X5?
Yes. The M Sport brakes with blue or red calipers are larger than the base brakes, and we draw the spoke profile with clearance to them. The brake package of your car goes into the fitment sheet before production.
How long does a set for the X5 G05 take, and what does it cost?
Production takes 10–20 days after you approve the design and the fitment sheet, then we ship to your country. Sets start from $4,940 for four wheels; 23″, 24″ and multi-piece sets cost more.
Forged wheels for BMW X5 G05: sizes, weight, price
Forged wheels for BMW X5 G05 are forged in-house by RNG Design from aviation-grade aluminium for the BMW X5 G05, 2018–2023, in sizes 21″, 22″, 23″, 24″. Weight per wheel: 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg. Every set uses the car's original bolt pattern and offset, and comes in 18 finishes, from brushed and matte to gloss, bronze, gunmetal and crystal tones. Price from $4,940 per set of four (USD, delivery not included); single wheels can be ordered. A set is made in 10–20 days; RNG Design ships worldwide and partner dealers handle fitting. The wheels match the body kit for BMW X5 G05 (standard or wide body).
| Specification | Value |
|---|---|
| Wheels | Forged wheels for BMW X5 G05 |
| Fits | BMW X5 G05, 2018–2023 |
| Sizes | 21″, 22″, 23″, 24″ |
| Weight per wheel | 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg |
| Material | forged aviation-grade aluminium, made in-house |
| Finishes | 18: brushed, matte, gloss, bronze, gunmetal, crystal and gold tones |
| Price | from $4,940 per set of four (USD, delivery not included) |
| Lead time | 10–20 days per set |
| Fitment | original bolt pattern and offset, no spacers |
Forged wheels for BMW X5 G05
Elevate your driving experience with Renegade Design’s custom forged wheels for the BMW X5 G05. Designed for the discerning driver, our wheels represent the apex of automotive luxury and performance. Superiority of Forged Wheels Our forged wheels stand in stark contrast to conventional alloy wheels. The forging process involves high-pressure molding, resulting in a wheel that is both denser and more robust. This equates to lighter, yet stronger wheels, enhancing your BMW X5 G05’s performance, handling, and fuel economy. Lifetime Warranty: A Mark of Trust Renegade Design’s forged wheels come with a lifetime warranty, showcasing our confidence in their quality and your satisfaction. This warranty covers manufacturing defects, offering you peace of mind with your purchase. Customization to Your Liking The BMW X5 G05 is a vehicle of distinction, and it deserves wheels that are just as unique. We offer a wide selection of customizable designs and colors, enabling you to personalize your wheels to your taste and your vehicle’s style. Global Availability: Worldwide Shipping Acknowledging the BMW X5 G05’s worldwide appeal, Renegade Design provides global shipping. Our efficient and secure shipping ensures that your custom wheels are delivered safely and promptly, regardless of your location. The BMW X5 G05 is not just a vehicle; it’s a statement of elegance and power. With Renegade Design’s forged wheels, this statement is amplified, offering an unmatched combination of style, durability, and performance. Order now and start transforming your BMW X5 G05 into an exemplar of automotive excellence.
