Forged Wheels for Audi Q5
- 21–24″Monoblock and multi-piece
- Fitted to the Q5Hubs, brakes and arches
- 10–20 daysProduction time
- 21 designsShown on the Q5 below
- Worldwide shippingDelivery to your country
Real cars, real wheels

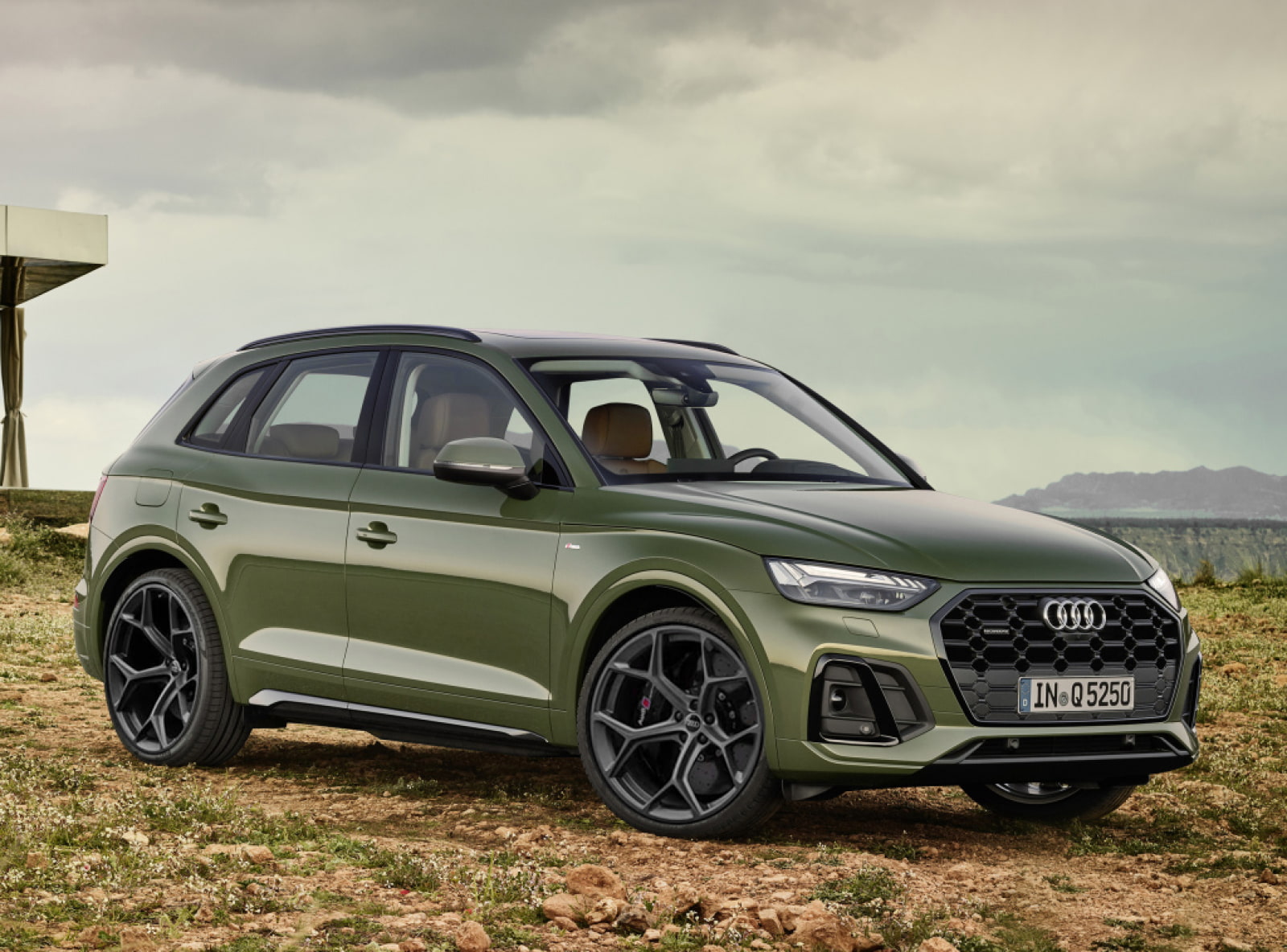

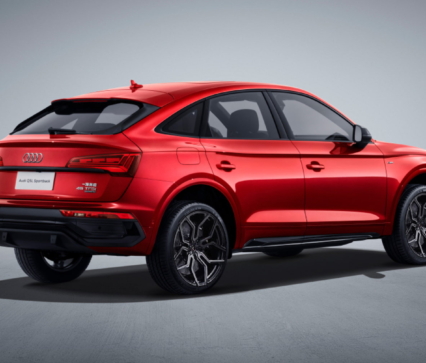

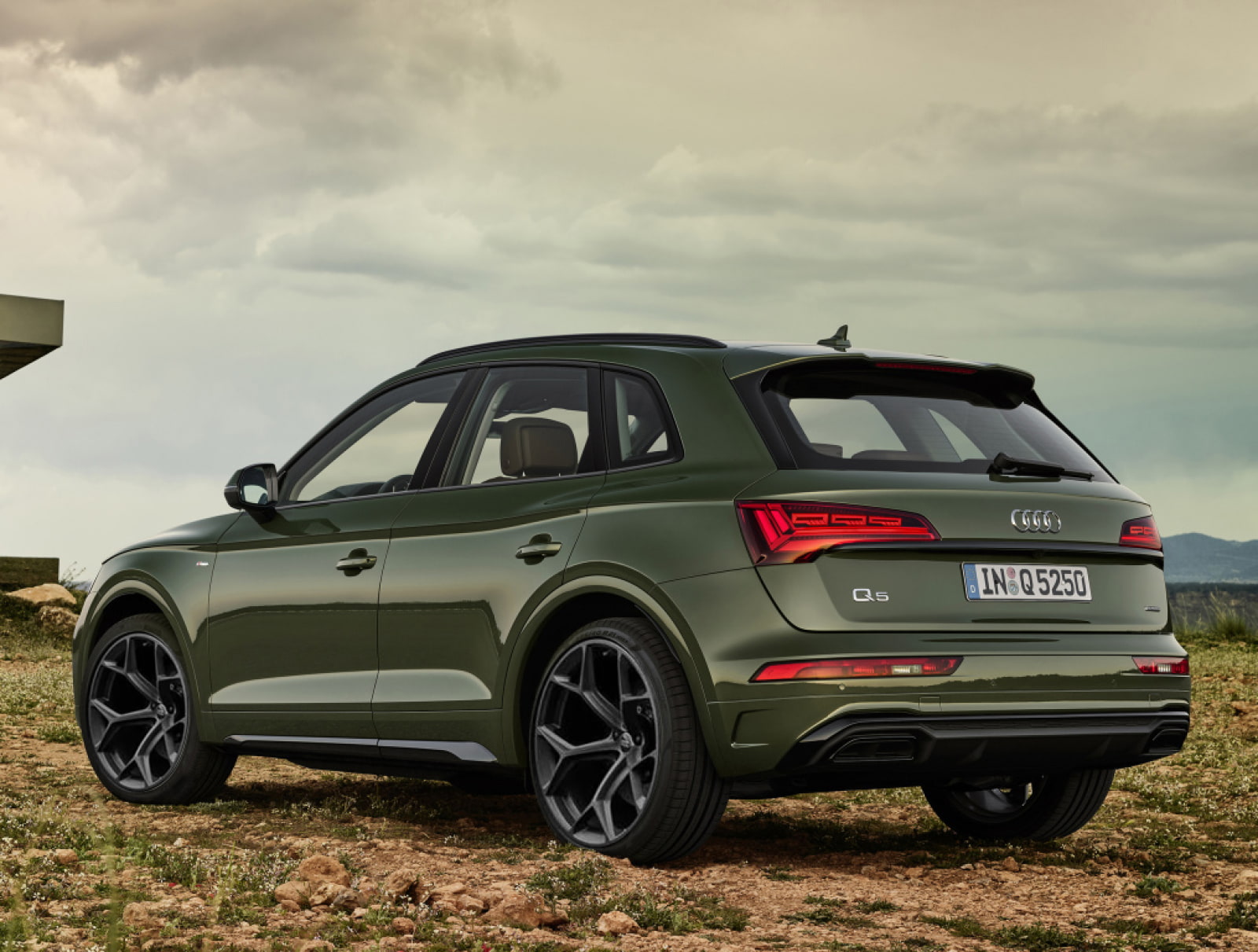

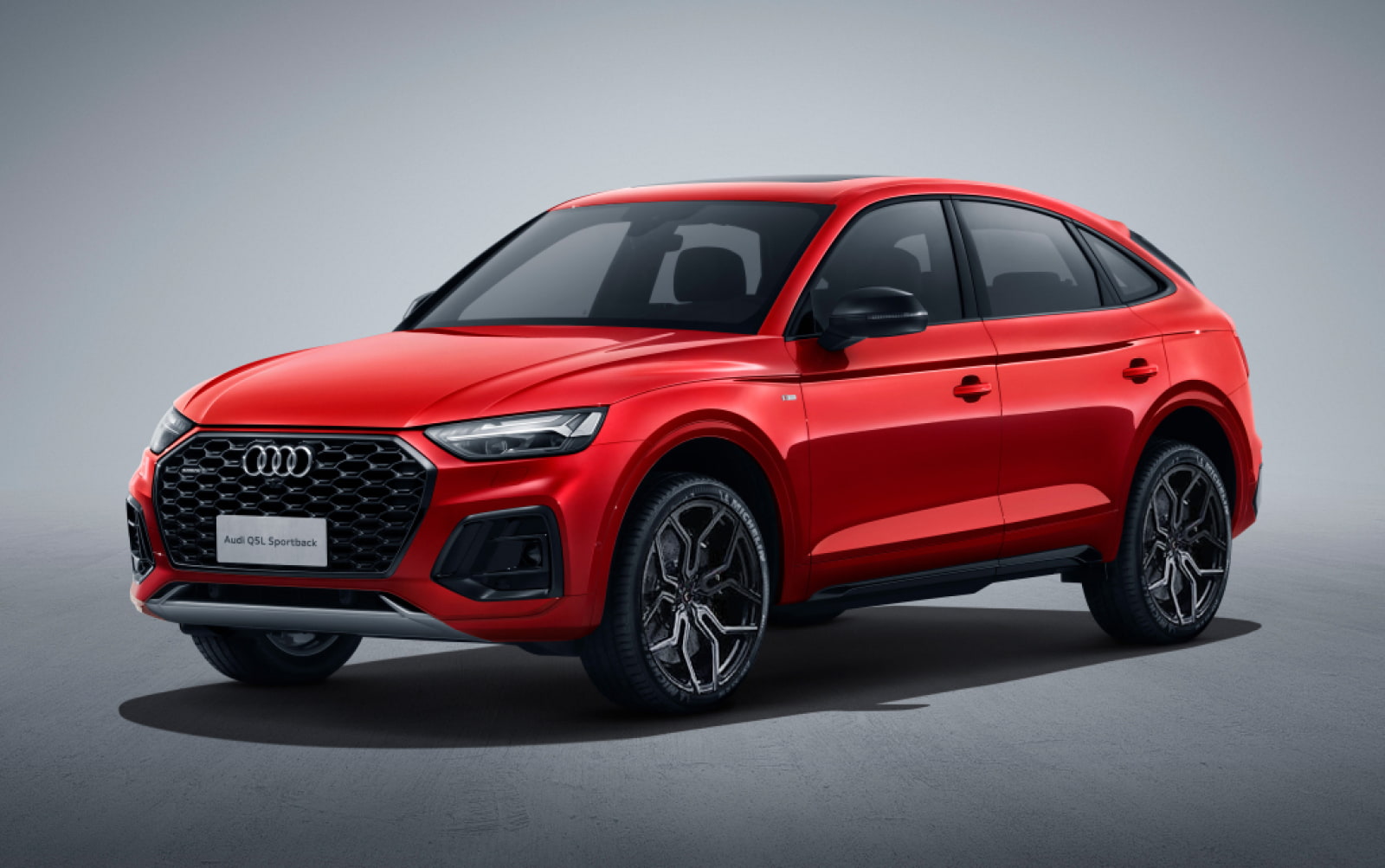

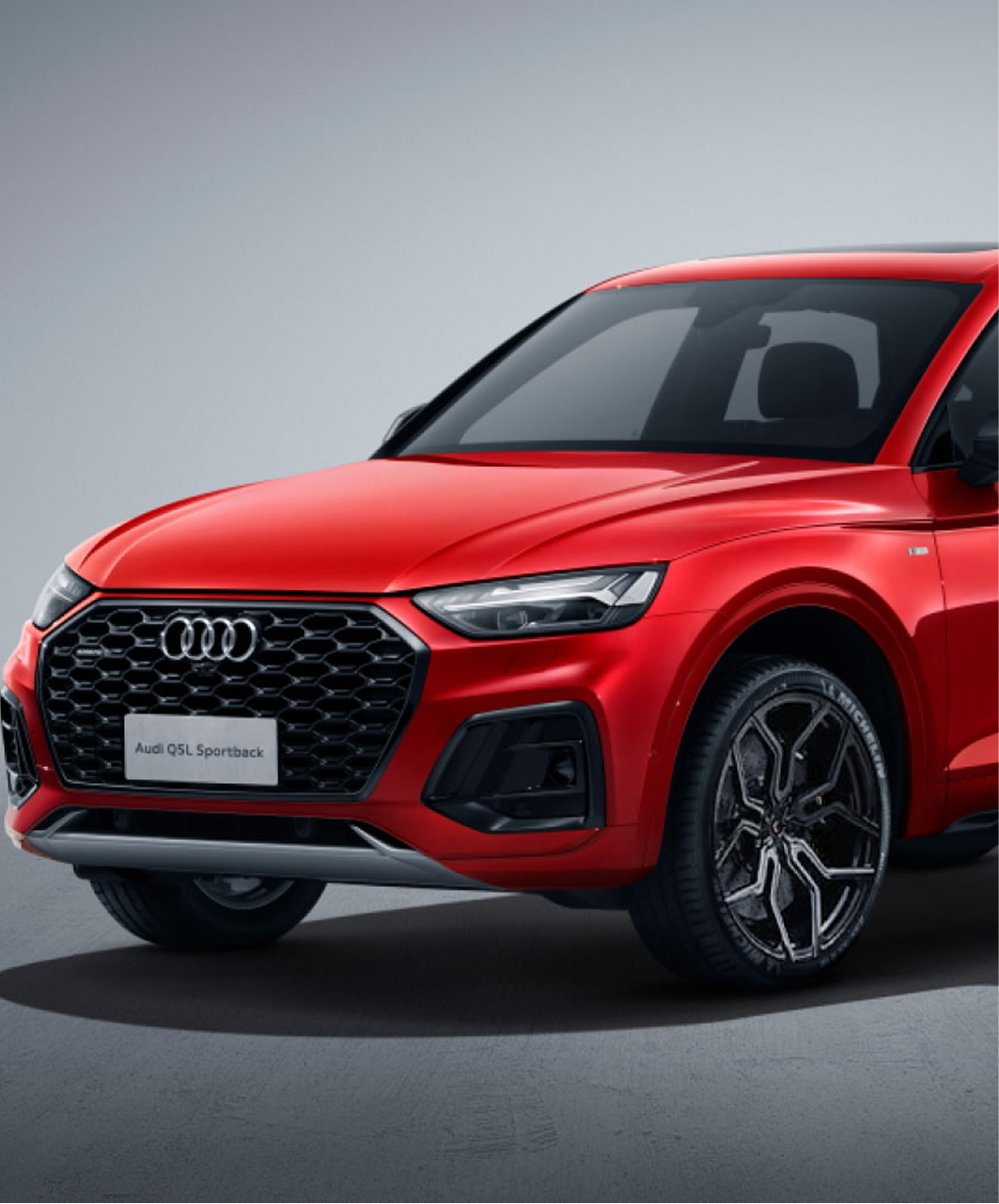

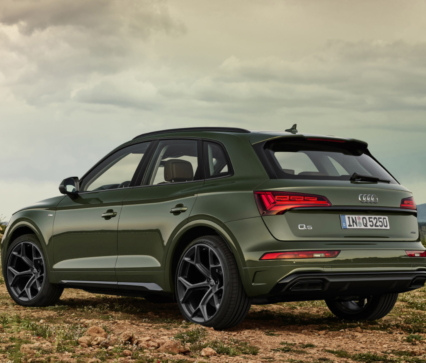

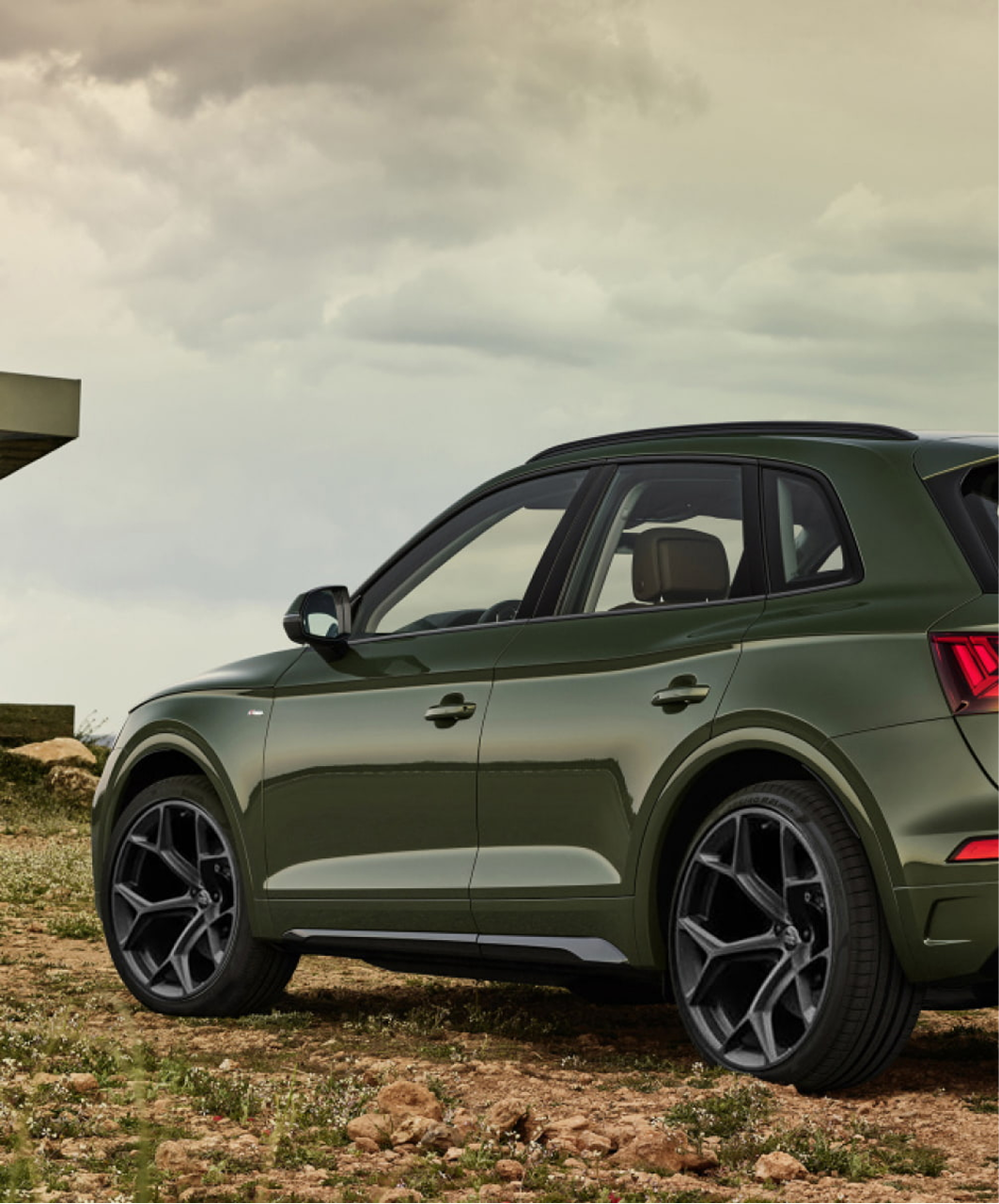

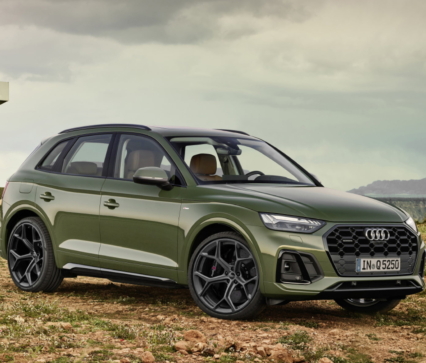

Audi Q5 by Renegade Design

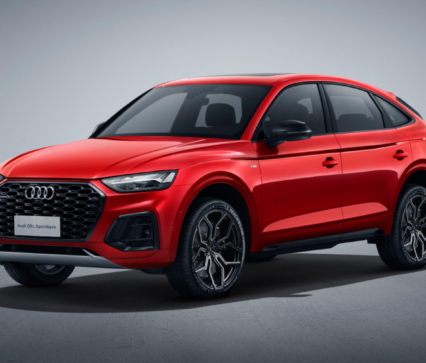

Q5 SUVs from our clients and studio on RNG forged wheels. The same sets fit the Q5 Sportback and the SQ5.
Fitment
Wheel fitment for the Audi Q5
The third-generation Q5 is offered on 17″ to 21″ wheels, all as square sets; base cars use 8J×18 at ET39, and the 20″ option carries 255/45 R20. RNG sets keep the 5×112 bolt pattern and the factory offset band, so the tyre sits where Audi placed it.
The Q5 Sportback, the SQ5 and the SQ5 Sportback of the same generation use the same bolt pattern; for the SQ5 we also check the larger brakes. The previous Q5 FY also uses 5×112, and we confirm the offset for your generation.
| Bolt pattern | 5×112 |
|---|---|
| Wheel bolts | M14×1.5 |
| Factory front | 8J×18 ET39 on base trims |
| Factory rear | Same as front, square set |
| Factory options | 17–21″ · 19″ standard with S line and SQ5 · 8J×20, 255/45 R20 |
| Same fitment | Q5 Sportback, SQ5 and SQ5 Sportback of the same generation |
| RNG sets for the Q5 | 21–24″, monoblock or multi-piece |
Factory data for the Q5 GU, 2024 onwards. Width, offset and tyres for your car come in the fitment sheet with the quote.
21 designs · 5 collections
See every design on the Audi Q5
Forged designs rendered on the Q5, sized for a mid-size SUV that carries 21″ wheels from the factory. Tap a design to see it front and rear.
Visualisations of the 9X collection on the Audi Q5. The final profile, concavity and finish are agreed for your set before production. Any of the 26 RNG catalogue designs can also be made for the Q5.
Wheels for your Audi Q5
Get the designs, sizes and price for your car
Choose a design and leave a contact. We reply with design options, the fitment sheet and a price for your Audi Q5.
- Any diameter21–24″, monoblock or multi-piece
- Any designOne of the 21, any RNG design or your own
- Any colourSilver, black, bronze, two-tone or your own
- 10–20 daysProduction, then shipping to your country
Audi Q5 wheels
Questions about wheels for the Q5
What is the bolt pattern of the Audi Q5?
The Q5 uses a 5×112 bolt pattern with M14×1.5 wheel bolts, both in the current generation and in the previous FY. RNG wheels are machined for the Audi hub of your car, so the set is hub-centric and runs without spacers.
What wheel size does the new Audi Q5 have from the factory?
Audi offers the third-generation Q5 on 17″ to 21″ wheels. Base trims run 8J×18 at ET39, S line cars and the SQ5 start at 19″, and the 20″ option is 8J×20 with 255/45 R20.
Will Q5 wheels fit the Q5 Sportback and the SQ5?
Yes for the Q5 Sportback of the same generation: the body differs only behind the rear doors. The SQ5 and SQ5 Sportback share the bolt pattern; because of the larger SQ5 brakes we check caliper clearance before production.
Can the Q5 run 22″ wheels?
Yes. 21″ is the factory maximum, 22″ works with lower-profile tyres in the factory width while the rolling diameter stays close to stock. 23″ and 24″ are possible for a show stance, with a firmer ride; we discuss the tyre choice before production.
Are the wheels rated for towing with the Q5?
Yes. The Q5 is often used with a trailer, so we rate the set for the car's gross weight plus the trailer nose load and state the load rating in the fitment sheet. Forged wheels keep that rating at a lower weight than cast wheels of the same size.
How long does a set for the Q5 take, and what does it cost?
Production takes 10–20 days after you approve the design and the fitment sheet, then we ship to your country. Sets start from $4,940 for four wheels; 23″ and 24″ sets and multi-piece construction cost more.
Forged wheels for Audi Q5: sizes, weight, price
Forged wheels for Audi Q5 are forged in-house by RNG Design from aviation-grade aluminium for the Audi Q5, in sizes 21″, 22″, 23″, 24″. Weight per wheel: 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg. Every set uses the car's original bolt pattern and offset, and comes in 18 finishes, from brushed and matte to gloss, bronze, gunmetal and crystal tones. Price from $4,940 per set of four (USD, delivery not included); single wheels can be ordered. A set is made in 10–20 days; RNG Design ships worldwide and partner dealers handle fitting.
| Specification | Value |
|---|---|
| Wheels | Forged wheels for Audi Q5 |
| Fits | Audi Q5 |
| Sizes | 21″, 22″, 23″, 24″ |
| Weight per wheel | 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg |
| Material | forged aviation-grade aluminium, made in-house |
| Finishes | 18: brushed, matte, gloss, bronze, gunmetal, crystal and gold tones |
| Price | from $4,940 per set of four (USD, delivery not included) |
| Lead time | 10–20 days per set |
| Fitment | original bolt pattern and offset, no spacers |
Step into a world of enhanced elegance and performance with Renegade Design’s custom forged wheels for the Audi Q5. These wheels are not merely upgrades; they are integral enhancements that augment the Q5’s blend of style, comfort, and agility. Advanced Forging for Optimal Dynamics Utilizing cutting-edge forging technology, Renegade Design creates wheels that are significantly lighter and stronger than conventional alloy wheels. This advantage is crucial for the Audi Q5, an SUV celebrated for its balance of everyday usability and dynamic performance. The lighter weight enhances handling and responsiveness, essential for the Q5’s driving experience, while the increased strength ensures durability, complementing the vehicle’s versatility. Lifetime Warranty: Assurance of Superior Quality Our forged wheels come with a lifetime warranty, a testament to our dedication to outstanding craftsmanship and enduring performance. This warranty, covering manufacturing defects, provides you with confidence in the long-term reliability and quality of our product. Customization: Matching the Q5’s Refined Style The Audi Q5 is a paragon of SUV design, and our wheels are crafted to complement this level of sophistication. With a broad selection of custom designs and colors, you can personalize your wheels to match the Q5’s sleek and modern aesthetic. Whether you opt for a look of subtle elegance or a more pronounced visual statement, our customization options cater to every preference, enhancing the distinctive character of your Audi. Elevating the Audi Q5 Experience Known for its premium interior and versatile performance, the Q5 deserves wheels that reflect its high standards. Our forged wheels not only improve the vehicle’s handling and stability but also add a visually arresting dimension to its appearance. The design of our wheels is intricately crafted to align with the Q5’s aerodynamic profile, reinforcing its presence as a luxury compact SUV. Global Shipping: Delivering Elegance Worldwide Recognizing the worldwide popularity of the Audi Q5, Renegade Design offers international shipping. Our secure and efficient shipping ensures that your custom wheels are delivered safely and promptly, ready to transform your Q5’s performance and style, no matter where you are. The Fusion of Art and Engineering Each wheel from Renegade Design is a result of our passion for precision and luxury. By employing the finest materials and the latest wheel technology, we ensure that each wheel not only fits the Audi Q5 perfectly but also enhances its overall persona. Our wheels are a perfect amalgamation of design and functionality, crafted to enhance the driving experience of this refined SUV. Renegade Design’s custom forged wheels for the Audi Q5 offer the ultimate upgrade in style, performance, and personal expression. These wheels are essential for Q5 owners who value a perfect blend of sophistication, agility, and distinctive elegance. Order now and transform your Audi Q5 into an even more impressive and dynamic vehicle.
