Forged Wheels for Audi A5
- 21–24″Monoblock and multi-piece
- Fitted to the A5Hubs, brakes and arches
- 10–20 daysProduction time
- 21 designsShown on the A5 below
- Worldwide shippingDelivery to your country
Real cars, real wheels

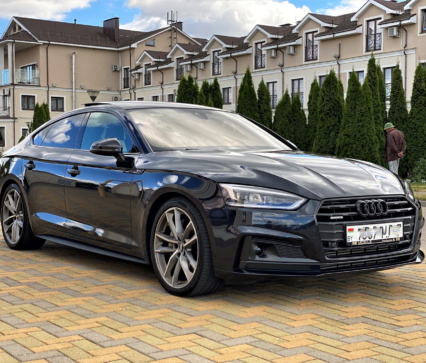

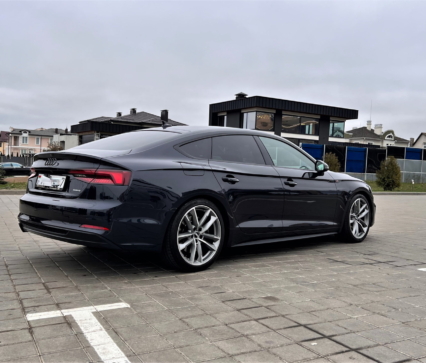

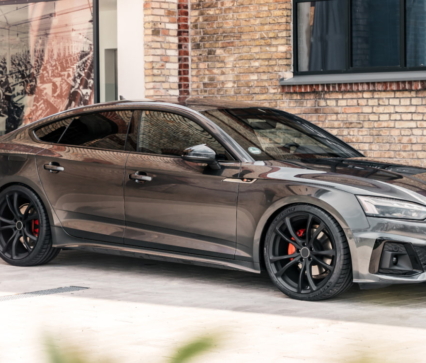

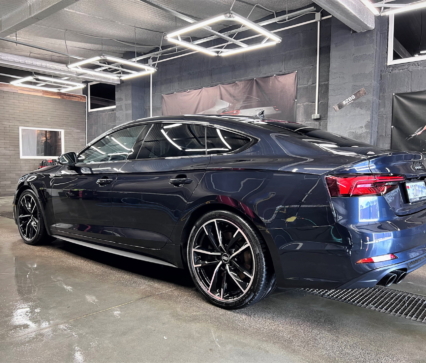

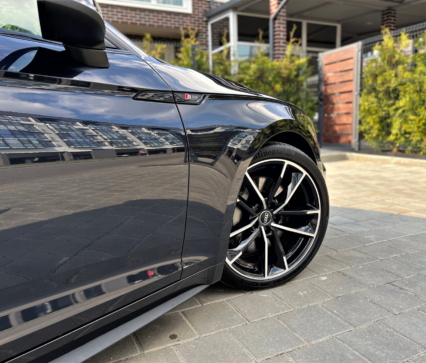

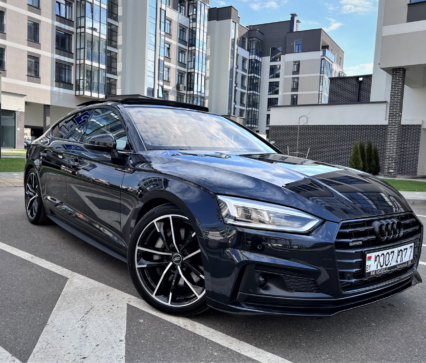

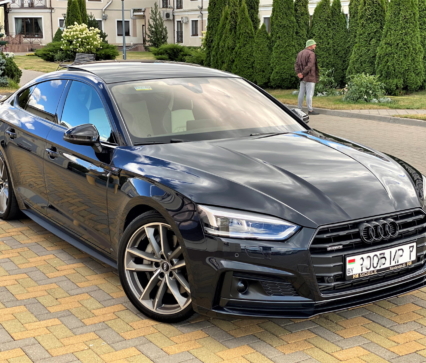

Audi A5 by Renegade Design

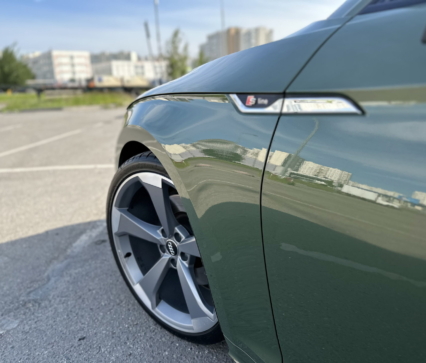

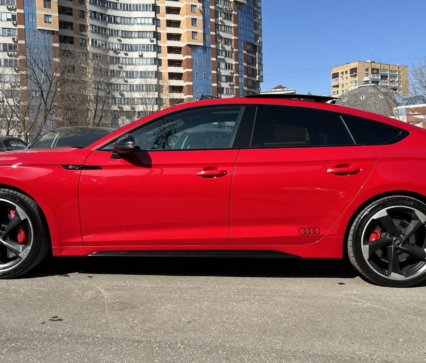

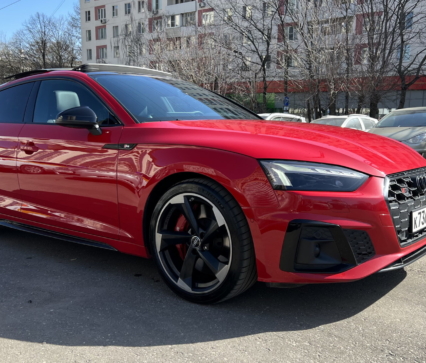

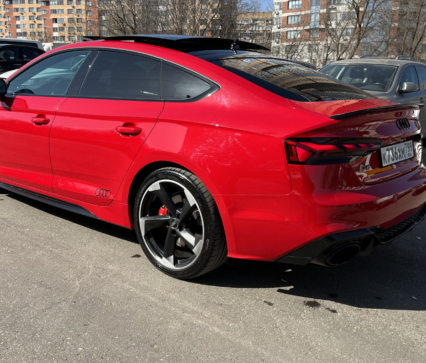

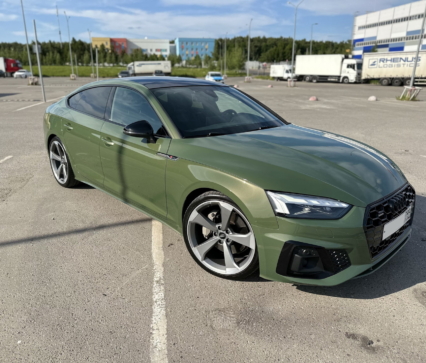

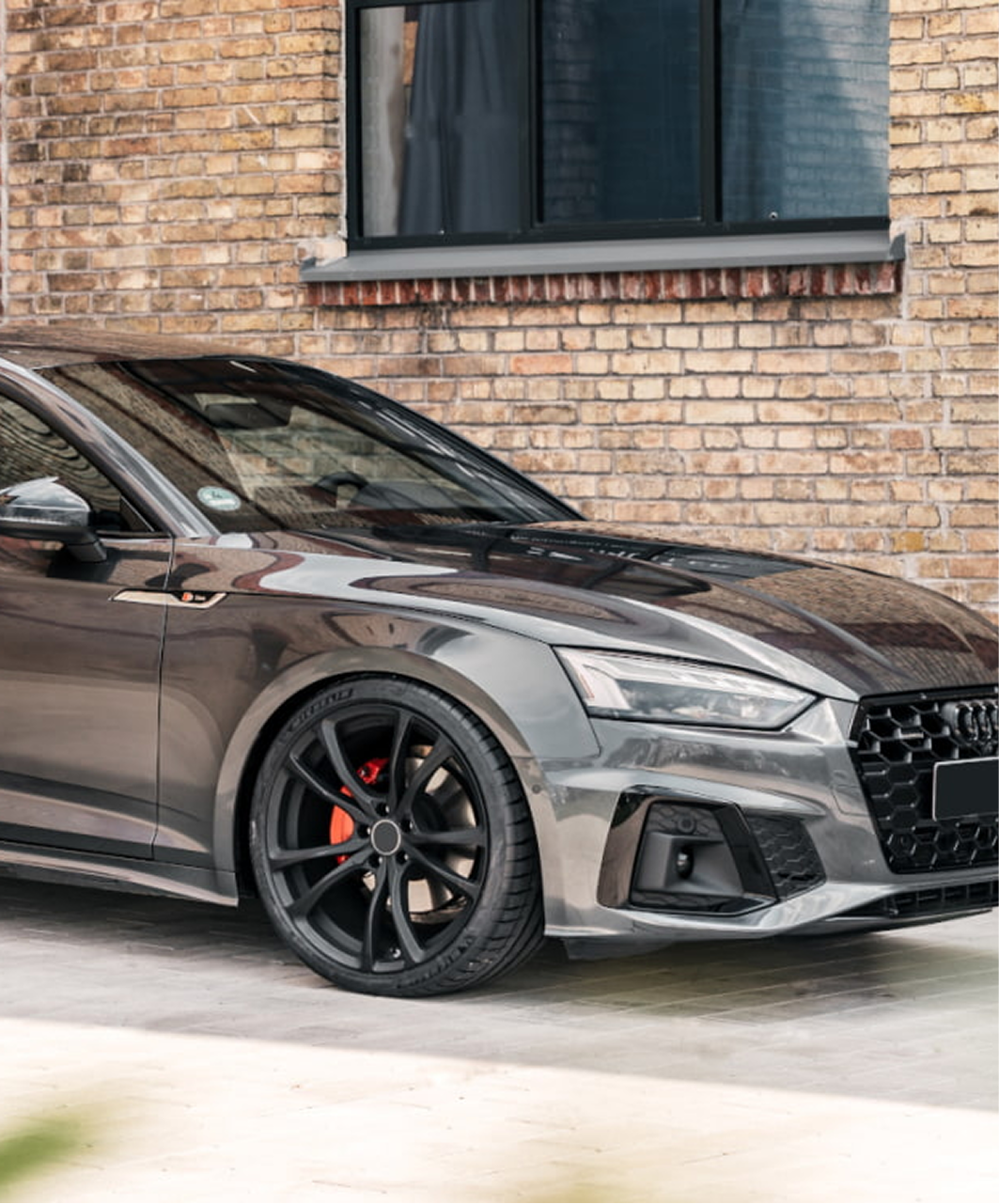

A5 coupés from our clients and studio on RNG forged wheels. The same sets fit the A5 Sportback, the A5 Cabriolet and the S5.
Fitment
Wheel fitment for the Audi A5
The A5 F5 runs a square set: the same wheel on all four corners, from 7.5J×17 on base cars up to 9J×20 with 265/30 R20 as the largest factory option. RNG sets are machined for the 66.5 mm Audi hub, so they centre on the hub without rings.
The Sportback, the Cabriolet and the S5 of the same generation use identical widths and offsets, so one fitment sheet covers all three bodies and the S5.
| Bolt pattern | 5×112 |
|---|---|
| Centre bore | 66.5 mm, hub-centric |
| Wheel bolts | M14×1.5 |
| Factory front | 7.5J×17 ET29, 225/50 R17 · 8.5J×18 ET29, 245/40 R18 |
| Factory rear | Same as front, square set |
| Factory options | 8.5J×19 ET32, 255/35 R19 · 9J×20 ET34, 265/30 R20 |
| Same fitment | A5 Sportback F5, A5 Cabriolet F5, S5 Coupé, S5 Sportback, S5 Cabriolet F5 |
| RNG sets for the A5 | 20–21″, monoblock or multi-piece |
Factory data for the A5 F5, 2019–2024 facelift. The exact width, offset and tyre for your car come in the fitment sheet with the quote.
21 designs · 5 collections
See every design on the Audi A5

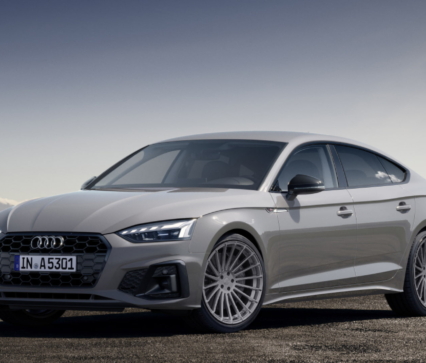

Forged designs rendered on the A5 coupé, drawn for its low roofline and short overhangs. Tap a design to see it front and rear.

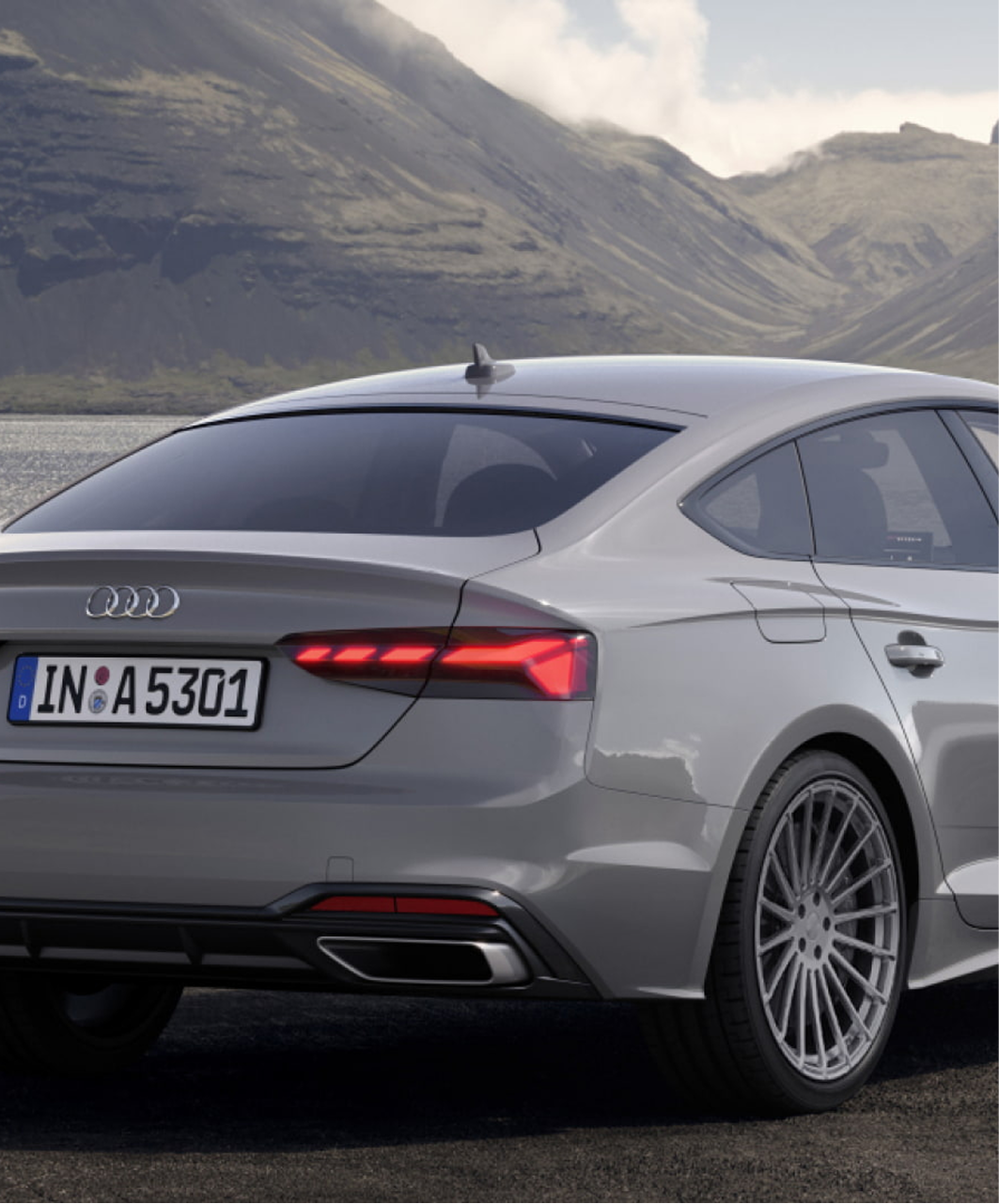

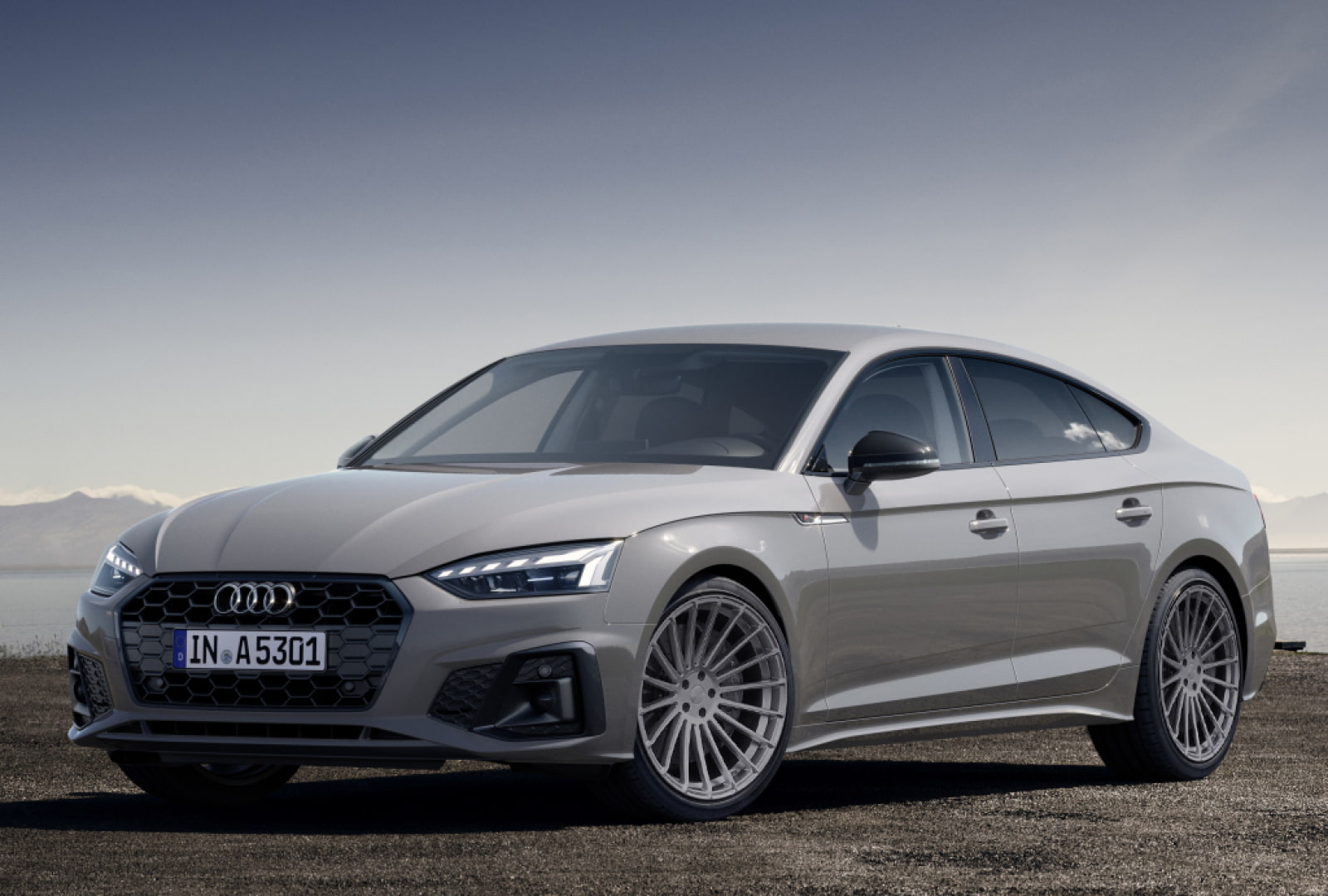

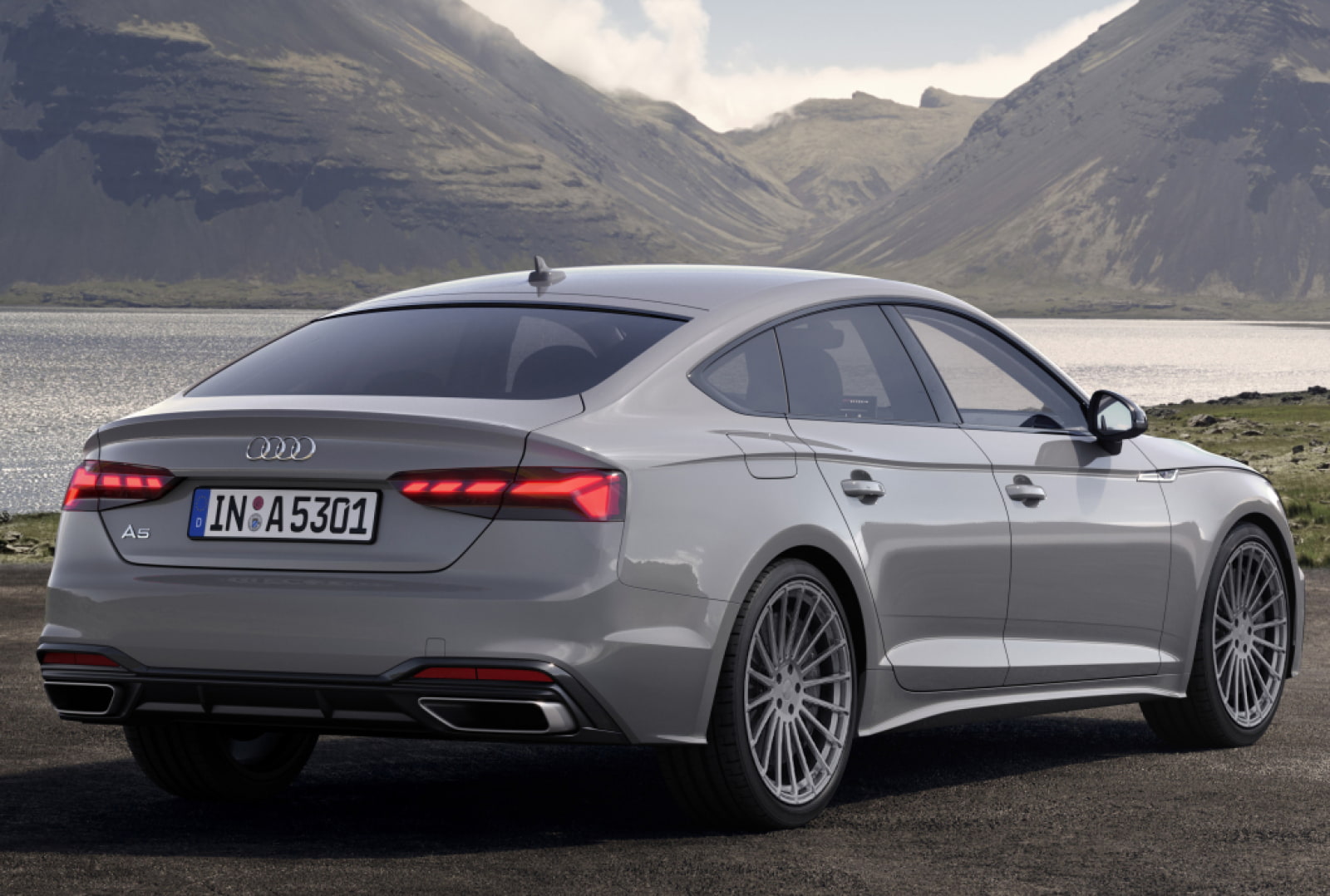

Visualisations of the 9X collection on the Audi A5. The final profile, concavity and finish are agreed for your set before production. Any of the 26 RNG catalogue designs can also be made for the A5.
Wheels for your Audi A5
Get the designs, sizes and price for your car
Choose a design and leave a contact. We reply with design options, the fitment sheet and a price for your Audi A5.
- Any diameter21–24″, monoblock or multi-piece
- Any designOne of the 21, any RNG design or your own
- Any colourSilver, black, bronze, two-tone or your own
- 10–20 daysProduction, then shipping to your country
Audi A5 wheels
Questions about wheels for the A5
What is the bolt pattern of the Audi A5 F5?
The A5 F5 uses 5×112 with a 66.5 mm centre bore and M14×1.5 wheel bolts. RNG wheels are machined to this bore, so the set sits on the hub without centring rings and uses bolts of the correct seat and length for the new wheel.
What wheel size does the A5 F5 have from the factory?
Base cars run 7.5J×17 ET29 with 225/50 R17, many trims 8.5J×18 ET29 with 245/40 R18. Audi also offers 8.5J×19 ET32 with 255/35 R19 and 9J×20 ET34 with 265/30 R20, all as square sets.
Do wheels for the A5 also fit the S5 and the A5 Sportback?
Yes. The A5 Coupé, Sportback and Cabriolet and the S5 of the F5 generation share the hub, bolt pattern and factory offsets of ET29–34. The RS5 is different: it uses 9J wheels at ET24–26, so we draw a separate sheet for it.
Can the A5 run 21″ wheels?
Yes. 20″ is the largest factory size, and 21″ works with 30-series tyres of the same width. We keep the overall diameter within about one percent of stock, so the speedometer and the quattro system are not affected.
Can the A5 run a staggered set?
The A5 leaves the factory on a square set, but a wider rear wheel is possible if the rolling diameter front and rear stays equal, which quattro needs. A staggered set looks more planted; a square set lets you rotate the tyres. We draw both and you choose.
How long does a set for the A5 take, and what does it cost?
Production takes 10–20 days after you approve the design and the fitment sheet, then we ship to your country. Sets start from $4,940 for four wheels; the price depends on diameter, construction and finish.
Forged wheels for Audi A5: sizes, weight, price
Forged wheels for Audi A5 are forged in-house by RNG Design from aviation-grade aluminium for the Audi A5, in sizes 21″, 22″, 23″, 24″. Weight per wheel: 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg. Every set uses the car's original bolt pattern and offset, and comes in 18 finishes, from brushed and matte to gloss, bronze, gunmetal and crystal tones. Price from $4,940 per set of four (USD, delivery not included); single wheels can be ordered. A set is made in 10–20 days; RNG Design ships worldwide and partner dealers handle fitting.
| Specification | Value |
|---|---|
| Wheels | Forged wheels for Audi A5 |
| Fits | Audi A5 |
| Sizes | 21″, 22″, 23″, 24″ |
| Weight per wheel | 21″ 12 kg, 22″ 13 kg, 23″ 14 kg, 24″ 16 kg |
| Material | forged aviation-grade aluminium, made in-house |
| Finishes | 18: brushed, matte, gloss, bronze, gunmetal, crystal and gold tones |
| Price | from $4,940 per set of four (USD, delivery not included) |
| Lead time | 10–20 days per set |
| Fitment | original bolt pattern and offset, no spacers |
Forged wheels for Audi A5
Immerse yourself in the perfect blend of elegance and performance with Renegade Design’s custom forged wheels for the Audi A5 (2019-2024). These wheels are more than mere enhancements; they are a vital complement to the A5’s blend of sophisticated design and agile performance. Advanced Forging for Enhanced Driving Dynamics Employing advanced forging technology, Renegade Design creates wheels that are significantly lighter and stronger than conventional alloy wheels. This is essential for the Audi A5, a vehicle celebrated for its graceful handling and sleek lines. The reduction in weight improves the A5’s agility and responsiveness, crucial for a refined driving experience, while the increased strength ensures durability, supporting the vehicle’s premium performance standards. Lifetime Warranty: A Promise of Excellence Our forged wheels are backed by a lifetime warranty, a testament to our dedication to superior craftsmanship and enduring performance. This warranty, covering manufacturing defects, offers you peace of mind and confidence in the long-term reliability and quality of our product. Customization: Tailoring to the A5’s Sleek Design The Audi A5 (2019-2024) is a symbol of automotive elegance, and our wheels are designed to match this level of sophistication. With a broad selection of custom designs and colors, you can personalize your wheels to complement the A5’s stylish and modern aesthetic. Whether you aim for understated elegance or a more striking visual impact, our options cater to every preference, enhancing the unique character of your Audi. Elevating the Audi A5 Experience Known for its luxurious interior and dynamic performance, the A5 deserves wheels that reflect its high-caliber status. Our forged wheels not only improve the vehicle’s handling and stability but also add a visually captivating dimension to its appearance. The design of our wheels is carefully crafted to integrate with the A5’s aerodynamic contours, reinforcing its status as a sophisticated sports coupe. Global Shipping: Bringing Elegance to Your Doorstep Recognizing the global appeal of the Audi A5 (2019-2024), Renegade Design offers worldwide shipping. Our efficient and secure shipping process ensures that your custom wheels are delivered safely and promptly, ready to transform your A5’s performance and style. The Harmony of Art and Performance Each wheel from Renegade Design is a result of our passion for artistry and performance innovation. By using the finest materials and the latest wheel technology, we ensure that each wheel not only fits the Audi A5 (2019-2024) perfectly but also complements its overall persona. Our wheels are a perfect fusion of design and functionality, crafted to enhance the driving experience of this exquisite coupe. Renegade Design’s custom forged wheels for the Audi A5 (2019-2024) offer the ultimate upgrade in style, performance, and personal expression. These wheels are essential for A5 owners who value the perfect harmony of sleek design, agile handling, and distinctive elegance. Order now and transform your Audi A5 into an even more impressive and stylish vehicle.
